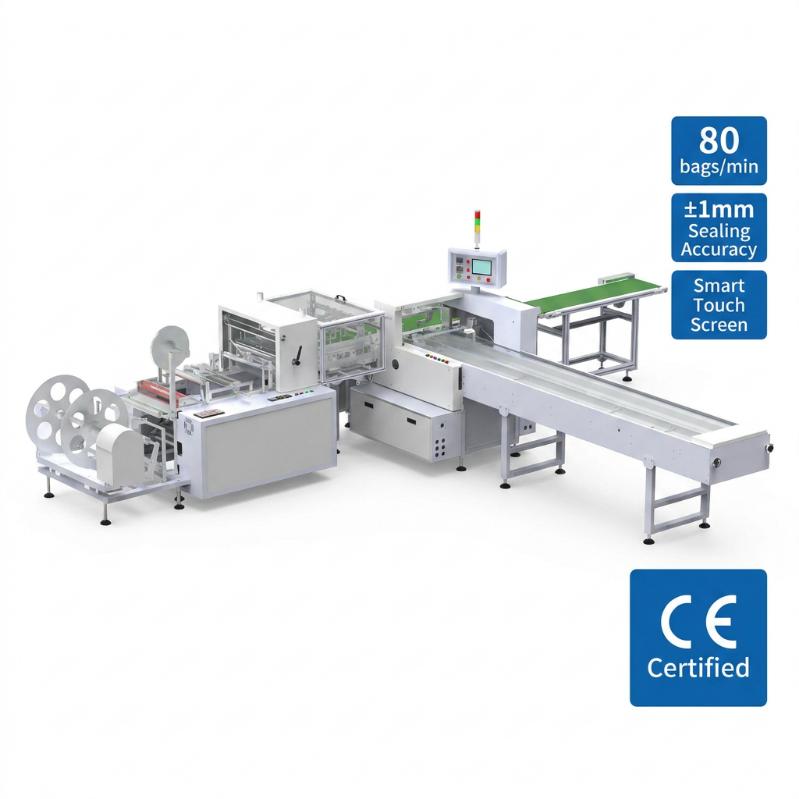

Turn flat printed products into neatly sealed, retail-ready bags without manual bagging. The JEWSHIN automatic bagging machine loads cards, red packets, envelopes, instruction manuals, warranty cards, hang tags, and notebooks into self-adhesive or hot-cut OPP bags at 15–60 pieces per minute — replacing the slow, labor-intensive hand-bagging step common in printing and stationery operations.
1. Two Sealing Configurations — Self-Adhesive or Hot-Cut
Available sealing configurations include self-adhesive flap sealing (the peel-and-seal style used for red packets, envelopes, and greeting cards) and hot-cut heat sealing (a clean, tamper-evident seal for cards, tags, and inserts). JEWSHIN will confirm the right sealing setup based on your bag style and product requirements, so retail-display and bulk-packing needs are covered without sourcing two different machine types.
2. Built for Flat Printed Products and Stationery
The feed and pickup system is engineered for regular sheet products — cards, booklets, document wallets, hang tags, postcards, and warranty cards. This is a bag packaging machine designed around the realities of printing-house and stationery production lines, not a generic unit adapted to them.
3. Auto Deviation Correction — Less Film, Less Waste
An automatic web-guiding system keeps the film aligned throughout the run, reducing skewed seals and product loss. Combined with anti-empty-bag detection (no product, no film feed), the machine stops feeding film when no product is present — directly cutting consumable cost on every shift.
4. One Machine, Multiple Bag Sizes
Bag width is adjustable across the machine's range, so a single unit handles multiple product specifications. When you change bag width, the suction-cup pickup only needs three bags to re-debug — changeover between SKUs is measured in minutes, not hours.
5. Accurate Counting Memory for Downstream Boxing
A built-in counting memory function records piece counts accurately, so bagged output stacks cleanly into fixed-quantity batches for collection and cartoning. For buyers packing greeting cards or manuals in set counts per box, this removes a manual recount step.
6. Optional In-Line Labeling — Label First, Then Bag
The machine can be configured with an integrated labeling station that applies the label before bagging. Positioning error is held within 2 mm, so labels stay straight rather than skewing inside the bag — a frequent complaint with post-bag labeling.
7. One-Key Reset and Dual-Direction Control
One-button reset and bidirectional positioning make production setup and debugging faster, so operators spend less time tuning and more time running.
8. Stable, Durable, 10-Year Service Life
A heavy-duty structure and proven drive design give the equipment a normal service life of about 10 years under routine production loads — an industrial auto bagger, not a light-duty desktop unit.

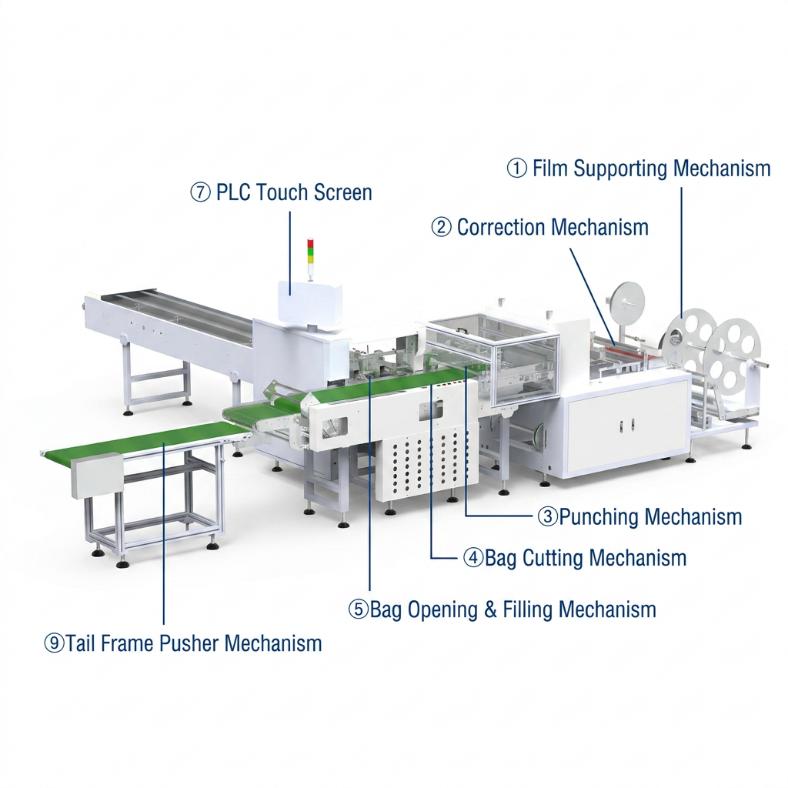

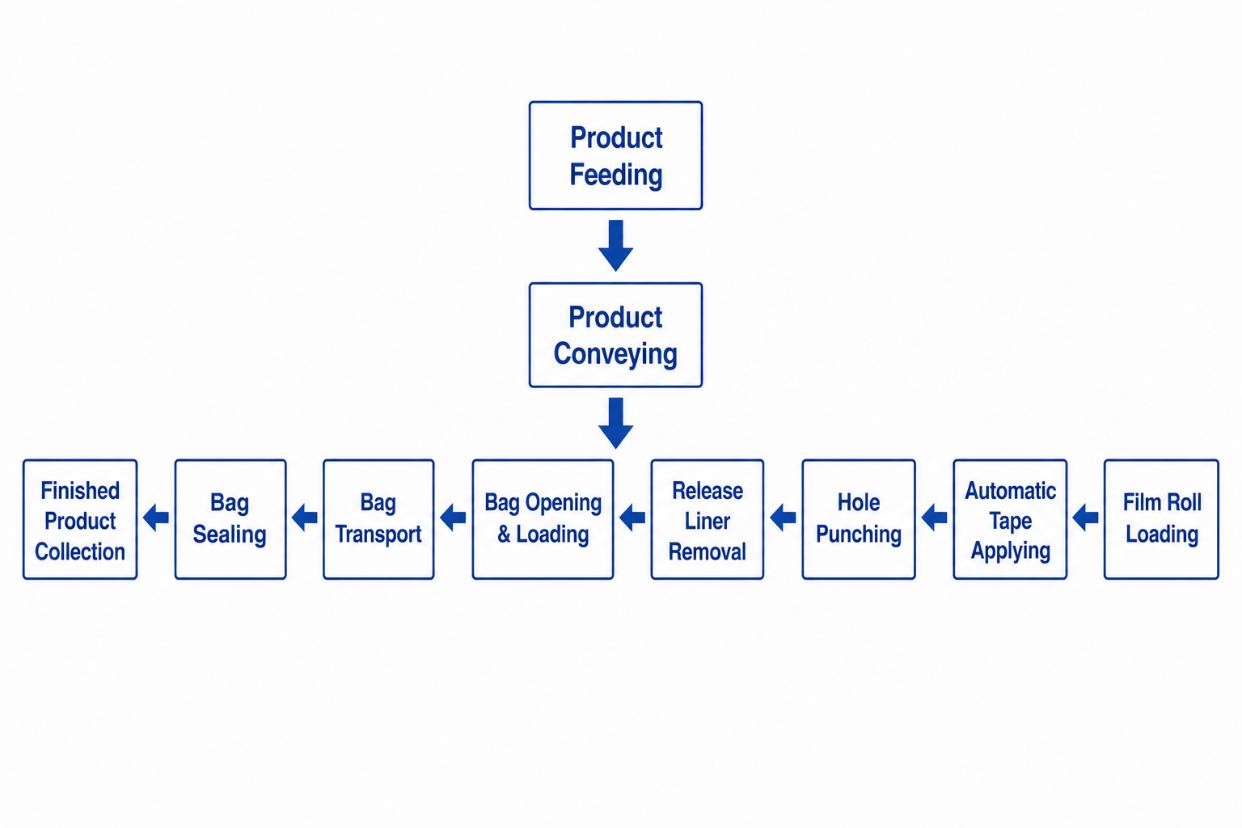

Product Infeed → Film/Bag Opening (Suction-Assisted) → Product Loading → Self-Adhesive Flap Sealing / Hot-Cut Sealing → Counting & Output
The suction-assisted opening structure opens the folded film or bag mouth, the infeed system loads the flat product, and the selected sealing unit closes the package — completing the cycle at 15–60 pieces per minute depending on model and bag size, and feeding counted batches directly to your collection or cartoning station.
Parameter | JX-30-35 | JX-35-50 |
Bagging Width | 100–280 mm | 280–350 mm |
Bagging Length | 100–300 mm | 300–480 mm |
Product Height | 1–10 mm (customizable) | 1–10 mm (customizable) |
Bagging Speed | 40–60 pcs/min | 15–30 pcs/min |
Film Thickness | 0.035–0.05 mm | 0.04–0.05 mm |
Roll Film Outer Diameter | ≤450 mm | ≤450 mm |
Roll Film Format | Pre-folded with tongue opening (flat available), auto deviation correction | Pre-folded with tongue opening (flat available), auto deviation correction |
Tongue (Flap) Length | ≤30 mm (adjusts with product height) | ≤30 mm (adjusts with product height) |
Sealing Method | Self-adhesive sealing or hot-cut sealing | Self-adhesive sealing or hot-cut sealing |
Power Supply | 380V, 50Hz, 13 KW | 380V, 50Hz, 15 KW |
Air Supply Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa |
Machine Dimensions (L×W×H) | 5000 × 4000 × 800 mm | 5000 × 5000 × 800 mm |
Operating Height | 800 mm | 800 mm |
Warranty | 1 year (lifetime maintenance) | 1 year (lifetime maintenance) |
Two models, one buying decision. The JX-30-35 runs smaller bags (100–280 mm wide) at higher speed (40–60 pcs/min) — suited to cards, tags, and standard stationery. The JX-35-50 handles larger bags (280–350 mm wide, up to 480 mm long) at 15–30 pcs/min — for bigger booklets, document wallets, and oversize printed products. Tell us your product dimensions and target output and our engineers will confirm the right model.
This automatic bagging machine is built for regular flat and printed products across several sectors:
Printing & Stationery — JEWSHIN's core export focus; bags greeting cards, postcards, notebooks, hang tags, and labels
Cards & Promotional Products — red packets (hongbao), gift cards, scratch cards, membership cards, trading cards
Documentation & Inserts — instruction manuals, warranty cards, certificates, document wallets, and envelopes
Cosmetics & Personal Care — insert cards, hang tags, and promotional leaflets that accompany retail packaging
Food & Beverage (Non-Liquid) — recipe cards, coupons, and promotional inserts included with packaged goods
E-commerce & Retail Display — retail-ready flat-pack presentation for shelf-displayed printed goods
Applicable Bag / Film Material: Pre-folded OPP and self-adhesive OPP roll film (0.035–0.05 mm), with or without tongue opening; polybag and PE configurations available on request.
Scope note: This machine is designed for regular flat and printed sheet products. For loose products, powders, or liquid pouch filling, a dedicated filler-sealer is the appropriate equipment — contact us and we will recommend the right line.
An auto bagger rarely works alone. This machine is designed to integrate with:
Friction feeders / paging machines (for ordered product infeed)
Labeling machines (label-first-then-bag integration, ≤2 mm error)
Inkjet / TIJ / TTO printers (batch coding on film before or after bagging)
Conveyors and counting systems for batch collection
Carton erectors and case packers for downstream boxing
This lets you build a complete automatic feeding → bagging → counting → cartoning line rather than automating a single station in isolation — a common requirement for buyers scaling from manual bagging to end-of-line automation.
Bag Size — width and length matched to your product dimensions within the model range
Sealing Method — self-adhesive flap or hot-cut (configuration confirmed with JEWSHIN)
Film Format — pre-folded with tongue opening or flat bag
Optional Integration — in-line labeling, inkjet/TIJ/TTO coding, conveyor, counting
Voltage — matched to your local power grid (standard 380V/50Hz; 220V/110V/415V on request)
Branding — your logo on the machine body and control panel
Machine Color — customizable
1-year full machine warranty, lifetime maintenance
Free replacement parts within the warranty period
Professional engineer training — free instruction until your team can operate confidently
24/7 English remote technical support via video call
Overseas engineer installation and commissioning available upon request
Lifetime technical consultation and spare-parts supply
What products is this automatic bagging machine suitable for?
It is designed for regular flat sheet products and printed materials — cards, red packets, envelopes, greeting cards, instruction manuals, warranty cards, document wallets, hang tags, notebooks, and postcards. For loose products, powders, or liquids, a dedicated filler-sealer is recommended instead.
What is the difference between the JX-30-35 and JX-35-50 models?
The JX-30-35 handles smaller bags (100–280 mm wide, up to 300 mm long) at 40–60 pcs/min. The JX-35-50 handles larger bags (280–350 mm wide, up to 480 mm long) at 15–30 pcs/min. Choose based on your product size and required throughput.
Can the machine do both self-adhesive and hot-cut sealing?
Available sealing configurations include self-adhesive flap sealing and hot-cut heat sealing. JEWSHIN will confirm the right sealing setup based on your bag style and product requirements, so you do not need to source two different machine types for different bag styles.
How fast can it bag, and can the bag width be adjusted?
Speed ranges from 15 to 60 pieces per minute depending on model and bag size. Bag width is adjustable within the machine's range, and changing width requires re-debugging only about three bags — so changeover between SKUs is quick.
Does it detect empty bags and save film?
Yes. The anti-empty-bag detection stops film feed when no product is present, and automatic deviation correction keeps the web aligned. Together these features reduce film waste and product loss during production.
Can the bagging machine integrate with a labeling machine or printer?
Yes. It can be configured with an in-line labeling station that labels before bagging (positioning error within 2 mm, so labels stay straight) and with inkjet, TIJ, or TTO coders for batch coding on film. It also connects to conveyors, counters, carton erectors, and case packers.
How accurate is the counting?
The counting memory function records piece counts accurately, so bagged output stacks into fixed-quantity batches — convenient for collection and downstream cartoning without manual recounting.
Is this machine suitable for food pouches or liquid products?
No — this machine is built for regular flat printed products and stationery, not for liquid, powder, or loose-product pouch filling. For those applications, a dedicated liquid or powder filling-sealing machine is the right equipment.
What power supply and air pressure does it require?
Standard configuration: 380V, 50Hz (13 KW for the JX-30-35, 15 KW for the JX-35-50), with air supply pressure of 0.6–0.8 MPa. Voltage can be customized to match your local grid (220V/110V/415V on request).
Do you provide installation, training, and after-sales service?
Yes — online installation guidance, free engineer training until your team operates confidently, an English user manual, a 1-year warranty, lifetime maintenance, 24/7 English remote support, and overseas engineer service on request.
Does JEWSHIN offer OEM or custom options?
Yes. Bag size, sealing method (self-adhesive / hot-cut / both), film format, optional labeling and coding integration, voltage, branding, and machine color can all be customized to your specification.
Tell us your product dimensions, bag style (self-adhesive or hot-cut), target output, and target market voltage — our engineers will confirm the right model (JX-30-35 or JX-35-50) and send a factory quote within 24 hours.
Prefer a call? Our overseas engineering team is available for video consultation to walk through your specific printed-product bagging line before you commit.
