Key Information for Machine Selection
Product Dimensions
Provide the minimum and maximum product:
Length.
Width.
Height.
Weight.
Shape.
Compressibility.
For operations handling many SKUs, include the percentage of orders within each size range. This helps determine whether one machine can cover the majority of your packaging workload.
Packaging Material
Provide:
PE express film or bubble film.
Film thickness.
Film width.
Roll diameter.
Roll weight.
Printed or unprinted format.
Sealability requirements.
Desired bag color and opacity.
Anti-static or other special requirements, if applicable.
Finished-Package Requirements
Define:
Finished bag dimensions.
Seal position.
Required package tightness.
Acceptable excess film.
Surface-protection requirements.
Need for easy opening.
Shipping-label position.
Courier or marketplace requirements.
Production Requirements
State:
Required packages per minute or hour.
Daily order volume.
Working hours and shifts.
Peak-season order volume.
Number and frequency of product-size changes.
Current number of packing operators.
Required connection with upstream or downstream equipment.
Benefits of Automatic Express Bag Packaging
Reduce Repetitive Manual Packing
Automated film feeding, bag formation, and sealing can reduce manual bag opening, product insertion, and package closure. Actual labor requirements depend on product loading, film replacement, labeling, sorting, and exception handling.
Improve Packaging Consistency
Controlled film movement and sealing can support more consistent finished-bag dimensions and seal appearance. Compatibility should be verified with actual products and film.
Handle Bulky E-Commerce Products
Support for film widths up to 700 mm and product heights up to 120 mm allows the machines to be evaluated for larger apparel, boxes, and protective packaging applications.
Combine Packing and Labeling
Optional labeling integration can reduce the transfer between packaging and waybill application. Data matching and verification requirements should be defined during project planning.
Support Peak-Season Capacity
Automated packaging may help fulfillment operations process repeat orders more consistently during demand peaks. Practical output should be validated under representative operating conditions.
Reduce Avoidable Material Use
Controlled film feeding and bag-length settings may help reduce unnecessary film compared with poorly matched manual bag sizes. Expected savings should be calculated from actual material consumption data.
How to Choose the Right Express Bag Packaging Machine
Choose the Protection Level
Use PE express film when the main requirements are containment, concealment, and shipping preparation. Consider bubble film when the product requires cushioning or surface protection.
Measure the Complete Product Range
Provide the smallest and largest products, but also include the most common sizes. Do not choose a machine using only one sample or the maximum film width.
Confirm Film Compatibility
Submit the intended film specification and, where possible, an actual roll for testing. Film thickness, roll condition, friction, and sealing properties can affect operation.
Define Labeling and Data Requirements
If shipping labels are required, describe both the physical label application and the digital order-data process.
Establish Practical Output
Set a target based on normal and peak order volumes. Include product loading, film replacement, size changes, label replacement, and exception handling.
Test Representative Products
Use products from the complete range, including:
The smallest and largest items.
The lightest and heaviest items.
Soft and rigid products.
Boxed and irregular products.
Products with sharp edges.
Single-item and multi-item orders.
Frequently Asked Questions
What is an express bag packaging machine?
An express bag packaging machine automatically packages products in shipping film, such as PE poly mailer film. Depending on the configuration, it may feed film, form the package, seal it, and connect with an automatic shipping-label application system.
What is the difference between the JX-700X and JX-700XQ?

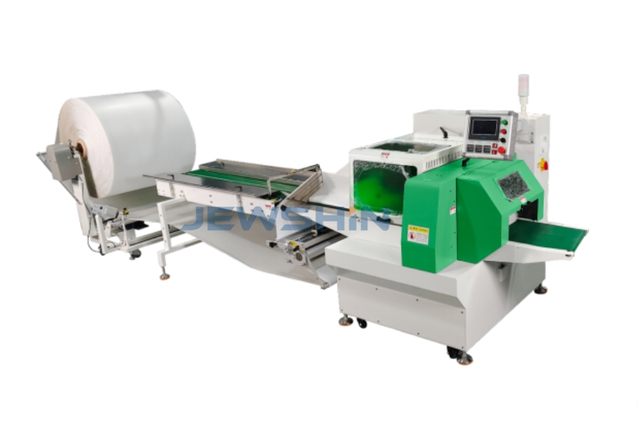

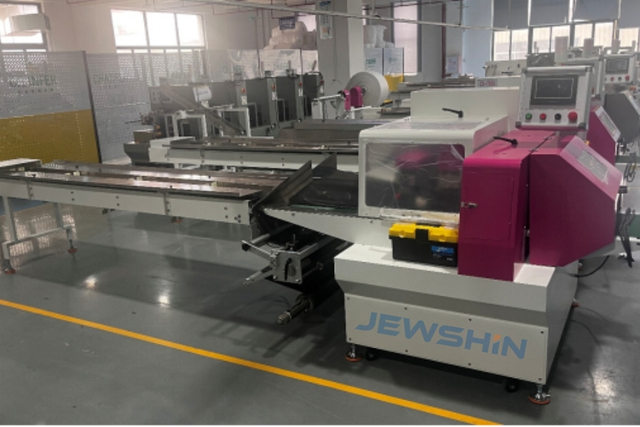

The JX-700X is designed for PE express film used in e-commerce and courier packaging. The JX-700XQ is designed for air bubble film and includes a dedicated support mechanism for bulky bubble-film rolls.
What products can the JX-700X package?
Typical applications include clothing, winter coats, shoe boxes, textiles, boxed products, and multi-item e-commerce orders. Final suitability depends on dimensions, weight, shape, film, and finished-package requirements.
What products can the JX-700XQ package?
Typical applications include lamps, electronics, hardware, small appliances, and other fragile or irregular goods requiring bubble-film protection. Sample testing is recommended.
What is the maximum film width?
Both models support film widths up to 700 mm. Film width is not the same as maximum product width. The necessary film allowance depends on product width, height, and package shape.
What is the maximum product height?
The listed maximum product height is 120 mm. The complete product dimensions and shape must still be reviewed to confirm compatibility.
Can the JX-700X apply shipping labels automatically?
It can be integrated with an automatic labeling machine. Confirm label size, application position, print method, data source, communication, and verification requirements.
Can one machine use both PE express film and bubble film?
Do not assume that the same configuration can process both materials. The JX-700X is intended for PE express film, while the JX-700XQ has a dedicated mechanism for bubble film.
Can the machines package products of different sizes?
Different product sizes may be supported within the machine’s working range. Confirm adjustment requirements, bag-length settings, changeover procedures, and the practical size range using actual samples.
How fast can an express bag packaging machine operate?
Practical output depends on product dimensions, loading method, film properties, seal settings, bag length, labeling process, and connected equipment. Request a tested output range based on your application.
Can bubble packaging replace all other protective packaging?
Not necessarily. Required protection depends on product fragility, weight, shape, shipping method, and drop or compression risks. Packaging performance should be validated against your distribution requirements.
Should I send samples before ordering?
Yes. Send representative products and the intended film so product fit, feeding, sealing, package appearance, and practical output can be evaluated.
Request an Express Bag Packaging Solution
Send the following information for a machine recommendation and quotation:
Product type: Apparel, box, electronics, hardware, lamp, or another product.
Product dimensions: Minimum and maximum length, width, and height.
Product weight: Minimum and maximum packaged weight.
Packaging material: PE express film or bubble film.
Film specifications: Material, thickness, width, roll diameter, and roll weight.
Finished package: Required dimensions, seal position, and appearance.
Output: Normal and peak packages per hour.
Labeling: Label size, position, print data, and system-integration requirements.
Workflow: Manual loading or connection with other equipment.
Installation: Destination country, available space, and power supply.
Samples: Representative products and film for testing.
