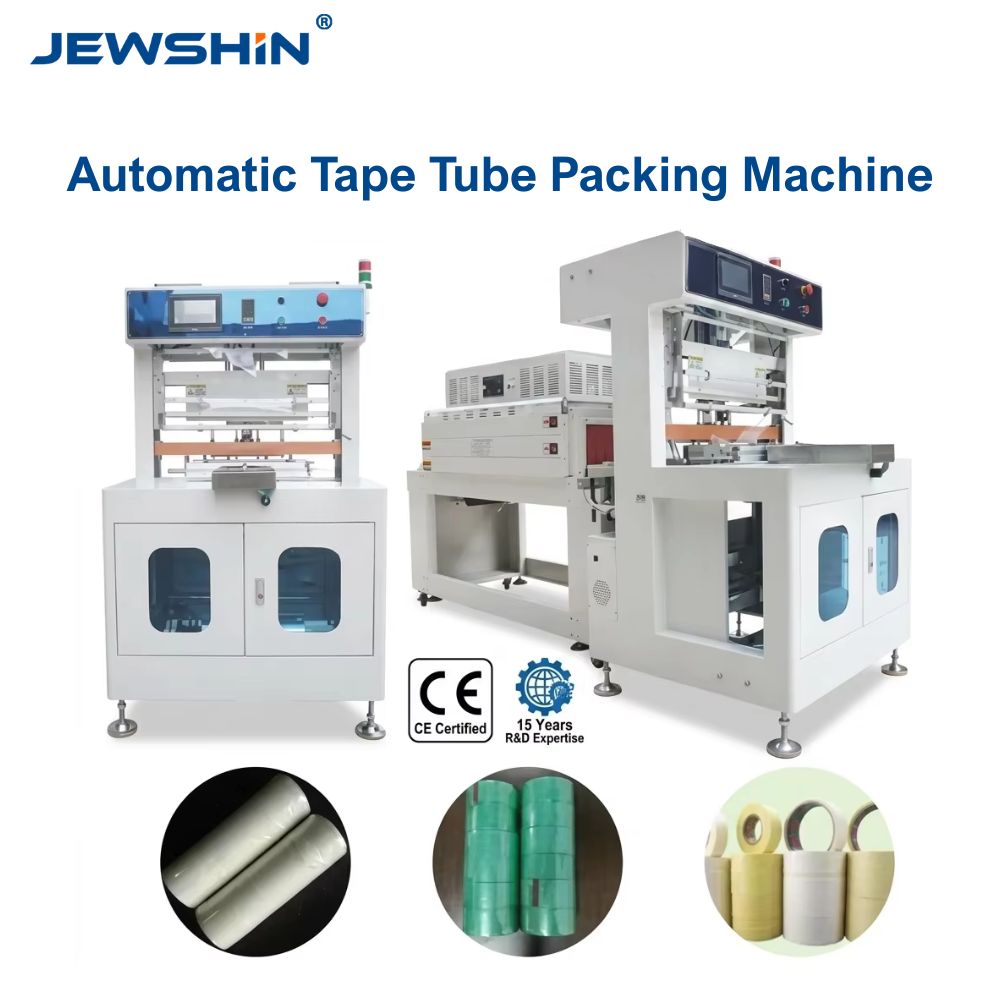

Adhesive Tape Shrink Tube Packing Machine — JX-1010 & JX-1020

Section 1 — Product Overview

The JX-1010 and JX-1020 are purpose-built shrink tube packing machines designed for adhesive tape manufacturers, distributors, and contract packagers. Both models accept a wide range of roll formats — including BOPP packing tape, masking tape, stationery tape, washi tape, grid tape, and warning tape — making them a single-platform solution for facilities that run multiple tape SKUs.

The two models address different production volumes and labor configurations:

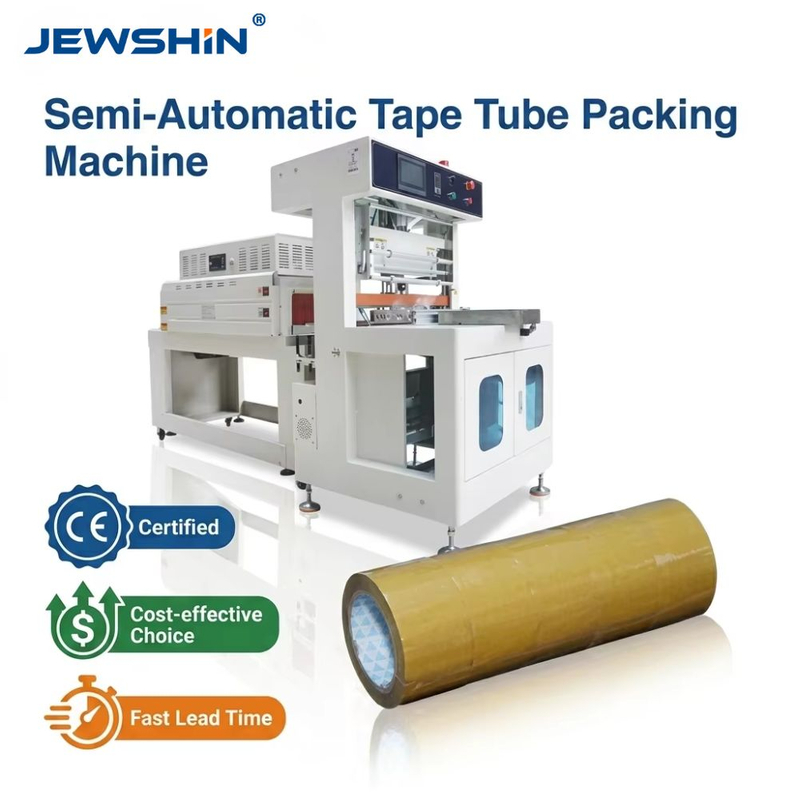

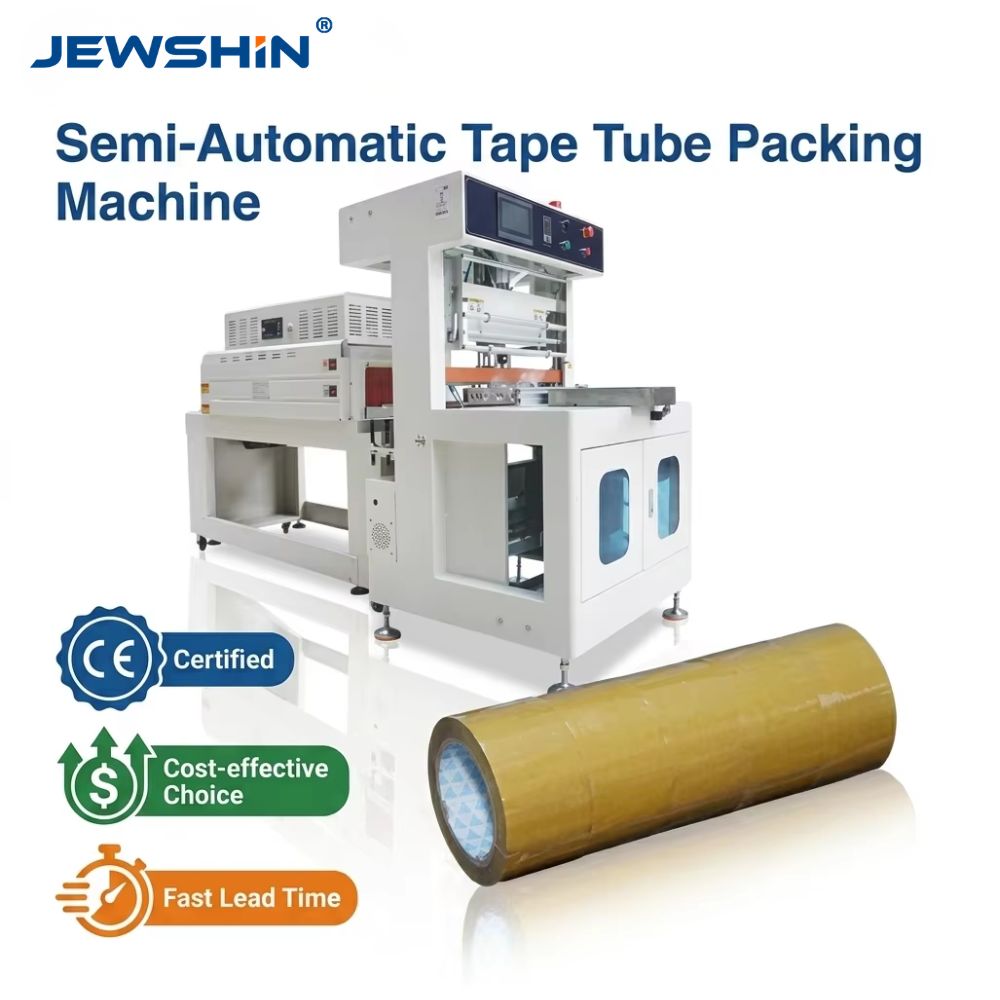

• JX-1010 (Semi-Automatic): Operator manually stacks rolls onto the flat plate. The machine handles sealing, cutting, and shrink wrapping. Ideal for facilities with moderate output or mixed-product lines where operator control is preferred.

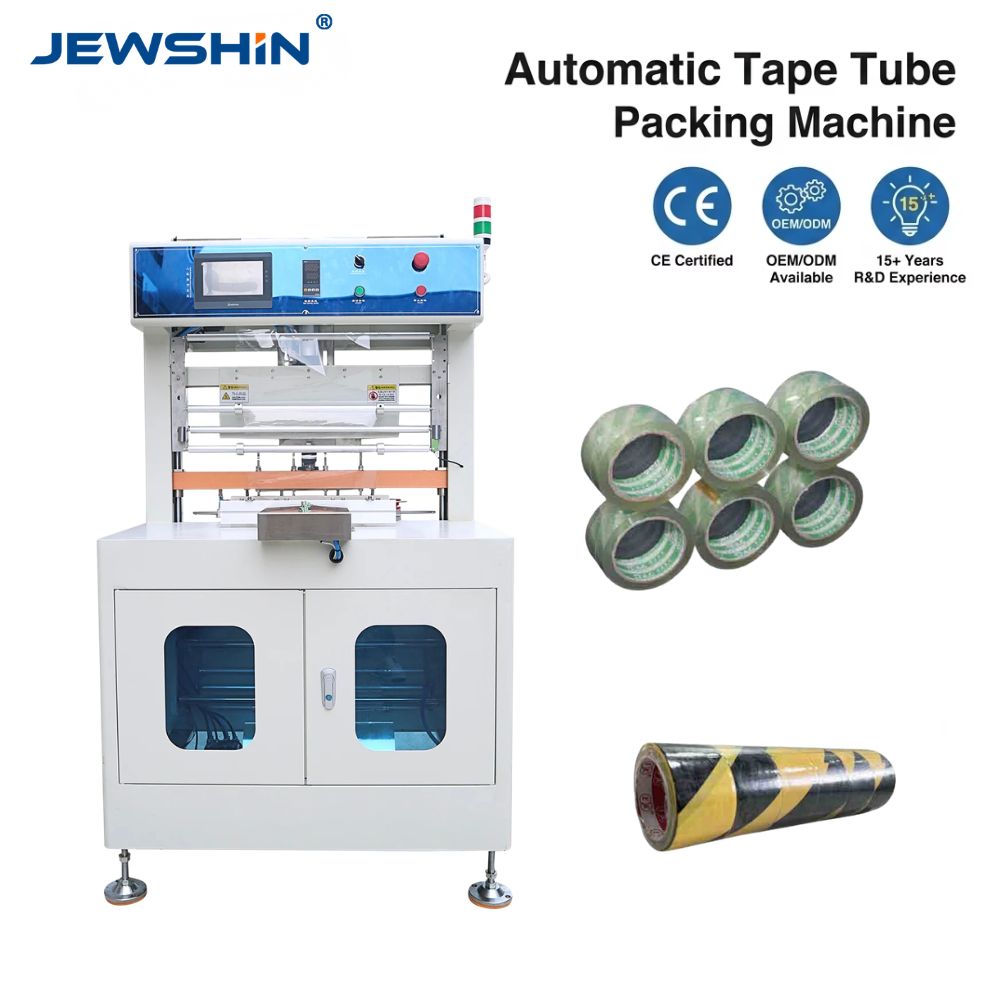

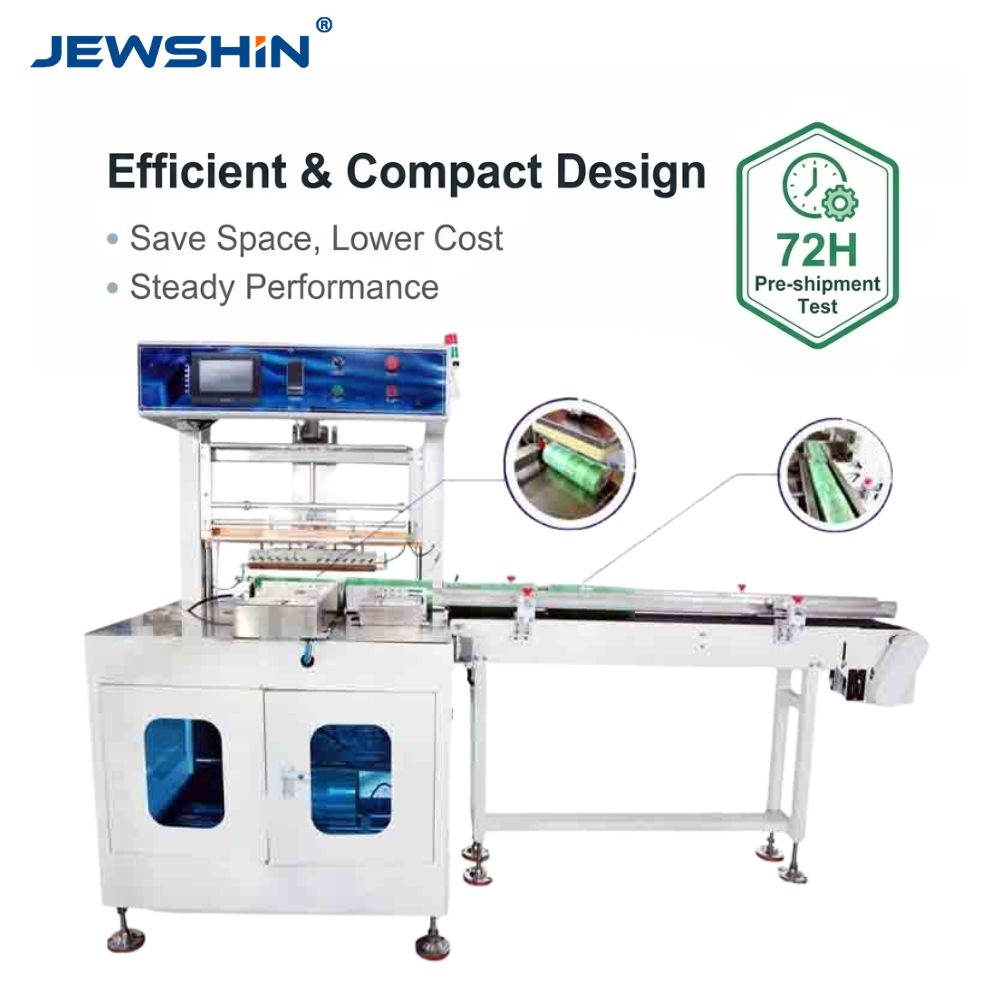

• JX-1020 (Fully Automatic): Servo-driven infeed conveyor automatically feeds and aligns rolls. PLC touch screen HMI manages the entire cycle. Designed for continuous, high-volume production with minimal operator intervention.

Both models use PVC, POF, or PE heat-shrinkable film and produce clean, tight, retail-ready packages. A separate shrink tunnel — included as part of the line — provides uniform heat distribution for consistent film shrinkage across every package.

Section 2 — Why Choose the JX-1010 / JX-1020

Universal Tape Compatibility

Both models handle the full range of adhesive tape roll formats within the same size envelope: H 10–185 mm, L 50–400 mm. Switch between BOPP packing tape, masking tape, washi tape, or stationery tape without major mechanical changeover. Diameter adjustments are made via quick-set mechanisms — no tooling required.

Dual Packaging Mode (JX-1010)

The semi-automatic JX-1010 supports both single-roll wrapping and vertical tube/tower stacking in flat-plate format. Operators can arrange rolls side-by-side or in tower configuration depending on the retail display format required.

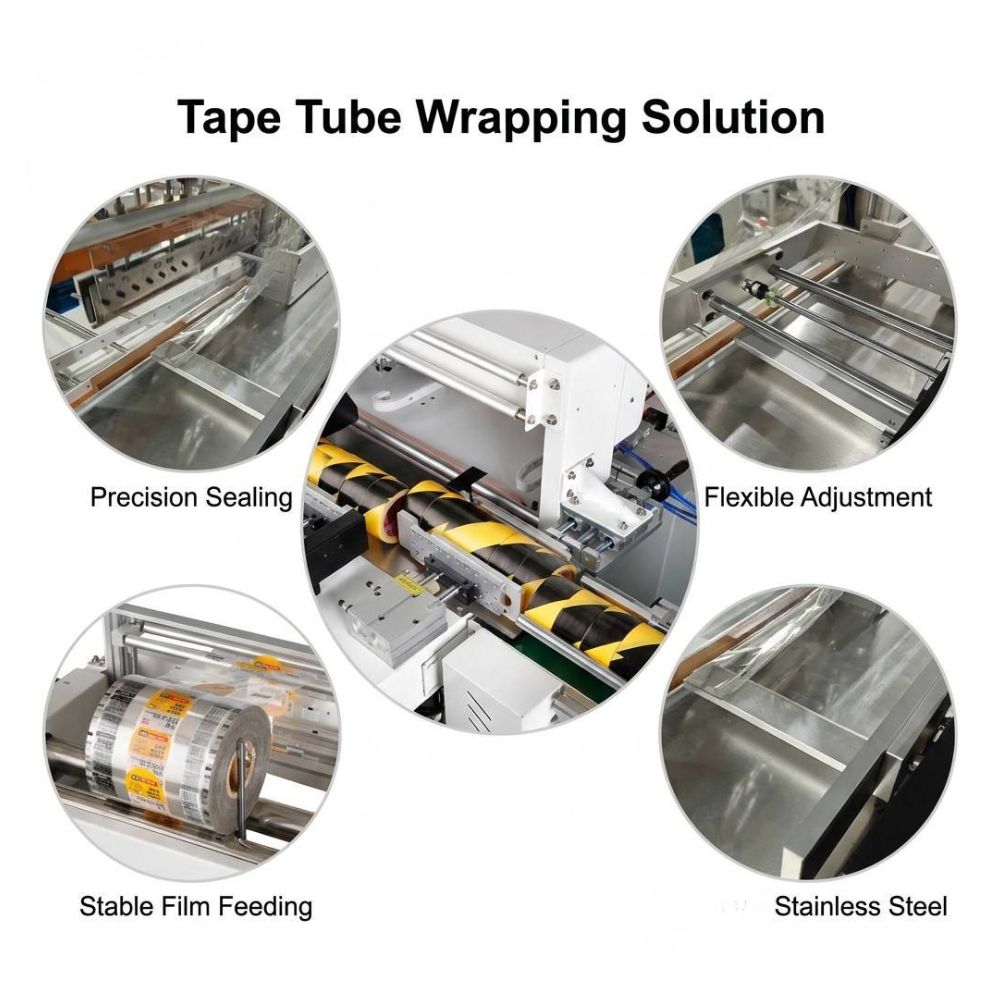

Precision Sealing with Custom Blades

The sealing unit uses application-specific custom blades machined for clean, smoke-free seals. There are no burn marks, no film tearing, and no uneven edges — important for retail shelf presentation and export packaging compliance.

Full Stainless Steel Frame

All product-contact surfaces and the main structural frame are 304 stainless steel. The build withstands continuous shift production and is easy to clean in environments where tape residue or adhesive transfer is a concern.

Stable Film Feeding System

The film unwinding and tension system is engineered for consistent feed across different film types (PVC, POF, PE) and roll widths. Film breaks and wrinkles — the two most common causes of line stoppages — are significantly reduced compared to general-purpose shrink wrappers.

Rapid Size Changeover

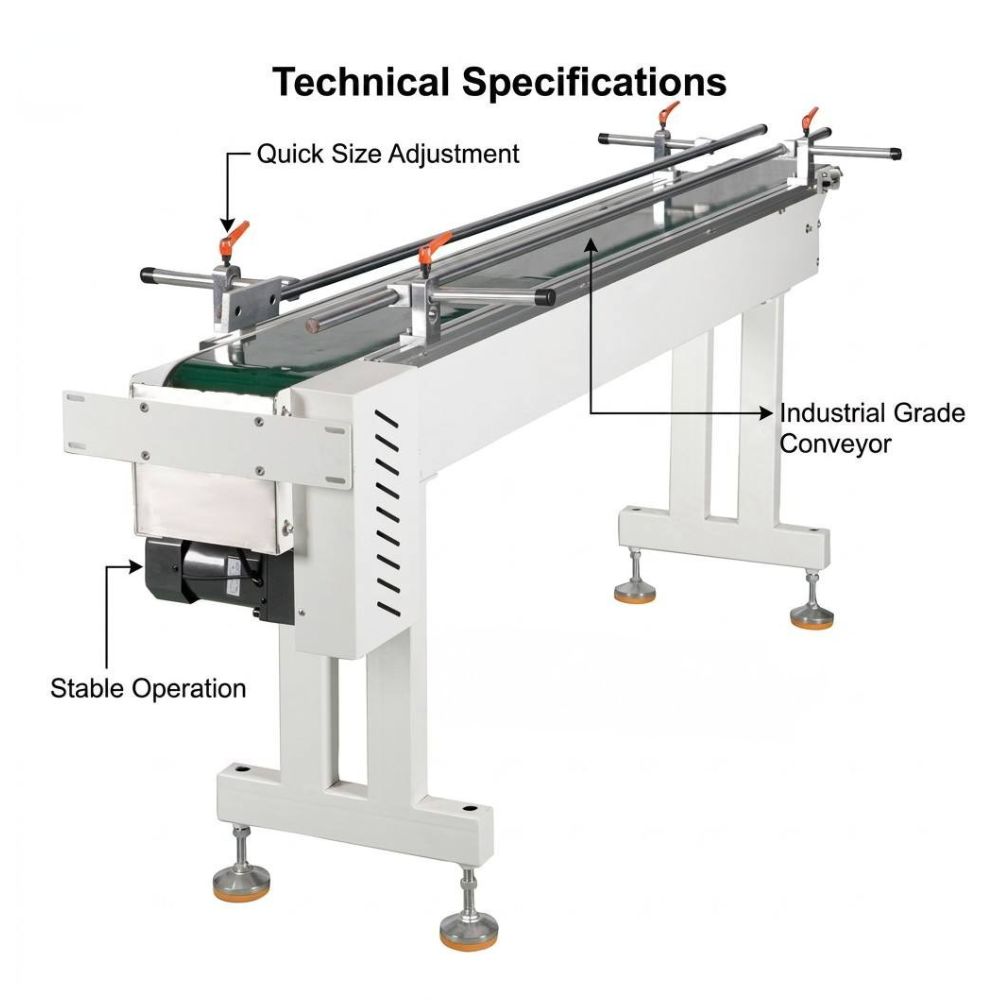

Adjusting for a new tape diameter or stack height takes under 5 minutes. The JX-1020's servo-driven infeed conveyor adds electronic width and pitch adjustment via the HMI, further reducing changeover time on fully automatic lines.

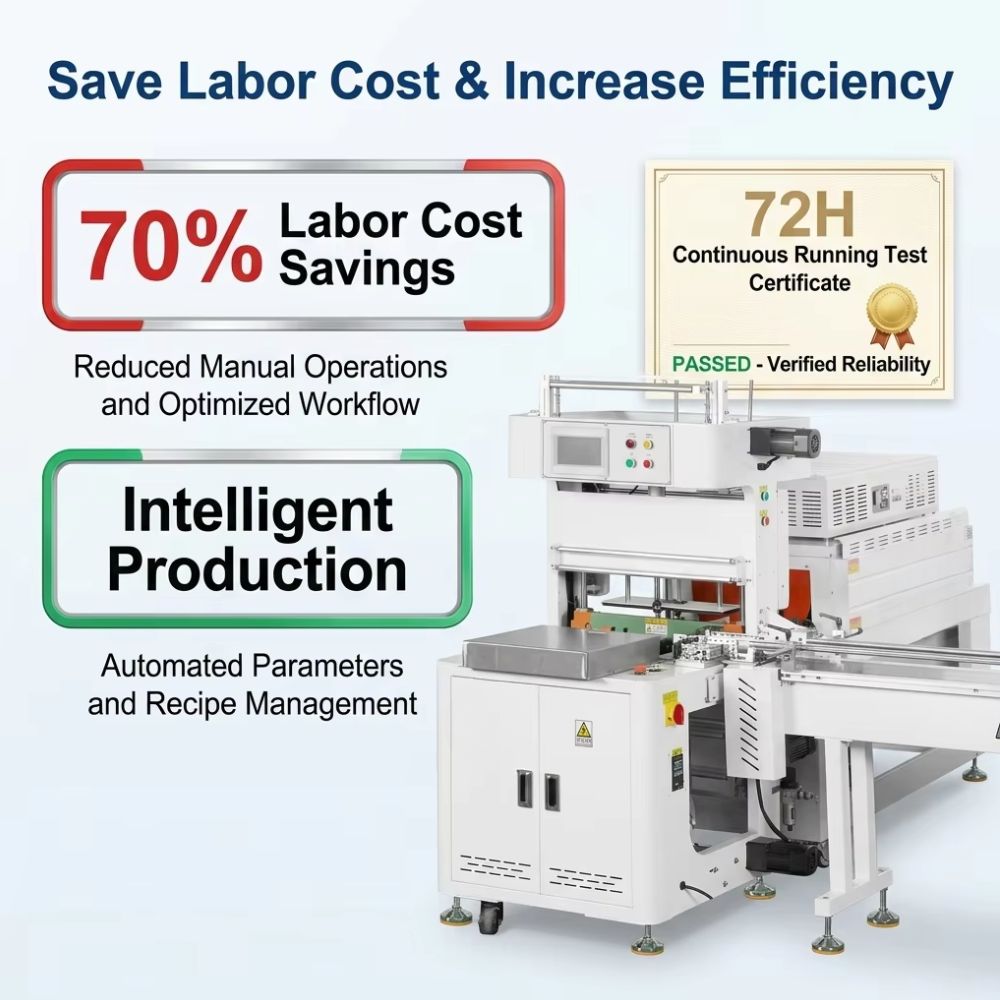

70% Labor Cost Reduction

Running the JX-1020 at full auto reduces the manual headcount required from 3–4 operators to 1 supervisor, cutting direct labor costs by up to 70% on a per-shift basis. The JX-1010 semi-auto configuration still reduces labor by roughly 50% compared to fully manual wrapping.

72-Hour Pre-Shipment Run Test

Every machine completes a 72-hour continuous operational test at the Dongguan factory before shipment. Any adjustment or component issue is identified and corrected before the machine leaves the facility — not on your production floor.

Section 3 — How It Works: The Full Packaging Process

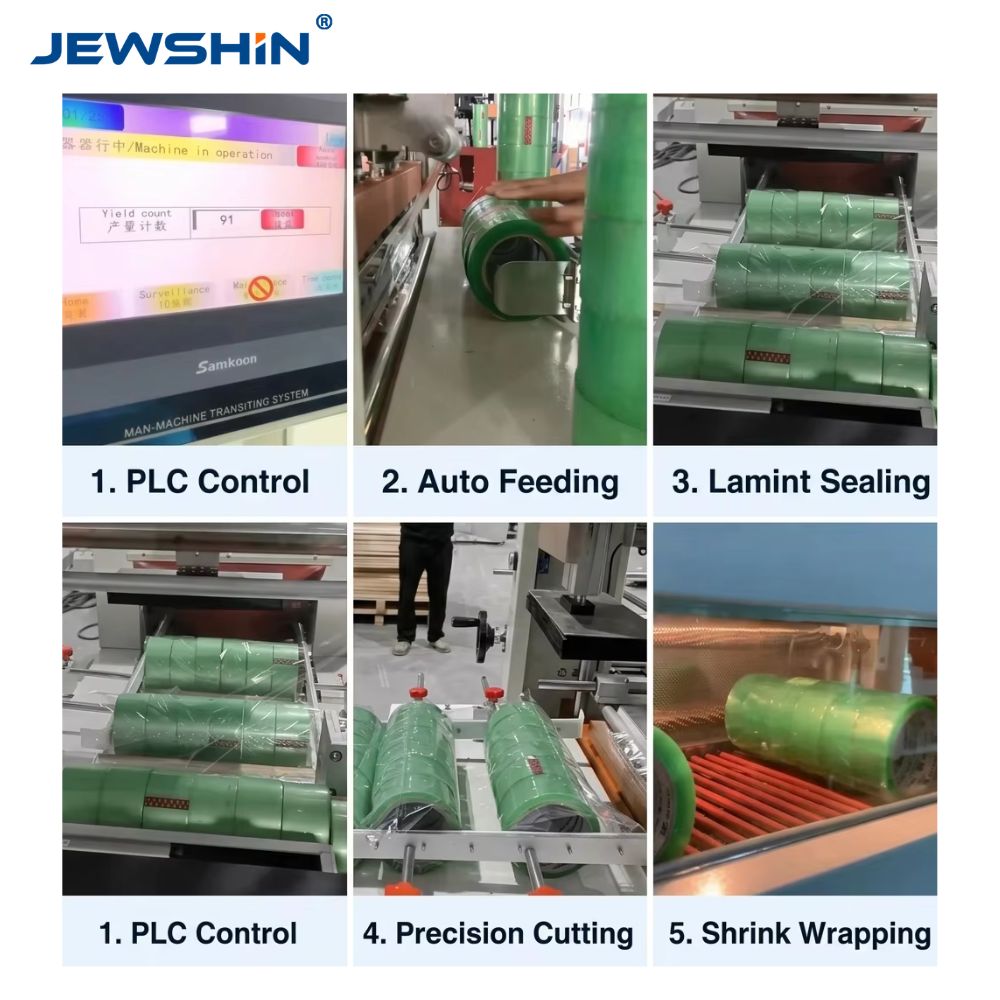

The JX-1010/JX-1020 line operates as a five-stage process:

1. PLC Control

The touch screen PLC sets and monitors all process parameters — sealing temperature, conveyor speed, shrink tunnel temperature, and cycle count. On the JX-1020, the PLC also controls the servo-driven infeed sequence.

2. Auto Feeding (JX-1020) / Manual Flat-Plate Loading (JX-1010)

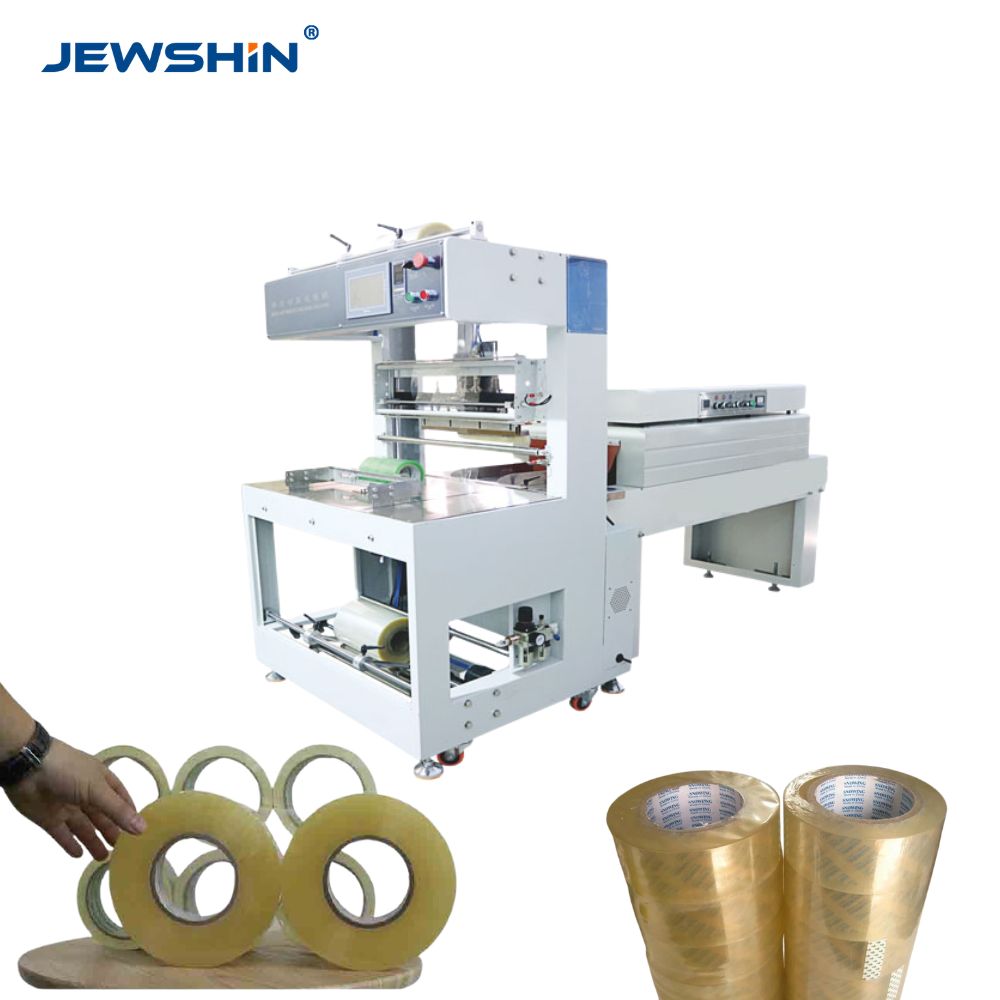

On the JX-1020, the infeed conveyor automatically positions rolls in the correct orientation for sealing. On the JX-1010, the operator places rolls on the flat plate in single-roll or tube stack configuration.

3. Laminating Sealing

The film wraps around the roll(s) and the sealing unit forms the top and bottom seals. Custom-machined blades produce clean, consistent seals with no film distortion.

4. Precision Cutting

The cutting mechanism separates each wrapped package from the film roll. The cut is flush and clean, with no tails or rough edges.

5. Shrink Wrapping

The sealed package passes through the shrink tunnel on a conveyor belt. Controlled heat causes the film to shrink tightly around the tape roll(s), producing a firm, transparent, retail-ready package.

Section 4 — Machine Structure

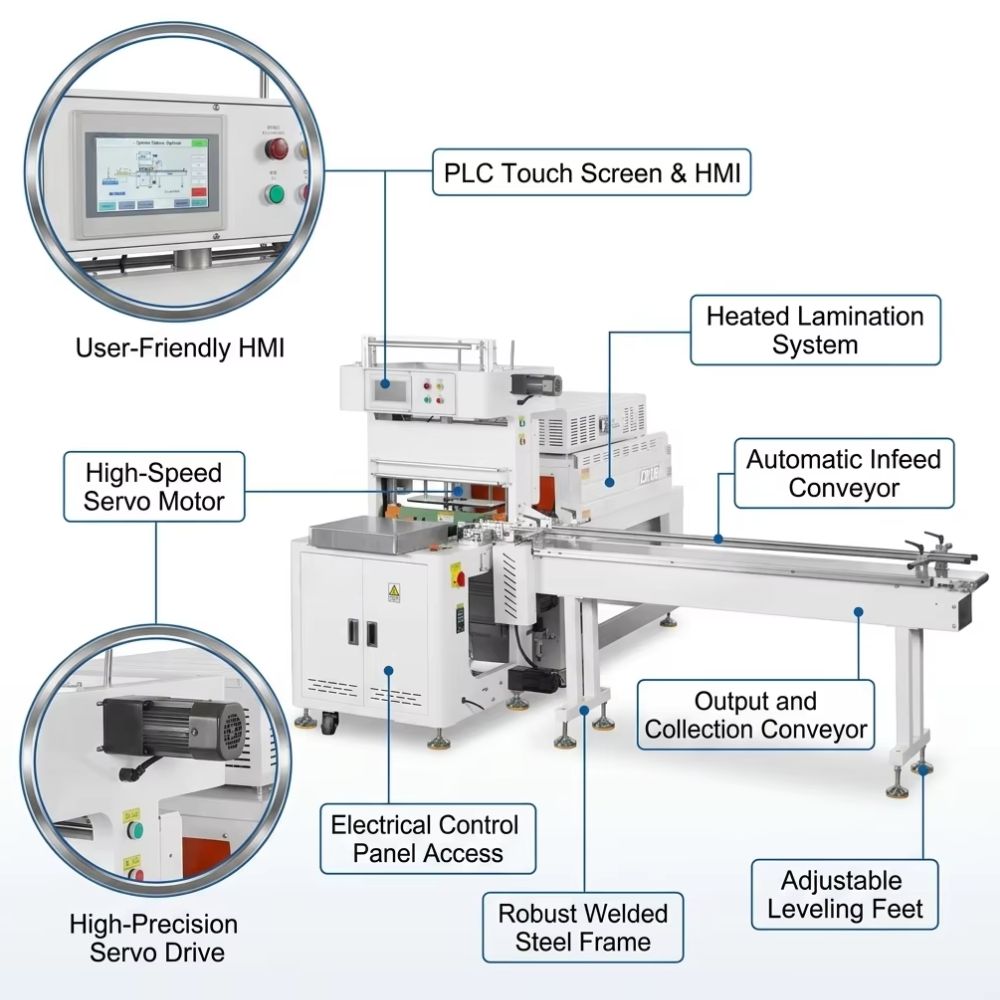

JX-1020 Fully Automatic — Key Components

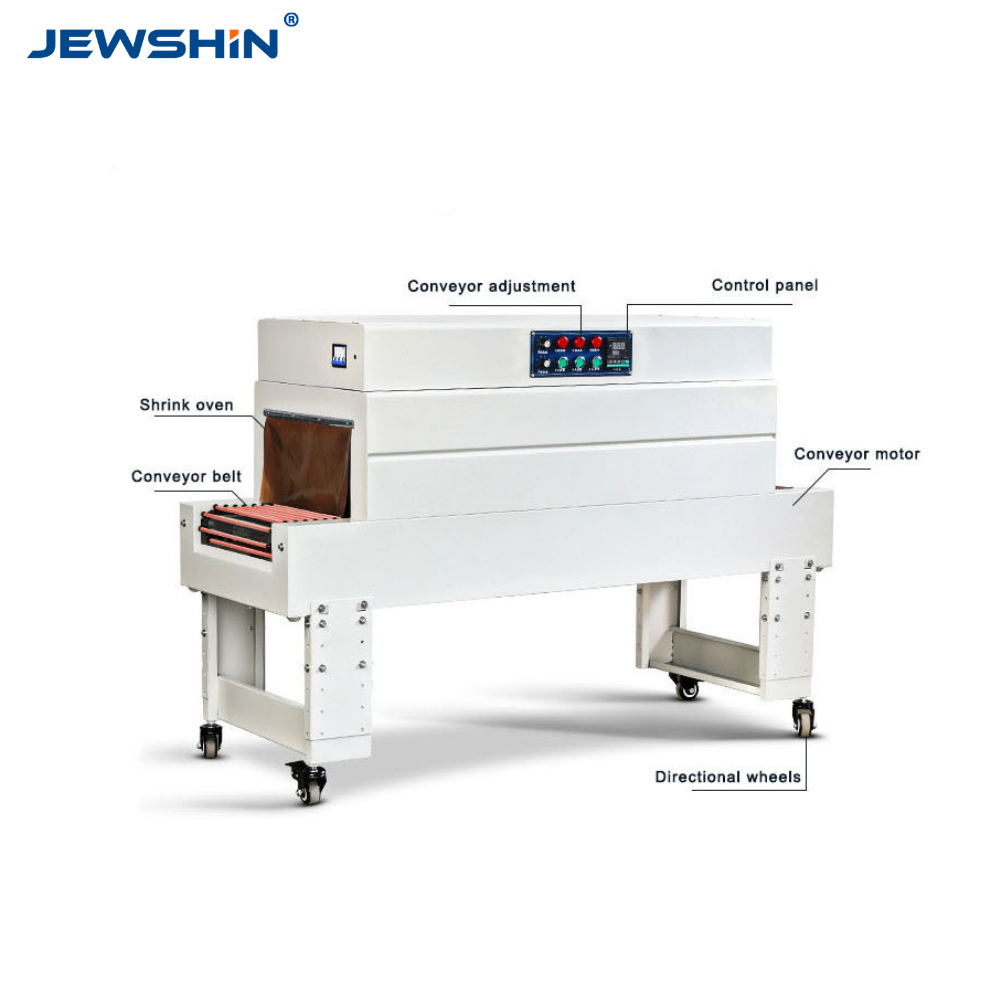

Shrink Tunnel — Component Breakdown

Section 5 — Finished Packaging Samples

The JX-1010 and JX-1020 produce consistent, tight-wrapped packages across all supported tape types:

• BOPP packing tape — single-roll and multi-roll tube formats, transparent film

• Masking tape / washi tape — single-roll and vertical tower stacks, green or colored tape rolls

• Warning / hazard tape — single rolls in clear or printed film

• Stationery tape / grid tape — mixed-format tube packs for retail display

Film shrinks uniformly with no wrinkles, whitening, or loose patches. The finished packages are suitable for direct retail shelf placement, export carton packing, or Amazon FBA prep.

Section 6 — Technical Specifications

JX-1010 Semi-Automatic Tape Tube Packing Machine

JX-1020 Fully Automatic Tape Tube Packing Machine

Section 7 — Application Scenarios

The JX-1010 and JX-1020 are deployed across a broad range of production environments:

Adhesive Tape Manufacturers

Factories producing BOPP, PVC, masking, or washi tape use the JX-1010/JX-1020 as the final packaging step before carton packing or shipment. The machines handle direct inline integration with existing slitting and rewinding lines.

Tape Distributors & Contract Packagers

Distribution facilities that repack bulk rolls into retail-ready units use the JX-1010's flat-plate mode to quickly switch between single-roll and tube-stack configurations without dedicated changeover tooling.

Export & Amazon FBA Preparation

Both models produce packages that meet the transparent-film and tight-wrap standards required for export carton packing, Amazon FBA prep, and retail shelf display. The film types — PVC, POF, PE — all comply with common import market requirements.

Stationery & Office Supplies Brands

Stationery tape, mini-roll gift tape, and decorative washi tape producers use the JX-1010/JX-1020 for both single-roll and multi-roll gift set packaging, with fast changeover between product SKUs.

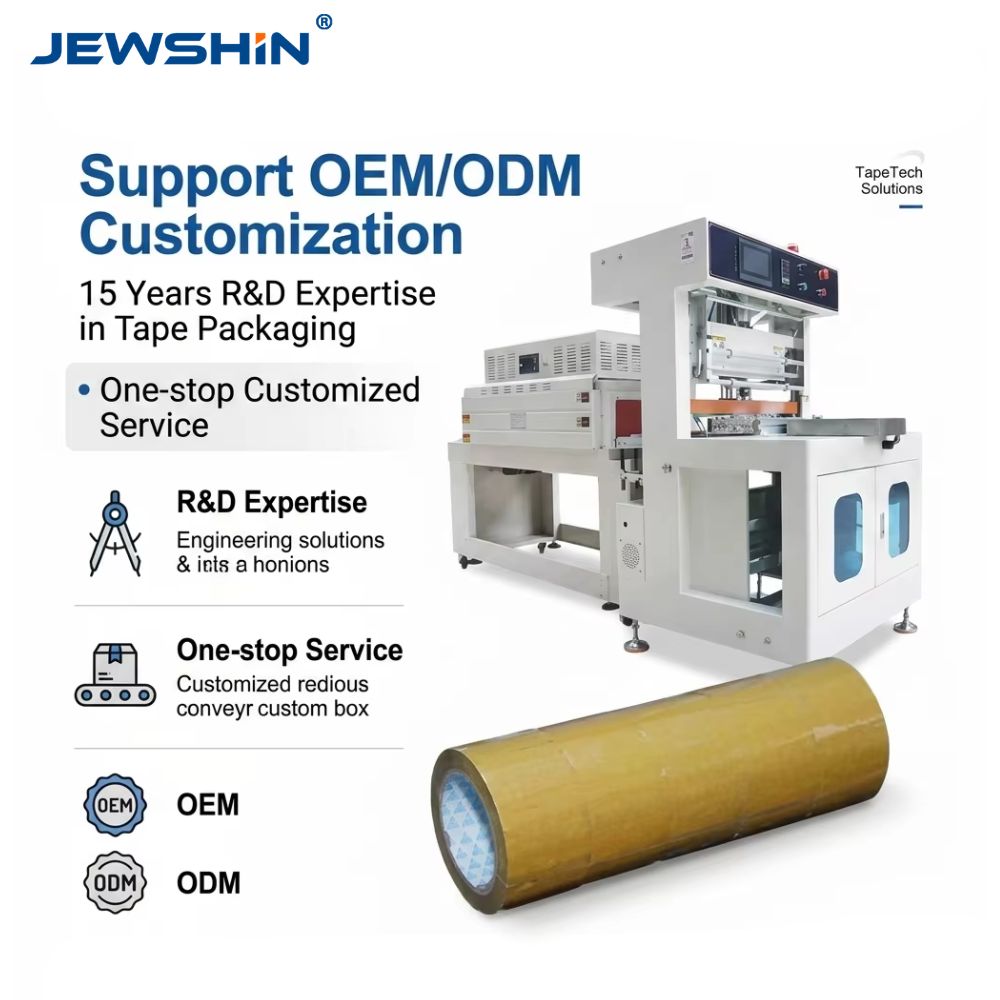

OEM/ODM Custom Packaging

For brand owners requiring custom film printing, label integration, or non-standard roll dimensions, Jewshin offers full OEM/ODM customization backed by 15+ years of R&D experience and a dedicated engineering team.

Section 8 — Service & Support

Factory Direct Supply

All Jewshin machines are designed, manufactured, and tested at our Dongguan facility. No middlemen — direct pricing, direct technical support, and full traceability on every machine shipped.

CE Certified

Both the JX-1010 and JX-1020 carry CE certification. Documentation packages for EU import, customs clearance, and end-customer compliance are provided with every order.

Pre-Shipment 72H Run Test

Every machine completes a full 72-hour continuous run test before dispatch. Video documentation of the test run is available upon request.

Technical Support — 5-Minute Response

Our technical team responds to inquiries within 5 minutes during business hours. Remote diagnostics via video call, spare parts supply, and on-site engineer dispatch are available for international customers.

OEM/ODM Customization

Machine dimensions, film type compatibility, conveyor configurations, HMI language, and custom branding are all available. Contact our engineering team with your specifications for a formal feasibility review.

Export Coverage

Jewshin machines currently operate in 80+ countries. Our logistics team handles export documentation, shipping coordination, and customs declaration support.

Section 9 — Frequently Asked Questions

Q1: What types of adhesive tape can the JX-1010 and JX-1020 wrap?

Both models handle BOPP packing tape, masking tape, washi tape, stationery tape, grid tape, and warning tape. The applicable roll size range is H 10–185 mm × L 50–400 mm. Rolls outside this range require a customized configuration — contact our engineering team.

Q2: What is the difference between the JX-1010 and JX-1020?

The JX-1010 is semi-automatic: the operator manually places rolls on the flat plate in single-roll or tube-stack arrangement, and the machine handles sealing, cutting, and shrink wrapping. The JX-1020 adds a servo-driven infeed conveyor that automatically feeds and positions rolls, reducing the operator role to line supervision. The JX-1020 also achieves a slightly higher peak speed (25 pcs/min vs. 20 pcs/min). Both machines share the same core sealing unit and shrink tunnel.

Q3: What film types are compatible?

Both models accept PVC, POF, and PE heat-shrinkable film. Film roll width and core diameter can be configured at the time of order. If you are currently using a specific film specification, share the details with our team and we will confirm compatibility before purchase.

Q4: How long does it take to change over between different tape sizes?

Diameter and stack height adjustments take under 5 minutes using the quick-set mechanisms. No special tooling is required. On the JX-1020, electronic width adjustment via the HMI further speeds up changeover on the infeed conveyor.

Q5: Is the shrink tunnel included with the machine?

Yes. The complete packaging line consists of the sealing/wrapping unit (JX-1010 or JX-1020) plus the matched shrink tunnel. Both are shipped together and are pre-configured to operate as a system.

Q6: What power supply is required?

Both models run on AC 200–240V, 50–60Hz, single-phase power at 400W. This is compatible with standard industrial power supplies in most markets. If your facility runs on a different voltage or frequency standard, contact us for transformer recommendations.

Q7: Do you offer OEM/ODM customization?

Yes. Jewshin supports full OEM/ODM customization including machine color, HMI language, custom film compatibility, conveyor length, and branded documentation. Minimum order and lead time depend on the scope of customization. Contact wendy@jewshin.com with your requirements.

Q8: What warranty and after-sales support do you provide?

All machines include a 12-month warranty on parts and workmanship. Technical support is available within 5 minutes of contact during business hours via email, WhatsApp, or video call. Spare parts are stocked and shipped internationally. On-site engineer support is available for international customers upon request.

Get a Quote for the JX-1010 or JX-1020

Tell us your tape roll specifications, target packing speed, and production setup, and our team will recommend the right model and configuration.
