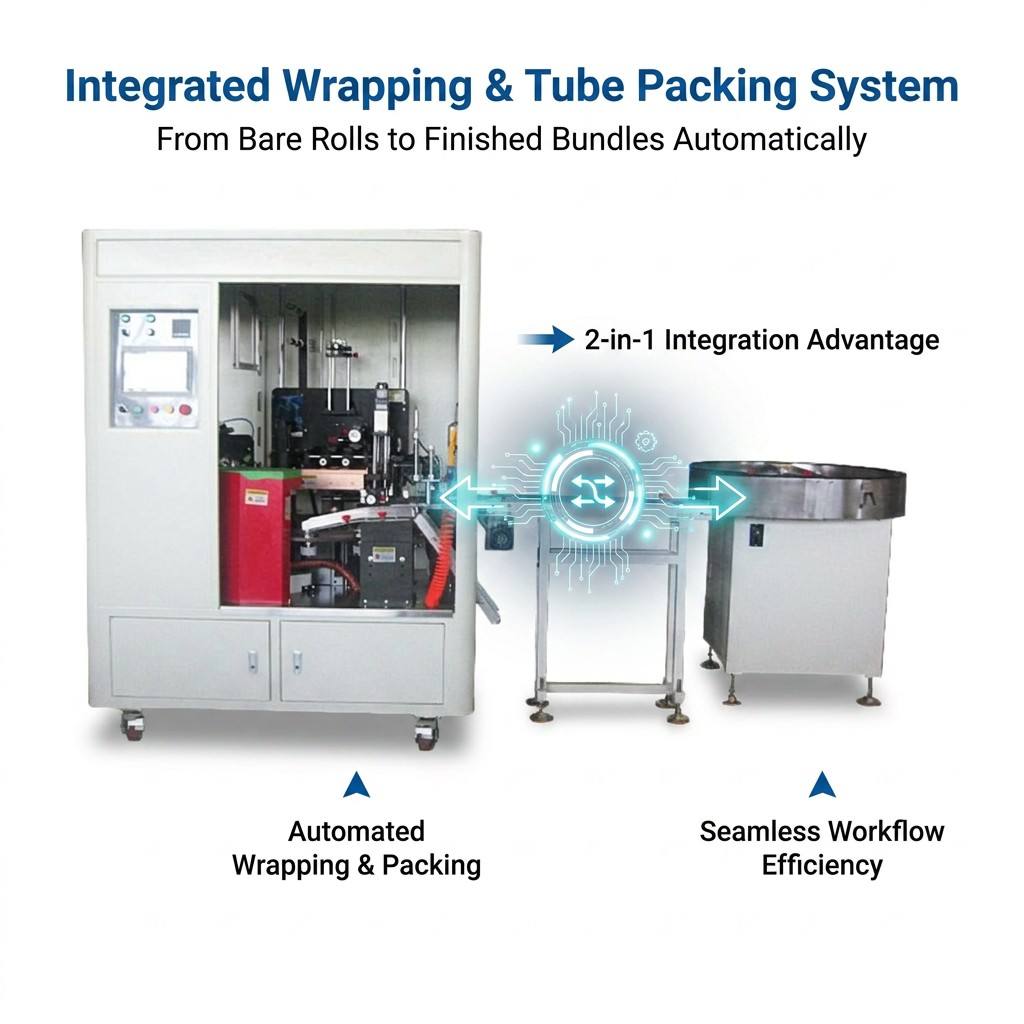

2-in-1 Integration: From Bare Roll to Finished Bundle in One Line
Most tape factories run individual wrapping and tube packing as two separate manual steps. The JX series combines both into a single automated flow — tape rolls go in unwrapped, finished tube packs come out the other end. No buffer stations, no extra labor between stations.

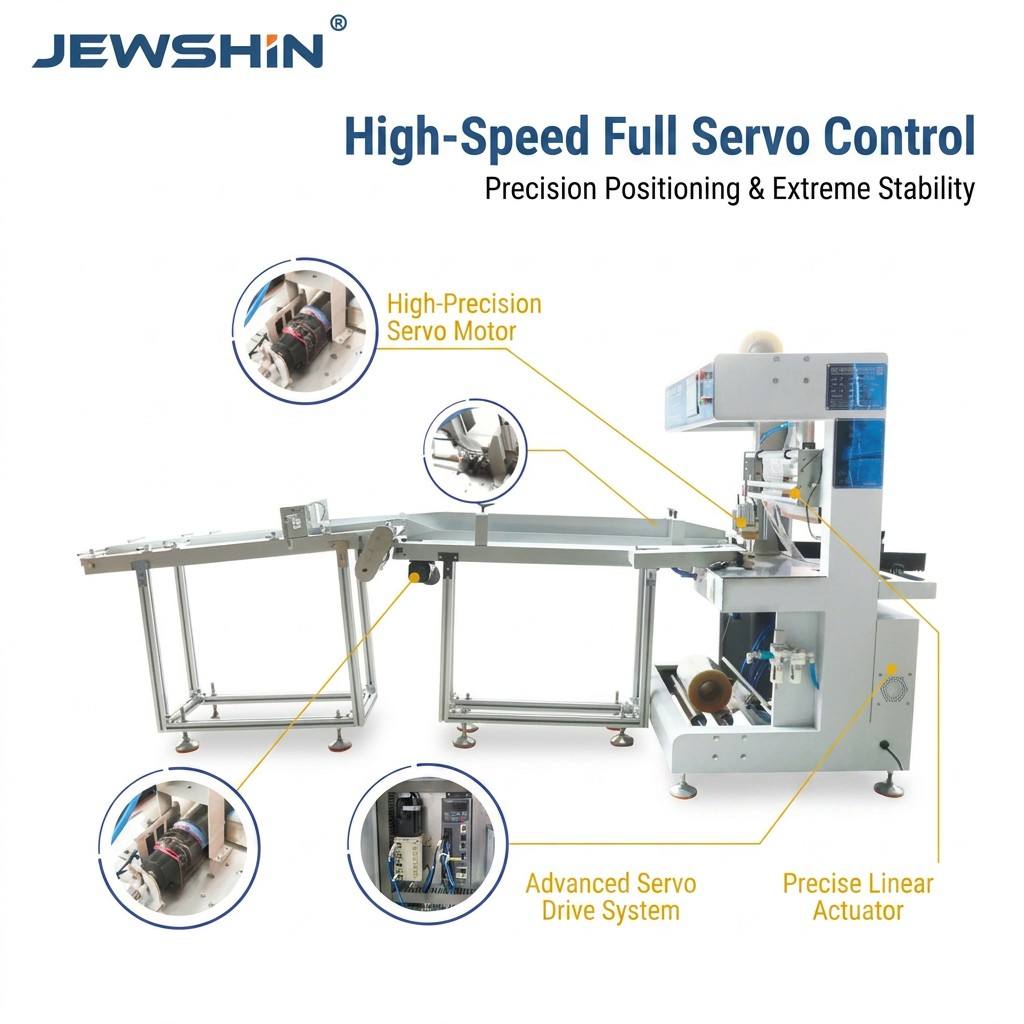

Full Servo Drive for Consistent Precision
Every motion axis — film feeding, cutting, sealing, and conveying — is driven by servo motors rather than mechanical cams or pneumatic cylinders. The result is repeatable positioning accuracy at speed, with fewer moving parts to wear out or drift out of calibration over time.

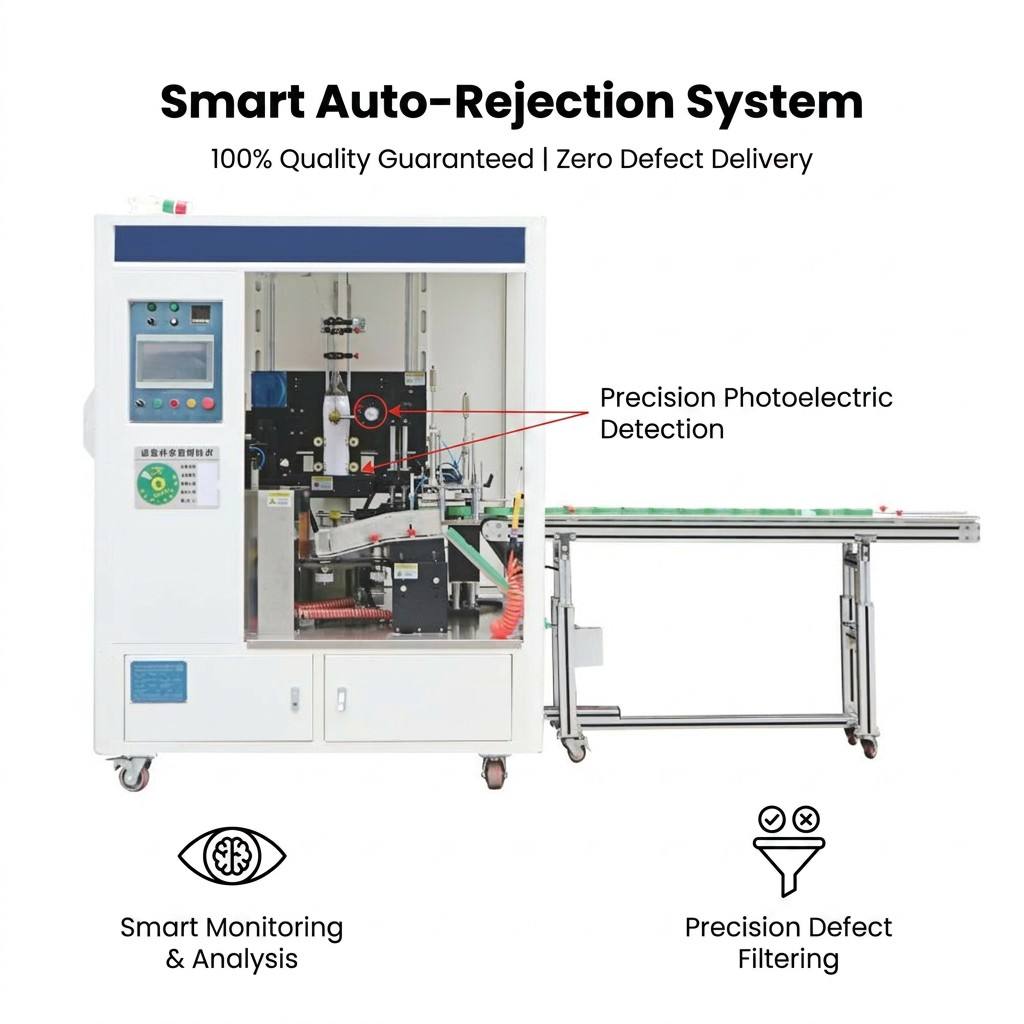

Smart Auto-Rejection Keeps Your Line Running Clean
A photoelectric detection system monitors every roll as it moves through. If a roll is missing a label, has a film wrinkle, or fails a quality check, the machine diverts it into a separate rejection bin automatically — without stopping the main line. You get 100% good product in the output stack.

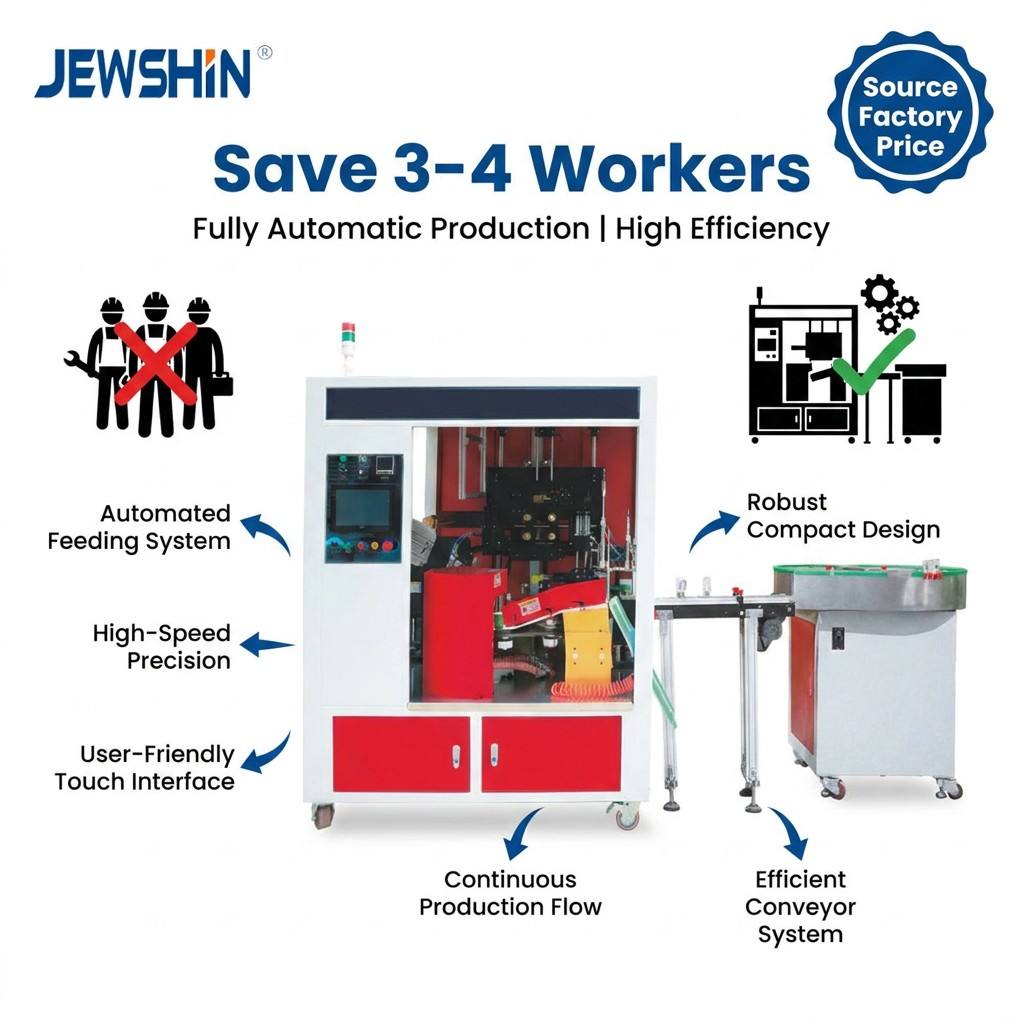

Replaces 3 to 4 Manual Workers Per Shift
Automated feeding, labeling, wrapping, counting, and tube insertion run continuously without operator intervention. Most customers operating three shifts report recovering their full machine investment within 6 to 10 months through direct labor savings alone.

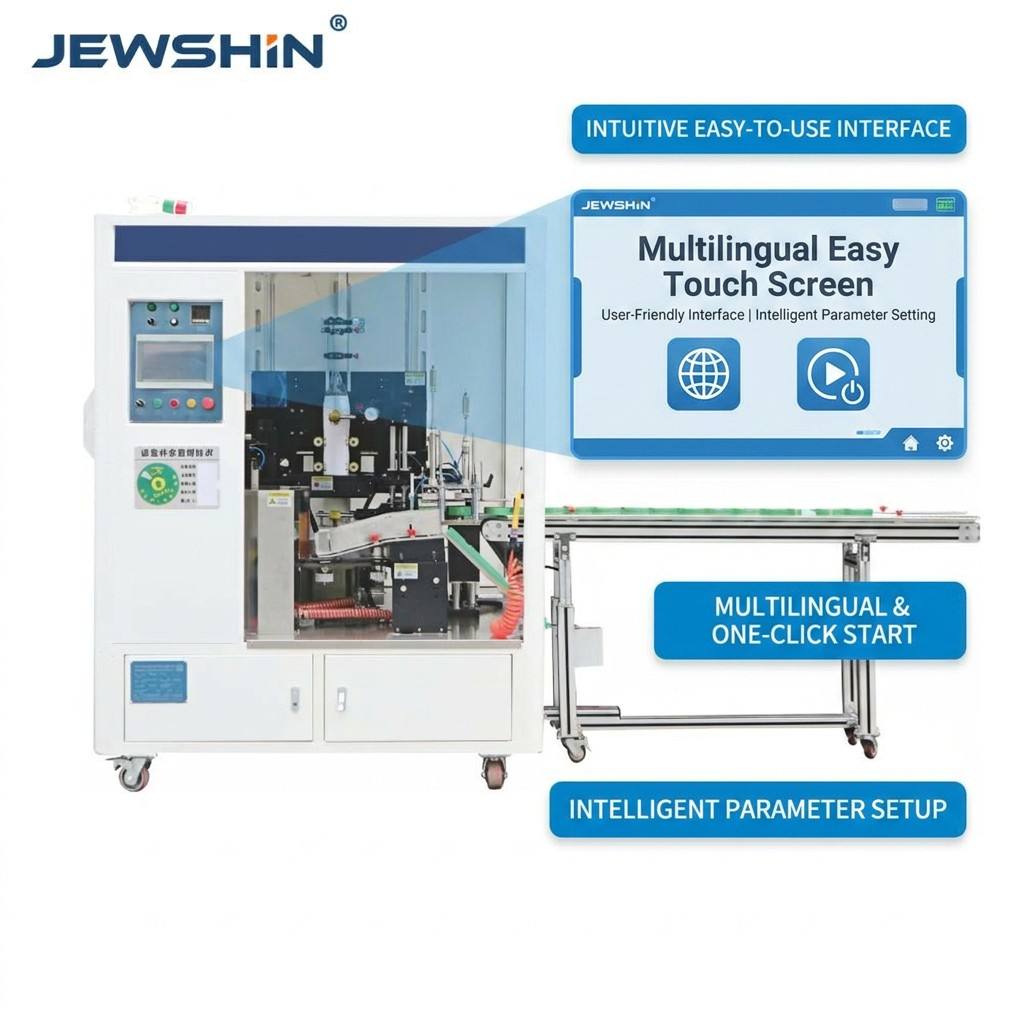

Multilingual Touch Screen, Ships 90% Pre-Assembled
The PLC interface supports multiple languages and is designed for operators without technical backgrounds — parameters are set on screen, not through mechanical adjustment. The machine arrives nearly fully assembled; commissioning is typically completed in 1 to 2 days.

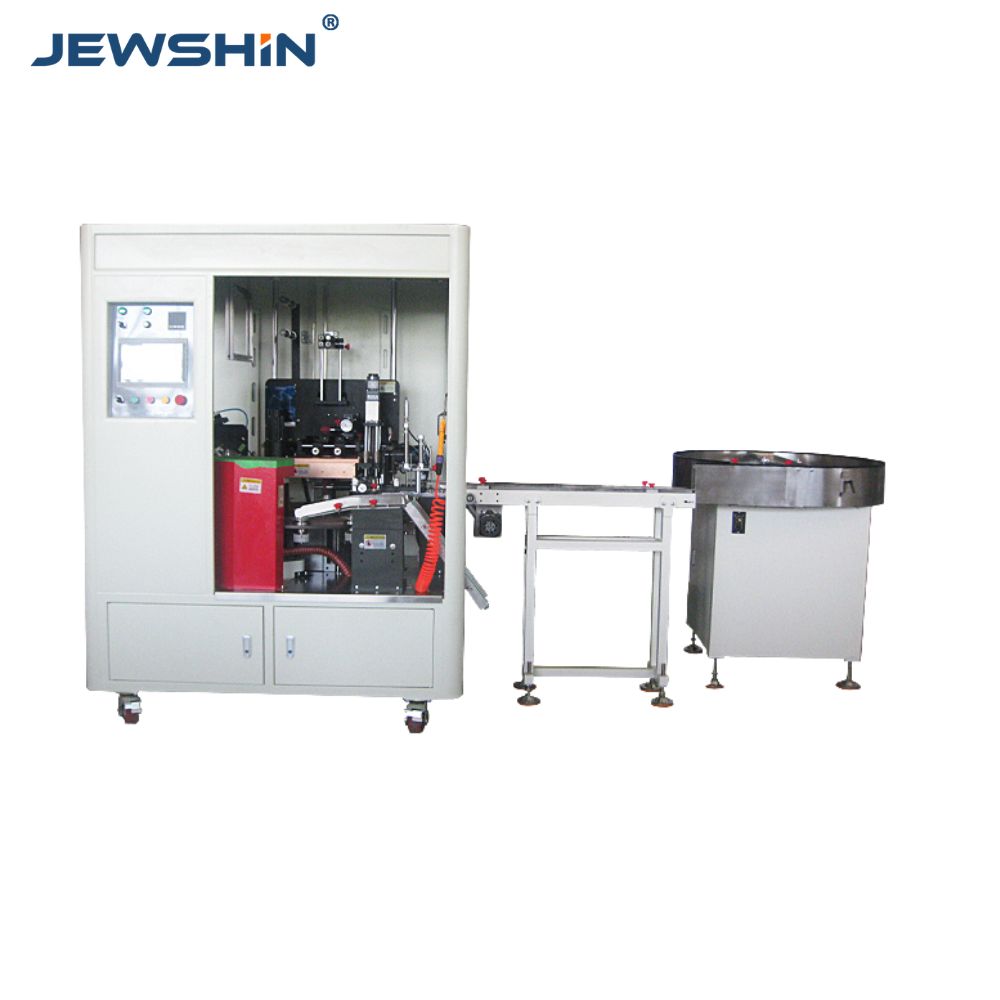

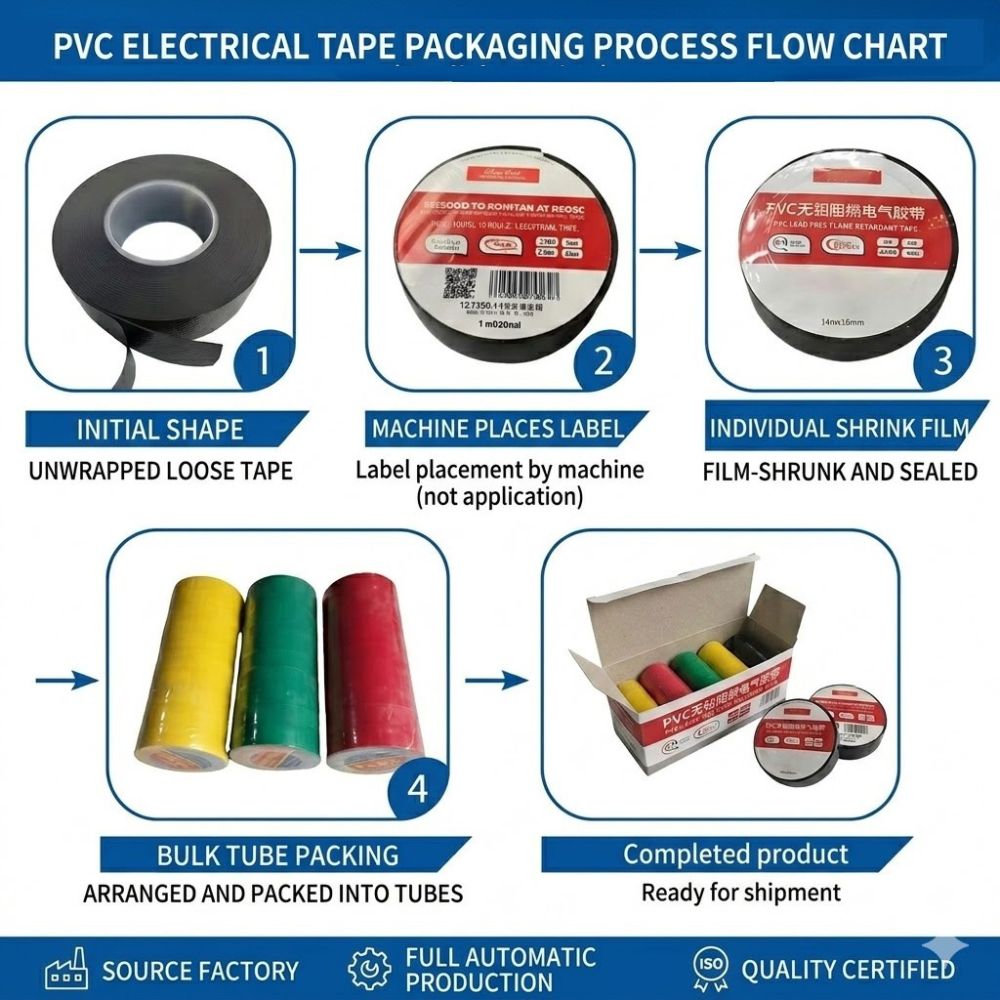

The JX-60S / JX-77 handles the complete tape packaging sequence in four stages:
Stage 1 — Automatic Feeding
Loose tape rolls are loaded into the vibrating bowl feeding table. The bowl auto-orients each roll and delivers them one at a time to the wrapping station at a controlled pace matched to the machine speed.
Stage 2 — Label Placement (Optional)
For lines requiring labels, the vacuum label extraction system picks individual labels from a label roll and places them on each tape roll face precisely before the film wrapping step. The vacuum placement method is non-destructive — no pressure marks on the roll surface.
Stage 3 — Individual Sleeve Wrapping
Film is drawn from the film feeding unit, cut to length, wrapped around the tape roll vertically, then heat-sealed and shrunk tight by the integrated shrink heating system. The result is a clean, tight individual package with the label visible through the film.
Stage 4 — Tube Packing (Bulk Bundling)
Individually wrapped rolls exit via conveyor to the tube packing station. The machine counts rolls, arranges them into tubes of the specified quantity, and seals the tube — producing finished multi-roll bundles ready for carton packing or direct shipment.

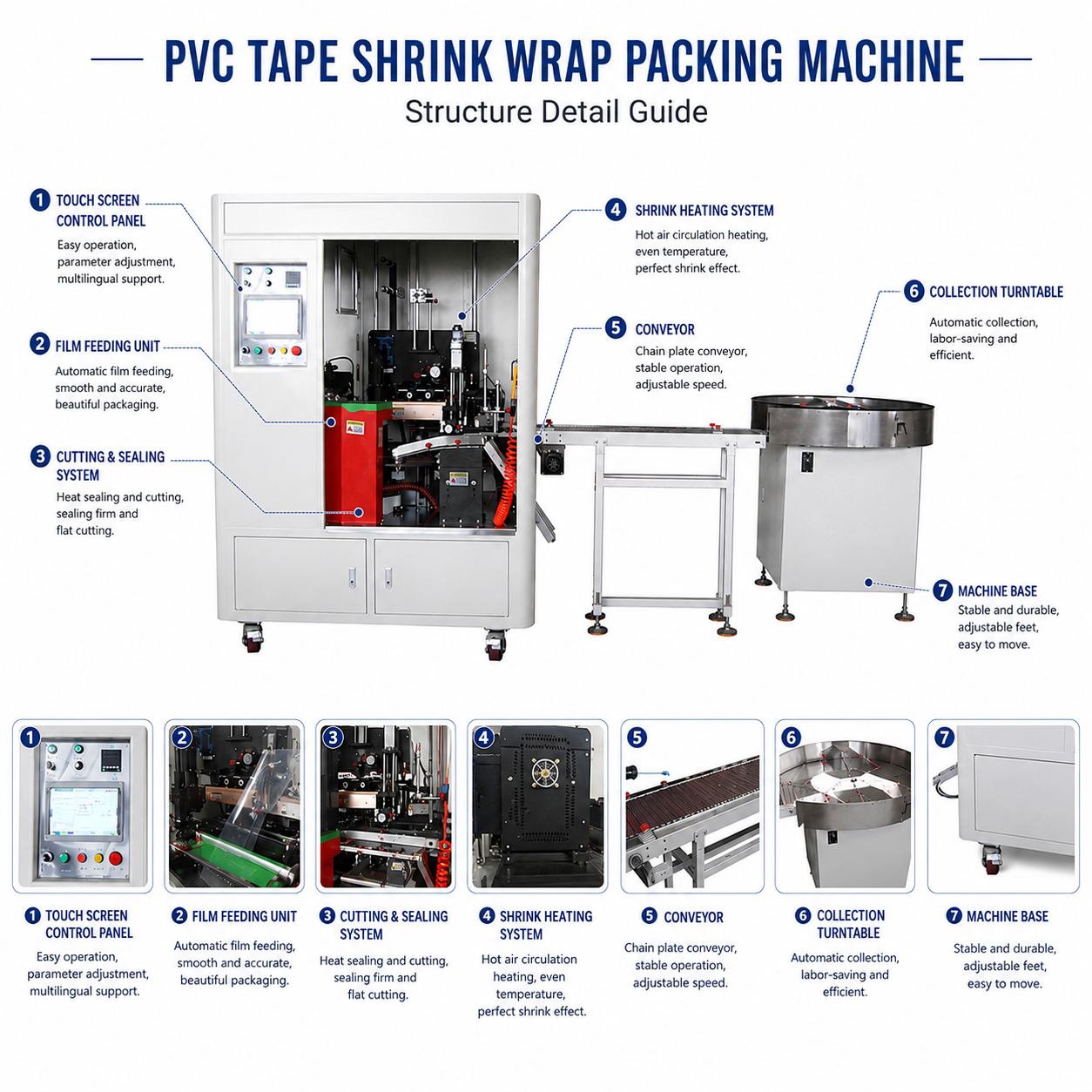

Component | Function |
Touch Screen Control Panel | PLC-based control; multilingual interface; parameter adjustment without mechanical tools |
Film Feeding Unit | Automatic film advance with tension control; smooth, accurate film delivery; prevents film breaks at speed |
Cutting & Sealing System | Heat seal-and-cut in one action; firm seal, flat cut edge; no film tail or loose ends |
Shrink Heating System | Hot-air circulation tunnel with even temperature distribution; tight, wrinkle-free shrink film finish |
Chain Plate Conveyor | Adjustable-speed conveyor transfers wrapped rolls to the tube packing station; stable, continuous flow |
Collection Turntable | Automatic accumulation of finished tube packs; reduces manual handling at the output end |
Machine Base | Heavy-gauge steel frame with adjustable leveling feet and lockable casters; stable on uneven floors, movable for layout changes |
Label Vacuum Extraction Unit | Vacuum pick-and-place for precision label application; non-destructive to roll surface |
Photoelectric Detection & Rejection | Sensors detect missing labels or film defects; diverts rejects automatically without stopping the line |
Mold Positioning Module | Adjustable mold carriers for size changeover between tape roll widths and diameters |
The machine is available in two configurations: JX-60S for standard tape roll sizes (Ø52–98mm) and JX-77 for larger diameter rolls (Ø90–130mm).

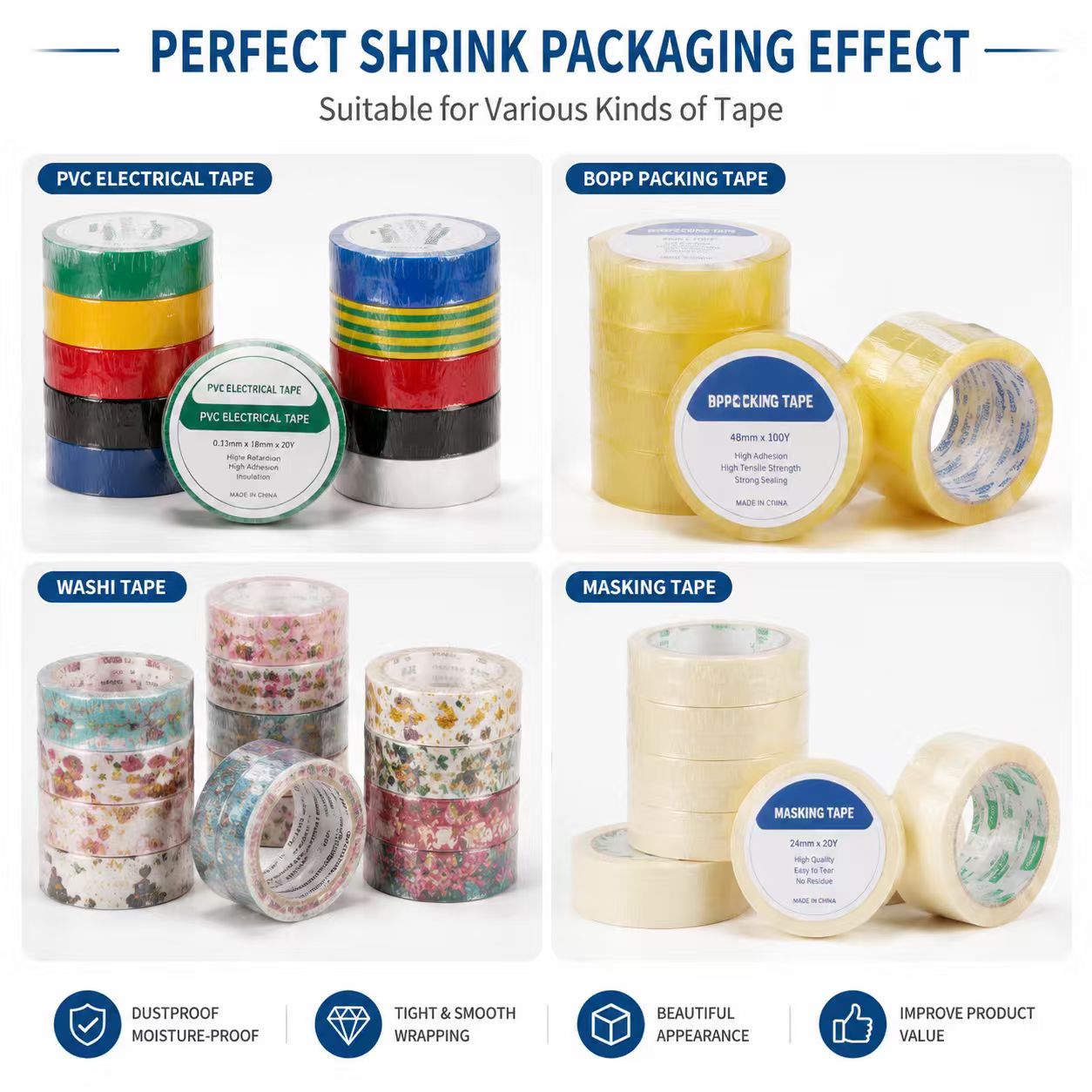

The JX series produces consistent shrink-wrapped packaging across a range of tape types and sizes:
PVC Electrical Tape — Clean, tight single-roll sleeve wrap with clear label visibility; stacks cleanly into tubes
BOPP Packing Tape — Transparent film maintains product appearance; suitable for both retail and bulk shipment
Washi / Decorative Tape — Film sits flat without distorting printed patterns or colors
Masking Tape — Handles wider, lower-diameter rolls with the same film tightness and seal quality
All finished packages are:
Dustproof and moisture-resistant — film seals the roll face and edge completely
Tight and smooth — no wrinkles, no loose film, no unsealed edges
Retail-presentation ready — label positioned and fully visible through the shrink film
Parameter | Specification |
Model | JX-60S |
Packing Width | 15–50 mm |
Packing Diameter | Ø 52–98 mm (non-standard customizable) |
Production Speed | 60–68 pcs/min |
Power Supply | AC 380V, 4-Phase, 4.5 kW |
Heat Pipe Power | 3 kW × 1 pc |
Air Supply Pressure | 0.5 MPa |
Packaging Film Thickness | 0.035–0.04 mm (50% shrink ratio) |
Conveyor Height | 750 ± 50 mm (adjustable) |
Machine Dimensions | 1500 × 1500 × 2100 mm / 2000 × 500 × 900 mm |
Net Weight | 1,000 kg |
Certification | CE |
Parameter | Specification |
Model | JX-77 |
Packing Width | 15–50 mm |
Packing Diameter | Ø 90–130 mm (non-standard customizable) |
Production Speed | 40–60 pcs/min |
Power Supply | AC 380V, 4-Phase, 6 kW |
Heat Pipe Power | 3 kW × 1 pc |
Air Supply Pressure | 0.5 MPa |
Packaging Film Thickness | 0.04–0.045 mm (50% shrink ratio) |
Machine Dimensions | 1600 × 1600 × 2200 mm / 2000 × 500 × 900 mm |
Net Weight | 1,000 kg |
Certification | CE |
Voltage customization available: 110V / 220V / 380V, 50/60 Hz — specify your local standard when requesting a quote.
PVC Electrical Tape Manufacturers
The primary application. Tape factories producing 15mm–50mm width rolls in standard retail lengths (5m, 10m, 20Y) use the JX series to replace 3–4 manual workers per line while achieving consistent packaging quality across all SKUs.
BOPP and General Adhesive Tape Producers
The same machine handles BOPP packaging tape, masking tape, and washi tape with minimal tooling changes. Facilities running multiple tape types on the same line benefit from the quick size changeover (under 15 minutes between roll sizes).
Multi-Roll Tube Pack Assembly
Hardware distributors, retailers, and OEM customers frequently require tape in tube packs of 5, 10, or 20 rolls. The JX series counts and assembles these automatically, eliminating manual counting errors and reducing tube-pack labor to near zero.
OEM / ODM Contract Packaging
Contract packaging operations handling multiple tape brands benefit from the machine's adjustable mold carriers, multilingual interface, and quick changeover — allowing smooth transitions between different product specifications during the same shift.
Export-Oriented Tape Manufacturers
Markets including North America (110V power available), Western Europe (CE certified), Korea, Vietnam, and Latin America where consistent retail-quality individual packaging is a commercial requirement, not an option.

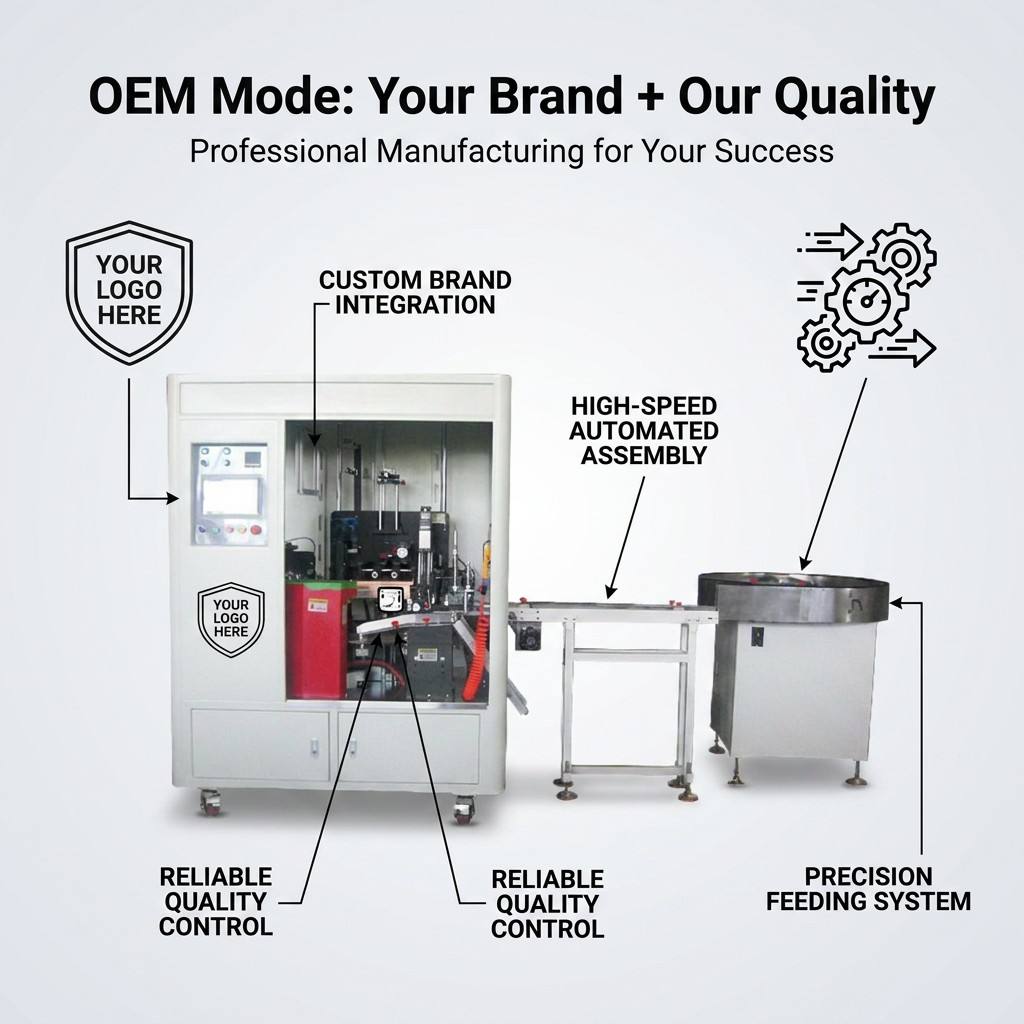

Jewshin manufactures the JX series as a source factory with a 15+ year R&D team. Customization options include:
Machine branding — panel labeling and color scheme per customer specification
Voltage and power configuration — 110V/220V/380V, 50/60Hz
Packaging size range — mold and guide adjustment for non-standard roll dimensions
Control system language — PLC interface localized to customer's operating language

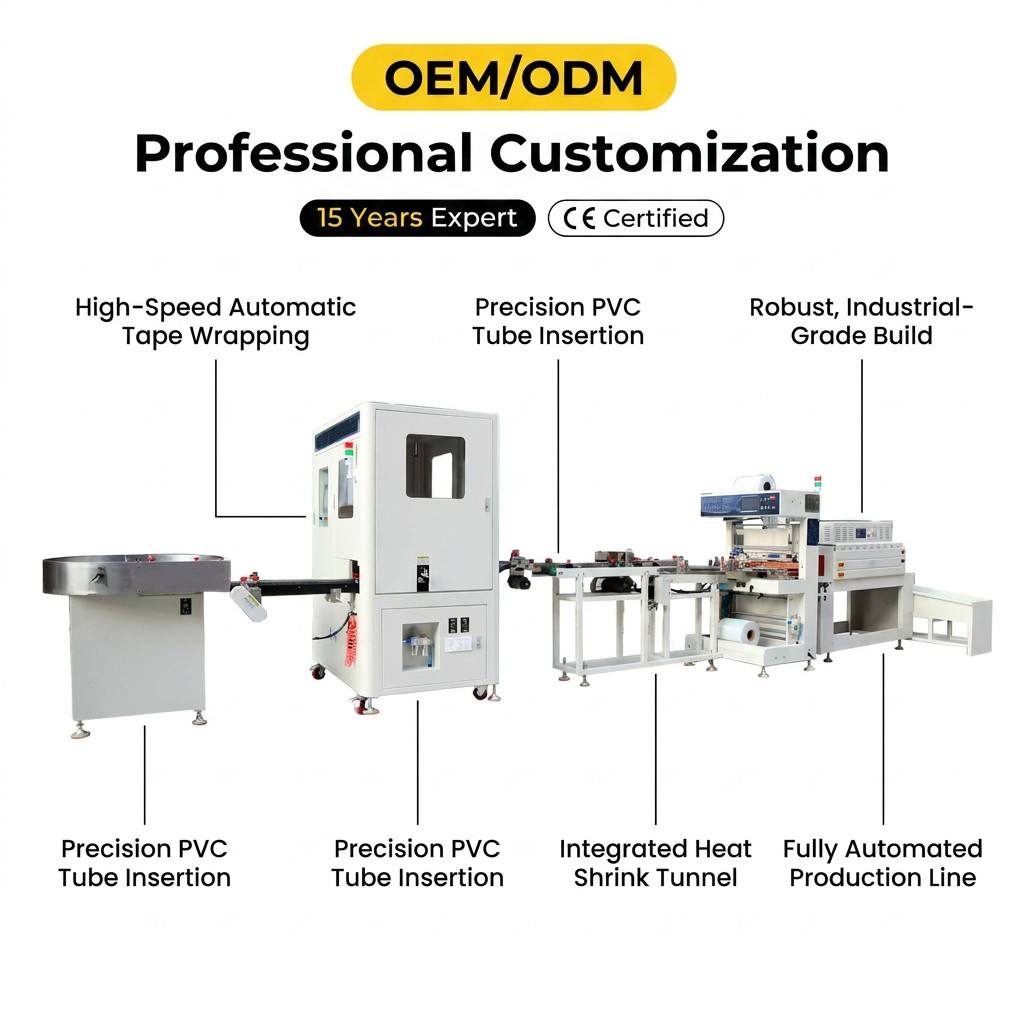

Integration — the JX unit can be connected to upstream tape slitting lines or downstream carton packing systems

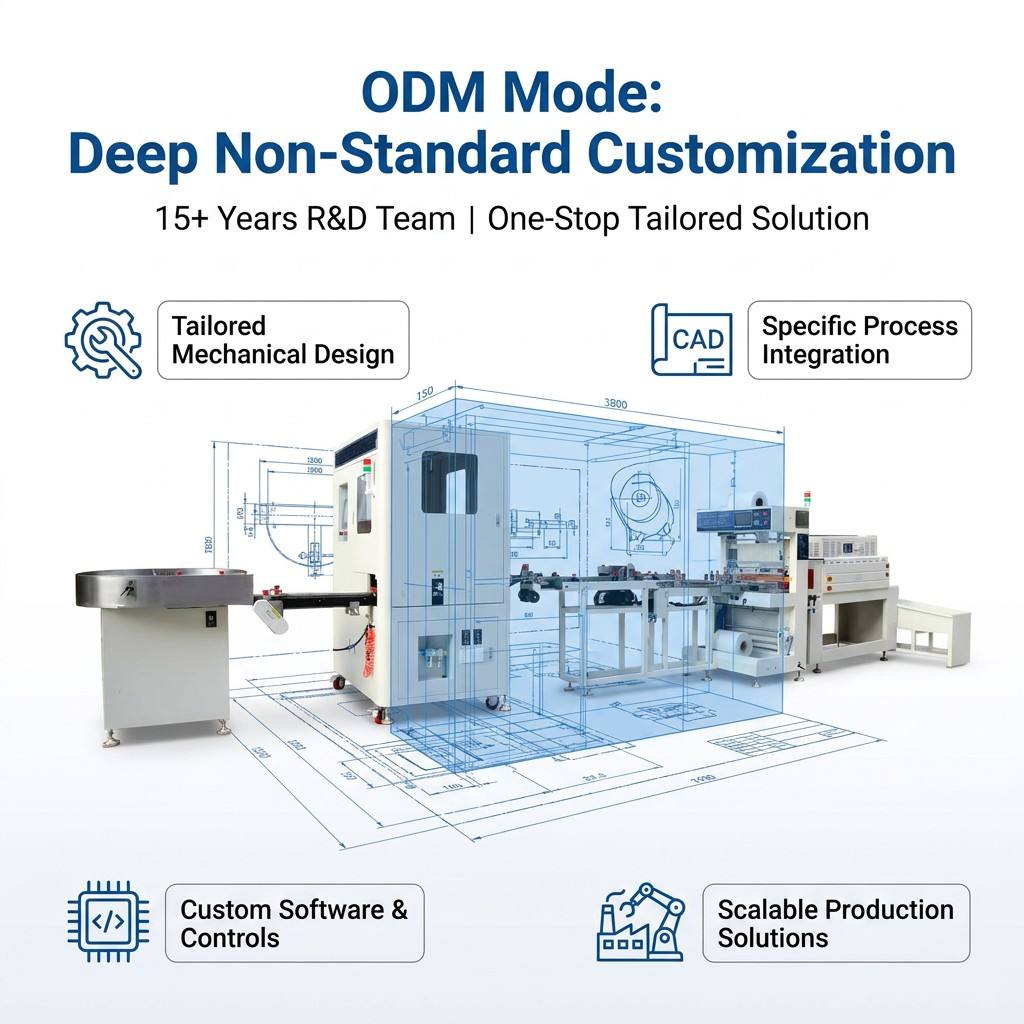

CAD-based layout design — Jewshin provides a full system drawing to confirm floor plan fit before manufacturing begins
All customized configurations go through the same 72-hour continuous endurance test before shipping.
Q1: What types of tape rolls can this machine handle?
The JX series is designed primarily for PVC electrical tape and handles BOPP packaging tape, masking tape, and washi tape as well. The machine works with cylindrical rolls and round-profile containers generally. Compatible diameter range: Ø52–98mm (JX-60S) or Ø90–130mm (JX-77); width range: 15–50mm for both models.
Q2: Can one machine handle multiple roll sizes without major retooling?
Yes. The mold positioning module uses adjustable carriers. Changing from one roll width to another takes under 15 minutes and does not require specialized tools or an engineer. Most customers change sizes at shift start or between production batches.
Q3: How does the auto-rejection system work? Does it stop the whole line?
No — the line keeps running. A photoelectric detection sensor monitors each roll after wrapping. If a defect is detected (missing label, film wrinkle, or incorrect seal), the machine automatically diverts that roll into a separate reject bin while the remaining output continues uninterrupted.
Q4: Can the electrical system be configured for 110V (North America / Mexico)?
Yes. The motors, PLC, and all electrical components can be configured for 110V, 220V, or 380V at 50Hz or 60Hz. Specify your local power standard when requesting a quote and we will configure accordingly at no additional lead time.
Q5: How many workers can the machine realistically replace?
On a typical three-shift operation running PVC electrical tape, the JX-60S replaces 3 to 4 manual workers — covering automatic feeding, individual wrapping, counting, and tube packing. Most customers report reaching full ROI within 6 to 10 months based on direct labor savings.
Q6: Is the machine difficult to operate or maintain?
Daily operation is through the touch screen only — no mechanical adjustments are needed for normal production. Since the machine is fully servo-controlled, there are no cam chains or oil lubrication points in the drive system. Most fault diagnosis is done through the PLC screen, and Jewshin provides 24/7 remote video technical support.
Q7: What is the delivery lead time?
Standard lead time is 15–25 working days after receipt of deposit. Custom configurations (non-standard mold sizes, special voltages, branding) may require additional time; we confirm the exact schedule during quoting.
Q8: Do you provide installation and commissioning support?
Yes. Remote video commissioning support is included with every machine — we guide your team through installation and first production run via video call. On-site overseas commissioning is available; contact us to discuss travel arrangements and service terms for your location.

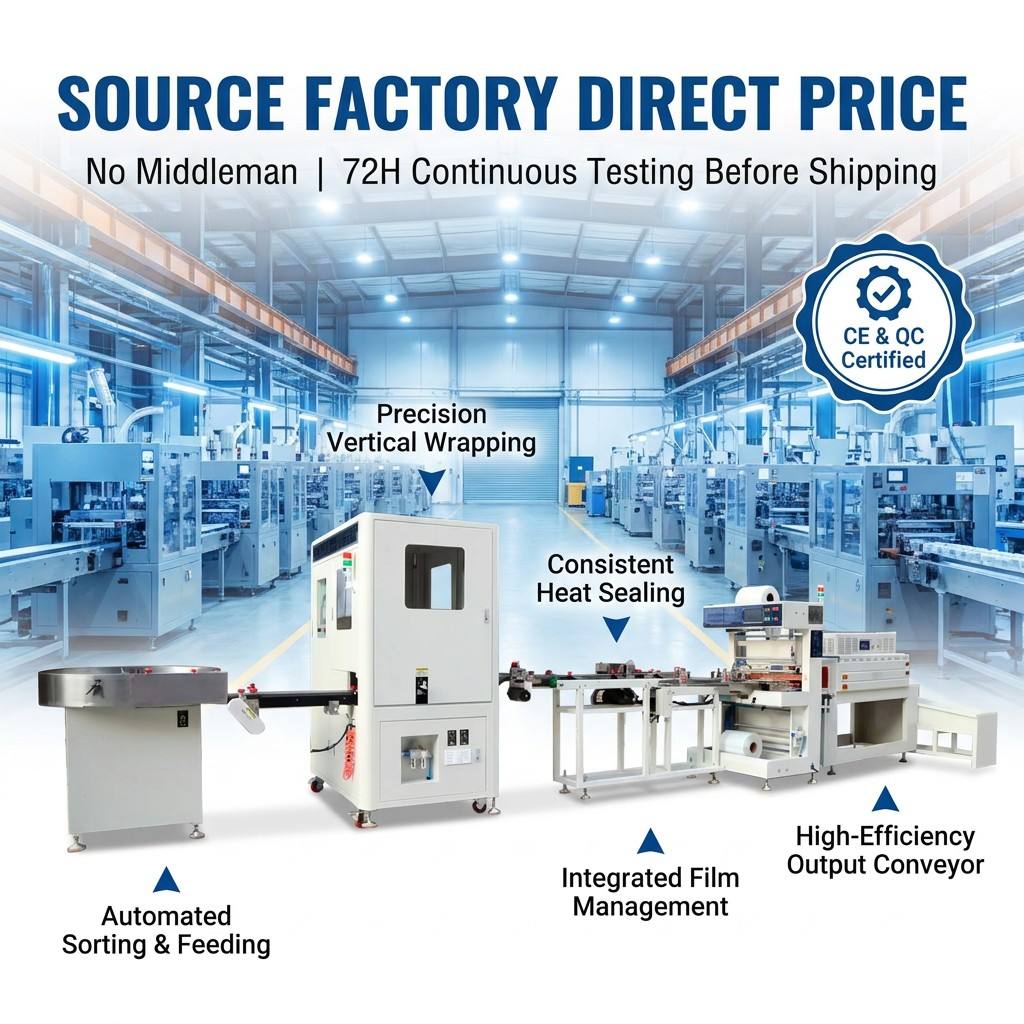

Every JX series machine goes through a 72-hour continuous endurance test at the factory before shipping. This extended run validates film feeding consistency, seal quality, servo drive calibration, heat tunnel temperature uniformity, and auto-rejection sensor accuracy under sustained production conditions.
Machines are shipped in non-fumigation export wooden cases , designed to protect the servo system and precision components during ocean freight.
Each delivery includes:
Printed + digital operation manual
Step-by-step commissioning guide
Recommended spare parts kit (wear items: sealing blades, film guides, sensor components)
If you're producing PVC electrical tape, BOPP tape, or similar roll products and want to automate individual wrapping and tube packing in one system, the JX series is built for that workflow.
Tell us:
Your tape roll dimensions (width × diameter)
Target output speed (pcs/min)
Your local power supply standard
Whether you need standalone sleeve wrapping, tube packing, or the full integrated line
We'll confirm machine compatibility, provide a detailed quotation, and share video footage of the machine running on similar products — typically within one business day.
We support:
Voltage customization (110V / 220V / 380V, 50/60Hz)
OEM machine branding
Full integrated line supply (from slitting output to finished tube packs)
Remote and on-site commissioning
