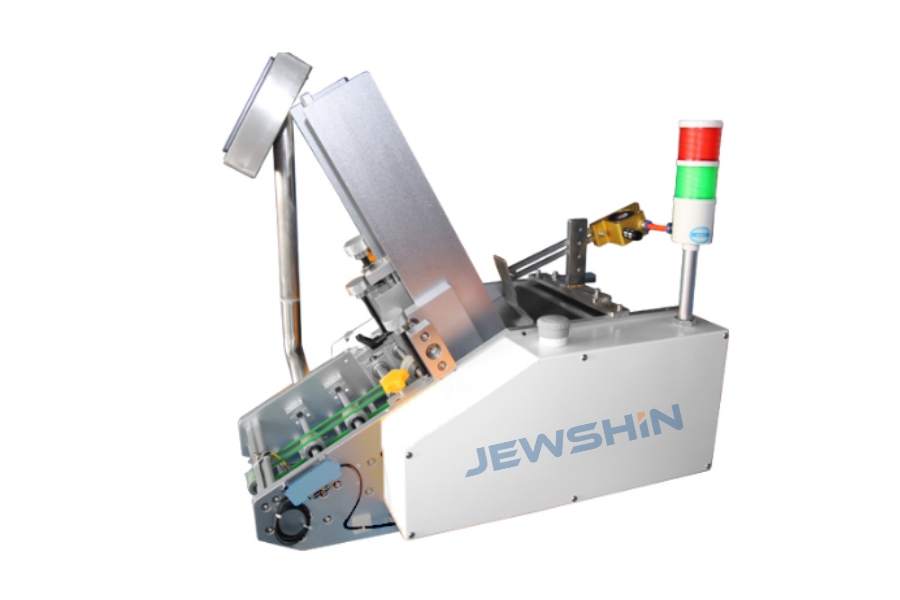

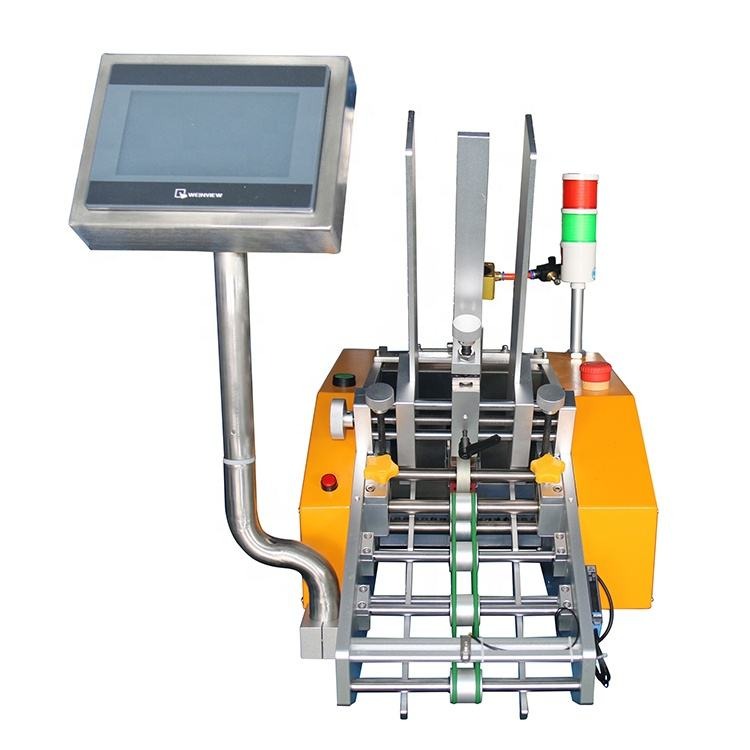

JX-100 High-Speed Servo Friction Feeder (Card & Leaflet Dispenser)


Availability:



Inquire

The Precision Solution for Automatic Card & Leaflet Feeding.

The JX-100 is a compact, high-speed Servo Friction Feeder designed to separate stacks of flat products into single sheets for automatic dispensing. Whether you need to feed warranty cards, instruction manuals, envelopes, or alcohol pads, the JX-100 does it with incredible speed (up to 160m/min) and accuracy. It can operate as a standalone counter or be seamlessly integrated into Pillow Packaging Machines and Cartoning Lines for fully automated production.

Model:
JX-100
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the JX-100?

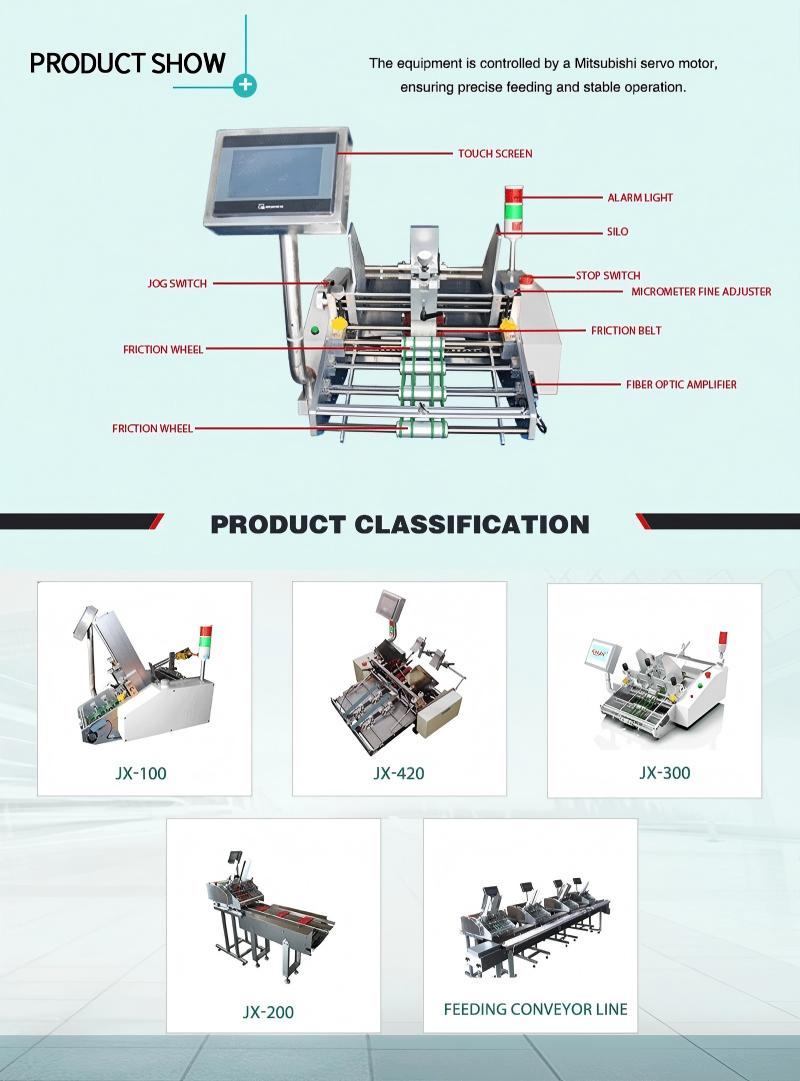

Servo Motor Precision: Unlike basic DC motor feeders, the JX-100 uses a Servo Drive System. This ensures instant start/stop response and precise placement of the card onto the conveyor belt.
Intelligent Sensors: Equipped with Imported Fiber Optic Sensors, the machine detects every single item.

No Card Alarm: Stops if the hopper is empty.
Multi-Card Alarm: Stops if two cards stick together (double feed).
Leaky Card Alarm: Detects if a card was missed.

Versatile Operation Modes:

Single Issue: Feed one card per signal.
Multiple Issue: Feed a specific count (e.g., 5 cards) per signal.
Continuous: Non-stop feeding for high-volume counting.

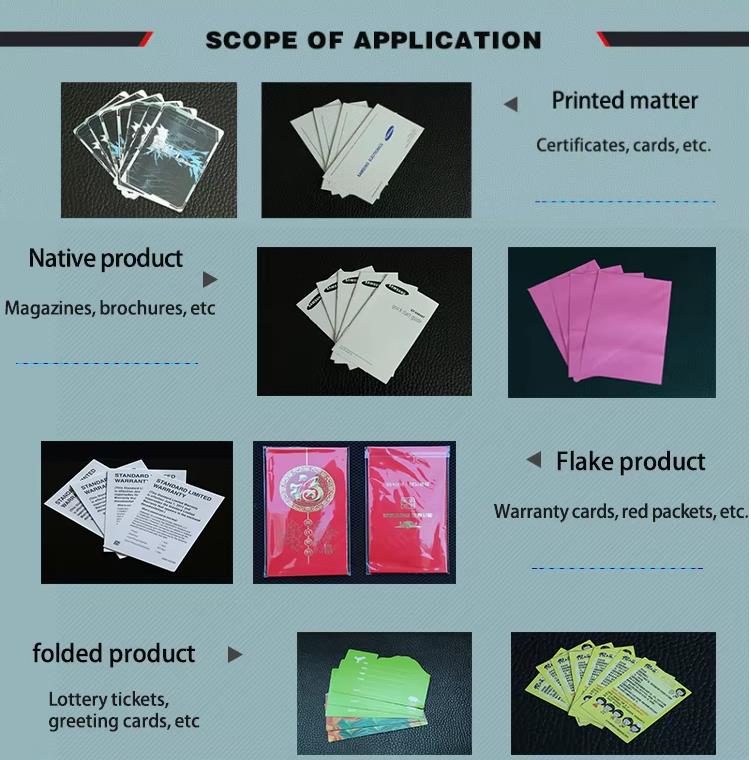

Application Scenarios

The JX-100 is widely used in Printing and Packaging industries:

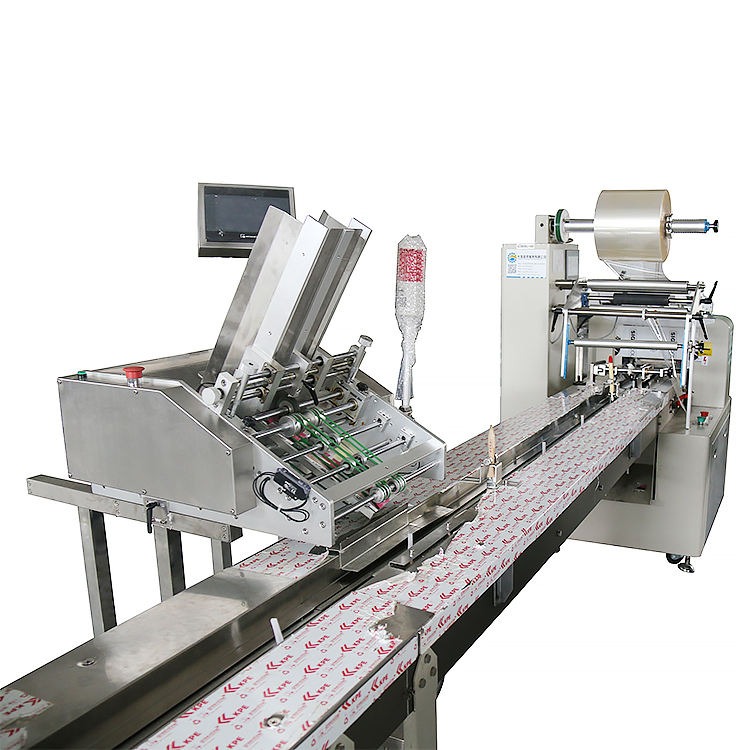

Packaging Lines: Feeding Instruction Manuals / Warranty Cards onto the conveyor of a Flow Wrapper (Pillow Pack Machine).
Food & Hygiene: Feeding Alcohol Swabs, Sanitary Napkins, or Sachets into a cartoning machine.
Stationery: Dispensing Greeting Cards, Red Envelopes, or Notebooks.
Promotional: Inserting Coupons or Lottery Cards into food packages.

Key Features & Technical Highlights

High-Speed Performance: Capable of running up to 160 meters/minute, matching even the fastest packaging lines.
User-Friendly PLC Control: All parameters (speed, quantity, card length) are set via a centralized Touch Screen. You can save settings for different products.
Compact & Lightweight: Weighing only 25kg, it can be easily mounted onto existing packaging machines without requiring heavy structural modifications.
Optional Upgrades: Can be equipped with a "Material Shortage Early Warning" device to alert operators before the stack runs out.

Technical Specifications

Parameter	Specification
Model	JX-100
Drive System	Servo Motor + PLC Control
Max Speed	10 - 160 meters/min (Adjustable)
Product Thickness	0.1mm - 3.0mm
Card Length Range	40 - 120 mm
Card Width Range	30 - 100 mm
Sensors	Fiber Optic (High Precision)
Power Supply	220V, 450W

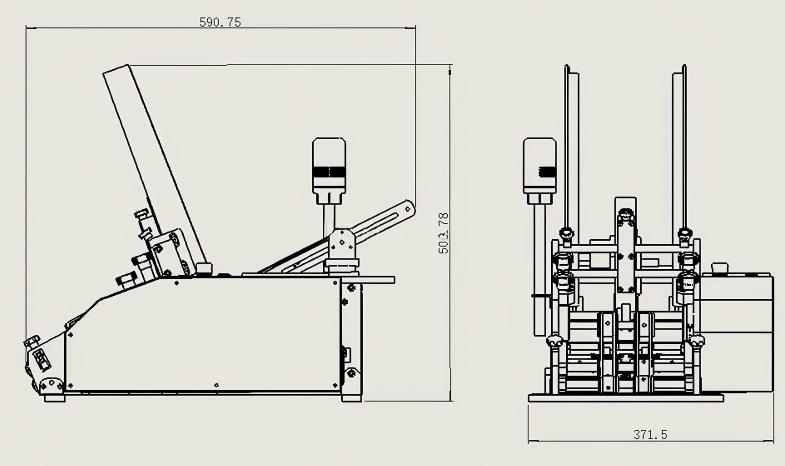

Machine Dimensions	(L)612 × (W)400 × (H)597 mm
Machine Weight	~25 Kg

Integration Capabilities

The JX-100 is designed to "talk" to other machines. It is commonly mounted on:

Flow Wrappers (Pillow Packaging Machines)
Vertical Form Fill Seal (VFFS) Machines
Cartoning Machines
Shrink Wrapping Tunnels
Conveyor Belts

Eliminate Manual Card Insertion.

Upgrade your packaging line with the JX-100 for 100% accurate counting and feeding.

Get a Quote: Contact us for pricing.
Check Compatibility: Send us your card/manual samples (Size & Thickness).
Integration Support: We provide wiring diagrams to connect with your existing packer.
