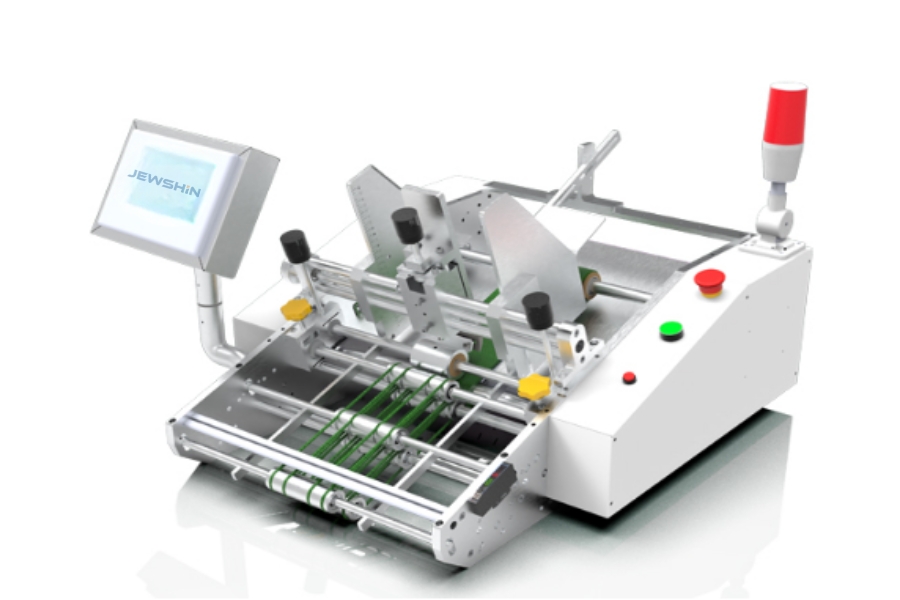

JX-300 Large Format Servo Friction Feeder (Up to 300mm Width)


Availability:



Inquire

The Heavy-Duty Solution for Large Flat Products.

The JX-300 is the largest model in our friction feeder series, engineered specifically to handle wide and large-format items. With a maximum width capacity of 300mm, it is the industry standard for automatically dispensing A4 sheets, magazines, large notebooks, and cardboard backing. Despite its larger size, it retains the precision Servo Control and 160m/min speed of the smaller models, making it ideal for high-volume printing and packaging lines.

Model:
JX-300
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the JX-300?

When your product exceeds the limits of standard card feeders, the JX-300 takes over.

A4 & Beyond: Standard feeders top out at 100-150mm width. The JX-300 handles up to 300mm, easily accommodating standard A4 paper (210mm) and even wider items.
Robust Stability: Weighing 55kg with a wider chassis, this machine sits firmly on the line. This stability is crucial when "throwing" heavier items like magazines or thick backing boards at high speeds.
Versatile Thickness: Handles materials from 0.2mm to 3mm. Whether it's a single sheet of flyer paper or a thick corrugated backing board, the JX-300 separates it reliably.

Application Scenarios

Printing & Publishing: Inserting Magazines, Catalogs, and A4 Flyers into mailing bags.
Stationery: Feeding Notebooks, Sketchpads, and File Folders.
Food & Hardware: Dispensing large Cardboard Backing (for blister packs) or large partition cards.
E-commerce: Automating the insertion of large Return Forms or Invoices.

Key Features & Technical Highlights

Servo-Driven Accuracy: Even with larger, heavier products, the servo motor ensures precise start/stop control, placing the item exactly where the packaging machine needs it.
Intelligent Sensors: Equipped with high-sensitivity fiber optic sensors to detect:

Double Feeds: Prevents two magazines from going into one bag.
Missed Feeds: Ensures every package gets an insert.

Easy Adjustability: The feeding belts and gates are adjustable to accommodate different widths (110mm to 300mm) quickly without tools.
Centralized Control: A user-friendly Touch Screen stores parameters for up to 40 different products.

Technical Specifications

Parameter	Specification
Model	JX-300 (Large Format)
Drive System	Servo Motor + PLC Control
Max Speed	10 - 160 meters/min
Product Thickness	0.2mm - 3.0mm
Card Length Range	50 - 300 mm
Card Width Range	110 - 300 mm (Fits A4 Landscape/Portrait)
Control Interface	Touch Screen
Power Supply	220V, 450W
Machine Dimensions	(L)620 × (W)670 × (H)700 mm
Machine Weight	~55 Kg

Integration Capabilities

The JX-300 is a workhorse for:

L-Bar Sealers & Shrink Tunnels: Feeding books/magazines for shrink wrapping.
Flow Wrappers: Feeding backing cards for hardware/toys.
Box Packing Lines: Dropping manuals into open cartons.
