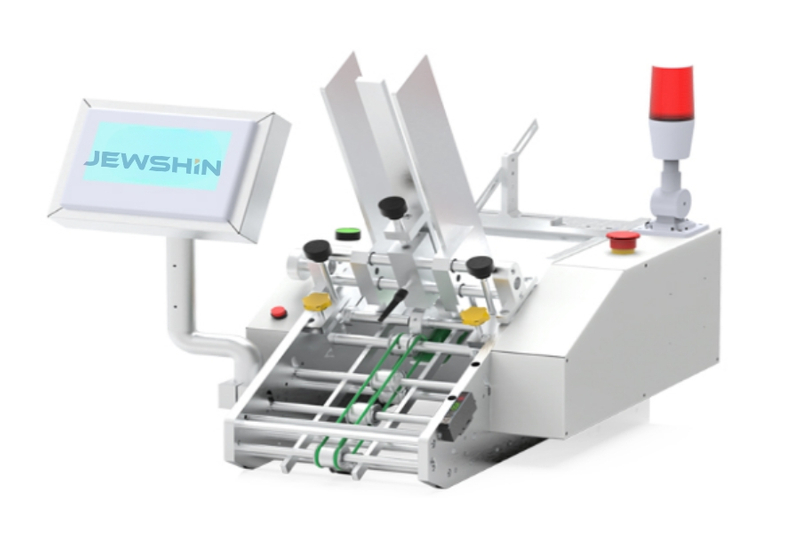

Why Upgrade to the JX-200?
While the JX-100 is perfect for small tags, the JX-200 is the all-rounder.
Wider Size Range: Capable of handling items from 50mm up to 200mm in length. This covers the "Goldilocks zone" of packaging inserts—not too small, not too big.
Servo Speed & Torque: The servo drive provides the torque needed to separate slightly heavier items like notebooks or thick greeting cards while maintaining a speed of up to 160 meters/minute.
Intelligent Error Detection: Like its smaller sibling, it features auto-shutdown alarms for Double Feeding (Multi-card), Missed Feeding (Leaky card), or Empty Hopper, ensuring 100% accuracy in your final package.
Application Scenarios
The JX-200 is the go-to feeder for:
Publishing & Stationery: Greeting cards, Red packets (Hongbao), Postcards, Notebooks.
Pharmaceuticals & Cosmetics: Folded instruction leaflets, face mask sachets.
Food Packaging: Large coupons, promotional cards inside cereal boxes or snack multipacks.
Apparel: Hangtags and brand cards.
Key Features & Technical Highlights
Precise Separation: Uses a reverse-friction roller system to ensure only one item is fed at a time, even with materials of varying thickness (0.1 - 3mm).
Flexible Operation:
User-Friendly Interface: The color touchscreen allows you to set the card length, quantity per trigger, and speed instantly.
Fiber Optic Accuracy: Imported sensors provide millisecond-response tracking for high-speed lines.
Technical Specifications
Parameter | Specification |
Model | JX-200 |
Drive System | Servo Motor + PLC Control |
Max Speed | 10 - 160 meters/min |
Product Thickness | 0.1mm - 3.0mm |
Card Length Range | 50 - 200 mm (Medium Format) |
Card Width Range | 30 - 150 mm |
Control Interface | Touch Screen |
Power Supply | 220V, 450W |
Machine Dimensions | (L)612 × (W)500 × (H)597 mm |
Machine Weight | ~35 Kg |
Integration Capabilities
The JX-200 is designed as a modular unit. It is commonly installed on:
Conveyor Belts: Dropping cards into boxes.
Pillow Packaging Machines: Feeding cards onto the film before sealing.
Cartoning Machines: Inserting leaflets before the box closes.
Banding Machines: Feeding stacks for banding.
Automate Your Insert Feeding.
Don't limit your production with manual insertion. Choose the versatile JX-200 for reliable, high-speed feeding of brochures and cards.
Get a Quote: Contact us for pricing.
Size Check: Not sure if your product fits? Send us the dimensions.
Integration Support: We help you connect the JX-200 to your existing packer.
