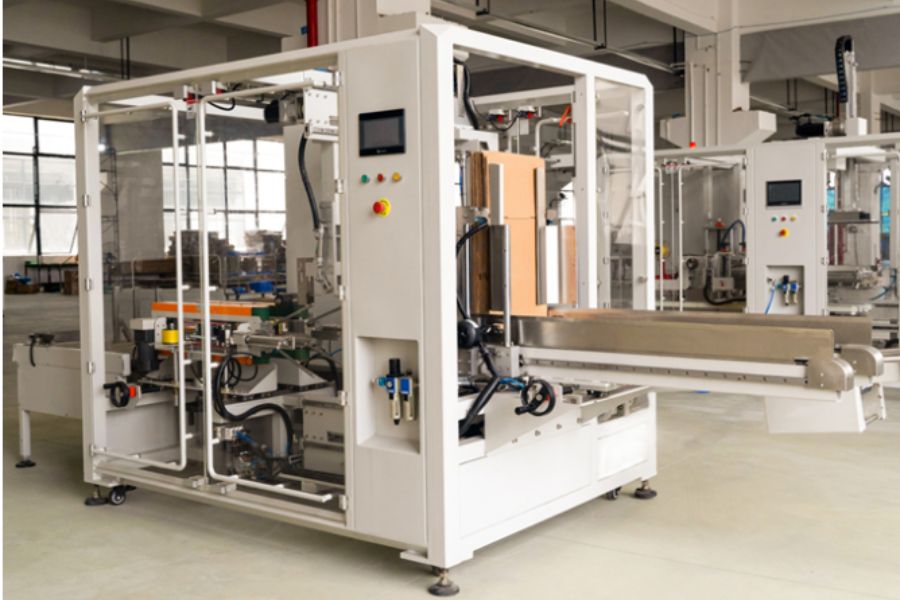

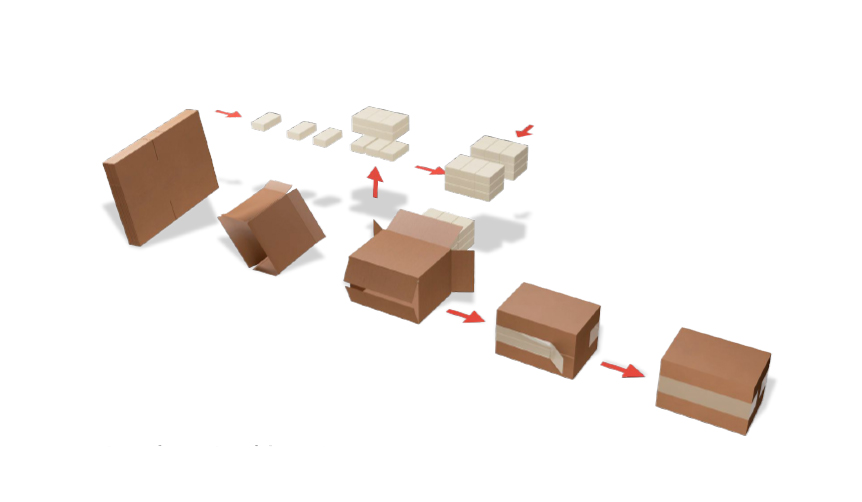

The SAE450S Side-Push Box Opening Machine is a fully integrated equipment solution that combines case erecting, product packing, and carton sealing into one seamless process. Controlled by an advanced servo motor system, it easily interfaces with your front-end feeding conveyor. The machine uses a smart sorting mechanism to organize products, followed by a suction-type double-arm system that picks up cartons and shapes them for precise product insertion. Once packed, the carton is securely sealed using tape or spray adhesive.
High Precision & Stability: Employs an absolute value servo control system for easy operation, ensuring precise and stable running during high-speed production.
Enhanced Safety: Designed with a four-sided acrylic glass protection shield and an automatic safety stop function triggered upon opening the door.
Fast & Flexible Setup: Features a one-button switch for different product sizes, making it highly compatible with multiple carton models. Its lifting stacking mechanism and servo screw enable one-click input, drastically improving operating speed.
Compact & Easy Maintenance: Independently developed by Jewshin, the system's ingenious design ensures a small footprint, energy savings, plug-and-play flexibility, and simple routine maintenance.

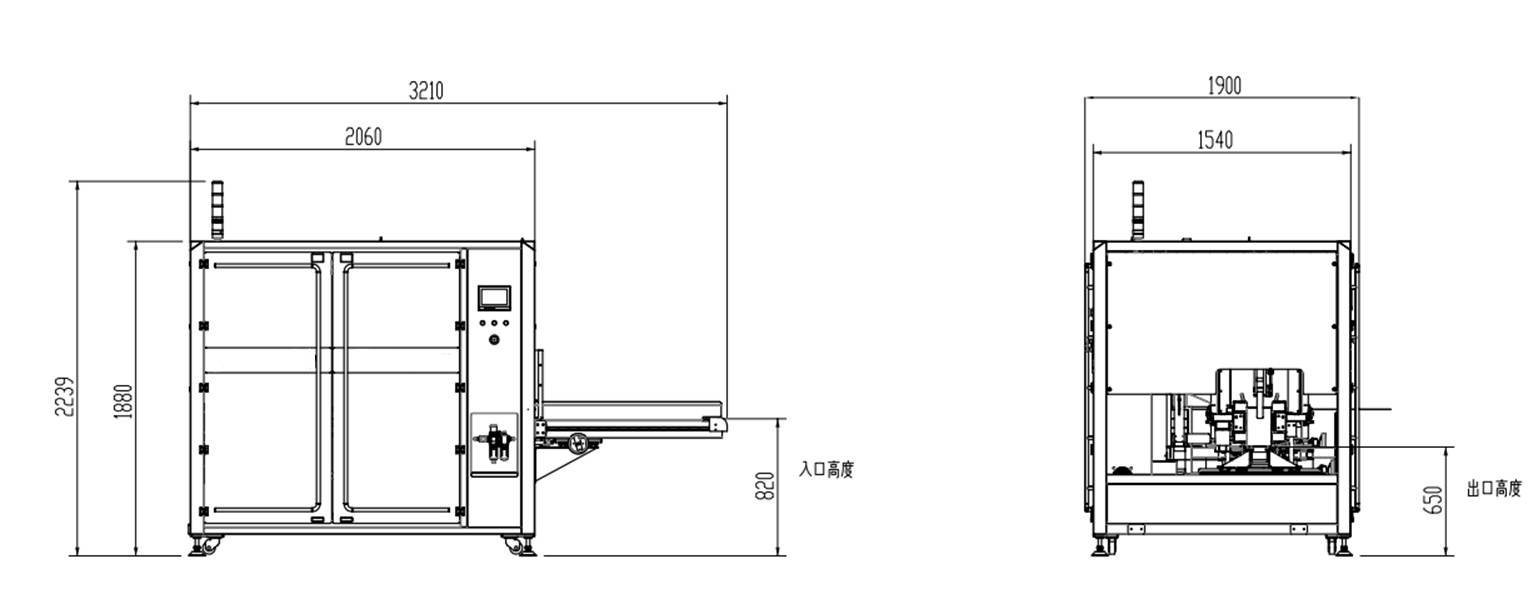

The SAE450S is built to handle robust industrial demands. Below are the standard specifications:
Specification | Details |
Model | SAE450S |
Applicable Carton Sizes | Length: 200-500mm | Width: 150-400mm | Height: 100-400mm |
Packing Speed | 5-8 cases/min |
Maximum Load | 20kg |
Sealing Method | Tape or Spray Adhesive |
Clamps | Customization available based on product type |
Power & Voltage | 5kw | 380V-50HZ |
Air Pressure | 5-6kg |
Equipment Weight | 750kg |
The side-push packing method is highly adaptable, making the SAE450S suitable for a wide variety of industries. It expertly handles:
Boxed Products: Electronics, hardware, and cosmetics.
Canned Products: Food, beverages, and daily chemicals.
Bagged Products: Snacks, agricultural products, and soft goods.
Located in Dongguan City, Guangdong Province, Jewshin Intelligent Machinery Co., Ltd. is committed to advancing the packaging industry. With our own sister factory and a highly experienced international trade department, we specialize in manufacturing and selling high-quality automatic packaging equipment. From standalone machines to complete automatic production lines, we provide reliable technology and robust global support to help you scale your business.
Q1: Can the SAE450S handle different carton sizes on the same line?
A: Yes! The SAE450S features a diverse control system that allows for a one-button switch of product sizes. It is highly compatible with multiple carton dimensions, provided they fall within the standard range (L:200-500mm, W:150-400mm, H:100-400mm). Custom size capabilities can also be configured based on your needs.
Q2: Can you customize the grippers/clamps for unique products?
A: Absolutely. Since product shapes vary across industries (boxes, cans, bags), our engineering team offers fully tailored clamp and gripper designs to ensure stable and secure handling of your specific items during the packing process.
Q3: How safe is the machine for operators?
A: Operator safety is a top priority. The SAE450S is equipped with four-sided acrylic glass protection and features an intelligent safety interlock system that triggers an immediate automatic stop if an access door is opened during operation.
Q4: Does the equipment require complex installation?
A: No. The equipment is designed to be "plug and play." It features flexible operation, is easy to move, and requires minimal setup. Furthermore, its independently developed mechanical structure ensures that long-term maintenance is straightforward and hassle-free.
Let Jewshin provide the perfect automation equipment for your facility. Contact us today with your carton specifications to receive a free assessment and a customized quotation!
