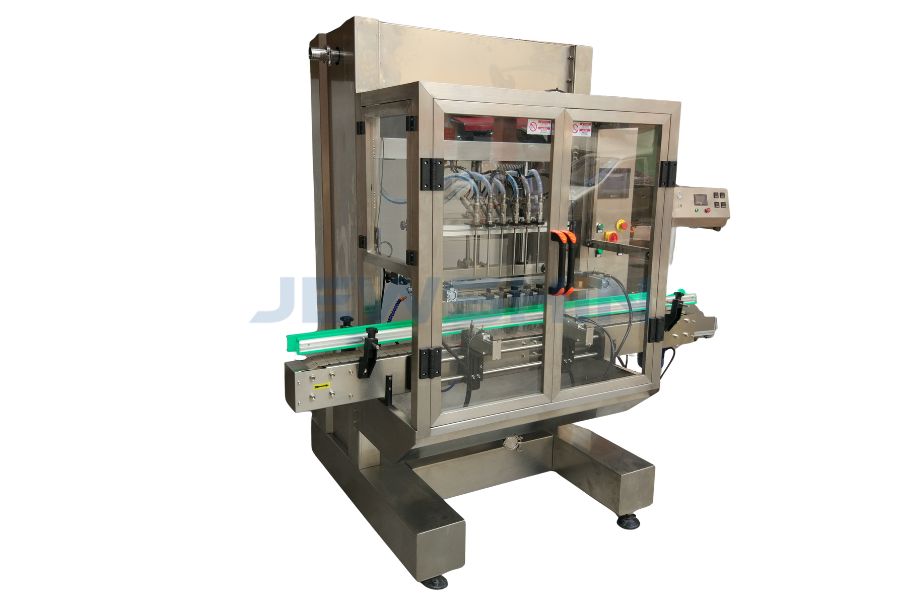

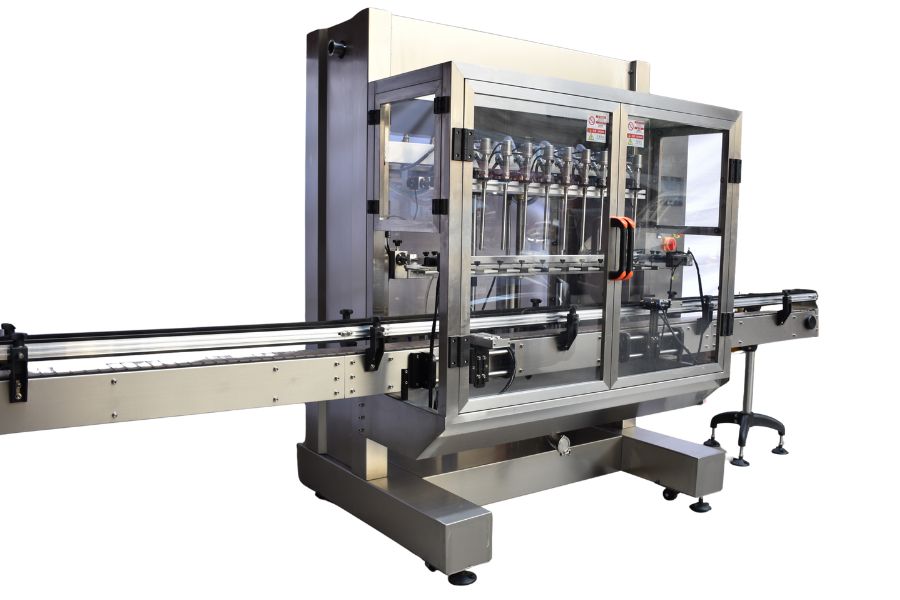

RF-GZ6T Automatic Time-Gravity Liquid Filling Machine (PLC Controlled)


Availability:



Inquire

Precision Filling for Free-Flowing Liquids.

The RF-GZ6T utilizes advanced Time-Gravity (Flow Control) Technology to fill low-viscosity liquids with exceptional speed and accuracy. Controlled by a Mitsubishi PLC with timing precision down to 0.01 seconds, it is the ideal choice for Food & Beverage (Soy Sauce, Wine, Vinegar) and Agrochemicals. Unlike complex piston systems, this machine offers rapid changeovers for various bottle shapes without needing extra parts, making it a highly flexible solution for diverse production lines.

Get Quote

Model:
RF-GZ6T
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Time-Flow Precision Control:

Uses a fixed flow channel parameter where volume is determined by time. The pneumatic valves (AirTac) can be controlled within 0.01 seconds, ensuring filling accuracy within ±1%.
Individual Head Adjustment: Each filling nozzle can be fine-tuned independently via the touchscreen to ensure consistency across all bottles.

Versatile & Flexible:

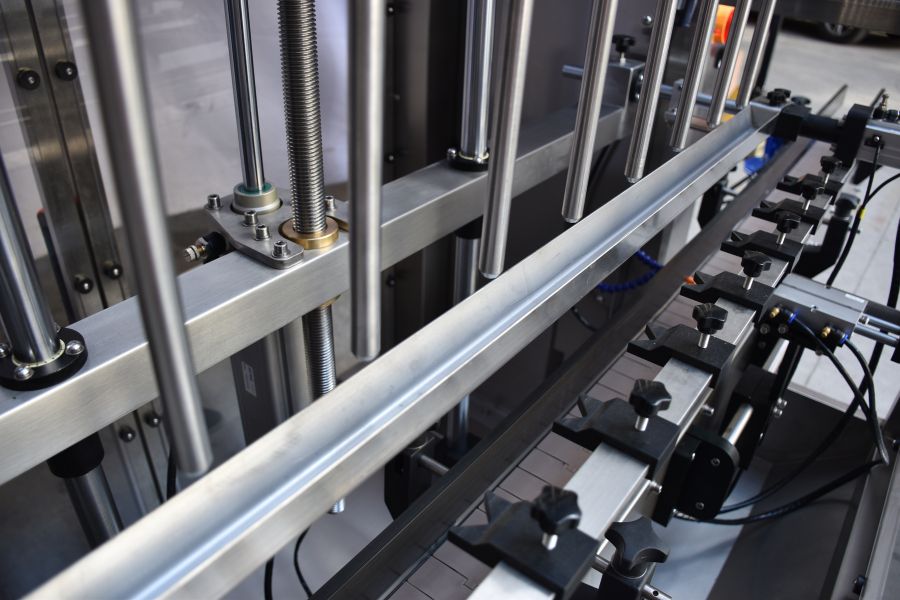

Quick Changeover: Designed for "Linear Grouping" feeding. You can switch between different bottle shapes (Round, Square, Alien/Irregular) in minutes simply by adjusting the guide rails—no spare parts required.
Wide Application: Perfect for thin liquids like white spirits, mineral water, plant oil, syrup, and liquid pesticides.

Smart Logic & Hygiene:

No Bottle, No Fill: Sensors count the bottles; filling only starts when the correct number of bottles is positioned.

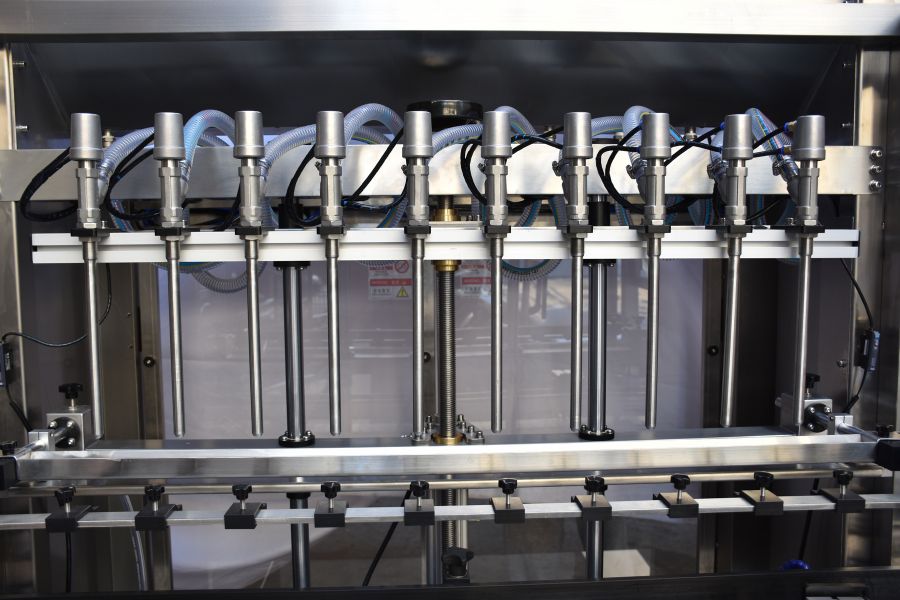

Drip-Free: Equipped with imported pneumatic filling valves and a "Bottle Mouth Card" setting to ensure accurate alignment and zero leakage/dripping.

Top-Tier Configuration:

Powered by a Mitsubishi PLC and Weinview Touchscreen, offering a visual display of production status and easy parameter modification.

Application Scenarios

Condiments: Soy sauce, Vinegar, Fish sauce, Thin Syrups.
Beverages: White spirits (Liquor), Mineral water, Juice, Tea drinks.
Edible Oils: Vegetable oil, Olive oil (low viscosity).
Chemicals: Liquid pesticides, Fertilizers, Thin solvents.

Technical Specifications

Parameter	Details
Model	RF-GZ6T
Filling Principle	Time-Gravity / Direct Flow
Filling Capacity	Adjustable (via Touchscreen)
Filling Accuracy	± 1%
Control Precision	0.01 Seconds
Power	1500W (AC 220V)
Air Consumption	0.4 - 0.6 MPa
Dimensions	2000 (L) × 1000 (W) × 2100 (H) mm
Weight	~500 KG

Premium Configuration List

Based on the specific configuration list for this machine:

Component	Brand	Origin	Role
PLC	Mitsubishi	Japan	Central Control Logic
Touch Screen	Weinview	Taiwan	HMI Operation
Bottle Sensor	Keyence	Japan	High-Speed Detection
Pneumatics (Cylinder)	AirTac	Taiwan	Valve Actuation
Solenoid Valve	AirTac	Taiwan	Air Control
Relay	Omron	Japan	Circuit Protection
Inverter	Corkan	Guangzhou	Motor Speed Control
Conveying Motor	Upper Run (Shangrun)	China	Belt Movement
Power Supply	Meanwell	Taiwan	Stable Voltage

Speed Up Your Liquid Production.

For thin liquids, nothing beats the speed and simplicity of the RF-GZ6T. Get high output with minimal maintenance.

Material Check: Not sure if your oil is "thin" enough? Ask us for a viscosity check.
Get a Quote: Contact us specifically for the RF-GZ6T Gravity Filler.
