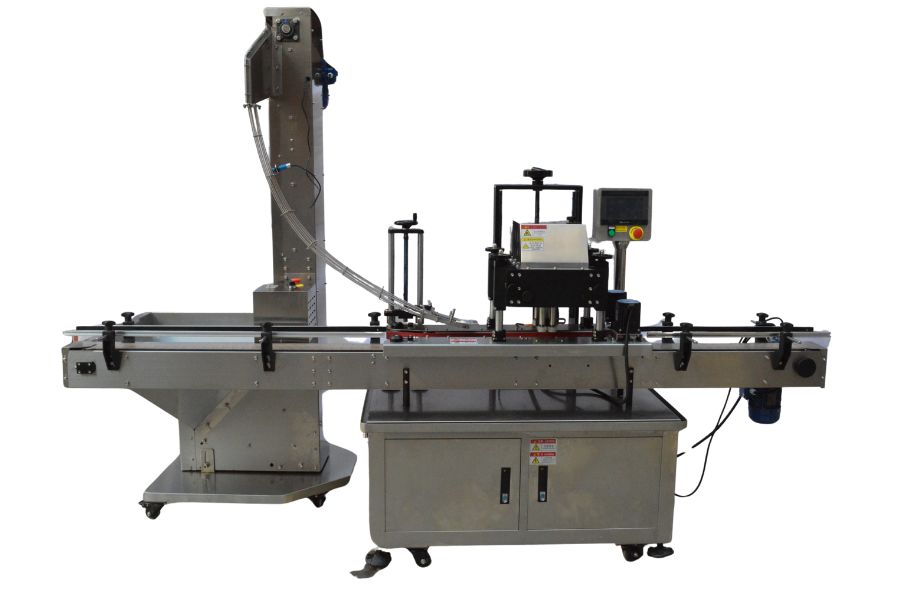

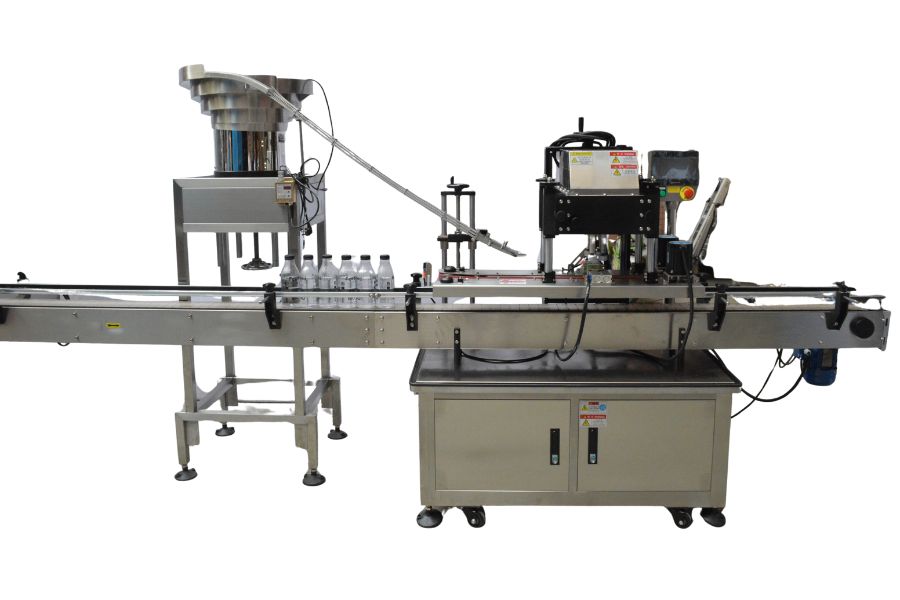

RF-XGJ Automatic Gripping Capping Machine (For Pumps, Sprays & Triggers)


Availability:



Inquire

The Expert Solution for Complex Caps (Pumps & Triggers).

Standard cappers struggle with Lotion Pumps, Trigger Sprays, and Duckbill Caps. The RF-XGJ is specifically engineered to handle these challenges. Utilizing a "Gripping & Positioning" mechanism, it secures the bottle and precisely tightens irregular caps without damage. Powered by a Mitsubishi PLC and four independent speed-control motors, it offers the versatility to handle everything from standard screw caps to complex spray nozzles at speeds up to 1,800 bottles/hour.

Get Price

Model:
RF-XGJ
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Designed for "Difficult" Caps:

Solves the industry headache of capping Spray Pumps, Hand-Trigger Sprays (Gun shapes), and Lotion Pumps. The machine includes a positioning device to ensure the cap is oriented correctly before tightening.

4-Motor Independent Control:

Separate motors control Cap Feeding, Bottle Clamping, Conveying, and Capping. This allows you to fine-tune the speed of each step. For example, you can slow down the clamping for fragile bottles while keeping the conveyor moving fast.

Damage-Free Tightening:

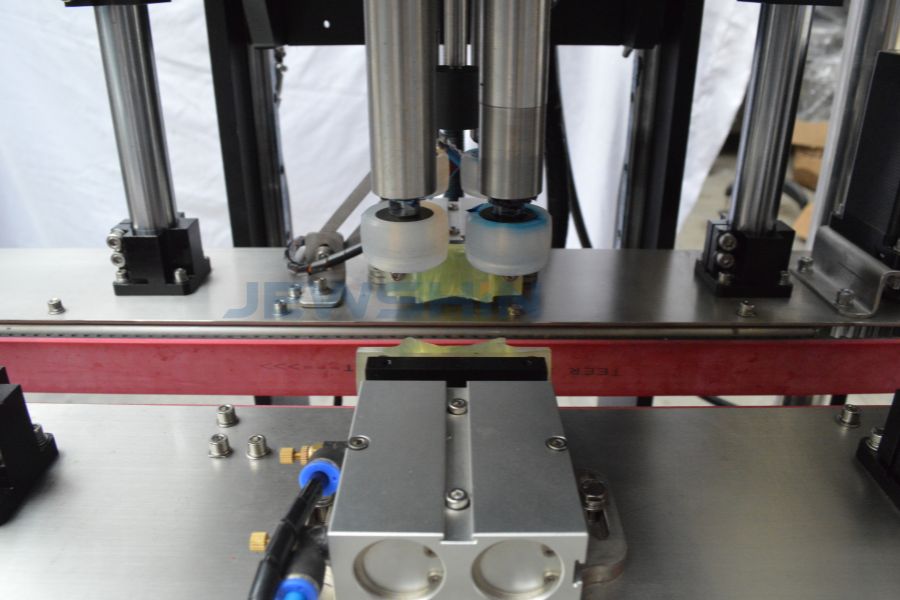

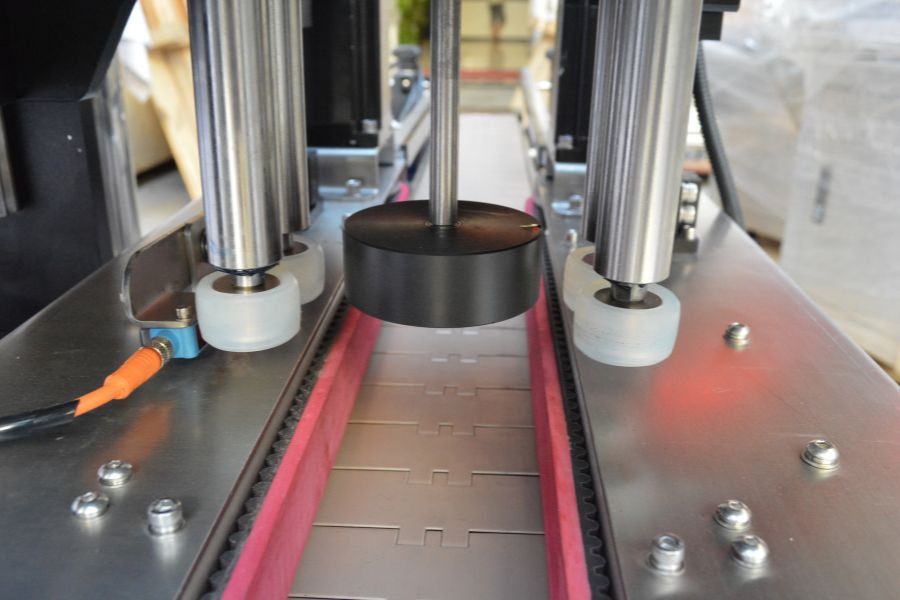

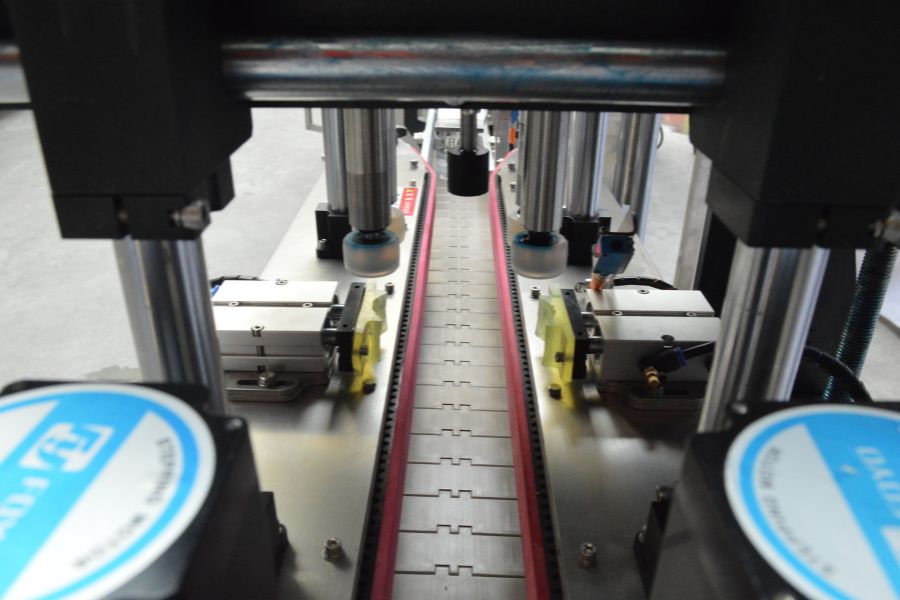

Silicone Capping Wheels: The rubbing wheels are made of high-quality wear-resistant silicone. They provide enough friction to tighten the cap securely but are soft enough to prevent scratching the plastic surface or damaging the nozzle.
Adjustable Torque: The rotation speed and tightness can be adjusted to prevent over-tightening.

High Compatibility & Easy Adjustment:

Tool-Free Changeover: Switching from a tall shampoo bottle to a short jar? No spare parts needed. Simply adjust the height and width using the handwheels.

Wide Range: Handles bottle diameters from 35mm to 80mm+ (Customizable).

Premium Configuration:

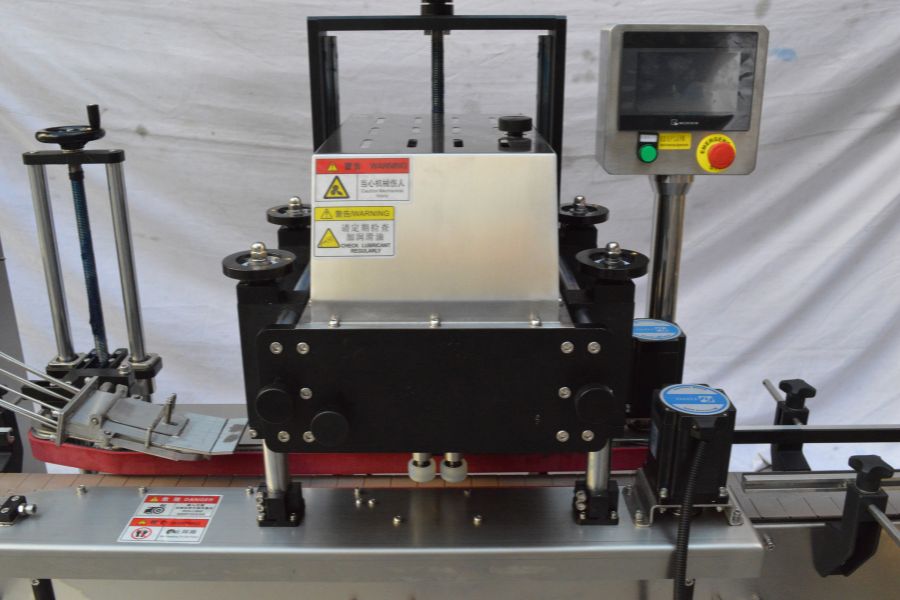

Equipped with a Mitsubishi PLC and Weinview Touchscreen for reliable, visual operation.

Application Scenarios

Personal Care: Shampoo pumps, Liquid soap dispensers, Lotion bottles.
Household Cleaning: Window cleaner (Trigger sprays), Kitchen degreaser, Laundry detergent.
Cosmetics: Toner spray bottles, Cream jars.
Agrochemicals: Pesticide spray bottles.

Technical Specifications

Parameter	Details
Model	RF-XGJ
Capping Speed	1500 - 1800 bottles/hour (25-30 BPM)
Cap Type	Screw Cap, Pump, Spray, Trigger
Bottle Height	38 - 300 mm (Customizable)
Bottle Diameter	35 - 80 mm (Customizable)
Cap Diameter	Customizable (Standard fits most pumps)
Air Pressure	0.3 - 0.5 MPa
Power	1500W (AC 220V / 50Hz)
Dimensions	2000 (L) × 700 (W) × 1600 (H) mm
Weight	~200 KG

Premium Configuration List

Based on the specific configuration list for this machine:

Component	Brand	Origin	Role
PLC	Mitsubishi	Japan	Logic Control
Touch Screen	Weinview	Taiwan	Operation Interface
Pneumatics	AirTAC	Taiwan	Cylinder/Air Movement
Motor	Wide Plus (Shangrun)	China	Main Drive
Inverter	Coreken	China	Speed Regulation
Relay	Omron	Japan	Circuit Stability
Switch	Sunking (Shuangke)	China	Button Controls

Stop Hand-Capping Your Pumps & Sprays.

Automate your most difficult packaging step with the RF-XGJ. Consistent tightness, no leaks, and no more sore hands.

Sample Test: Send us your trigger spray or pump bottle, and we will film a test run for you.
Get a Quote: Contact us for pricing on the RF-XGJ Gripping Capper.
