Speed, Versatility, and Continuous Operation.
Designed for high-volume production lines, this High-Speed Spindle Capping Machine eliminates the bottleneck in your packaging process. Unlike intermittent cappers, it tightens caps "on the fly" using wear-resistant silicone wheels, achieving speeds up to 6,000 bottles/hour. It comes fully integrated with an Automatic Cap Elevator to ensure a constant supply of caps. Its standout feature is Universal Compatibility: switch between different bottle sizes and shapes in minutes by simple adjustment—no change parts required.

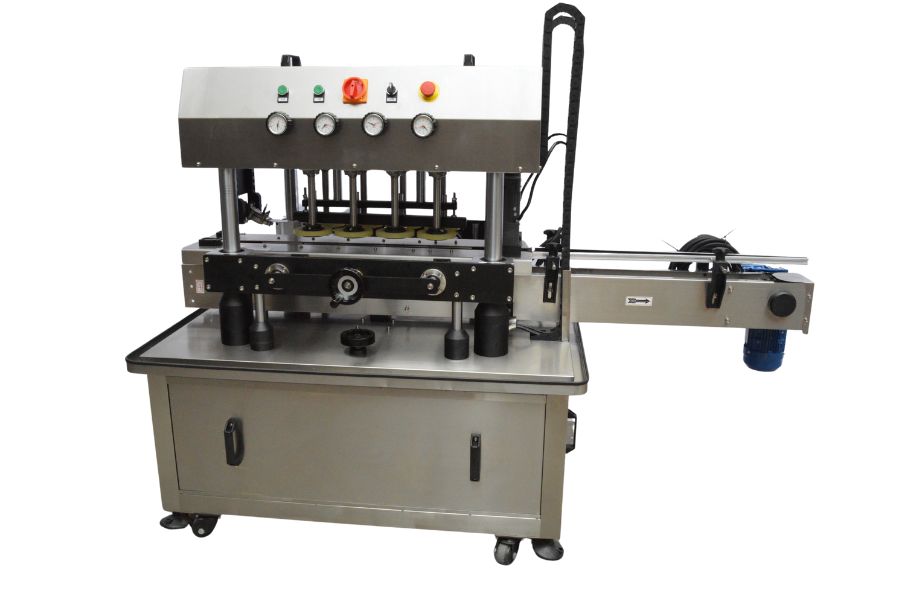

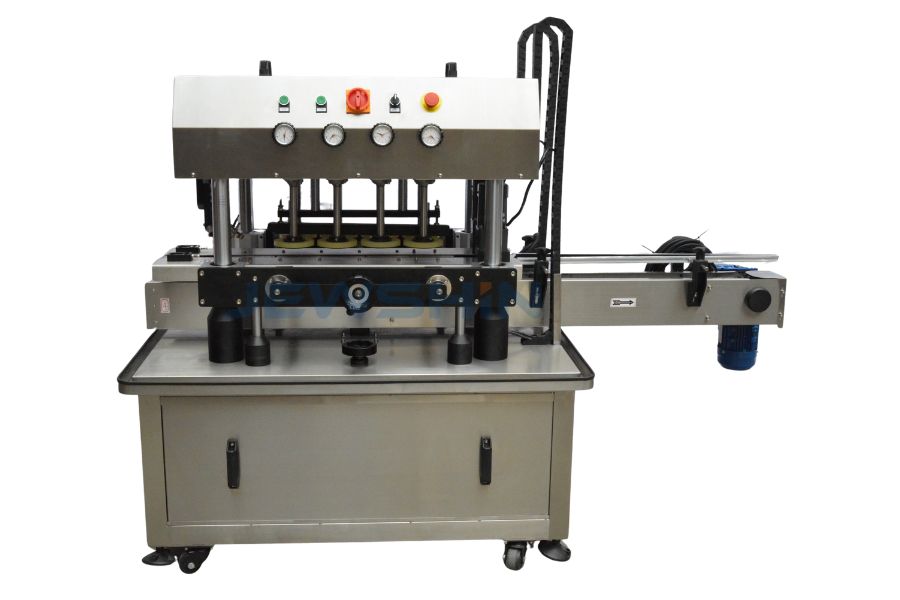

High-Speed Spindle Capping Machine
JEWSHIN
High-Speed Continuous Capping:

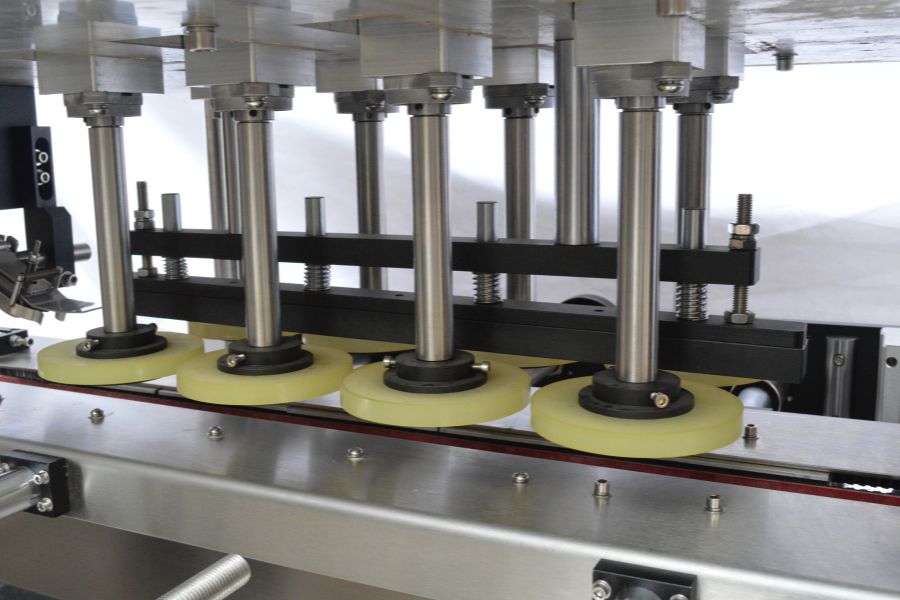

Utilizes a "rubbing/twisting" mechanism (Spindle wheels) that caps bottles as they move along the conveyor. This allows for a smooth output of 60-100 bottles per minute, significantly faster than stop-and-go systems.
No Change Parts Needed (Universal Design):

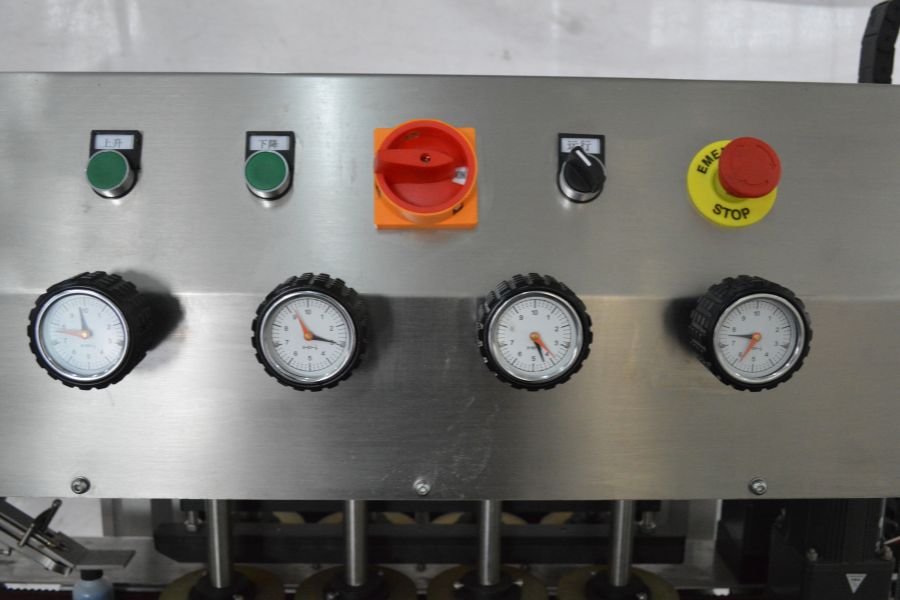

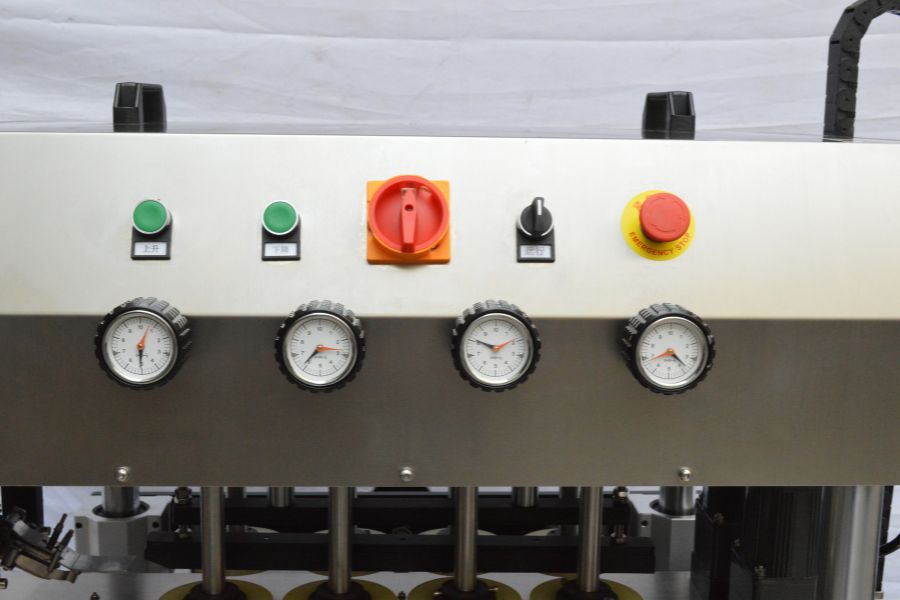

The machine is highly compatible. Whether you are running tall bottles, short jars, or different cap diameters (35-120mm), you can adjust the height and width using handwheels. No need to buy expensive molds or spare parts for new products.
Cap Protection:
The capping wheels are made of Wear-Resistant Silicone. This material provides excellent grip to tighten the cap securely without scratching or damaging the cap surface or printing.
Fully Automatic Feeding:

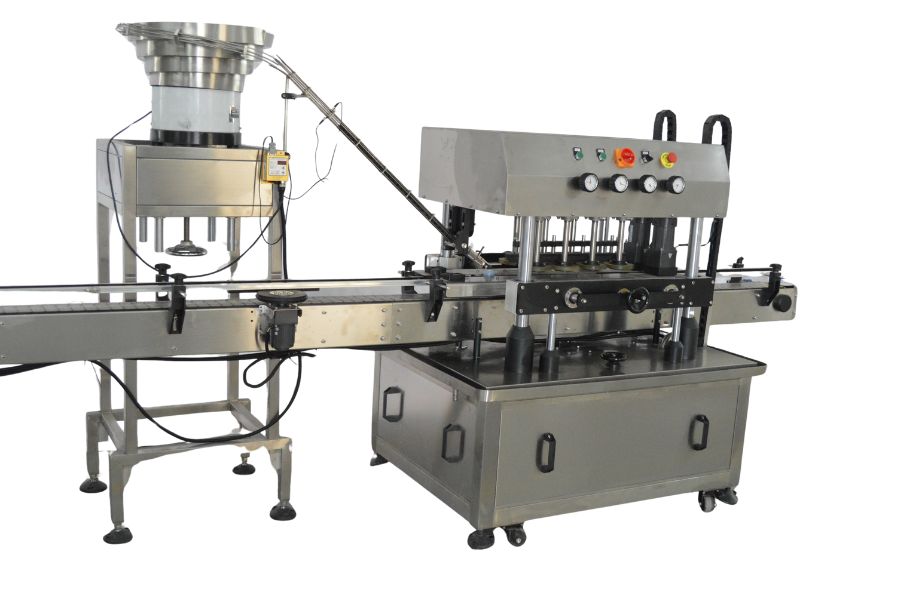

Includes a Cap Elevator/Sorter. It automatically lifts caps from a ground-level hopper and orients them correctly before placing them onto the bottles, reducing manual labor intensity.
Robust Construction:
Built with a combination of Stainless Steel and lightweight Aluminum profiles, ensuring hygiene (GMP compliant) and structural stability.
Food & Beverage: Beverage bottles, Spice jars, Sauce bottles.
Daily Chemicals: Shampoo, Laundry detergent, Dish soap.
Pharmaceuticals: Medicine bottles, Supplement jars.
Agrochemicals: Pesticide bottles.
Parameter | Details |
Output / Speed | 3600 - 6000 bottles/hour (Depends on size) |
Applicable Bottle Diameter | Ø 35mm - 120mm (Customizable) |
Conveyor Height | 800 - 850 mm (Standard line height) |
Power Supply | AC 220V / 50Hz / 2000W |
Machine Dimensions | 2000 (L) × 900 (W) × 1600 (H) mm |
Net Weight | ~300 KG |
Reliable components chosen for durability and cost-effectiveness:
Component | Brand | Origin | Note |
Inverter | Corkan | Guangzhou | Stable Speed Control |
Photoelectric Sensor | RiKo | Taiwan | Text says "Force department", corrected to RiKo (力科) |
Relay | Omron | Japan | Industry Standard |
Push-Key Switch | Biko (Shuangke) | Nanjing | Durable Interface |
Conveying Motor | Taibang (TWT) | China | High Torque |
Capping Motor | Taibang (TWT) | China | Reliable Performance |
If you need to cap thousands of bottles an hour without the hassle of changing parts, this is your machine.
Cap Test: Send us your caps to ensure the elevator sorter is configured correctly.
Line Integration: We can match the conveyor height to your existing filling machine.
