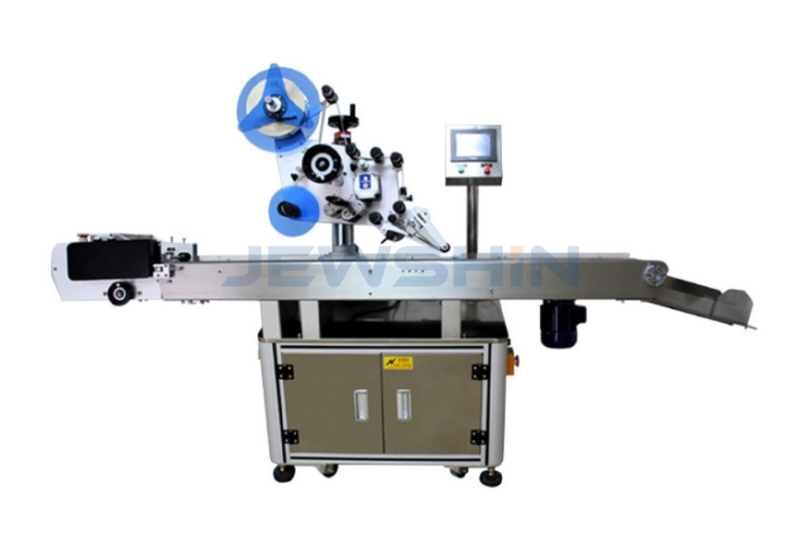

JX-T115 Automatic Paging & Flat Labeling Machine (For Cards & Cartons)

Name: JX-T115 Automatic Paging & Flat Labeling Machine (For Cards & Cartons)
Brand: JEWSHIN
SKU: JX-T115
Availability: InStock
Rating: 5.0 (99 reviews)

From Stack to Label: The Ultimate High-Speed Solution.

The JX-T115 is designed to automate the labeling of flat, stackable items. Instead of manual feeding, simply load a stack of Cards, Unfolded Boxes, Plastic Bags, or Tags, and the machine uses advanced Reverse Wheel Paging Technology to separate them individually onto the conveyor for precise labeling. Equipped with a Panasonic PLC and Leuze Sensors, it ensures bubble-free application and high stability. Ideally suited for the Pharmaceutical (Carton Coding), Electronics, and Printing industries.

[Watch Paging Demo] | [Get Price]

Availability:



Inquire

Model:
JX-T115
Brand:
JEWSHIN

Product Description

Key Features & Advantages

Advanced Paging System (Anti-Jam):

Utilizes Reverse Wheel Sorting Technology, which offers a significantly higher separation rate than standard friction feeders. It effectively prevents "double feeds" (two items sticking together), ensuring every single card is labeled.

High-Speed Capability:

While standard operation offers precision control, the system is capable of speeds up to 200+ pieces/minute for specific applications like pharmaceutical carton coding or small card labeling.

Smart Recognition & Control:

Auto-Detection: Features "No Object, No Label" and automatic label length calibration.
Product Recognition: The system can identify different products and activate the corresponding labeling head settings automatically (as per description).

Precision & Quality:

Top Pressing Roller: A mechanism presses the workpiece flat during transport to prevent warping or fluttering, ensuring the label is applied without bubbles or wrinkles (±1mm accuracy).

Top-Tier Components (7x24h Operation):

Built for continuous industrial use with a robust electrical system:

PLC: Panasonic (Japan)
Touchscreen: Kunlun Tongtai (User-friendly)
Sensors: Panasonic & Leuze (Germany)

Application Scenarios

Pharmaceuticals: Labeling unformed (flat) medicine boxes with supervision codes or tamper-evident labels before they are folded.
Printing & Stationery: Scratch cards, Greeting cards, Postcards, Notebook covers.
Electronics: Phone screen protectors, PE bags, PCB boards.
Apparel: Hang tags, Clothing packaging bags.

Technical Specifications

Parameter	Details
Model	JX-T115
Labeling Accuracy	± 1.0 mm
Standard Speed	30 - 70 pcs/min (Up to 200 ppm for specific apps)
Applicable Product Size	L: 40-280mm \| W: 40-200mm
Product Thickness	0.2mm - 2.0mm (Cards/Sheets)
Label Size	Length: 20-130mm \| Width: 20-280mm
Control System	Panasonic PLC + Touchscreen
Machine Dimensions	2200 (L) × 700 (W) × 1450 (H) mm
Power Supply	AC 220V / 50Hz
Weight	~250 KG

Why Choose the JX-T115?

Efficiency: Replaces 3-5 manual workers by automating the feeding process.
Flexibility: The 6-DOF (Degrees of Freedom) adjustment mechanism allows you to switch between different card sizes and label positions in minutes.
Stability: The heavy-duty structure and German sensors mean fewer stops and less downtime.

Automate Your Flat Labeling Process.

Don't waste time feeding cards by hand. Let the JX-T115 handle the stack.

Get a Quote: Contact us for pricing on the JX-T115 Paging Labeler.
Compatibility Check: Tell us your product size (Length/Width/Thickness), and we will confirm the speed.
