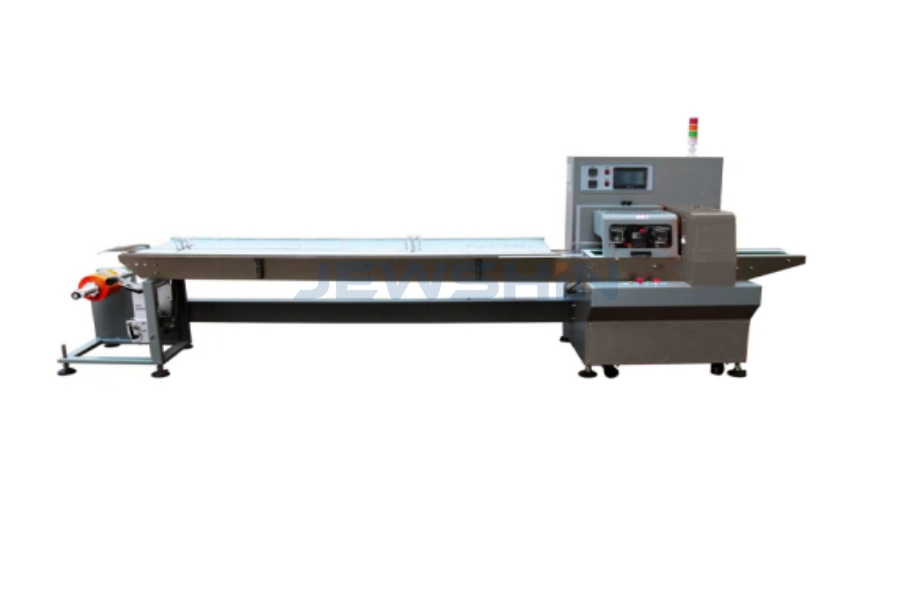

Why Choose the ZS-220X? (Precision for Small Items)
For manufacturers of daily necessities and hardware, product sizes vary frequently. The ZS-220X is built to handle this variety without the bulk of large industrial machines.
Magic Eye (Flexible Packaging): In the 3-servo belt configuration, the machine uses sensors to "see" the length of the product as it enters. It automatically cuts the bag to fit, allowing you to run different length products in the same batch without stopping to change settings.
Handle "Long & Thin" Items: With a bag length range of 60mm to 1000mm, it is uniquely capable of packing very long, narrow items like rulers, LED strips, or piping, which standard small machines cannot handle.
Product Protection: The Safety Reverse Function ensures that if the cutter hits a hard product (like a phone case), it immediately reverses and resets, preventing damage to both the product and the blade.
Application Scenarios
Ideal for lightweight, solid, regular objects:
Stationery: Pens, refills, rulers, correction tape, erasers.
Electronics: Phone cases, charging cables, chargers, batteries.
Daily Necessities: Toothbrushes, toothpaste, soap bars, hotel amenities.
Toys & Hardware: Toy figurines, dominoes, hinges, screws (in trays), bearings.
Key Features & Technical Highlights
Servo Intelligence: Bag length is set and cut immediately. No "empty runs" needed to calibrate, saving time and film material on every startup.
Smart Fault Diagnosis: The color touchscreen displays clear error messages, making troubleshooting easy for any operator.
No Film, No Run: The machine automatically stops if the packaging film runs out, preventing dry cycling.
Accurate Positioning: High-sensitivity photoelectric eye tracking ensures your logo and branding are perfectly centered on every package.
Memory Storage: Save up to 40 different product parameters for quick changeovers.
Independent PID Temp Control: Ensures consistent seal quality across various film types (OPP, PE, CPP).
Technical Specifications
Parameter | Specification |
Model | ZS-220X |
Control System | Servo Control (Optional 3-Servo Belt for Auto-Length) |
Packaging Speed | 20 - 220 bags/min |
Bag Length | 60 - 1000 mm (Ultra-Wide Range) |
Bag Width | 30 - 90 mm |
Product Height | Max 35 mm |
Film Width | Max 220 mm |
Film Roll Diameter | Max 300 mm (Core: 76mm) |
Power Supply | 220V, 50/60Hz, 2.9KW |
Machine Dimensions | (L)4115 × (W)830 × (H)1400 mm |
Machine Weight | 500 Kg |
Service & Support
Custom Infeed: We can provide belt conveyors, finger pushers, or automatic bowl feeders depending on your product (e.g., hardware vs. soap).
Testing: Send us your smallest and largest samples. We will configure the machine to handle your full range.
Warranty: 1-Year Warranty with lifetime remote support.
Frequently Asked Questions (FAQ)
Q: What does "Flexible Packaging" mean?
A: It means the machine can automatically detect the length of the product passing through the sensors and cut the bag to the exact required length. This is only available on the 3-servo belt type version.
Q: Can this machine pack liquid or loose powder?
A: No, the ZS-220X is designed for solid, regular objects. For liquids or powders, you would need a Vertical Form Fill Seal (VFFS) machine.
Q: My product is very light (e.g., a single pen). Will it slip?
A: The servo control and belt design ensure smooth transport. For very light items, we adjust the film tension and sealing pressure to ensure smooth movement without jamming.
Simplify Your Packaging of Small Parts.
Whether you are packing hotel amenities or electronic accessories, the ZS-220X offers the speed and flexibility you need.
