Price: Contact Us for Best Factory Price
Lead Time： Standard Delivery: 15–25 Working Days
MOQ： MOQ: 1 Set
ZS-500S
JEWSHIN

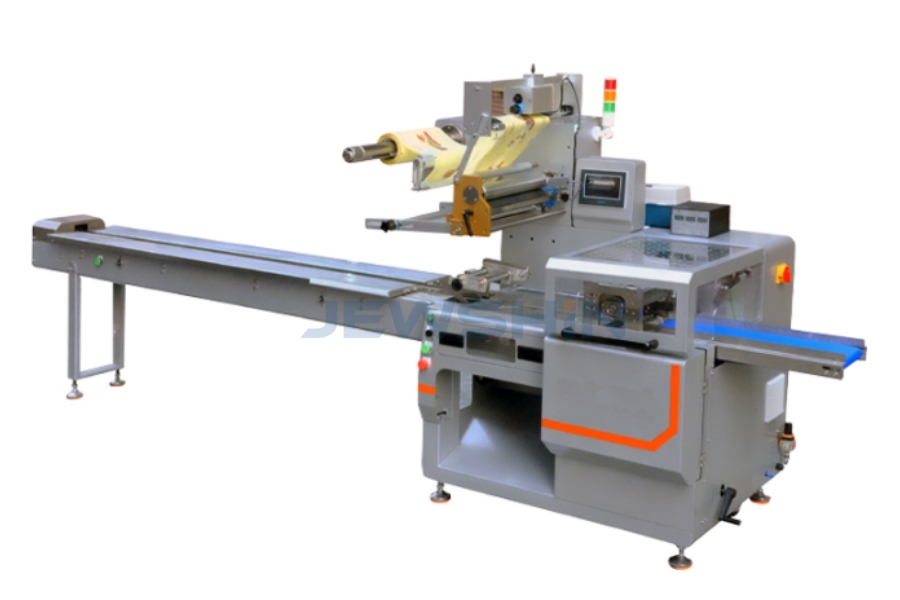

While standard machines handle standard products, the ZS-500S is built for challenging dimensions and high-speed stability.
Four-Servo Precision: The 4-axis control system independently manages film feeding, pulling, cutting, and discharge. This results in smoother operation, less mechanical wear, and perfect synchronization even at high speeds.
Handle Longer Products: With a maximum bag length of 600mm, this machine is perfect for long items like baguettes, celery/vegetables, long hardware fittings, or multi-pack trays.
Zero Waste Safety: Features the advanced Anti-Cutting Function. If a product is misplaced, the cutter automatically pauses/discharges, preventing blade damage and saving your product.
Designed for "Big & Long" regular objects:
Bakery & Food: Baguettes, swiss rolls, large bread loaves, family-pack wafers, and tray-loaded cookies.
Fresh Produce: Long vegetables (celery, cucumbers, carrots) requiring extended packaging.
Industrial & Hardware: Long pipes, bearings, hinges, and oversized medical devices.
Daily Necessities: Multi-pack tissues, towels, and disposable cutlery sets.
Smart Memory Storage: Save up to 40 different product recipes. Switch from packing a small cake to a long hardware part in seconds via the touchscreen.
No "Empty Run" Needed: The servo system allows for immediate bag length cutting upon setting. No need to run empty bags to calibrate, saving significant film costs during changeovers.
High-Speed Output: Achieves a stable production rate of 20-300 bags per minute, maximizing your factory's throughput.
Robust Build: Weighing 900Kg, the heavy-duty frame ensures stability and low vibration, essential for maintaining precision at high speeds.
Parameter | Specification |
Model | ZS-500S (Four Servos) |
Control System | 4-Axis Servo Control |
Packaging Speed | 20 - 300 bags/min |
Bag Length | 65 - 600 mm (Extended Range) |
Bag Width | 10 - 180 mm |
Product Height | 5 - 60 mm |
Film Width | Max 400 mm |
Film Roll Diameter | Max 300 mm |
Packaging Materials | OPP, OPP/PE, OPP/CPP |
Power Supply | 220V, 50/60Hz, 7KW |
Machine Dimensions | (L)4082 × (W)1116 × (H)1575 mm |
Machine Weight | 900 Kg |
Tailored Solutions: We can customize the in-feed conveyor length to accommodate extra-long products or integrate automatic feeding systems.
Factory Acceptance Test (FAT): We invite you to test the machine with your specific "long products" to ensure the seal and cut are perfect before shipment.
Global Support: Includes a 1-Year Warranty, English interface, and 24/7 online technical assistance.
Q: What is the main difference between ZS-380S and ZS-500S?
A: The ZS-500S is larger and more powerful. It has 4 Servos (vs 3), handles wider film (400mm vs 360mm), and most importantly, can pack products up to 600mm long (vs 300mm).
Q: Why do I need 4 Servos?
A: The 4th servo typically provides better control over the discharge or film tension. This ensures that even long or heavy products are transported smoothly without slipping or wrinkling the film.
Q: Can it handle printed film with eye-marks?
A: Yes, the machine includes a high-sensitivity photocell sensor to track eye-marks for precise cutting and logo positioning.
Don't let product size limit your production. Choose the ZS-500S Four-Servo Machine for maximum flexibility and speed.
Get a Quote: Contact us for pricing and lead time.
Feasibility Check: Send us your product dimensions to confirm compatibility.
Visit Factory: See our high-speed servo machines in action in Dongguan.
