Price: Contact Us for Best Factory Price
Lead Time： Standard Delivery: 15–25 Working Days
MOQ： MOQ: 1 Set

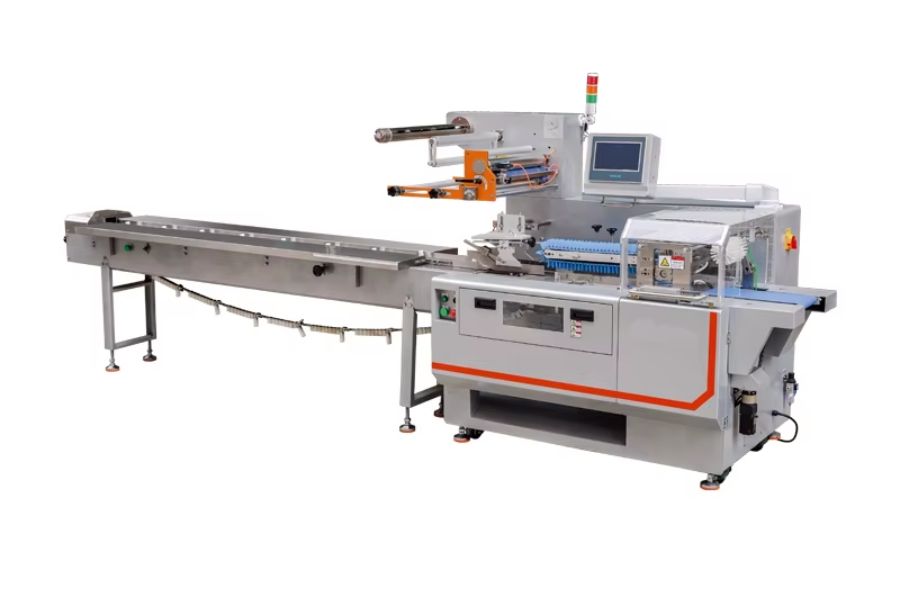

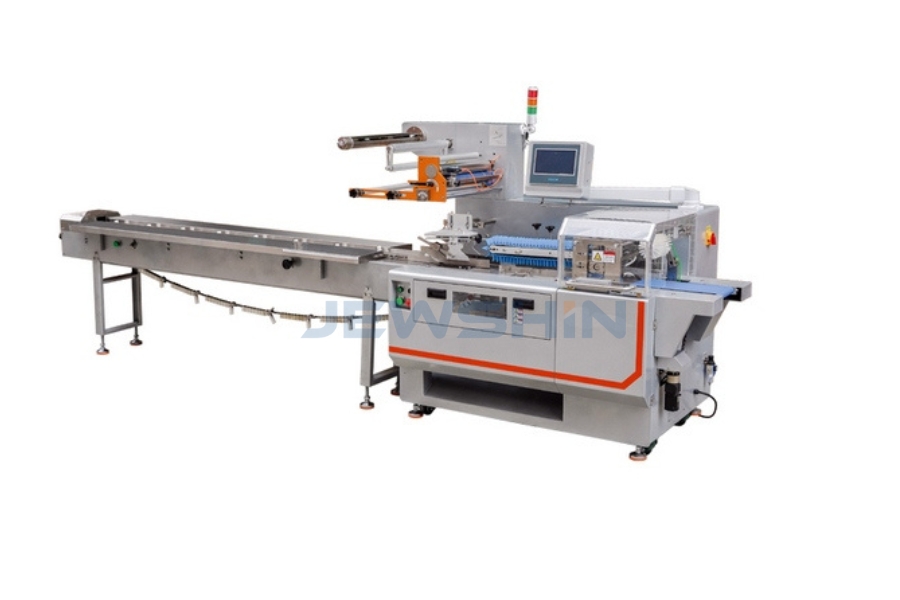

ZS-380S
JEWSHIN
In high-speed packaging, two major issues often arise: product damage during cutting and time-consuming setup for different products. The ZS-380S addresses these head-on:
Prevent Product Waste: The Anti-Cutting Function senses if a product is misplaced. The blade automatically pauses/discharges, saving both your product (e.g., a fragile cake) and the knife holder.
Rapid Changeover: With Three Servo Controls, you can set bag lengths digitally without mechanical adjustments. No empty runs are needed to calibrate, saving significant film costs.
Multi-SKU Management: Store up to 40 different packaging parameters. Switching from packaging "Mooncakes" to "Bread" takes just a few clicks on the touchscreen.
This machine is a "Jack of all trades" for solid, regular-shaped objects:
Food Industry: Bread, cakes, mooncakes, sachima, cereal bars, chocolates, and candies.
Pharmaceutical & Medical: Blister packs, medicines, medical devices, and masks.
Daily Goods & Hardware: Hardware parts, bearings, daily necessities, and paper boxes/trays.
Three-Servo Drive System: Ensures precise control over film feeding, pulling, and cutting. This results in smoother operation, lower noise, and higher durability compared to frequency conversion machines.
Smart Self-Diagnosis: The system monitors its own health. If a fault occurs, it is clearly displayed on the screen, allowing for quick troubleshooting without specialized technicians.
High-Speed Efficiency: Capable of packaging 20-260 bags per minute, significantly boosting production line throughput.

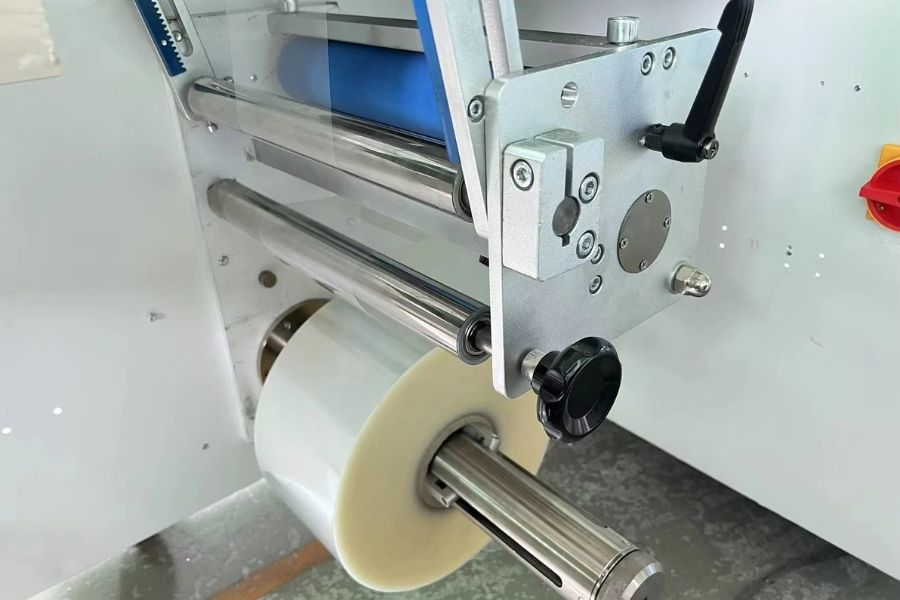

Flexible Film Handling: Compatible with OPP, OPP/PE, and OPP/CPP films with a max width of 360mm.
Parameter | Specification |
Model | ZS-380S |
Control System | Three Servo Motors (PLC Controlled) |
Packaging Speed | 20 - 260 bags/min |
Bag Size Limits | Length: 70-300mm |
Product Height | Max 55mm |
Film Width | Max 360mm |
Film Roll Diameter | Max 300mm |
Packaging Materials | OPP, OPP/PE, OPP/CPP |
Power Supply | 220V, 50/60Hz, 6.5KW |
Machine Dimensions | (L)4000 × (W)940 × (H)1600 mm |
Machine Weight | 550 Kg |
Customization: We can modify the conveyor length or add feeding systems (like nitrogen filling or date printers) based on your product needs.
Quality Check: Every ZS-380S undergoes strict testing before dispatch. We provide photos and videos for your confirmation.
Global After-Sales: 1-Year Warranty and life-long technical support via video/manuals.
Q: What is the "Anti-cutting function"?
A: It is a safety feature where sensors detect if the product is in the cutting zone. If detected, the cutter stops to avoid slicing the product, preventing waste and protecting the blade.
Q: Can this machine pack different sizes of products?
A: Yes. The bag length (70-300mm) and width (15-160mm) are adjustable. The memory function allows you to save settings for 40 different products for quick switching.
Q: Is it difficult to operate?
A: No. The servo system means "what you set is what you get." The interface is user-friendly, and we provide detailed video training.
Upgrade to the ZS-380S Three-Servo Packaging Machine for smarter, safer, and faster production. Ideal for businesses that value efficiency and product integrity.
Request a Quote: Get a price within 24 hours.
Free Sample Test: Send us your product samples, and we will film a packaging test for you.
Visit Us: See the machine running at our Dongguan factory.
