Why Choose the JX-600?
Standard machines struggle with products that aren't perfectly square. The JX-600 excels here:
Handles Irregular Shapes: Specifically optimized for items like vegetables (leafy greens, cucumbers), bottles, and adhesive tapes. The servo system adjusts the film pull and cutting moment to accommodate slight variations in product flow.
Wide Capacity: With a film width limit of 580mm and bag length up to 1000mm, it can handle multi-packs (e.g., 6 rolls of tape) or long baguettes just as easily as small notebooks.
Smart "Anti-Cut" Protection: If a product (like a hard bottle or tape core) is misplaced, the cutter automatically reverses. This prevents the knife from crushing the product and saves you from costly downtime.
Application Scenarios
Fresh Produce: Leafy vegetables, celery, cucumbers, peppers (often with anti-fog film).
Bakery: Loaf bread, baguettes, hamburgers, pastries in trays.
Stationery & Hardware: Adhesive tape towers, notebooks, journals, hinges, plastic parts.
Daily Use: Bottles (multipack), soap multipacks, sponges.

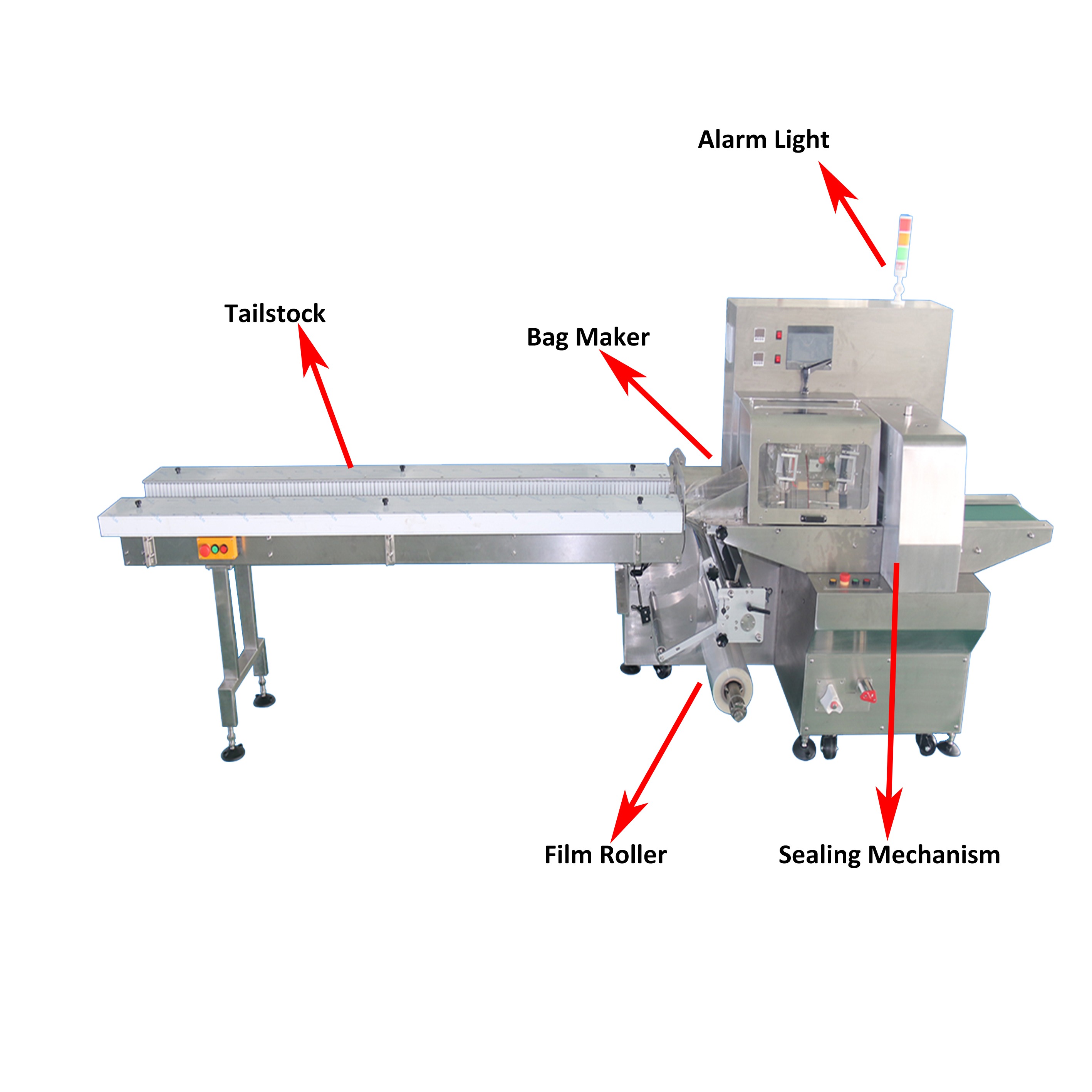

Key Features & Technical Highlights
Instant Setup (Servo Control): "Bag length is set and cut." No need for empty runs to calibrate. The machine reacts immediately to the parameters you enter on the touchscreen.
Intelligent Memory: Store up to 40 different product recipes. Switch from packing "Tape" to "Notebooks" in seconds.
Film Saving Technology:
No Film, Auto Stop: The machine halts if the film roll runs out.
Positioning Stop: The cutter stops in the open position, ensuring it doesn't stick to the film and waste material upon restart.
Precision Tracking: High-sensitivity photoelectric eyes track the printed color mark perfectly, ensuring your logo is always centered, even on long bags.
Independent PID Temp Control: Whether you use thick laminated film or thin OPP, the temperature control ensures a strong seal without burning.
Technical Specifications
Parameter | Specification |
Model | JX-600 |
Control System | Servo Control (PLC + Touchscreen) |
Packaging Speed | 20 - 120 bags/min |
Bag Length | 120 - 1000 mm |
Bag Width | 100 - 250 mm |
Product Height | Max 75 mm |
Film Width | Max 580 mm |
Film Roll Diameter | Max 300 mm |
Power Supply | 220V, 50/60Hz, 4.25KW |
Machine Dimensions | (L)4210 × (W)1070 × (H)1400 mm |
Machine Weight | 650 Kg |
Service & Support
Custom Formers: For irregular items like vegetables, we can provide adjustable bag formers to ensure a tight fit.
Sample Testing: Send us your most difficult-to-pack item. We will prove the JX-600 can handle it.
Warranty: 1-Year Warranty on core components with lifetime technical support.
Frequently Asked Questions (FAQ)
Q: Can this machine pack fresh vegetables?
A: Yes, absolutely. The JX-600 is widely used for vegetables. We can also equip it with a "perforating device" (puncher) to let the vegetables breathe.
Q: What is the difference between JX-600 and JX-580X?
A: Both have similar size capacities (580mm film). The JX-580X is often configured with specific premium electrical brands (Schneider/Veichi), while the JX-600 is our standard high-performance model designed for maximum versatility and cost-effectiveness for irregular products.
Q: My product is 1 meter long. Can it pack it?
A: Yes, the JX-600 supports a bag length of up to 1000mm, making it perfect for long items like rulers, pipes, or long vegetables.
Simplify Packaging for Difficult Shapes.
Don't let irregular product shapes slow down your production. Switch to the JX-600 for flexible, servo-driven packaging.
Get a Quote: Contact us for pricing.
Request a Video: See the machine packing vegetables or tape.
Contact Us: Discuss your product dimensions with our engineers.
