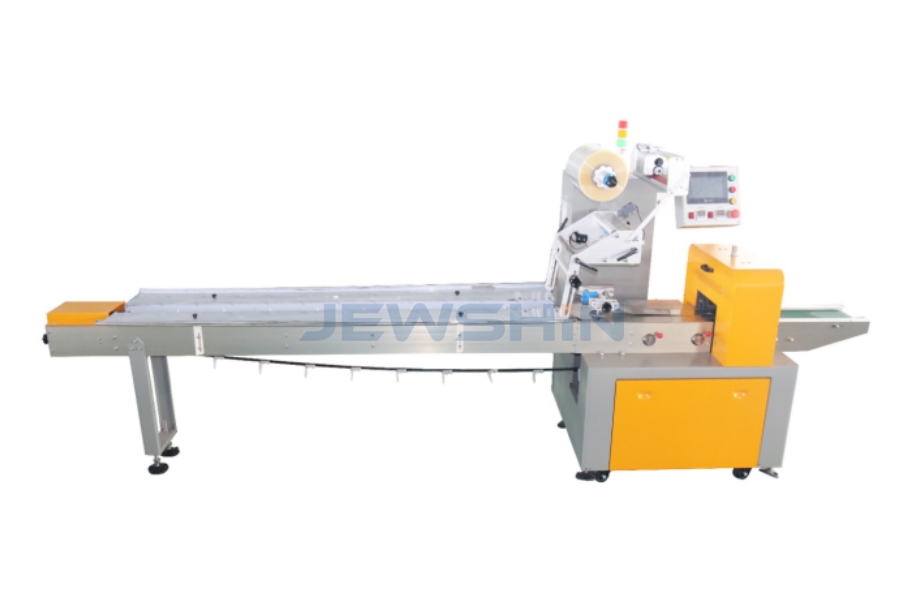

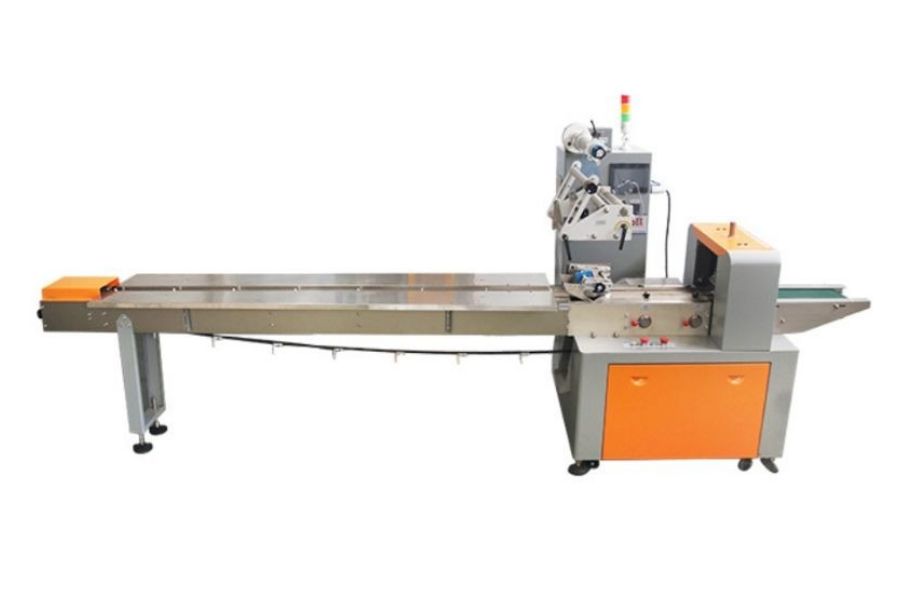

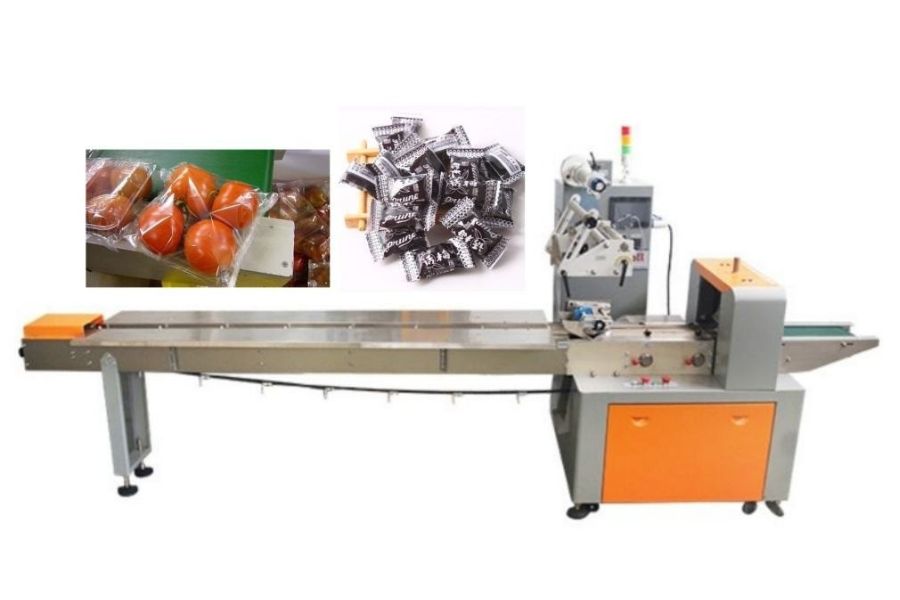

ZS-360
JEWSHIN
Manual packing of cards and leaflets is slow and prone to counting errors. The ZS-360 upgrades your process:
Automatic Counting & Feeding: The machine is ready to pair with a "Friction Feeder" or "Page Feeder." It can automatically dispense a set number of items (e.g., 5 game cards or 1 user manual) directly onto the conveyor for immediate wrapping.
Wide Size Range: With a film width of 360mm and a bag length up to 1000mm, it accommodates everything from small warranty cards to long, folded brochures or banners.
Product Safety (Anti-Cut): Paper products are easily ruined if cut. The Safety Reverse Function ensures the cutter reverses if it hits a product, saving your printed materials from damage.
Printing Industry: Instruction manuals, warranty cards, certificates of conformity, envelopes, red packets.
Stationery & Gifts: Greeting cards (with envelopes), notebooks, sticky notes, postcard sets.
Gaming: Trading card packs (stacks), board game components, lottery tickets.
General Solids: Bread, biscuits, and regular hardware parts.
Servo Precision: "Set and Cut" technology means no film is wasted on calibration. The bag length is adjusted instantly via the touchscreen.
Intelligent Memory: Store up to 40 product recipes. Switch from packing "User Manual A" to "Warranty Card B" in seconds.
High-Speed Stability: Runs smoothly at 20-220 bags/minute, matching the high-speed output of modern printing presses.
Accurate Registration: High-sensitivity photocell sensors track eye-marks perfectly, ensuring your branding is centered on every pack.
Smart Stop: The machine automatically stops if the film runs out (preventing empty cycling) or if no product is detected (preventing empty bags).
Parameter | Specification |
Model | ZS-360 |
Control System | Servo Control (PLC + Touchscreen) |
Packaging Speed | 20 - 220 bags/min |
Bag Length | 80 - 1000 mm (Long Range) |
Bag Width | 40 - 160 mm |
Product Height | 5 - 60 mm |
Film Width | Max 360 mm |
Film Roll Diameter | Max 300 mm (Core: 76mm) |
Packaging Materials | OPP, OPP/PE, OPP/CPP |
Power Supply | 220V, 50/60Hz, 2.9KW |
Machine Dimensions | (L)4020 × (W)1060 × (H)1520 mm |
Machine Weight | 500 Kg |
Feeder Integration: We don't just sell the wrapper; we can supply and install the Automatic Feeder to match your specific paper thickness and size.
Sample Testing: Send us your manuals or cards. We will test the feeding stability and wrapping finish, then send you a video.
Warranty: 1-Year Warranty on core components (Servo/PLC) with lifetime technical support.
Q: Can this machine count the cards before packing?
A: Yes, when equipped with our optional Automatic Feeder, the system can count a specific number of cards (e.g., 10 per pack) and drop them onto the conveyor for wrapping.
Q: Can it handle very thin paper?
A: Yes, but for very thin single sheets, we recommend using a feeder with vacuum assistance. The ZS-360's independent PID temperature control ensures the film seals without burning, which is crucial for lightweight products.
Q: What is the difference between ZS-360 and ZS-380S?
A: The ZS-360 is optimized for lighter, flatter products (like paper) and has a slightly narrower film width. The ZS-380S is a heavier-duty 3-servo machine often used for bulkier food items, though both are versatile.
Stop hand-packing printed materials. Increase speed and accuracy with the ZS-360 and our automatic feeding solutions.
Get a Quote: Ask for a price including the Automatic Feeder.
Request a Video: See how we pack instruction manuals at high speed.
Contact Us: Let's discuss your product dimensions.
