Price: Contact Us for Best Factory Price
Lead Time： Standard Delivery: 15–25 Working Days
MOQ： MOQ: 1 Set

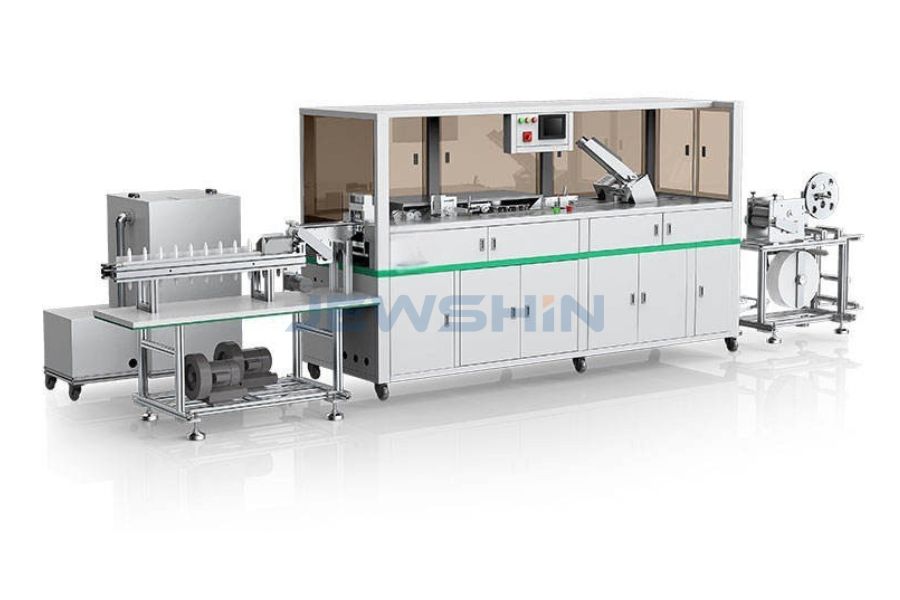

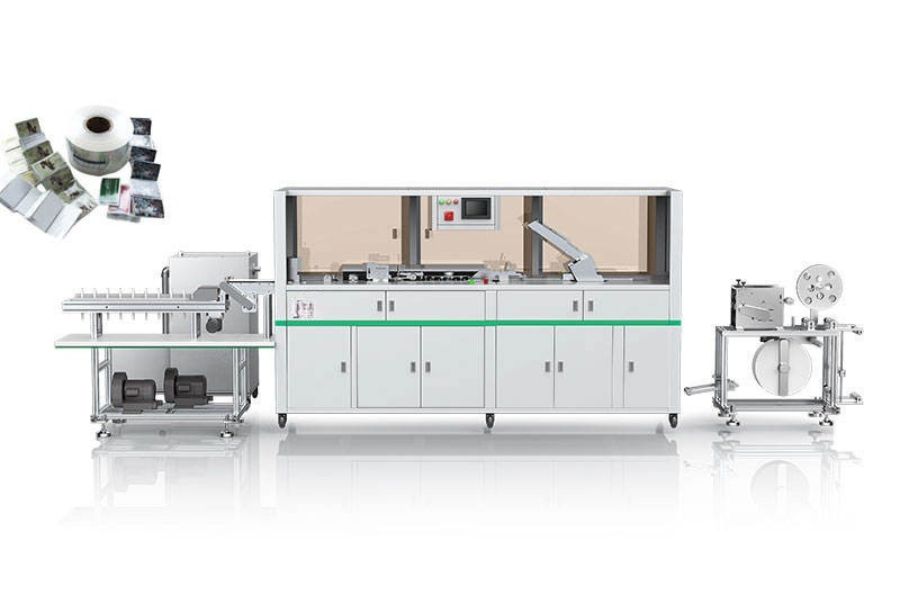

JX-009BZJ
JEWSHIN
For brands in the mid-to-premium segment, packaging quality reflects product value. The JX-009BZJ moves beyond standard heat sealing to offer:
Enhanced Aesthetics: Ultrasonic sealing creates a clean, flat, and pattern-perfect seal without the wrinkles or deformation often caused by heat, perfect for high-value gift cards and SIM cards.
Superior Seal Strength: The molecular fusion provided by ultrasonic technology ensures a tamper-evident closure, critical for prepaid and financial cards.
Energy & Speed Efficiency: Ultrasonic generates heat only at the seal interface, allowing for faster start-up times and significantly higher throughput speeds.
This machine is engineered for industries where speed and packaging appearance are paramount:

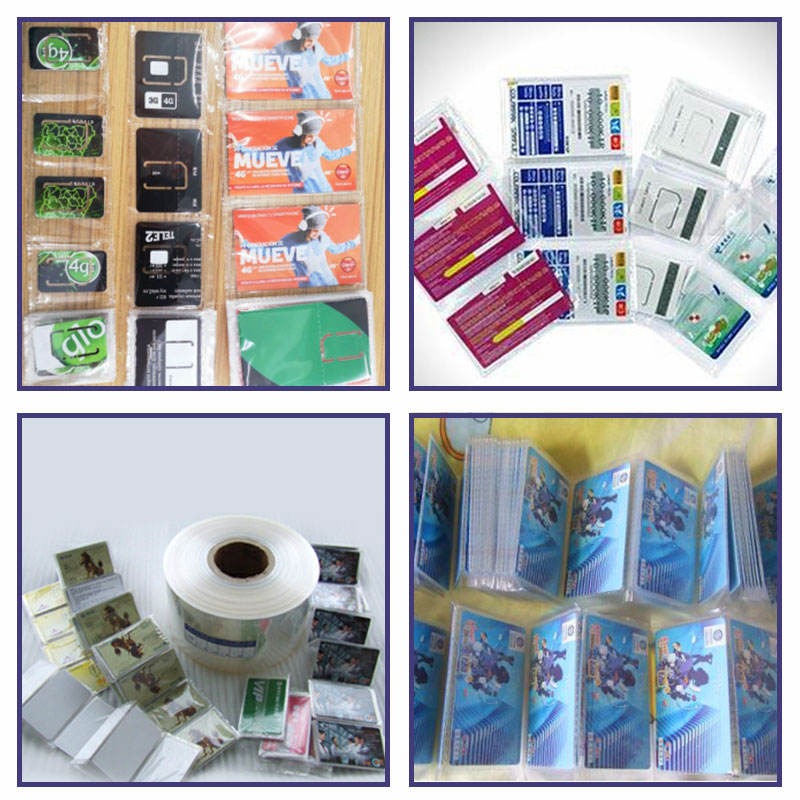

Telecom Operators: High-volume SIM card and scratch voucher packaging.
Financial & Access Control: IC cards, bank cards, and hotel key cards.
Retail & Gaming: Collectible game cards and loyalty membership cards.
Advanced Ultrasonic System: Provides high-speed operation with reliable closure, suitable for continuous 24/7 production environments.

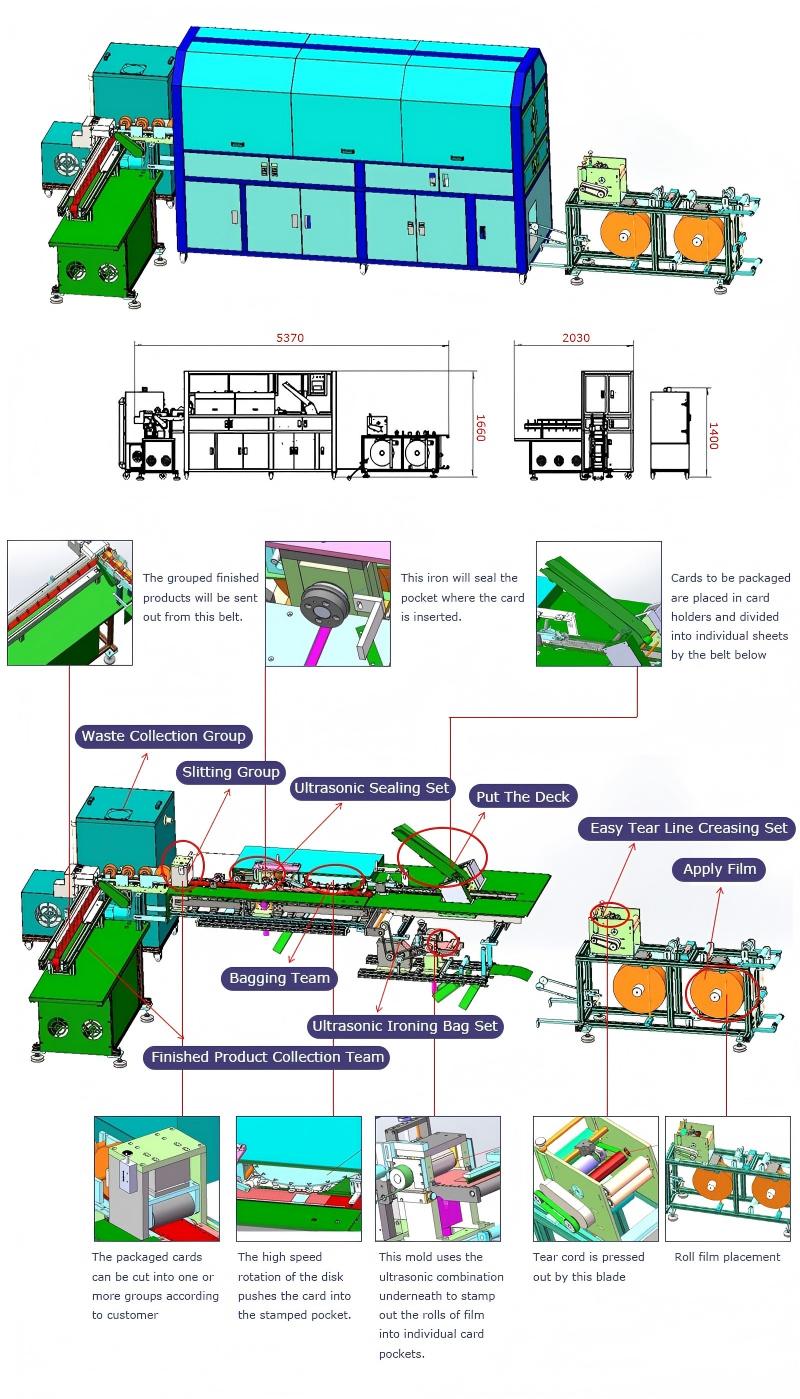

Massive Throughput Capacity: Engineered with a longer frame (4.8m) and dual sealing molds to achieve productivity up to 30,000 PCS/H (depending on card size), significantly outperforming standard market models.
Smart Quality Control:
Auto-Stop & Alarm: Immediately detects "card shortage" or "double feeding" to prevent defective output.
Vision Inspection (Optional): Can be integrated with OCR cameras to read serial numbers/barcodes for data verification.

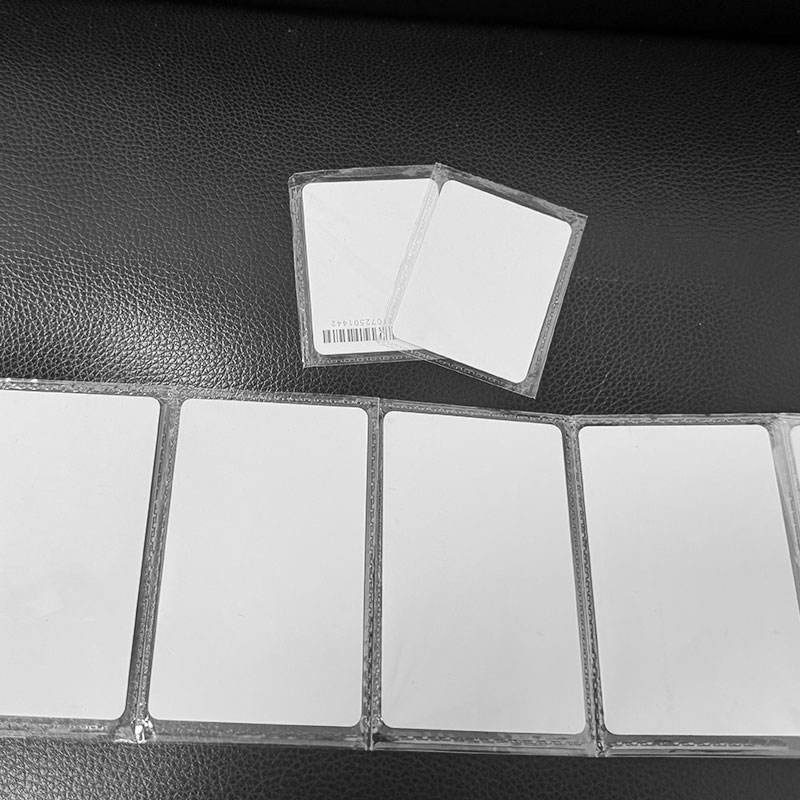

Versatile Handling: Capable of Individual Packaging or Continuous Strip Packaging (chain bags) with pre-set counting functions.
Material Flexibility: Handles standard cards (0.25mm~0.84mm) and various films (BOPP, OPP, PLA) with precision tension control.
Parameter | Specification |
Model | JX-009BZJ |
Sealing Technology | Ultrasonic Sealing (High Strength & Aesthetic) |
Max Productivity | Up to 30,000 PCS/H (Subject to card size/config) |
Card Size Compatibility | Standard Cards (Thickness 0.25mm ~ 0.84mm) |
Card Materials | Paper, PVC, ABS, PET, Composite Materials |
Packaging Film | BOPP, OPP, PLA (Thickness: 0.025mm ~ 0.05mm) |
Control System | PLC Control + Servo System |
Machine Dimensions | L4800 * W980 * H1860 MM |
Power Supply | AC 380V / 50 HZ (Total Power: 3.0 KW) |
Air Requirements | 6 kg/cm² (Approx. 30L/min) |
Tailored Engineering: As a manufacturer, we can adjust the JX-009BZJ to fit your specific factory layout or integrate it with upstream card personalization machines.
Global Installation: We provide on-site installation and commissioning services. Our engineers will train your staff until they are proficient in operation.
Warranty: 1-Year Warranty on core components with life-long technical support via video and manual instructions.
Q: What is the main difference between JX-007 (Heat Seal) and JX-009 (Ultrasonic)?
A: The JX-009 uses Ultrasonic technology, which is faster and creates a cleaner, stronger seal without heat residue. It is better suited for high-volume production and heat-sensitive materials.
Q: Can this machine pack cards in chains (strips)?
A: Yes, you can switch between single-pack mode and continuous strip packaging mode via the PLC touch screen. You can also pre-set the number of cards per strip.
Q: Is the Machine Vision System included?
A: The Vision System is an optional module. If you need to verify barcodes or serial numbers during packaging, let us know, and we will integrate the camera system into your quote.
