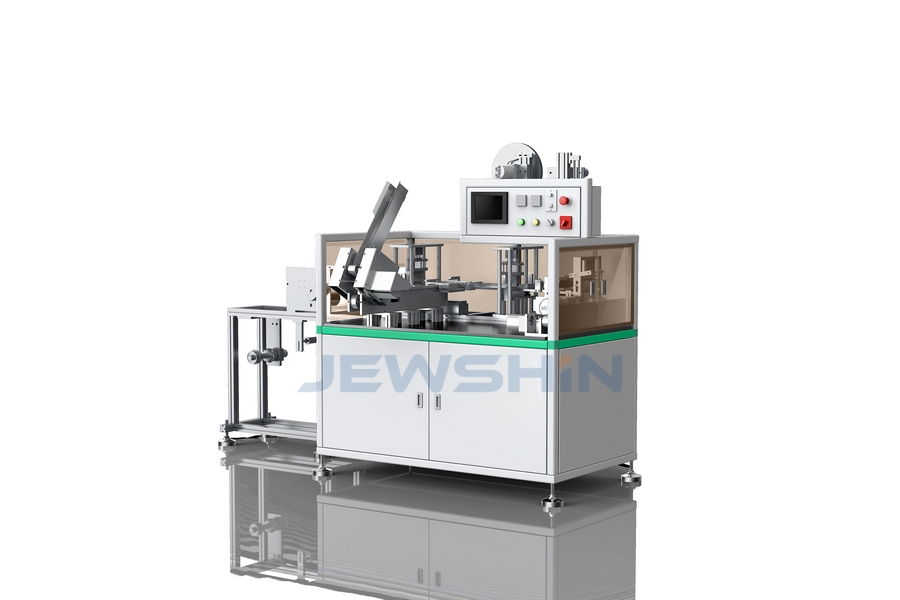

JX-007BZJ
JEWSHIN
In the competitive printing and telecom sectors, manual packaging creates bottlenecks, inconsistent sealing, and counting errors. The JX-007BZJ addresses these specific operational challenges:
Eliminate Bottlenecks: Replaces manual labor with high-speed automation (Dual Sealing Molds).
Quality Assurance: Prevents "empty bags" or "double cards" via intelligent sensors.
Versatility: One machine handles various materials (Paper, PVC, ABS) and formats (Individual or Continuous Strip).
This equipment is custom-engineered for manufacturers in:
Telecommunications: Prepaid SIM cards and recharge vouchers.
Gaming & Lottery: Scratch cards, lottery tickets, and game cards.
Commercial Services: Membership cards, gift cards, and IC cards.
High-Efficiency Dual Sealing: Unlike standard machines, the JX-007BZJ utilizes dual sealing molds to achieve higher speeds and reliable closure, ensuring airtight protection for sensitive cards.
Intelligent Fault Detection: The system automatically inspects for card shortages or double feeding. If a fault is detected, the machine stops and alarms immediately to reduce waste.
Precision Control System: Powered by a robust PLC + Servo/Stepper Motor combination, ensuring accurate film pulling and cutting within millimeters.
Flexible Packaging Modes: Supports both Individual Packaging (single unit) and Continuous Strip Packaging (chain bags), with pre-set quantity collection.
Optional Vision Inspection: Upgradeable with a Machine Vision System to read and verify serial numbers/barcodes inline, essential for data-sensitive telecom and lottery projects.
Parameter | Specification |
Model | JX-007BZJ |
Productivity | 8,000 - 10,000 PCS/Hour (Dependent on card size) |
Sealing Method | Heat Sealing (Dual Molds) |
Applicable Card Size | Customized (Standard & Non-standard sizes) |
Card Thickness | > 0.15mm (Paper, PVC, ABS, PET, Composite) |
Film Material | BOPP, OPP, PLA (Thickness: 0.025mm - 0.05mm) |
Control System | PLC Control + Servo/Stepper Motor |
Power Supply | AC 380V / 50 HZ |
Total Power | 3.0 KW |
Machine Dimensions | L2400 * W1500 * H1700 MM |
Air Requirements | 6 kg/cm² (Approx. 30L/min) |
At JEWSHIN, we don't just sell machines; we provide long-term production stability.
Customization: As a manufacturer with 20+ years of R&D experience, we can modify the JX-007BZJ to fit your specific card layout or factory footprint.
Quality Verification: We support FAT (Factory Acceptance Testing) via video or third-party inspection agencies (SGS/TUV) before shipment.
Global Support: Includes a 1-Year Warranty, life-long technical support, and comprehensive video manuals. On-site installation by our engineers is available worldwide.
Q: Can this machine handle transparent labels or specific film types?
A: Yes, the machine works with BOPP, OPP, and PLA films. It handles printed or transparent films effectively.
Q: How do you ensure the machine fits my specific card size?
A: We are a custom-engineering focused manufacturer. Before ordering, please provide your Maximum/Minimum card sizes and material thickness. We will calibrate the molds specifically for your product.
Q: Is the machine difficult to install?
A: The machine is dispatched properly adjusted. It requires simple installation (power/air connection). We provide detailed video tutorials, and for complex lines, we can send engineers to your facility.
Don't let outdated equipment slow down your delivery. Whether you need a standalone unit or a fully integrated line with Vision Inspection, JEWSHIN’s engineering team is ready to assist.
Request a Quote: Get a price estimate within 24 hours.
Free Consultation: Send us your card samples for a feasibility test.
Visit Us: We invite you to visit our Dongguan manufacturing hub to see the machine running live.
