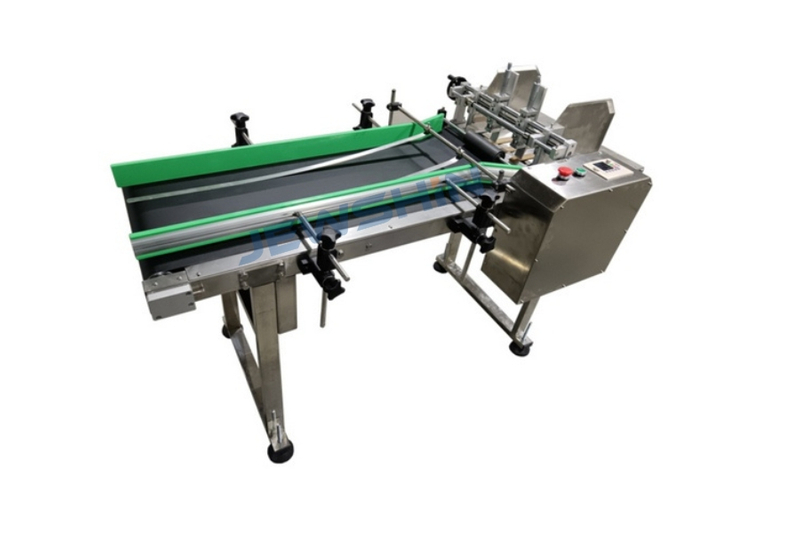

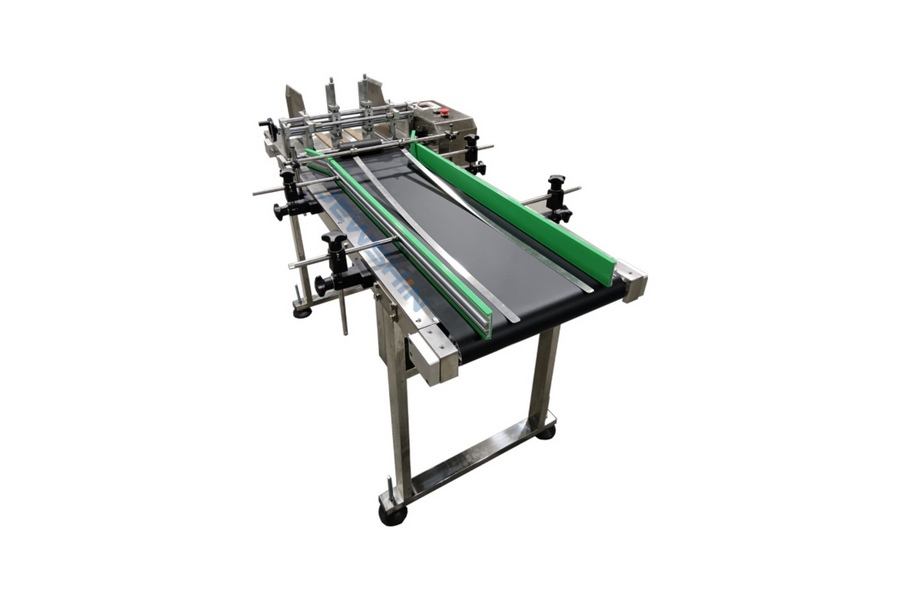

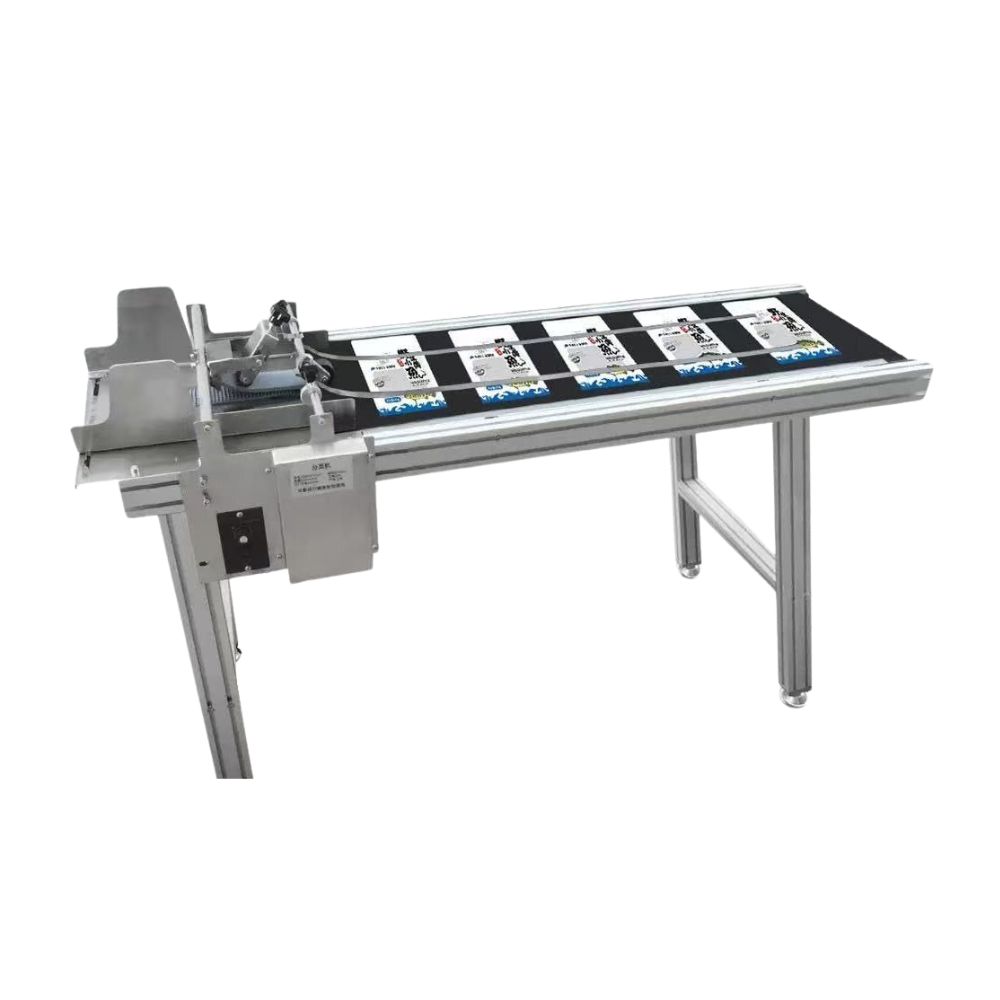

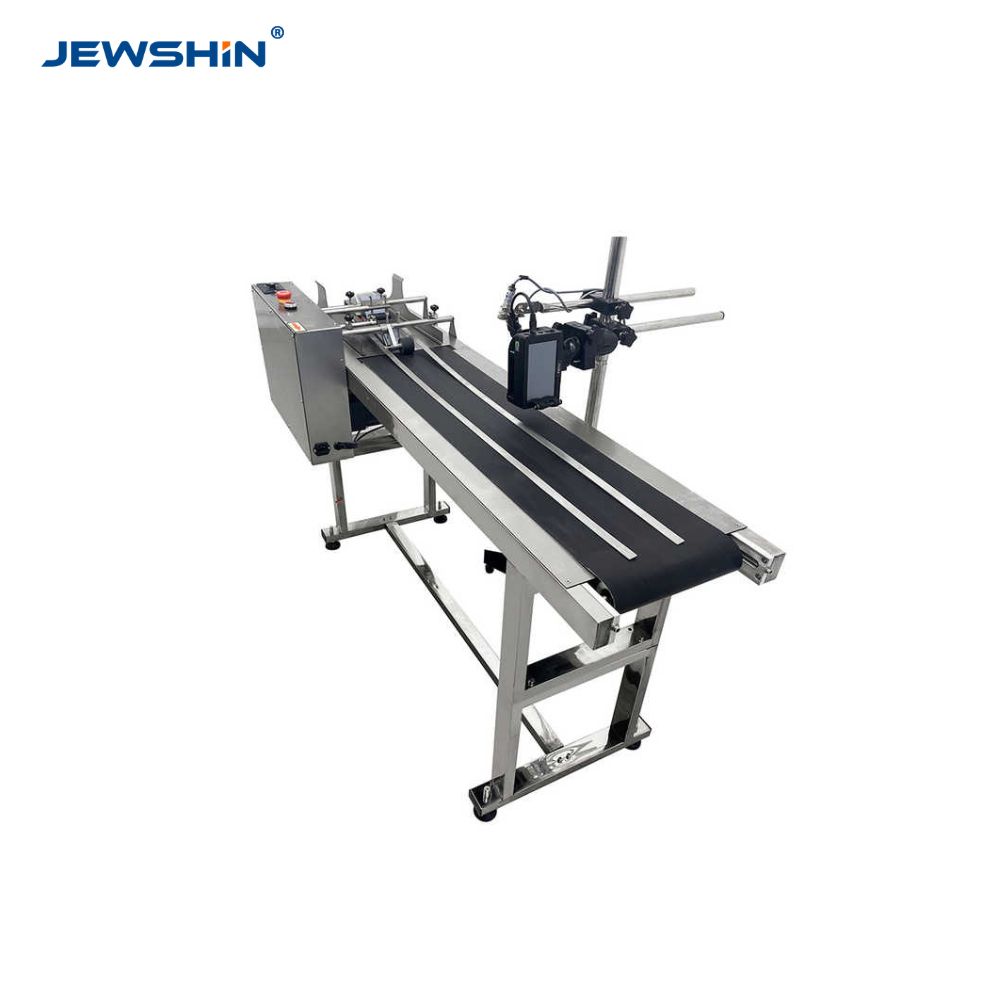

Automatic Friction Feeder Conveyor
JEWSHIN

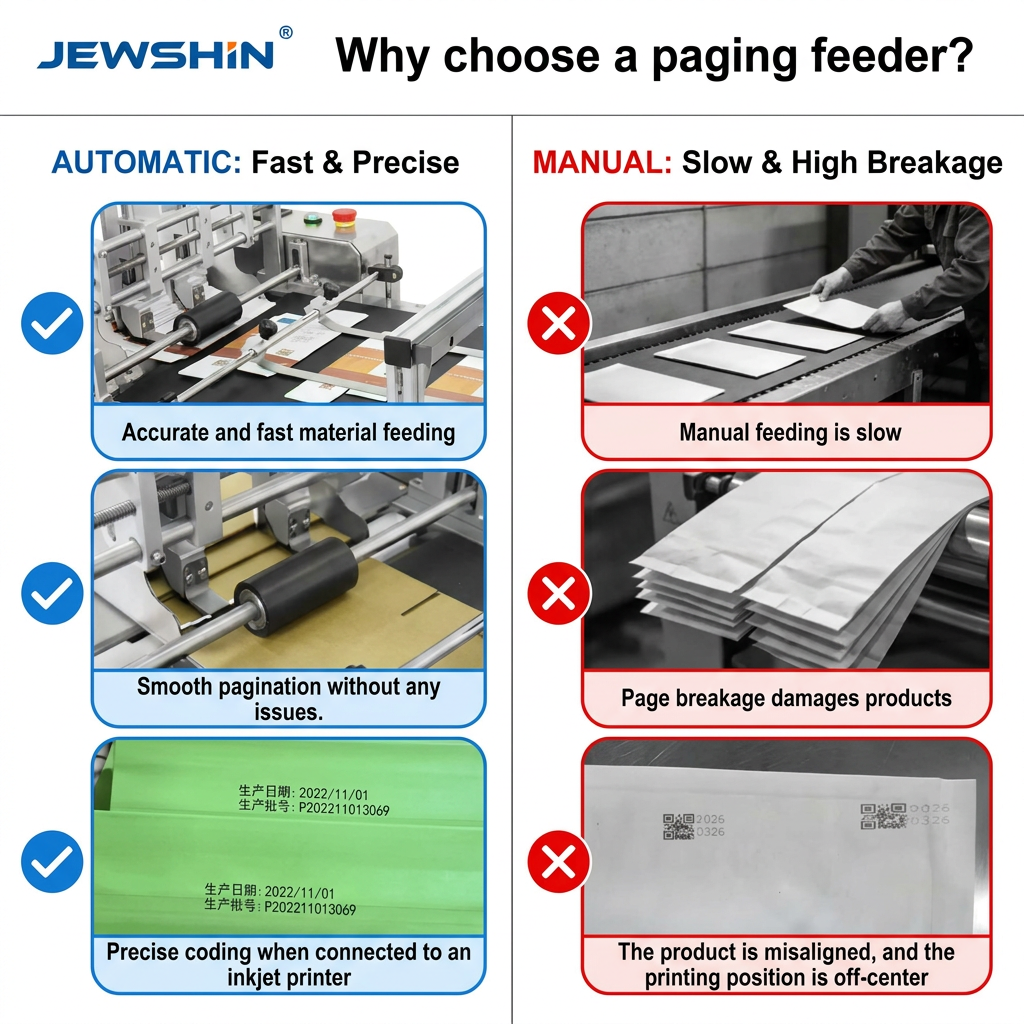

If your team is currently hand-feeding bags or boxes one at a time under a printer, you're leaving speed and consistency on the table. This machine solves that problem directly.

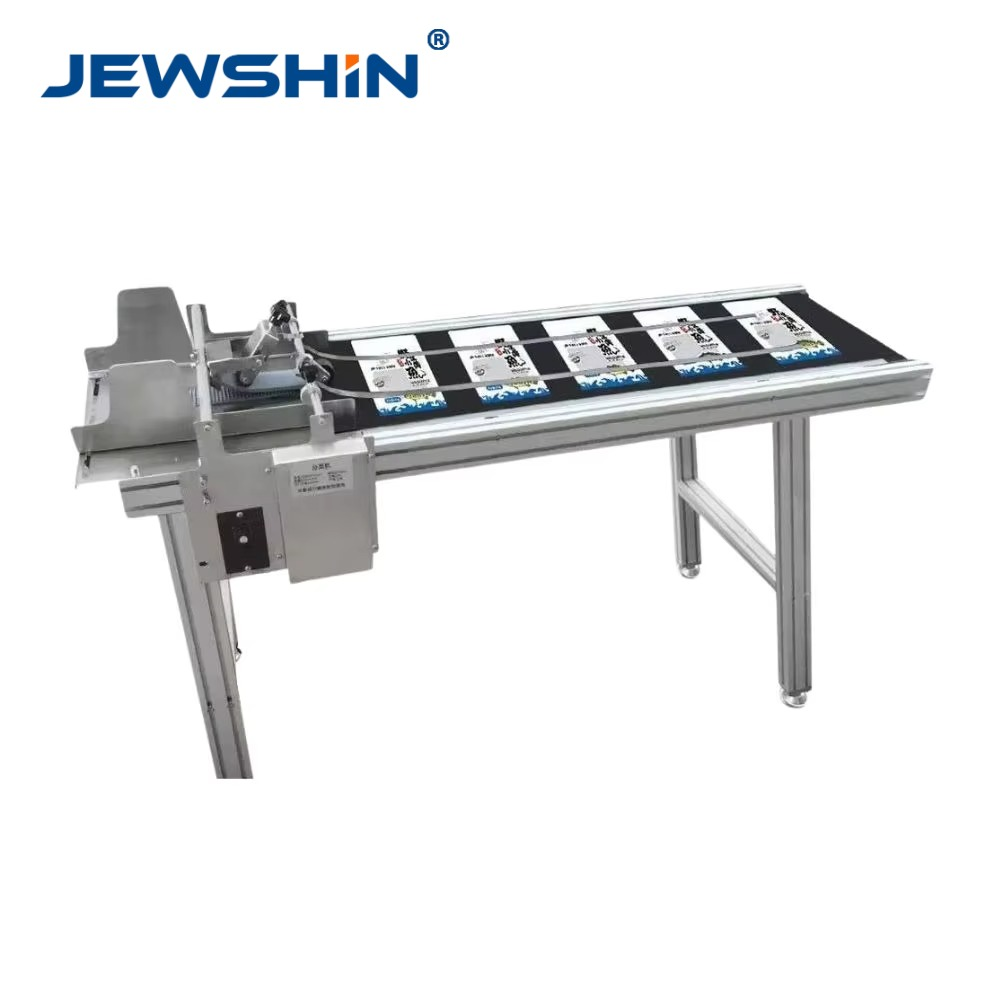

Stable printing platform — The 1.5-meter PVC conveyor belt keeps every product flat and steady as it passes under the print head or label applicator, so codes come out clear and labels land in exactly the right position.
Handles a wide range of materials — Thin plastic pouches, thick cardboard cartons, paper cards, express bags — the friction separation system handles them all reliably without jamming or double-feeding.
Built for production environments — The 201 stainless steel frame resists rust and daily wear, making it a practical long-term investment for food, beverage, pharmaceutical, and cosmetics lines.
Easy to integrate — At 1.5 meters long, the conveyor provides ample space to mount inkjet printer brackets, sensor triggers, and vision cameras directly above the belt. No custom fabrication required.
This feeder is the upstream partner for any process that needs products presented flat, spaced, and moving at a controlled speed:
Application | Typical Use Case |
Date & Batch Coding | Print expiry dates and lot numbers on food pouches or vacuum bags |
Carton Serialization | Laser mark QR codes or serial numbers on flattened medicine or cosmetic boxes |
Product Labeling | Apply promotional stickers or anti-counterfeit labels onto cards and paper bags |
UV / Inkjet Printing | Feed paper products for variable-data UV or thermal inkjet printing |

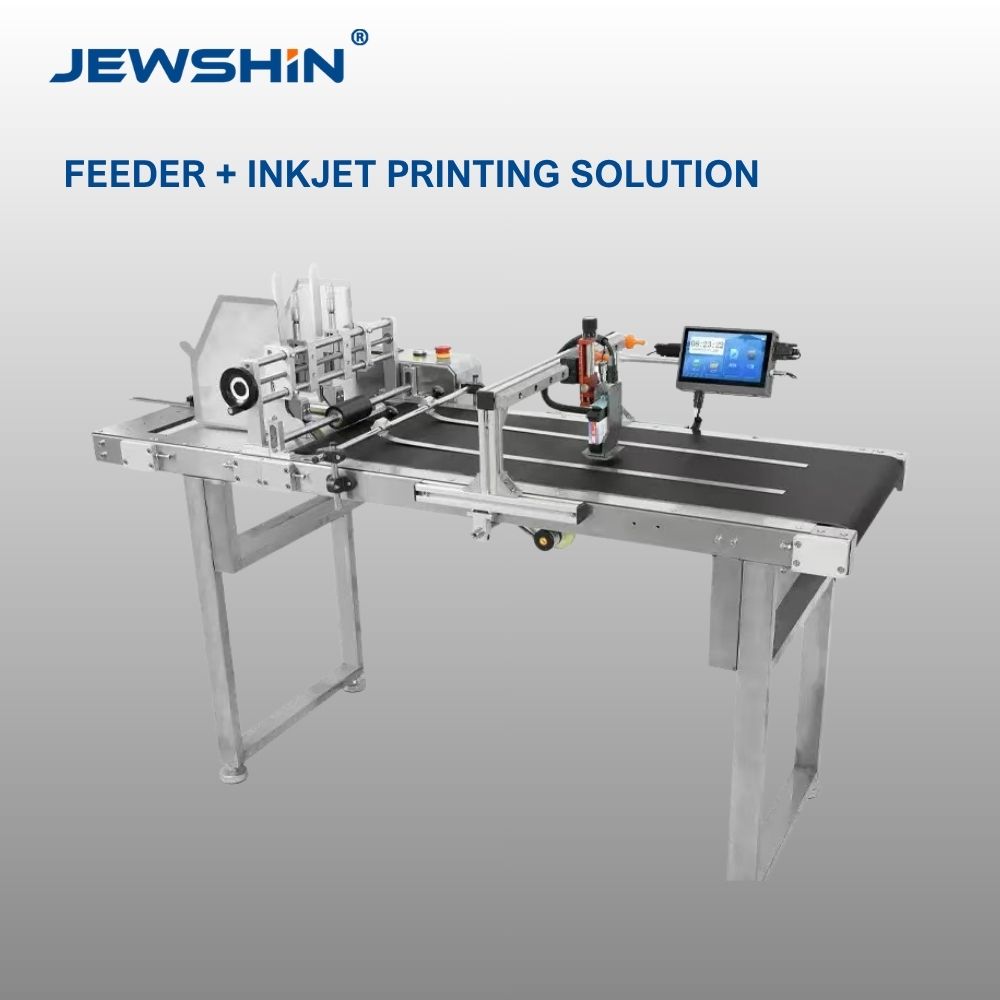

Compatible downstream equipment includes CIJ inkjet coders, TIJ inkjet printers, CO₂/fiber laser coders, flat-surface labeling heads, and vision inspection cameras.
The machine comes equipped with a VFD (inverter), letting you dial conveyor speed from 0 to 90 meters per minute via a front-panel knob. The sweet spot for most applications is 80–90 m/min. Matching speed to your downstream printer or labeler is a matter of seconds, not a maintenance call.
Side guides slide to accommodate product widths from 80 mm to 300 mm, so you can run different package sizes on the same machine without swapping components. That flexibility matters when you're coding multiple SKUs on the same line.
The 2mm thick black PVC belt provides the grip needed to separate and transport products without slipping — particularly important for smooth plastic pouches that tend to slide on standard conveyors.
If your production needs fall outside the standard configuration, Jewshin can customize:
Conveyor dimensions — width, length, and working height
Motor type — variable frequency (standard) or fixed-speed motor
Counting function — preset batch quantity auto-stop, or cumulative total count display
Start/Stop timing — programmable delays to synchronize with upstream and downstream equipment
Parameter | Specification |
Machine Type | Friction Paging Conveyor |
Frame Material | 201 Stainless Steel |
Conveyor Length | 1,500 mm (1.5 m) |
Conveyor Working Height | 750 mm (standard) |
Belt Material | 2mm Black PVC |
Effective Product Width | 80 – 300 mm (adjustable) |
Conveying Speed | 0 – 90 m/min (variable frequency) |
Motor Power | 200W |
Voltage | 220V / 50Hz |
Speed Control | Inverter / VFD |
Need different dimensions or voltage? Contact us and the engineering team will confirm what's possible.

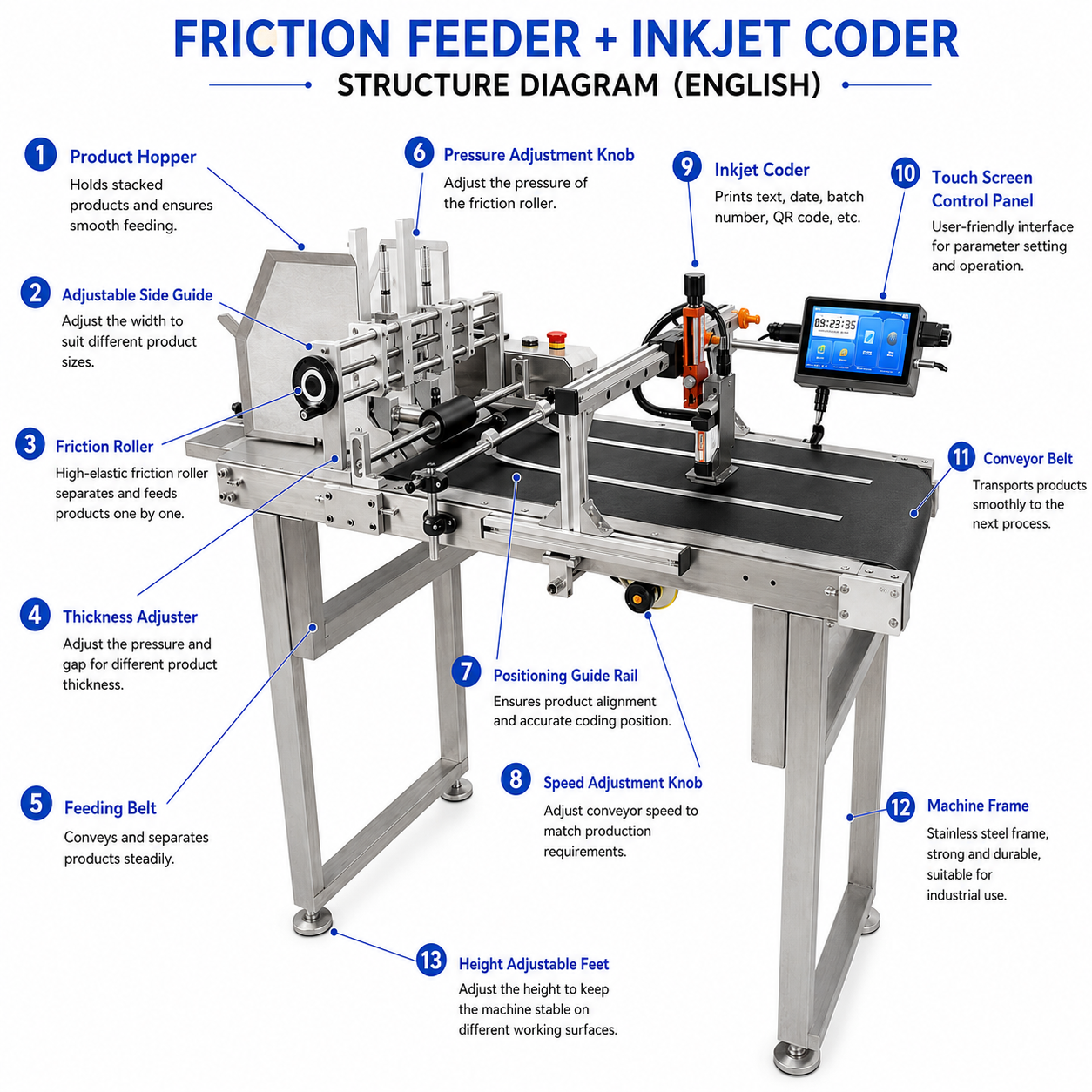

The diagram below labels every functional part of the Feeder + Inkjet Coder configuration:
# | Component | Function |
1 | Product Hopper | Holds the stacked product pile and ensures smooth, consistent feeding |
2 | Adjustable Side Guide | Slides to match product width (80–300 mm) |
3 | Friction Roller | High-elastic rubber roller that separates products one by one from the bottom of the stack |
4 | Thickness Adjuster | Sets the gap between the roller and belt to match product thickness |
5 | Feeding Belt | Carries separated products forward at controlled speed |
6 | Pressure Adjustment Knob | Fine-tunes friction roller pressure for different material types |
7 | Positioning Guide Rail | Keeps products aligned for accurate coding or label placement |
8 | Speed Adjustment Knob | Controls belt speed via the VFD |
9 | Inkjet Coder (optional) | Mounts above the belt to print text, dates, batch numbers, or QR codes |
10 | Touch Screen Panel (optional) | Parameter interface for the inkjet coder |
11 | Conveyor Belt | Transports finished products to the next station |
12 | Machine Frame | 201 stainless steel — strong, rust-resistant, industrial-grade |
13 | Height Adjustable Feet | Levels the machine on uneven floors |
Customers often ask whether they need this machine or Jewshin's JX-100/200 card feeder. The distinction comes down to what happens after separation:
This Machine (Paging Machine / Friction Feeder Conveyor) | JX-100 / JX-200 (Card Feeder) | |
Conveyor length | 1,500 mm | Very short nose |
Primary purpose | Transport product horizontally so work can be done on it (printing, coding, labeling) | Drop product into something else — a box, a packaging machine, or another line |
Best for | Batch coding, laser marking, labeling flat products | Inserting cards, leaflets, or flat items into packaging |
If your goal is to automate printing or labeling, this is the right machine. If you need to insert flat items into a box or pouch, the JX series is the better fit.
Jewshin manufactures a complete range of packaging and coding automation equipment. Depending on your production setup, these machines are commonly paired with the friction feeder:
Friction Feeder Machines (full category) — explore all feeder models
Flat Labeling Machine — apply labels to flat surfaces downstream
Card Packaging Machines — complete card-inserting and packaging solutions
Express Bag Packaging Machine — automate express pouch packaging
What types of products can this friction feeder handle?
It handles most flat, stackable materials: plastic bags and pouches, paper sheets, cardboard cartons (flattened), cards, labels, envelopes, and express bags. Product width must fall between 80 mm and 300 mm. For thicker or unusually shaped items, contact us for a compatibility check.
Can I use this machine with my existing inkjet printer or laser coder?
Yes — the 1.5-meter conveyor is designed as a mounting platform for third-party coders. Send us your printer model and Jewshin's engineers will confirm bracket compatibility and advise on sensor trigger wiring.
What's the maximum throughput speed?
The conveyor reaches 0–90 m/min via the built-in VFD. Actual throughput in pieces per minute depends on product length and the gap setting between pieces.
Can the machine size be customized?
Yes. Conveyor length, width, working height, motor type, counting functions, and start/stop timing are all customizable. Describe your product dimensions and production environment when you inquire.
Is this machine suitable for food-grade environments?
The 201 stainless steel frame is rust-resistant and suitable for food-adjacent packaging environments. If your facility requires specific hygiene or IP ratings, mention this when requesting a quote.
Does it come with a warranty and after-sales support?
Yes. Contact Jewshin directly for warranty terms and to request a video demonstration of the machine running your product type.
Tell the team your product type, approximate dimensions, and what downstream process you're automating. A response with pricing and compatibility confirmation typically comes within one business day.
