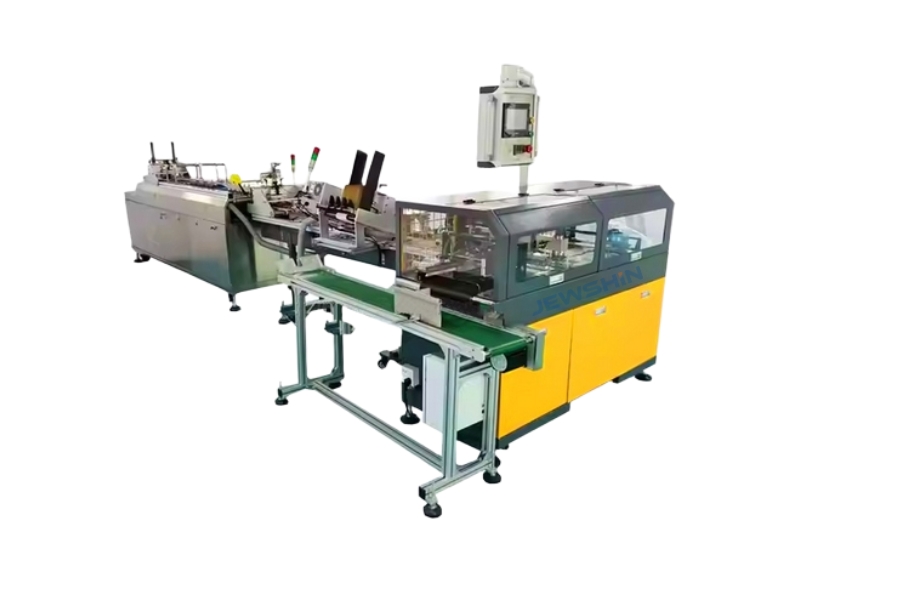

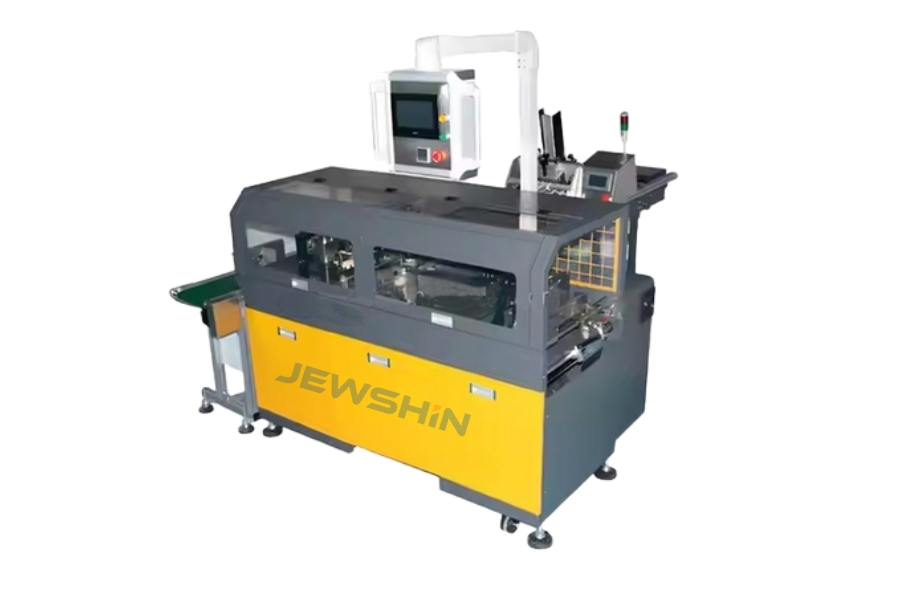

JX-L300 Automatic High-Speed Bagging Machine (For Cards & Red Envelopes)


Availability:



Inquire

The Professional Choice for Premium Stationery Packaging.

The JX-L300 is engineered specifically for flat, regular products that require a high-quality finish, such as Greeting Cards, Red Envelopes (Hongbao), Notebooks, and Instruction Manuals. Unlike standard flow wrappers, this machine utilizes Center-Folded Film to create precise bags with either Self-Adhesive Tape Sealing or Heat Sealing. Powered by a 5-Servo Motor System, it ensures millimeter-level precision and allows for rapid size changeovers via the touchscreen.

Model:
JX-L300
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the JX-L300?

Manual bagging of cards is slow and often results in crooked placement. The JX-L300 solves this:

Dual Sealing Modes: Whether you need a "peel-and-stick" Self-Adhesive Seal (for re-openable bags) or a permanent Heat Seal, this machine handles both.
5-Axis Servo Drive: Equipped with 5 independent Servo Motors (Xinje), the machine offers smoother operation, less noise, and higher accuracy than mechanical cam-driven machines.
Premium Bag Finish: Uses pre-folded film to create a neat, tight package without the bulky "fin seal" on the back, making it perfect for retail display products like hanging tags and postcards.

Application Scenarios

Stationery: Notebooks, Notepads, File folders.
Greeting Industry: Birthday cards, Wedding invites, Red envelopes (Hongbao).
Apparel Accessories: Clothing tags, Hosiery (in flat packs), Gloves.
Electronics/Hardware: Warranty cards, Manuals in plastic bags.

Key Features & Technical Highlights

Smart Control System: Features a Xinje PLC and Touch Screen. You can save parameters for different product sizes and switch between them instantly.
Auto-Correction: The film unwinding system includes Automatic Deviation Correction, ensuring the film edge aligns perfectly even at high speeds.
Intelligent Sensors:

No Film Stop: Machine pauses if the roll runs out.
No Product Wait: The machine won't make an empty bag if no product is fed (Smart Feeding).

Top-Tier Components: Built with reliable parts like Panasonic Sensors and Omron Relays for long-term durability.

Technical Specifications

Parameter	Specification
Model	JX-L300
Drive System	5 Servo Motors (Xinje)
Bagging Speed	40 - 80 pcs/min
Bag Width	40 - 200 mm
Bag Length	40 - 300 mm
Product Height	1 - 20 mm (Customizable)
Film Type	Center-Folded Film (V-Fold)
Sealing Type	Self-Adhesive / Heat Seal
Power Supply	380V, 50Hz, 5KW
Machine Dimensions	(L)2850 × (W)2050 × (H)1600 mm

Core Configuration

We use world-class components to ensure stability:

PLC & Touch Screen: Xinje (Trusted Industrial Control)
Servo Motors & Drivers: Xinje (x5 Sets)
Color Mark Sensor: Panasonic (Japan)
Relays: Omron (Japan)
Solenoid Valves: AirTAC (Taiwan)
Switching Power Supply: MeanWell

Upgrade Your Card Packaging Line.

Achieve the perfect retail look with the JX-L300. Speed up your production of red envelopes and greeting cards today.

Get a Quote: Contact us for pricing.
Sample Testing: Send us your cards and film, we will film a test run for you.
Brochure Download: Get the full technical layout.
