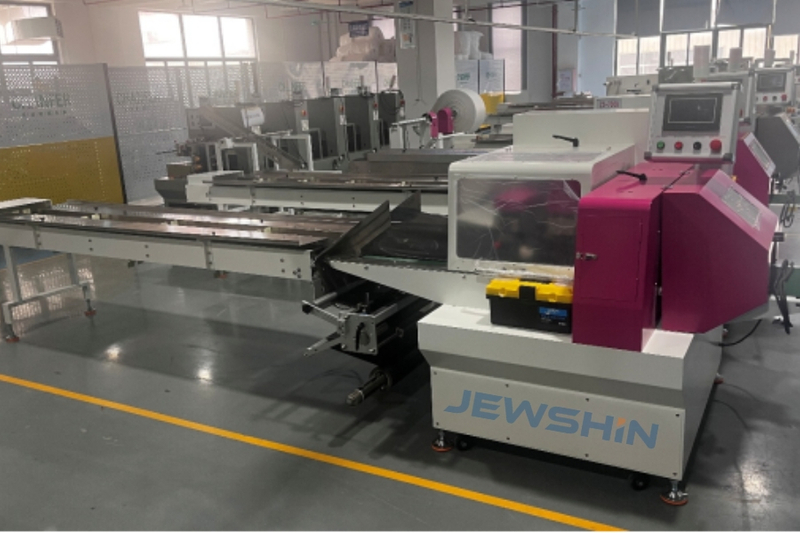

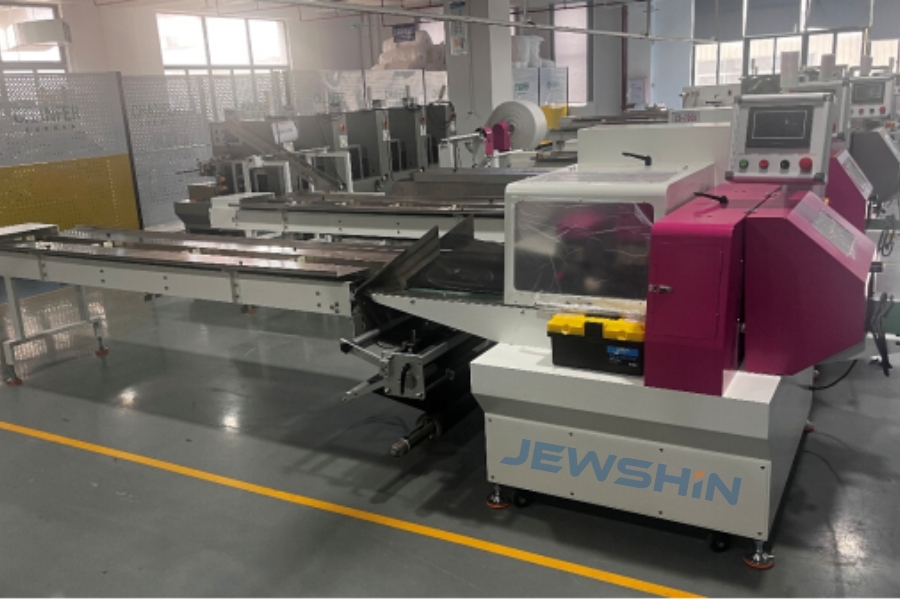

Why Choose the JX-700X?
Manual bagging and sticking labels is the bottleneck of any warehouse. The JX-700X solves this:
Designed for PE Film: Standard machines cannot seal PE film well (it melts and stretches). The JX-700X features a specialized sealing system and cutter designed specifically for tough, opaque express bags.
Print & Apply Ready: The machine is designed to work in line with a Label Applicator. It can apply the shipping label (Waybill) onto the film before or after the bag is formed, creating a fully automated shipping line.
Large Capacity:
Max Height 120mm: Fits shoe boxes, thick hoodies, and down jackets.
Max Bag Length 1.2 Meters: Capable of packing very long textiles or hardware.
Application Scenarios
Apparel / Clothing: T-shirts, jeans, and especially bulky winter clothing (down jackets) that need compression.
Footwear: Shoe boxes (standard and large sizes).
Home Textiles: Pillows, bedding sets, blankets.
General E-commerce: Books, electronics, and mixed-basket orders.
Key Features & Technical Highlights
Servo Intelligence: "Bag length is set and cut." No need to waste expensive express film on calibration. The servo system ensures the bag length is precise every time.
Safety Anti-Cut (Auto Reverse): In a busy warehouse, items often get misaligned. If the cutter hits a shoe box or a hard product, the Auto-Reverse function instantly retracts the knife, preventing damage to the goods and the blade.
Strong Sealing for PE: Independent PID temperature control ensures the PE bag is sealed tightly to prevent bursting during transit, while maintaining a clean look.
Memory Function: Store up to 40 product settings. Switch from packing "Socks" to "Shoe Boxes" instantly via the touchscreen.
Film Saving: The machine automatically stops if there is no film or no product, preventing waste.
Technical Specifications
Parameter | Specification |
Model | JX-700X (Express Edition) |
Control System | Servo Control (PLC + Touchscreen) |
Packaging Speed | 20 - 40 bags/min (Optimized for Large Parcels) |
Bag Length | 100 - 1200 mm (Extra Long) |
Bag Width | 100 - 300 mm |
Product Height | Max 120 mm (High Profile) |
Film Width | Max 700 mm |
Film Material | PE / Express Delivery Film (Poly Mailer) |
Power Supply | 220V, 50/60Hz, 4.45KW |
Machine Dimensions | (L)4220 × (W)1220 × (H)1544 mm |
Machine Weight | 700 Kg |
Service & Support
Labeler Integration: We can supply the machine as a standalone unit or as a complete system with the Automatic Labeling Machine.
Film Sourcing: We can recommend suppliers for high-quality machine-grade PE express film.
Warranty: 1-Year Warranty on core components with lifetime technical support.
Frequently Asked Questions (FAQ)
Q: Can this machine print the shipping label directly?
A: The machine itself is a wrapper. However, we can integrate a Labeling Module (optional) that prints and applies the shipping label onto the bag automatically.
Q: Why is the speed (20-40 bags/min) slower than other machines?
A: Two reasons: 1. The products are usually large (shoe boxes/jackets). 2. PE film requires a longer sealing time than OPP film to ensure a burst-proof seal for shipping. 40 parcels per minute is still significantly faster than manual packing.
Q: Can it handle transparent film too?
A: Yes, but it is optimized for the opaque PE (grey/white) film used in logistics to protect customer privacy.
Stop Manual Bagging. Start Automating.
Increase your warehouse throughput and reduce labor costs with the JX-700X. Perfect for clothing brands and 3PL providers.
Get a Quote: Ask for the price of the machine + labeler combo.
Check Sizing: Send us your largest box dimensions.
Request Video: See how it packs a shoe box and applies a label.
