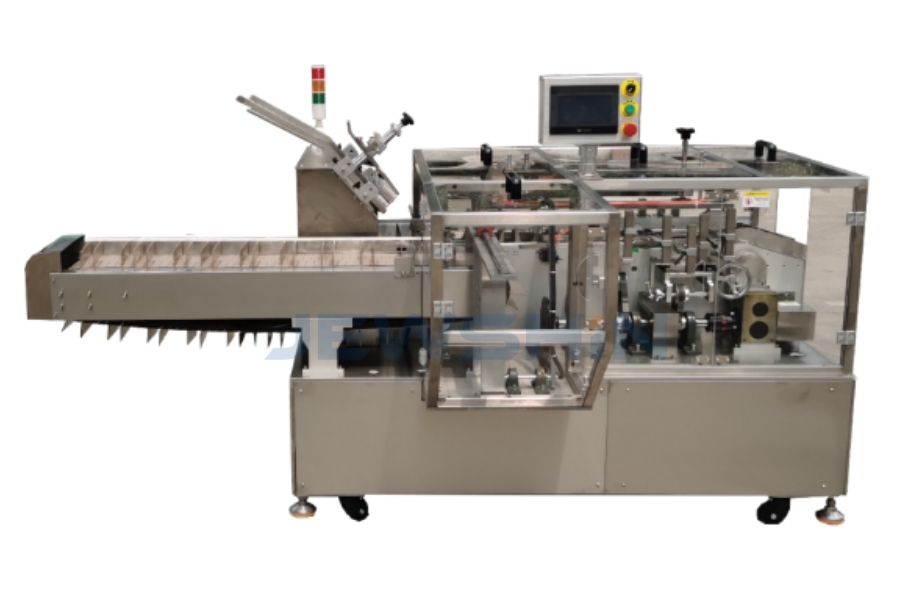

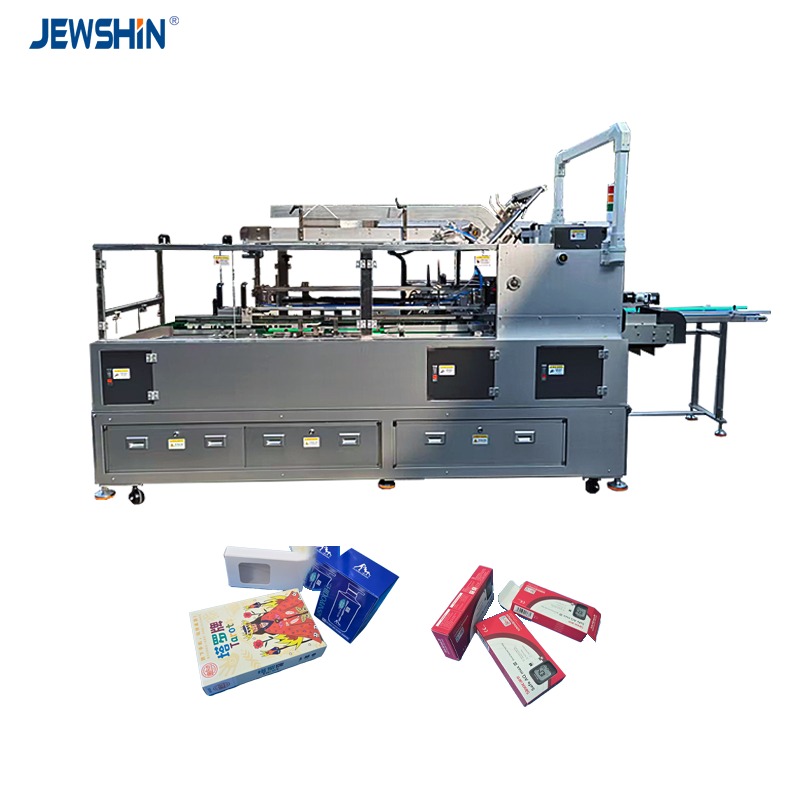

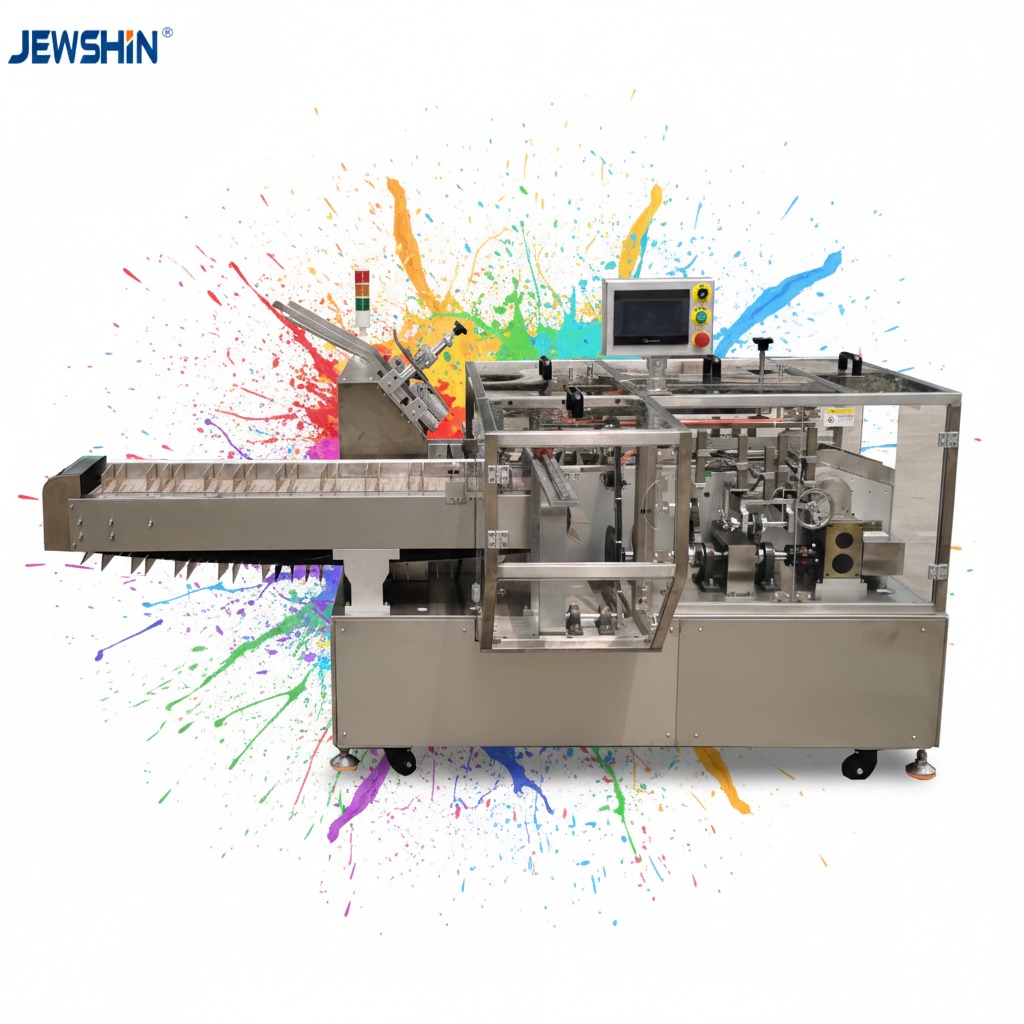

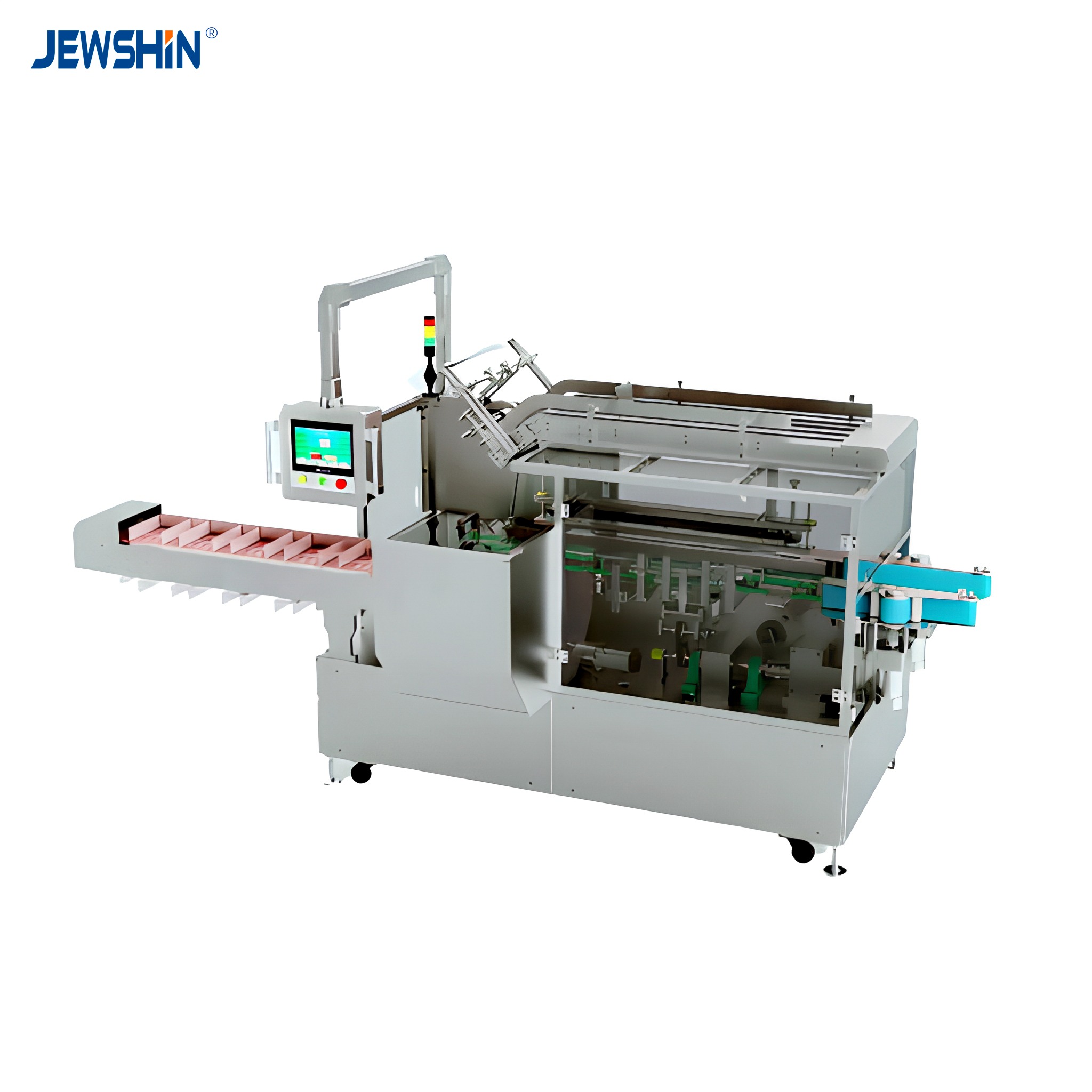

JX-L070 Automatic Cartoning Machine (Box Filling & Sealing)


Availability:



Inquire

The Versatile Solution for Automated Box Packaging.

The JX-L070 is a standardized, mass-produced Automatic Cartoning Machine designed for stability and ease of use. It integrates box opening, product loading, folding, and sealing into one compact unit. Whether you are packaging cosmetics, pharmaceuticals, food, or hardware, this machine adapts quickly to different box sizes via a Dial Scale Adjustment system. It can operate as a standalone unit or link seamlessly with flow wrappers, filling machines, and labelers for a fully automated line.

[Get a Custom Quote] | [View Video Demo]

Model:
JX-L07
Brand:
JEWSHIN

Product Description

Key Features & Advantages

4-in-1 Integration: Automatically handles the entire boxing process: Carton Erecting → Product Loading → Flap Folding → Final Sealing.

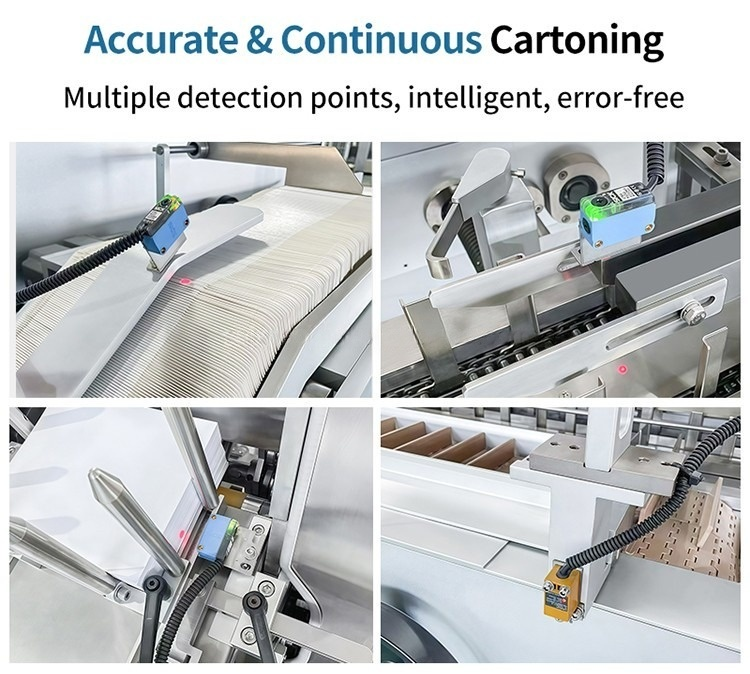

Smart "No Product, No Carton" System: Controlled by PLC and Photoelectric sensors, the machine will not suck down or open a box if no product is detected in the feeder. This prevents material waste and ensures every sealed box contains a product.
Quick Changeover Design: Unlike older machines that require complex mechanical re-tooling, the JX-L070 uses a Dial Scale System. Operators can adjust the machine for different box specifications quickly, making it ideal for factories with multiple SKUs.
Flexible Sealing Options:

Standard: Tuck-in flap sealing.
Optional: Hot Melt Glue sealing (spray or brush) for tamper-evident security.

Hygienic & Durable: All parts contacting the product are made of SUS304 Stainless Steel, meeting hygiene standards for food and pharma.
Line Integration: Designed to connect. It can easily link with:

Pillow Packaging Machines (Flow Wrappers)
Filling Machines (Bottles/Tubes)
Labeling Machines & Inkjet Printers
3D Overwrapping Machines (Cellophane wrappers)

Application Scenarios

Cosmetics: Creams, lotions, perfume bottles, facial masks.
Pharmaceuticals: Blister packs, medicine bottles, oral liquids.
Food: Biscuits, chocolate bars, coffee sachets.
Hardware/Electronics: Light bulbs, bearings, switches, toy parts.

Technical Specifications

Parameter	Details
Model	JX-L070
Production Speed	30 - 40 boxes/minute
Carton Size	Customizable (Adjustable range)
Paper Quality	300 - 450 g/m² (Cardboard)
Paper Requirements	Pre-folded indentation ≥ 0.4mm
Loading Clearance	Gap between product & box wall ≥ 2mm
Control System	PLC + Touch Screen HMI
Power Supply	6.0 KW
Air Pressure	≥ 0.6 MPa
Air Consumption	120 - 160 L/min
Machine Dimensions	3100 (L) × 1585 (W) × 1600 (H) mm
Machine Weight	~ 2.5 Tons

Optional Add-ons

Customize the JX-L070 to fit your specific workflow:

Hot Melt Glue System: For permanent glue sealing instead of tuck-in.
Leaflet Inserter: Automatically folds and inserts instruction manuals.
Coding Machine: Inkjet or Steel Stamp for Batch/Expiry dates.

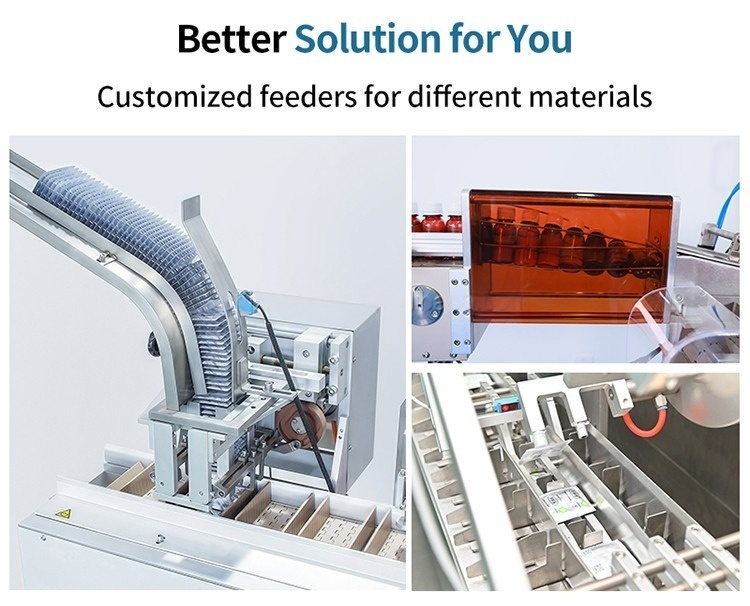

Auto-Feeder: Customized feeding systems for bottles, sachets, or trays.

Streamline Your Packaging Line Today.

The JX-L070 offers the perfect balance of automation, flexibility, and cost-effectiveness. Stop folding boxes by hand and start increasing your output.

Get a Quote: Contact us for pricing on the JX-L070.
Box Evaluation: Send us your box dimensions and product samples, and we will confirm the machine configuration.
Line Layout: We can design a full packing line connecting your filling machine to this cartoner.
