JX-1010
JEWSHIN

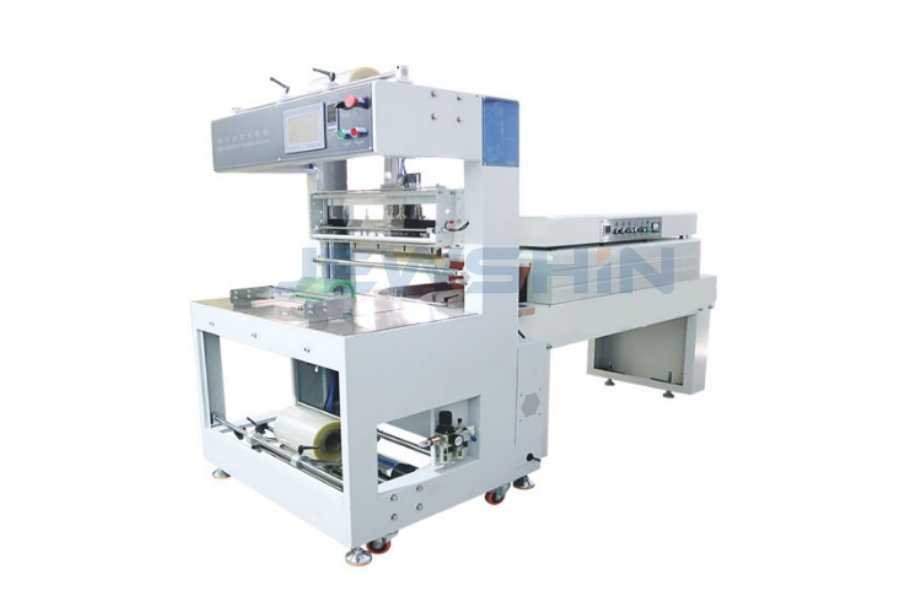

The JX-1010 Semi-Automatic Tape Log Sleeve Wrapper is designed for high-speed sleeve wrapping of tape rolls, tape stacks, tower packs and other cylindrical products. With manual loading and an efficient sealing cycle, it can reach up to 21 packs per minute, making it a practical solution for tape manufacturers that need flexible and fast packaging.
This machine is suitable for packaging stationery tape, masking tape, electrical tape, double-sided tape, BOPP tape rolls, label rolls, medical rolls, textile rolls and similar cylindrical products within the supported size range.

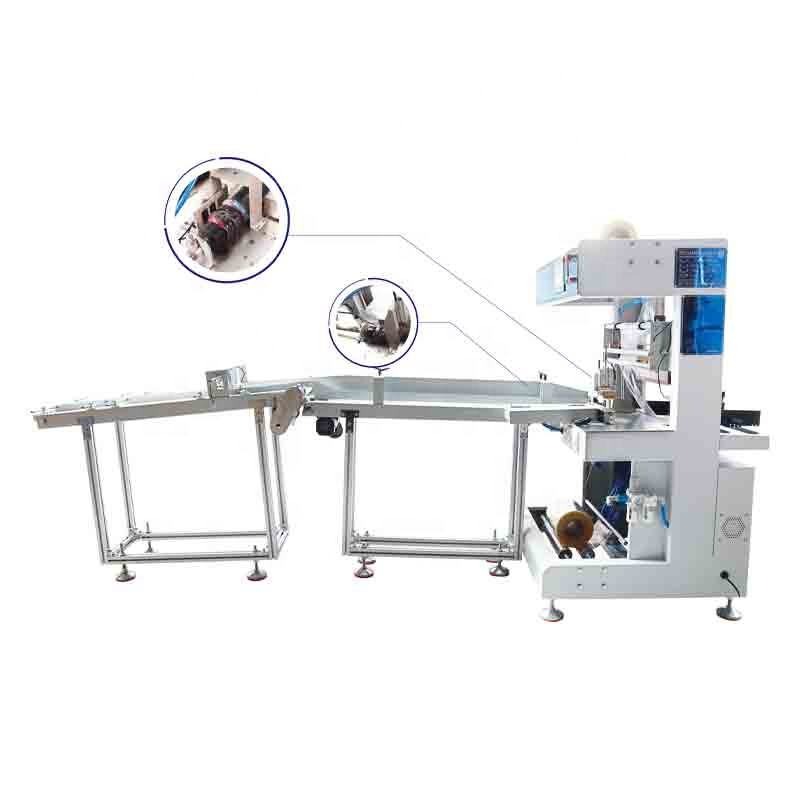

The JX-1010 is engineered for high-speed sleeve wrapping. It can pack up to 21 logs per minute, helping reduce the packaging bottleneck after manual stacking or upstream tape production.
For factories with manual stacking workers, the JX-1010 provides a fast and cost-effective wrapping station without the complexity of a fully automatic sorting line.
The machine is suitable for single large rolls, stacked small tape rolls, tape logs, tower packs, label rolls and similar cylindrical products within the supported size range.
Common applications include:
Stationery tape packaging
Masking tape packaging
Electrical tape packaging
Double-sided tape packaging
BOPP tape roll packaging
Label roll packaging
Medical roll packaging
Textile roll packaging

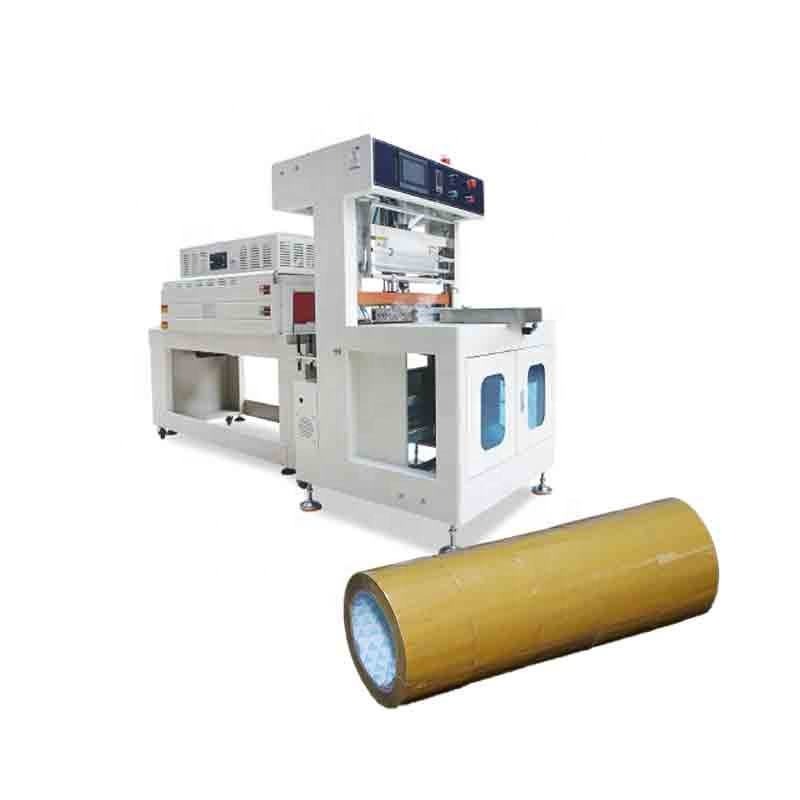

The JX-1010 features a patented hand-wheel adjustment system. Operators can quickly adjust width and diameter settings for different product sizes without complicated tools.
This helps reduce downtime between different production batches and makes the machine suitable for multi-size and small-batch production.
The machine uses a storage-type film feeding structure to maintain stable film tension during operation. This helps prevent film wandering, wrinkles and loose wrapping.
The result is a clean, tight and professional sleeve package for tape rolls and cylindrical products.
The JX-1010 is built with a stable steel structure to support high-speed operation. The robust frame helps reduce vibration and improves machine stability during continuous production.

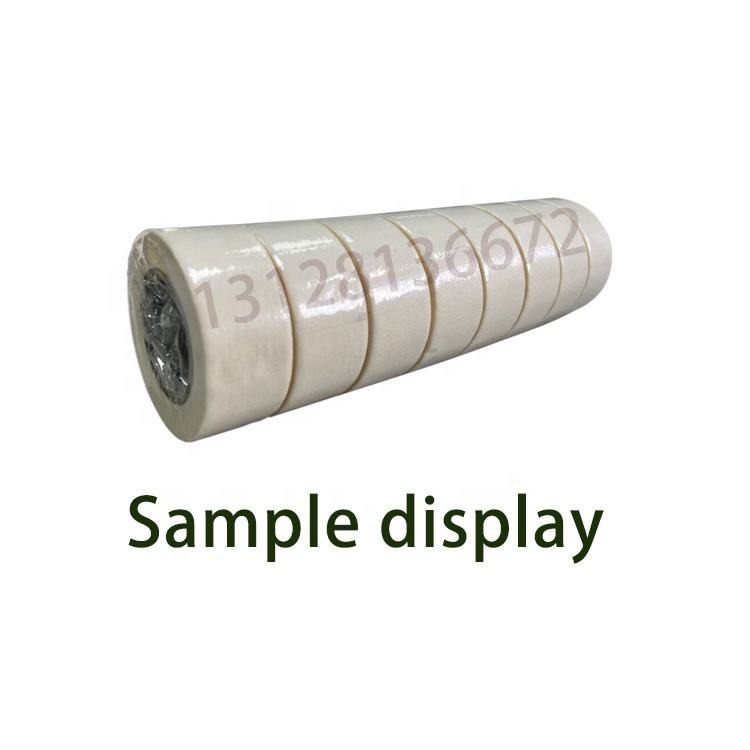

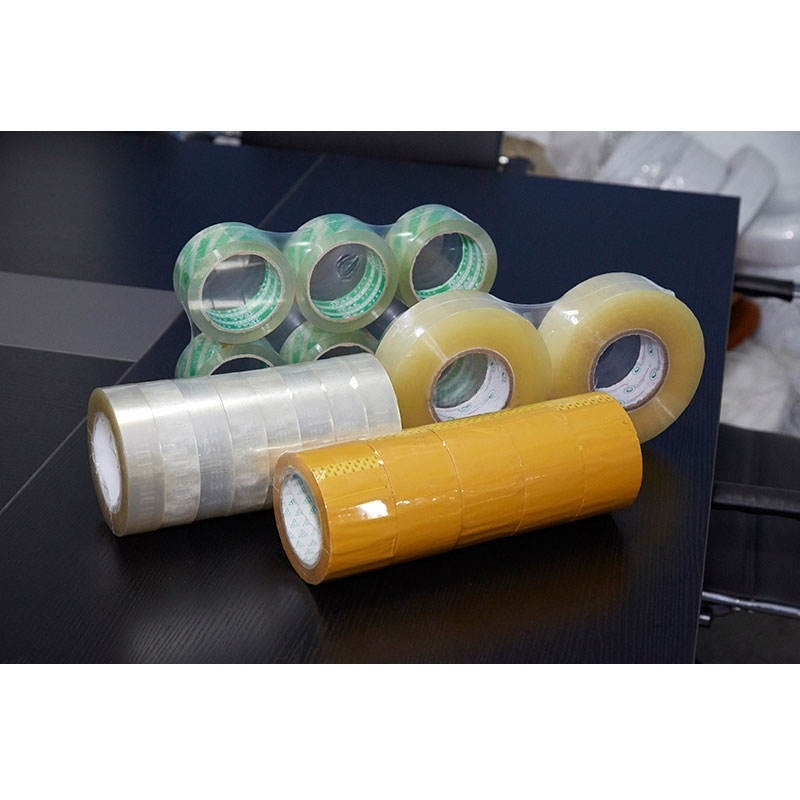

The JX-1010 is suitable for packaging tape rolls and cylindrical products in log or tower formats.
Application | Typical Products |
Adhesive Tape | Masking tape, electrical tape, stationery tape, double-sided tape, BOPP tape rolls |
Label Printing | Self-adhesive label rolls |
Medical Products | Bandage rolls and medical rolls |
Textile Products | Small fabric rolls and textile rolls |
Cylindrical Products | Roll-shaped products within the supported size range |

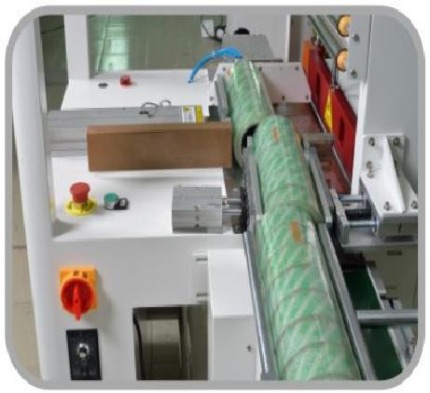

The operator manually places the tape roll stack or cylindrical product into the loading position. The machine then feeds the film, wraps the product, seals the film and prepares the pack for discharge or shrink tunnel processing.
When a tighter final package is required, the wrapped product can be sent to a compatible shrink tunnel for heat shrinking.
Basic working process:
Manual product loading
Film feeding
Sleeve wrapping
Film sealing
Product discharge
Optional shrink tunnel processing
Parameter | Wrapper JX-1010 | Shrink Tunnel SBNP-4522 |
Product Diameter | Ø10–185 mm | - |
Product Height | 50–400 mm | - |
Packing Speed | Up to 21 packs/minute | Matches wrapper |
Power Supply | AC 200–240V, 400W | AC 380V |
Air Pressure | 5 KG / 0.5 MPa | - |
Machine Size | 1200 × 1100 × 1750 mm | Standard tunnel size |
Net Weight | 200 KG | - |
Film Compatibility | PVC, POF, PE | Depends on film type |
The JX-1010 can be used as a sleeve wrapping machine alone or combined with a shrink tunnel for a tighter final package.
A shrink tunnel is recommended when you need:
Tighter film around the product
Better retail package appearance
More stable bundling
Improved dust protection
Export-ready packaging
The optional SBNP-4522 shrink tunnel can be matched with the JX-1010 according to the required packaging effect and production layout.
The JX-1010 is equipped with reliable components for stable operation and long service life.
System | Component | Brand / Origin |
Control System | PLC | JX Custom |
Control System | Touch Screen | Mcgstpc |
Control System | Thermostat | RKC, Japan |
Electrical System | Contactors | Schneider, France |
Electrical System | Relays | IDEC, Japan |
Electrical System | Solid State Relay | NNC |
Electrical System | Switching Power Supply | MeanWell, Taiwan |
Electrical System | Air Switch | Chint |
Pneumatic System | Cylinder | CNTUOPU |
Pneumatic System | Solenoid Valve | STNC |
Pneumatic System | Fittings | EASUN |
Drive & Sensing | Motor | Sanly / Su Lin |
Drive & Sensing | Photoelectric Sensor | Yangming / Fotek, Taiwan |
Drive & Sensing | Proximity Switch | CNTD |
Drive & Sensing | Bearings | NSK, Japan / HRB |
Consumables | High-Temperature Tape | NITTO, Japan |
A semi-automatic tape sleeve wrapper is ideal for factories that need flexible packaging for different product sizes. Compared with a fully automatic line, it requires less investment and is easier to adjust for small-batch or multi-size production.
The JX-1010 is especially suitable for manufacturers that:
Already have operators for manual stacking
Need a high-speed wrapping station
Frequently change product sizes
Package tape rolls in logs or towers
Want to improve packaging speed without a full automatic line
Need a flexible solution for tape rolls and cylindrical products
With up to 21 packs per minute output, the JX-1010 offers a practical balance of speed, flexibility and cost efficiency.
The JX-1010 supports multiple packaging film types, including:
PVC film
POF film
PE film
The suitable film type depends on your product, packaging effect, cost requirements and shrink performance. For a tighter and more professional final package, the sleeve-wrapped product can be processed through a compatible shrink tunnel.
To recommend the most suitable configuration and film width, please provide the following information:
Product type
Product diameter
Product height or stack height
Roll width
Rolls per pack
Required packing speed
Film type
Voltage requirement
Sample photos or videos
Whether a shrink tunnel is required
Destination country
These details help confirm machine suitability, film width, shrink tunnel requirements and final quotation.
The JX-1010 can pack tape rolls, tape stacks, tape tower packs, label rolls, medical rolls, textile rolls and other cylindrical products within the supported size range.
The JX-1010 can reach up to 21 packs per minute, depending on product size, operator loading speed, film type and production conditions.
No. The JX-1010 is a semi-automatic tape log sleeve wrapper. It requires manual loading, while the machine completes film feeding, sealing and sleeve wrapping.
The machine is compatible with PVC, POF and PE films. The suitable film type depends on the product, packaging effect and shrink requirements.
Yes. The JX-1010 supports product diameters from Ø10 mm to Ø185 mm and product heights from 50 mm to 400 mm. Its hand-wheel adjustment design helps operators change settings quickly.
A shrink tunnel is optional. If you need a tighter and more professional package appearance, the JX-1010 can be used together with a compatible shrink tunnel.
Yes. The JX-1010 is suitable for masking tape, electrical tape, stationery tape, double-sided tape and similar tape rolls, as long as the product size is within the machine range.
Please provide product type, diameter, height, roll width, rolls per pack, required speed, film type, voltage and sample photos. This helps confirm the machine configuration and film width.
The JX-1010 Semi-Automatic Tape Log Sleeve Wrapper is a high-speed and flexible solution for tape roll, tape log, tower pack and cylindrical product packaging.
Send us your product dimensions, packing format and required speed. Our team will help confirm the suitable film width, machine configuration and optional shrink tunnel solution.
