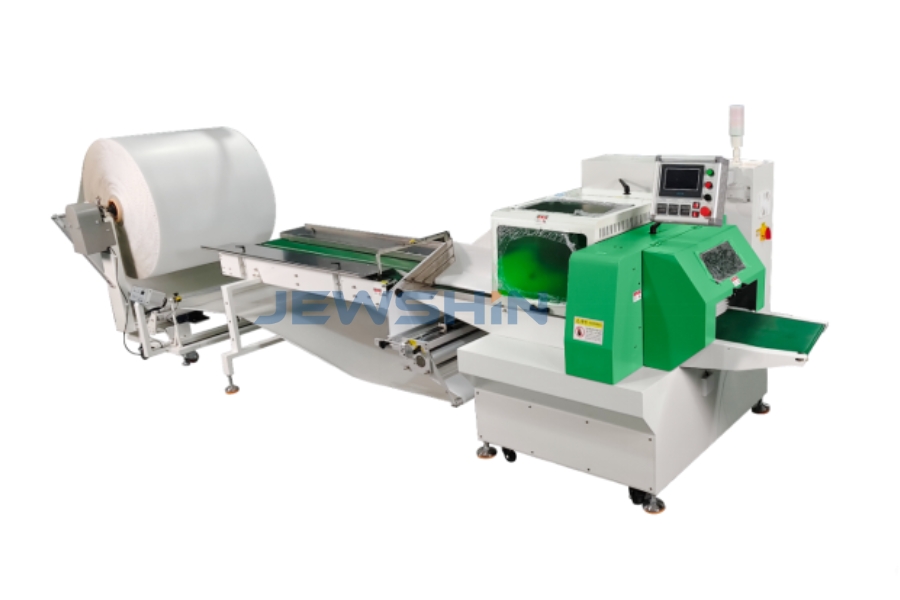

Why Choose the JX-700XQ?
Manual wrapping with bubble sheets is labor-intensive and inconsistent. The JX-700XQ automates this:
Specialized for Bubble Film: The sealing jaws and temperature control are calibrated to seal thick bubble film without "melting through" or popping the bubbles at the seal line.

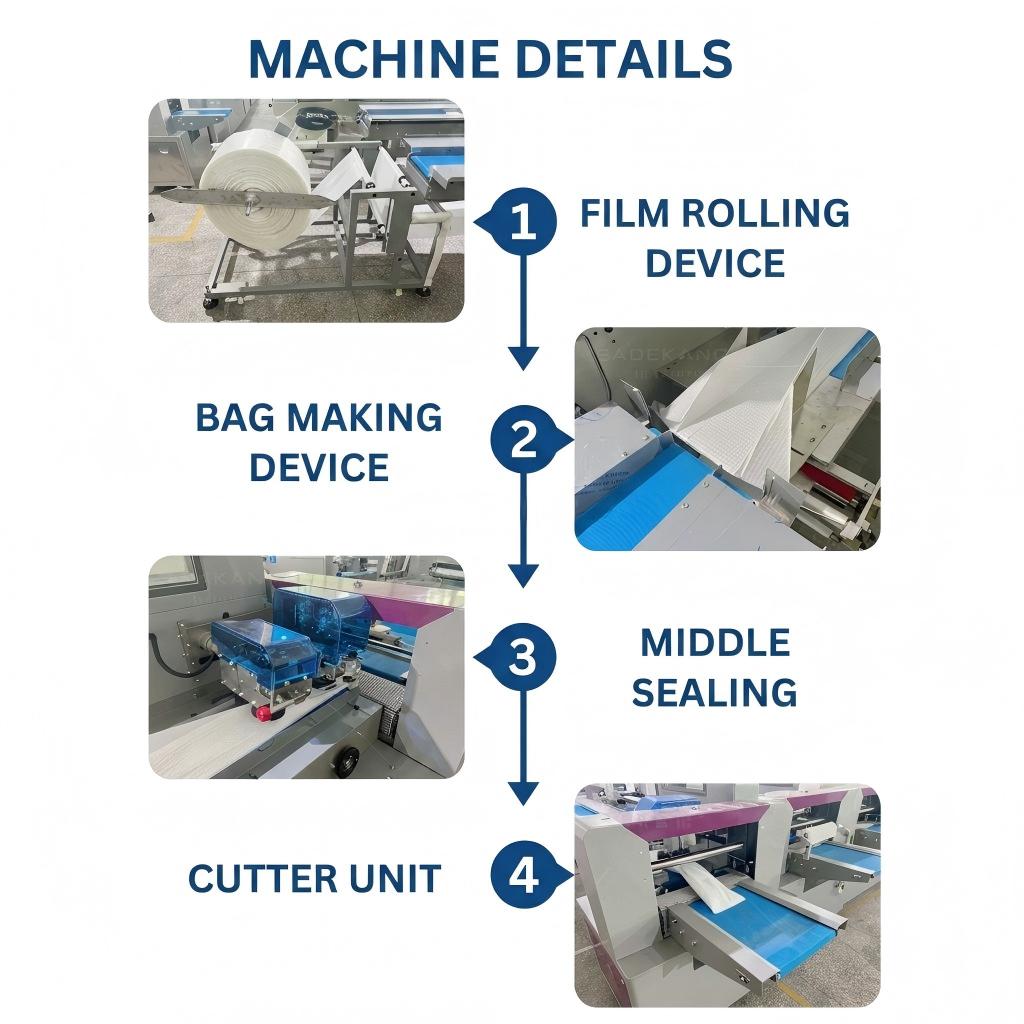

Film Support Mechanism (Easy Loading): Bubble wrap rolls are large and cumbersome. The specialized support mechanism (cradle style) makes loading these bulky rolls easier and ensures smooth film tension during high-speed unwinding.
Versatile Product Range: Perfect for items that need cushioning, from heavy hardware accessories to delicate glass lamps and printed materials.
Application Scenarios
Lighting & Electronics: LED bulbs, lamp fixtures, circuit boards, hard drives.
Hardware & Auto Parts: Door handles, bearings, metal fittings (prevents scratching).
E-commerce Logistics: Pre-packing fragile SKUs before they go into the shipping box.
Stationery & Books: High-end books, stacks of paper products.

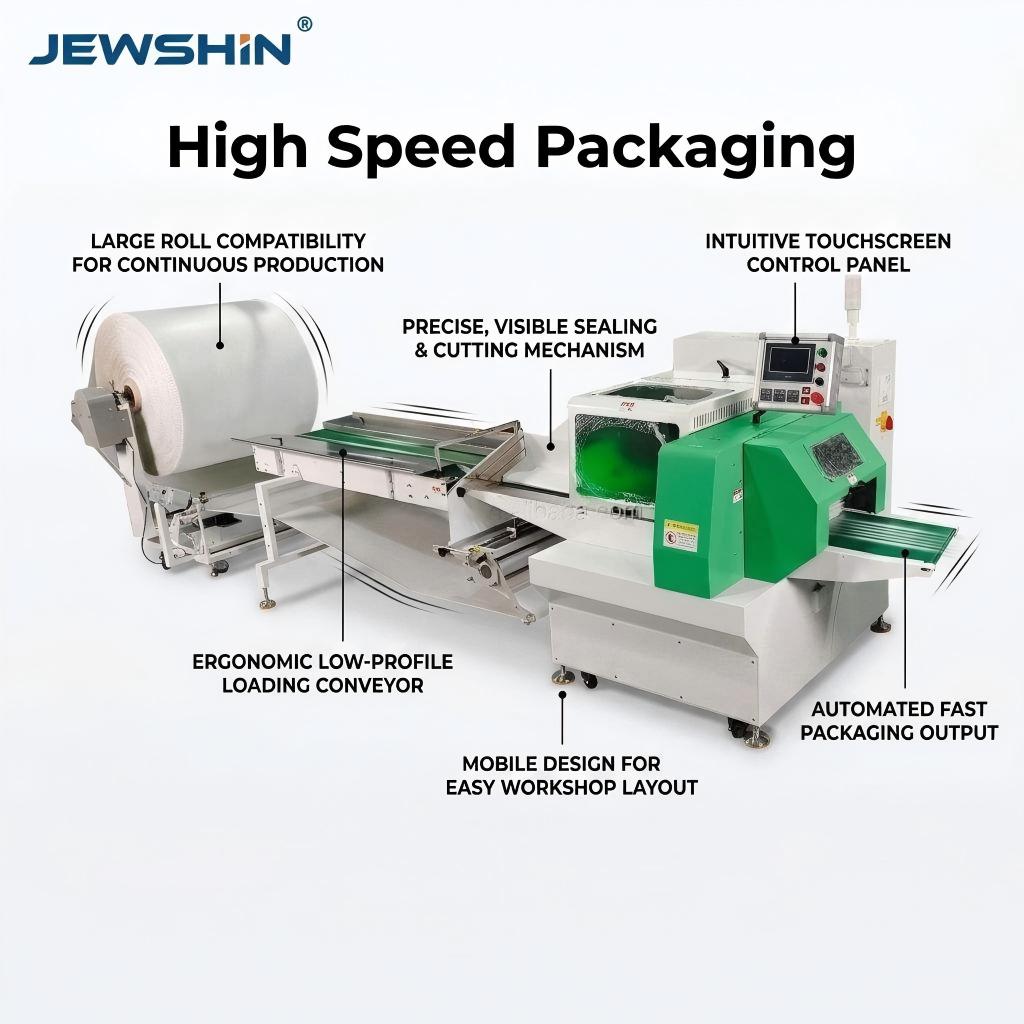

Key Features & Technical Highlights
Servo Precision: "Set and Cut" technology. The servo motors precisely control the bag length, ensuring you don't waste expensive bubble material.
Carbon Steel Construction: A heavy-duty frame ensures stability when handling heavy film rolls and rapid movements.
Smart "Anti-Cut" Function: If a product (e.g., a hard metal part) is misplaced under the cutter, the machine automatically reverses. This is critical when packing rigid hardware to prevent damage to the cutter.
Independent PID Temp Control: Essential for bubble wrap. It maintains the exact temperature needed to bond the PE layers of the bubble film securely.
Auto-Stop Safety: The machine halts immediately if the bubble film runs out, preventing empty cycles.
Technical Specifications
Parameter | Specification |
Model | JX-700XQ (Bubble Wrap Edition) |
Frame Material | Carbon Steel |
Film Feeding | Specialized Film Support Mechanism |
Packaging Material | Bubble Wrap / Air Bubble Film |
Packaging Speed | 20 - 40 bags/min (Dependent on product size) |
Bag Length | 100 - 1200 mm |
Bag Width | 100 - 300 mm |
Product Height | Max 120 mm |
Film Width | Max 700 mm |
Film Roll Diameter | Max 300 mm |
Power Supply | 220V, 50/60Hz, 4.45KW |
Machine Dimensions | (L)4220 × (W)1220 × (H)1544 mm |
Machine Weight | 700 Kg |
Service & Support
Material Testing: Send us your specific bubble wrap (single-layer or double-layer). We will test the seal strength.
Feeder Options: Can be equipped with automatic friction feeders for flat products like books or manuals.
Warranty: 1-Year Warranty on core components (Servo/PLC).
Frequently Asked Questions (FAQ)
Q: Can it handle double-sided bubble wrap?
A: Yes. The PID temperature control allows adjustment for different thicknesses of bubble film, ensuring a strong seal on both single and double-sided materials.
Q: Does the machine pop the bubbles when sealing?
A: The sealing jaws are designed to apply pressure only to the seal area. While bubbles directly in the seal line are flattened to create the bond, the rest of the package remains inflated and protective.
Q: What is the "Film Support Mechanism"?
A: Unlike a standard shaft that goes through the core, a support mechanism (often cradle-style) supports the roll from the bottom or uses a reinforced structure. This is necessary because bubble wrap rolls are much larger in volume than standard film rolls.
Automate Your Protective Packaging.
Switch from manual wrapping to automatic bagging. Protect your fragile goods efficiently with the JX-700XQ.
Get a Quote: Contact us for pricing.
Check Compatibility: Send us your product dimensions.
Request Video: Watch the machine pack a lamp with bubble wrap.
