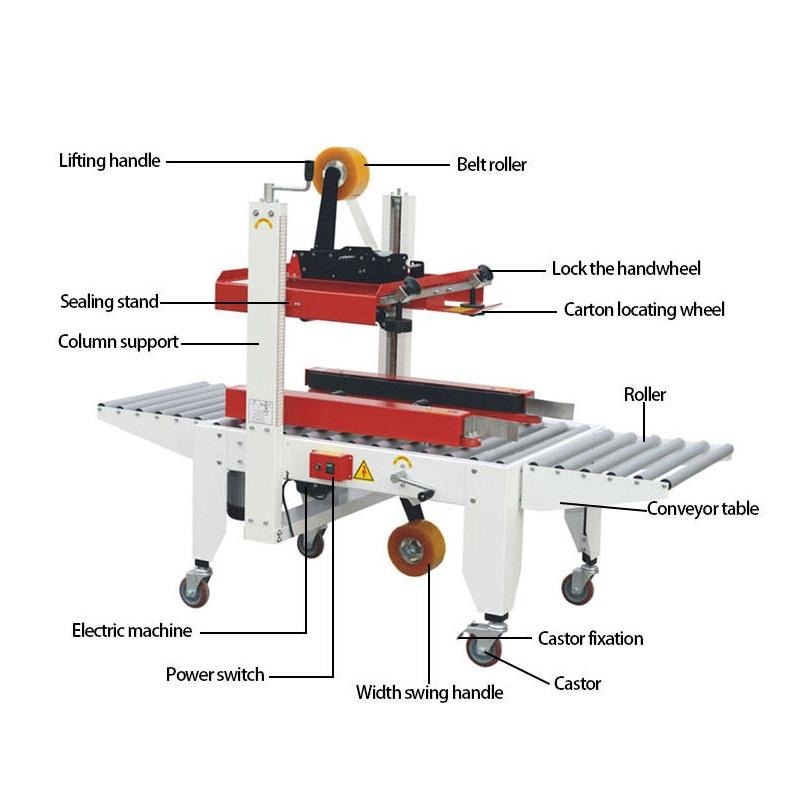

The FA500 Semi-Automatic Case Sealer is designed for businesses looking to improve packaging efficiency without a large capital investment. This compact machine handles bottom tape sealing with a "一" (I-shape) pattern, ensuring secure carton closure in a single pass. Whether you're running a small production line or need a standalone sealing station, the FA500 delivers consistent performance with minimal maintenance.
Compact & Lightweight Design: With a machine size of 1100mm (L) × 630mm (W) × 1330mm (H) and a weight of just 120kg, the FA500 fits easily into limited floor spaces.
Cost-Effective Solution: Low power consumption of just 0.2kW and affordable pricing make this machine ideal for startups and small to medium-sized enterprises.
Manual Adjustment for Flexibility: Easily adjust the width and height manually when changing carton specifications, offering great flexibility for diverse product sizes.
Dual Belt Drive: The transmission system uses lower two-sided belt drive, ensuring smooth and stable carton movement through the sealing process.
Standalone or Inline Use: The FA500 can operate independently or be integrated into your existing production line for seamless workflow.
Durable Taping Mechanism: The precision-engineered taping device is robust and operates smoothly, ensuring long service life and reliable tape application.
Customization Available: Non-standard sizes and custom configurations can be designed to meet your specific packaging requirements.
The FA500 is designed for light-duty, narrow carton applications. Below are the core technical parameters:
Specification | Details |
Model | FA500 |
Minimum Box Size | L: 150mm | W: 120mm | H: 30mm |
Maximum Box Size | L: Unlimited | W: 500mm | H: 500mm |
Belt Speed | 20 m/min |
Machine Dimensions | 1100mm (L) × 630mm (W) × 1330mm (H) |
Power Supply | 220V/380V, 50Hz |
Power Consumption | 0.2 kW |
Compatible Tape Width | 48mm, 60mm, 75mm |
Equipment Weight | 120kg |
Standard Table Height | 600mm |
Sealing Method | Bottom "一" (I-shape) tape sealing |
The FA500 is perfectly suited for businesses handling narrow, lightweight cartons across various industries:
E-commerce & Fulfillment Centers: Fast, reliable sealing for shipping boxes.
Small Manufacturing: Electronics, toys, and daily necessities.
Retail & Distribution: Cosmetics, food products, and household goods.
Post-Press & Printing: Packaging printed materials and promotional items.

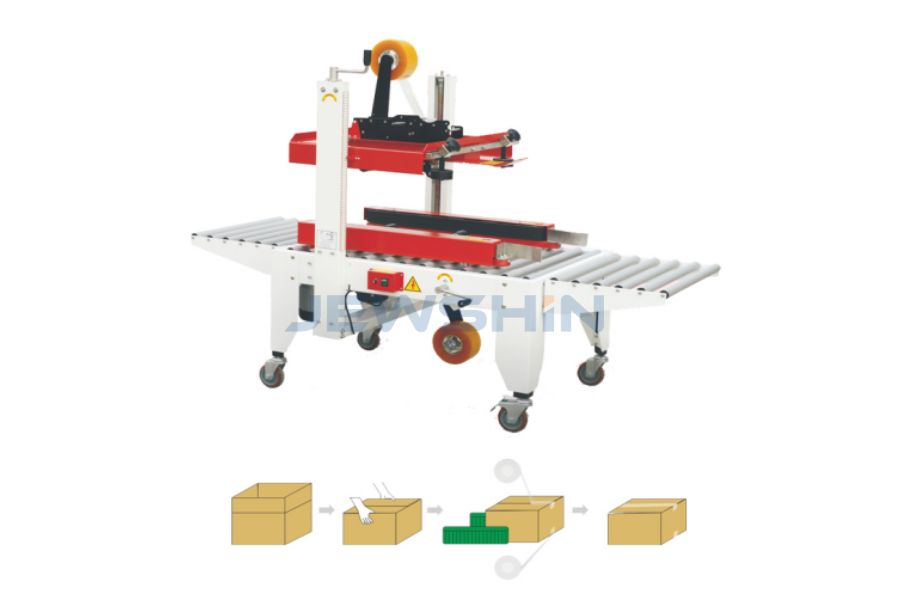

Simple 3-Step Operation:
Manual Flap Folding: Operator manually folds the top flaps of the carton.
Carton Feeding: Place the carton on the belt conveyor, which moves at 20 m/min.
Automatic Tape Application: The taping device applies tape to the bottom in a single "一" (I-shape) pattern, completing the seal.
Based in Dongguan City, Guangdong Province, Jewshin Intelligent Machinery Co., Ltd. is a trusted provider of packaging automation solutions. With our own sister factory and experienced international trade department, we offer a comprehensive range of equipment—from entry-level semi-automatic machines like the FA500 to fully automated production lines. We are committed to delivering reliable, cost-effective solutions tailored to your business needs.
Q1: What's the difference between semi-automatic and fully automatic case sealers?
A: The FA500 is a semi-automatic model, meaning operators manually fold the top flaps and place cartons onto the conveyor. The machine then automatically applies tape to the bottom. This design offers a cost-effective entry point for businesses that don't require full automation.
Q2: Can the FA500 handle different carton sizes?
A: Yes! The machine accommodates cartons with widths from 120-500mm and heights from 30-500mm. For width and height changes, you simply adjust the machine manually. If you need to handle sizes outside this range, we can provide custom configurations.
Q3: What tape widths are compatible with the FA500?
A: The FA500 is compatible with standard tape widths of 48mm, 60mm, and 75mm. This flexibility allows you to choose the most appropriate tape size for your carton dimensions.
Q4: Can this machine be integrated into my existing production line?
A: Absolutely. The FA500 is designed for both standalone use and integration into production lines. It features a standard table height of 600mm, making it easy to connect with conveyors and other packaging equipment.
Q5: Is the FA500 suitable for heavy-duty operations?
A: The FA500 is specifically designed for narrow, lightweight carton applications. If you require high-speed or heavy-duty sealing, we recommend exploring our fully automatic models such as the SAE450S or SAE500T. Contact our team for recommendations based on your production volume.
Q6: What kind of maintenance does the FA500 require?
A: The FA500 features a precision-engineered, durable taping mechanism that requires minimal maintenance. Routine care includes cleaning the tape head, checking belt tension, and ensuring smooth operation of moving parts. Our support team provides detailed maintenance guidance with every purchase.
Q7: Do you offer warranty and after-sales support?
A: Yes! All Jewshin equipment comes with warranty coverage and comprehensive after-sales support, including remote technical assistance, spare parts supply, and operator training through our international trade department.
The FA500 offers unbeatable value for businesses ready to improve packaging efficiency. Contact our sales team today to discuss your carton sizes and receive a competitive quote!
