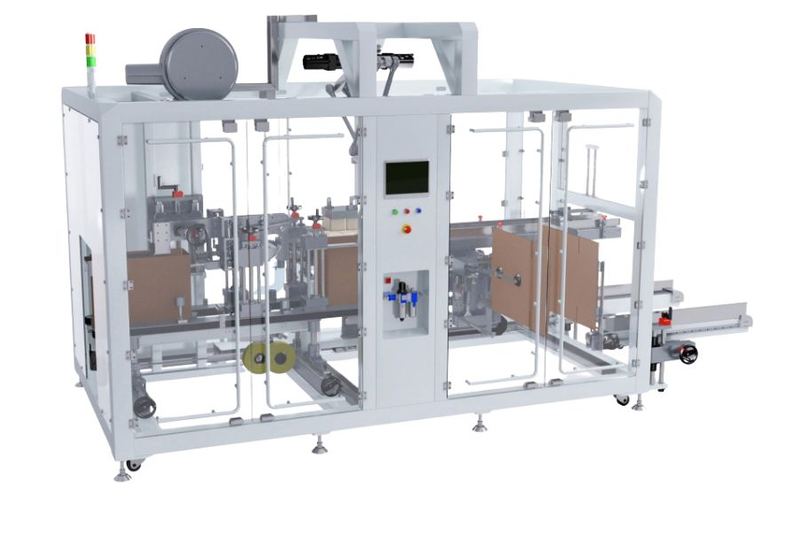

The SAE500T Vertical Box Opening, Packing & Sealing Machine is an intelligent, space-saving system that integrates three critical operations—case erecting, product packing, and carton sealing—into one compact vertical unit. Controlled by advanced servo motors and equipped with dual servo product handling, it delivers exceptional speed, precision, and operational stability. This machine is suitable for boxed, canned, bottled, and bagged products, adapting easily to various packing requirements.
50% Space Savings: The vertical all-in-one design dramatically reduces the footprint compared to separate, modular machines, making it ideal for facilities with limited floor space.
Industry-Leading Safety: All exterior components are protected by 12mm thick acrylic glass panels. The intelligent safety interlock system triggers an alarm and automatic stop when doors are opened, ensuring zero dangerous contact by operators.
High-Speed Performance: Depending on product shape and production capacity, the SAE500T completes 6-10 packing cycles per minute, significantly boosting throughput.
L-Shaped Box Opening: The innovative "L" shaped opening mechanism requires minimal carton depth and guarantees a high success rate in case erecting.
Dual Servo Feeding: Product handling is powered by dual servo motors, ensuring faster, more accurate, and more stable operation.
Precision Servo Control: The entire machine operates with absolute value servo motors, delivering precise positioning, stable running, and easy operation.
Easy Maintenance & Low Cost: All equipment systems and mechanisms are independently developed and manufactured by Jewshin, facilitating straightforward long-term maintenance and reducing operational costs.
The SAE500T is designed for robust industrial applications. Below are the core technical parameters:
Specification | Details |
Model | SAE500T |
Applicable Carton Sizes | Length: 250-500mm | Width: 150-400mm | Height: 150-400mm |
Packing Speed | 6-10 cases/min |
Maximum Load | 20-25kg |
Sealing Method | Tape or Spray Adhesive |
Clamps | Customization available based on product type |
Power & Voltage | 5kw | 380V-50HZ |
Air Pressure | 5-6kg |
Equipment Weight | 1200kg |
(Note: Other sizes or specific technical requirements can be custom-made to fit your unique production line.) | |
To ensure long-term reliability and world-class performance, the SAE500T is built with high-quality components from globally recognized brands:
Component | Brand |
Cylinders | AirTAC |
Suction Cups & Vacuum Generators | CHELIC |
Bearings | SKF |
Motors | GPG |
PLC, Touchscreens & Servos | INOVANCE |
Relays | IDEC (Japan) |
Contactors | Schneider |
Circuit Breakers | CHINT |
Solenoid Valves | AirTAC |
Photoelectric Devices | OMRON / Leuze |
Belts | Imported Materials |
The vertical all-in-one design and flexible handling capabilities make the SAE500T suitable for diverse product types:
Boxed Products: Electronics, hardware, cosmetics, and household goods.
Canned Products: Food, beverages, and daily chemicals.
Bottled Products: Pharmaceuticals, beverages, and personal care items.
Bagged Products: Snacks, agricultural products, and soft goods.
Located in Dongguan City, Guangdong Province, Jewshin Intelligent Machinery Co., Ltd. is a trusted leader in packaging automation. With our own sister factory and a highly experienced international trade department, we provide end-to-end packaging solutions—from individual machines to complete turnkey production lines. Driven by technical innovation and years of expertise, we deliver reliable equipment tailored to your unique industry needs.
Q1: Why should I choose a vertical all-in-one machine over separate equipment?
A: The SAE500T's vertical design saves up to 50% floor space compared to traditional modular setups. This makes it ideal for facilities with limited space while still delivering high-speed, reliable performance. It also simplifies maintenance and reduces the number of connection points between machines.
Q2: Can the SAE500T handle different carton sizes?
A: Yes! The machine accommodates carton sizes ranging from L:250-500mm, W:150-400mm, and H:150-400mm. For sizes outside this range, our engineering team can design custom configurations to meet your specific requirements.
Q3: What makes the box-opening mechanism so reliable?
A: The SAE500T uses an innovative "L" shaped opening mechanism that requires minimal carton depth, significantly improving the success rate of case erecting. This design ensures consistent, reliable operation even with lightweight or challenging carton materials.
Q4: Can you customize the clamps for my specific products?
A: Absolutely. Since product shapes vary across industries (boxes, cans, bottles, bags), we offer fully tailored clamp and gripper designs to ensure stable and secure handling during the packing process.
Q5: How safe is the equipment for my operators?
A: Operator safety is paramount. The SAE500T features 12mm thick acrylic glass protection on all sides and an intelligent safety interlock system that immediately stops the machine and sounds an alarm when any door is opened. This ensures personnel cannot come into contact with any dangerous moving parts.
Q6: What kind of after-sales support do you provide?
A: We offer comprehensive after-sales support, including remote technical assistance, detailed installation guidance, operator training, and rapid spare parts delivery through our expert international trade department. Our independently developed systems also ensure straightforward, low-cost maintenance.
Transform your packaging line with the SAE500T vertical all-in-one solution. Contact our automation experts today to discuss your specific requirements and receive a customized equipment quote!
