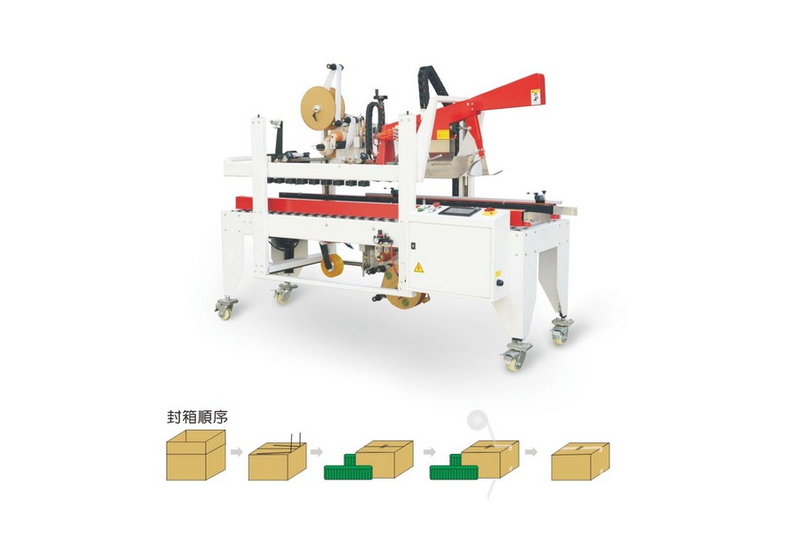

The JX-FC500 Automatic Flap Folding Carton Sealer is an essential component for any modern packaging facility looking to reduce labor intensity and improve throughput. Positioned after an automatic packaging machine, the JX-FC500 detects incoming cartons, automatically folds down the front, back, and side top flaps, and applies a precise "一" (I-shape) tape seal to both the top and bottom simultaneously. This ensures a standardized, secure closure every time.
Automatic Flap Folding: Entirely replaces manual folding of top carton flaps, significantly saving labor costs and reducing worker fatigue.
H-Tape (I-Shape) Integration: Specifically designed to pair with a four-corner sealing machine (like the FG500L) to create a highly secure, full "I-shaped" (H-tape) seal.
Batch Processing Efficiency: Highly suitable for batch processing cartons of the same dimensions. When changing to a different box size, width and height can be quickly adjusted manually.
Durable & Precise Taping Head: Features a precise and firmly constructed tape holder that operates softly, ensuring the instant adhesive tape seals flat and beautifully without tearing the carton.
Versatile Line Integration: Can operate as a standalone machine or be combined with unmanned automatic strapping machines and conveyors to form a comprehensive end-of-line packaging system.
Built for continuous industrial operation, the JX-FC500 delivers reliable performance with the following specifications:
Specification | Details |
Model | JX-FC500 |
Carton Size Range | Length: 200-600mm | Width: 120-500mm | Height: 120-500mm |
Belt Speed | 10-15 m/min |
Power Supply & Consumption | AC 200-240V, 50/60Hz | 0.2 kW |
Working Air Pressure | 4 kg/cm² |
Compatible Tape Width | 48mm, 60mm, 70mm |
Machine Dimensions | L: 1700mm × W: 900mm × H: 1510mm |
Net Weight | 200kg |
Manual flap folding is a time-consuming bottleneck in many packaging lines. By automating this step with the JX-FC500, businesses achieve:
Higher Throughput: Consistent speeds of 10-15 meters per minute keep up with upstream manufacturing processes.
Professional Appearance: Machine-applied tape is straight, flat, and free of wrinkles, enhancing your brand's unboxing experience.
Reduced Injury Risk: Eliminates repetitive motion tasks for line workers, improving overall workplace safety.
Located in Dongguan City, Guangdong Province, Jewshin Intelligent Machinery Co., Ltd. specializes in robust automation solutions for the packaging industry. With our independent sister factory and an expert international trade team, we deliver high-quality, reliable equipment that meets global standards. Whether you need a single automatic sealer or a fully integrated packaging line, we provide the technology and support to optimize your operations.
Q1: What is the difference between the JX-FC500 and a standard automatic case sealer?
A: A standard automatic case sealer (like the GPA-30) requires an operator to manually fold the top flaps down before the machine applies tape. The JX-FC500 features a mechanical arm/guide system that automatically folds the top flaps down as the box enters the machine, eliminating the need for manual intervention at that stage.
Q2: Does this machine require an air compressor?
A: Yes, the flap folding and taping mechanisms utilize pneumatics for precision. The JX-FC500 requires a working air pressure of 4 kg/cm².
Q3: How do I change the machine settings for different box sizes?
A: The machine is designed for batch processing. When switching to a new carton size (within the L:200-600mm, W:120-500mm, H:120-500mm range), the operator manually adjusts the width guide rails and the height of the taping head. This adjustment takes only a few moments.
Q4: Can this machine connect directly to the FG500L corner sealer?
A: Absolutely. The JX-FC500 is engineered to pair perfectly with the FG500L Corner Sealer. Once the JX-FC500 seals the top and bottom center seams, the carton is conveyed into the FG500L to seal the four edges, creating a complete "I-shaped" (H-tape) package.
Q5: What kind of tape can I use?
A: The JX-FC500 is compatible with standard sealing tapes in widths of 48mm, 60mm, and 70mm, giving you flexibility based on your security and budgetary requirements.
Remove packaging bottlenecks and reduce labor costs with the JX-FC500. Contact our team today with your carton specifications to receive a custom solution and pricing!
