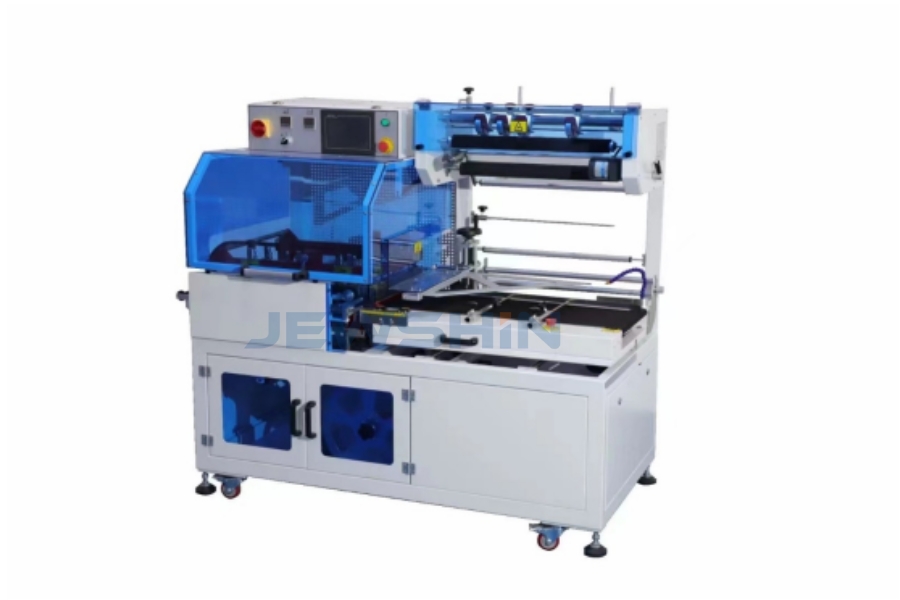

Automatic L-Bar Sealer Machine (Scissor Type) | Model A5645 | Omron PLC


Availability:



Inquire

The Reliable Standard for Versatile Packaging.

The A5645 Scissor Type L-Sealer is designed for stability and consistent performance across diverse industries, from food to electronics. Its standout feature is the Integral Alloy Sealing Knife, a one-piece design that resists deformation and ensures a strong, unbreakable seal line every time. Engineered with a premium electrical cabinet featuring Omron, Schneider, and Panasonic components, this machine minimizes downtime and maximizes efficiency for products up to 120mm in height.

Model:
A5645
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the A5645 Scissor Sealer?

Integral Knife Design: Unlike segmented blades that warp over time, our sealing knife is crafted as a single, solid unit. This ensures the sealing line remains straight and strong, even after millions of cycles.
Scissor Mechanism: The scissor-action sealing arm provides rapid, reliable cycling with optimal pressure distribution, making it faster and more durable than standard hinge-type sealers.
Global Component Standard: We don't cut corners on electronics. With Omron PLCs, Schneider switches, and Weidmüller relays, the electrical system is built to international standards, ensuring easy maintenance and parts availability worldwide.
Versatile Sizing: Available in two versions (Standard and S-Type), it can handle products as small as 50mm (S-Type) or as large as 450mm, making it perfect for contract packagers handling multiple SKUs.

Application Scenarios

Daily Chemicals: Cosmetics boxes, shampoo multipacks, soap.
Food & Catering: Biscuit boxes, tea boxes, confectionery trays.
Electronics: Mobile phone boxes, router packaging, batteries.
Printing & Crafts: Books, magazines, stationery sets, toys.

Key Features & Technical Highlights

Smart Control: The 7-inch MCGS Touchscreen pairs with the Omron PLC for intuitive operation. Adjusting timers, temperatures, and counters is as easy as using a smartphone.
Precision Detection: Uses Panasonic (Japan) photoelectric sensors to detect products with millimeter accuracy, ensuring the knife never cuts the product.
Safety First: Equipped with a German SICK (or equivalent high-end) knife protection system and Schneider emergency stops to protect operators.
Clean Operation: Includes a built-in exhaust fan system with stainless steel mesh to remove smoke and fumes generated during sealing.

Technical Specifications

Parameter	Model: JX-A5645 (Standard)	Model: JS-A5645-S (Small Product)
Sealing Blade Size	565(L) × 460(W) mm	565(L) × 460(W) mm
Product Length	90 - 450 mm	50 - 450 mm
Product Width	50 - 350 mm	50 - 350 mm
Product Height	10 - 120 mm	10 - 120 mm
Packing Speed	20 - 40 packs/min (Est.)	20 - 40 packs/min (Est.)
Air Pressure	6kg/cm² (80psi)	6kg/cm² (80psi)
Power Supply	220V, 1-Phase, 3KW	220V, 1-Phase, 3KW
Machine Size	1795 × 880 × 1570 mm	1795 × 880 × 1570 mm
Net Weight	360 KG	360 KG

Premium Configuration (Detailed Brand List)

We believe in transparency. Here is exactly what is inside the machine:

System	Component	Brand / Origin
Control	PLC	Omron (Japan)
	Touch Screen	MCGS (Kunlun Tongtai)
	Thermostat	Omron (Japan)
Sensors	Photoelectric Switch	Panasonic (Japan)
Sensors	Proximity/Stroke Switch	Omron / Ecotter
Electrical	Breaker / Buttons	Schneider (France)
	Intermediate Relay	Weidmüller (Germany)
	Solid State Relay	ANV
	Switching Power Supply	MeanWell (Mingwei)
	AC Contactor	LS (Korea)
Pneumatic	Solenoid Valve	AirTAC (Taiwan)
Pneumatic	Cylinder	AirTAC (Taiwan)
Drive	Motors	Zhongda

Invest in Stability and Precision.

Stop dealing with broken seal wires and machine jams. Upgrade to the A5645 Scissor L-Sealer for a packaging line that runs as hard as you do.

Get a Quote: Contact us for the latest price on the A5645.
Material Test: Send us your product samples to test the "Integral Knife" seal strength.
Model Selection: Let us help you choose between the Standard or S-Type based on your product size.
