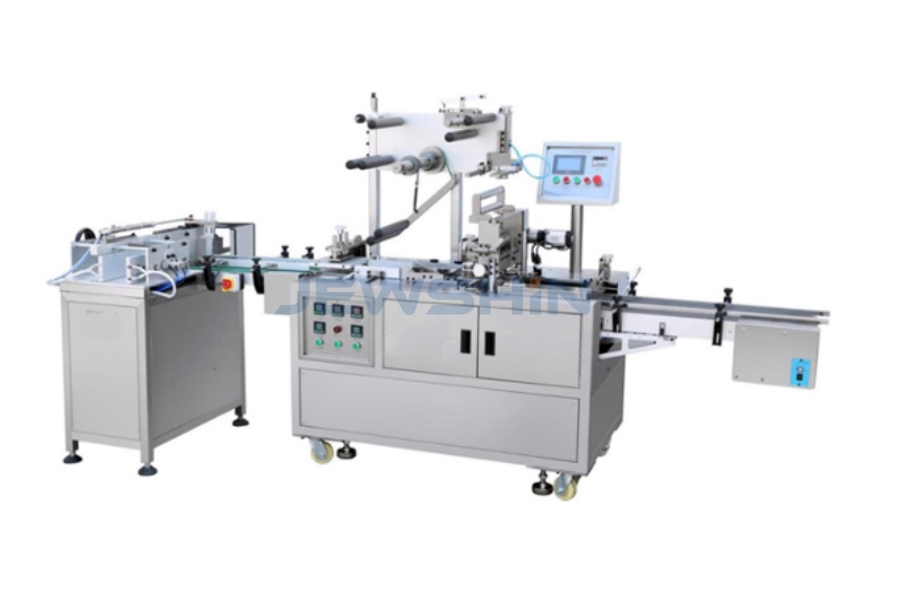

JX-D650 Automatic 3D Cellophane Overwrapping Machine (Cigarette Style Wrapper)


Availability:



Inquire

The "Premium Look" for Your Boxes.

The JX-D650 brings the flawless, diamond-fold finish of cigarette packs to your product. Unlike shrink wrapping, this 3D Overwrapping Machine folds and seals the film precisely around your box, creating a crystal-clear, tight, and waterproof barrier. Capable of speeds up to 100 packs/minute, it is the ideal solution for cosmetics, pharmaceuticals, and playing cards. Designed with a "Foolproof" operation philosophy, it allows for quick mold changes and requires no specialized technicians to run.

Model:
JX-D650
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the JX-D650 Overwrapper?

Premium Aesthetics (Cigarette Fold): Elevate your brand image. The machine creates sharp corners and smooth surfaces without the wrinkles associated with heat shrink tunnels. It supports Tear Tape (Gold/Red line) integration for easy opening and anti-counterfeit protection.
High-Speed Efficiency: With a mechanical speed of 40-100 packs/minute, the JX-D650 is significantly faster than manual wrapping and standard entry-level machines, making it suitable for mass production.
"Foolproof" Operation: You don't need an engineer to run this. The machine is designed for simplicity—operators can learn to use it quickly. The mold design is cost-effective and compatible, making product changeovers (e.g., switching from perfume A to perfume B) fast and affordable.
Product Protection: The tightly sealed BOPP/PVC film provides excellent waterproofing, moisture resistance, and oil resistance, extending the shelf life of your products.

Application Scenarios

Cosmetics: Perfume boxes, face cream cartons, makeup kits.
Tobacco & Vaping: Cigarette packs, e-cigarette boxes.
Entertainment: Playing cards, poker decks, trading cards.
Pharmaceuticals: Medicine boxes, supplement cartons.
Food: Tea boxes, chewing gum multipacks.

Key Features & Technical Highlights

Panasonic Intelligence: Controlled by a Panasonic (Matsushita) PLC and Servo Driver, ensuring precise film feeding and cutting accuracy.
Robust Pneumatics: Equipped with AirTAC (Taiwan) cylinders and solenoid valves for consistent, long-lasting mechanical movement.
Compact & Quiet: The machine features a compact footprint (approx. 2.1m long) and runs with low noise, making it suitable for cleanroom environments (GMP compliant).
Automatic Process: Auto-feeding -> Film Cutting -> Folding -> Side Sealing -> End Sealing -> Output.

Technical Specifications

Parameter	JX-D650 (Standard High Speed)	JX-D750 (Corner Feed)	JX-800A/B (Large Size)
Speed	40 - 100 packs/min	20 - 50 packs/min	20 - 80 packs/min
Max Box Length	30 - 200 mm	50 - 280 mm	50 - 280 mm
Max Box Width	10 - 100 mm	40 - 180 mm	40 - 180 mm
Max Box Height	10 - 45 mm	20 - 80 mm	20 - 80 mm
Power	220V / 4KW	380V / 11KW	380V / 11KW
Machine Size	2100×780×1500 mm	2300×860×1640 mm	2300×860×1640 mm
Weight	450 KG	900 KG	900 KG

Note: JX-D650 is best for standard small-to-medium boxes (like cigarettes, cards, small cosmetics). For larger gift boxes, consider the JX-800 series.

Premium Configuration (Brand List)

We use internationally recognized components to ensure global reliability:

Component	Brand / Origin	Note
PLC Controller	Panasonic (Matsushita)	Japan
Servo Driver	Hechuan	Tech-Partner
Touch Screen	Xinje	Wuxi
Cylinder & Solenoid	AirTAC (Yadeke)	Taiwan
Proximity Switch	Omron	Japan
Switching Power	MeanWell (Mingwei)	Shanghai/Taiwan
Circuit Breaker	Chint (Zhengtai)	China Top Brand
AC Contactor	Chint (Zhengtai)	China Top Brand
Temp. Controller	Keyang	Shanghai
Solid State Relay	Jinhui	Zhejiang

Give Your Product the "Luxury" Touch.

Stop using cheap shrink wrap. Upgrade to the JX-D650 for that crisp, professional "cigarette-pack" finish that customers love.

Get a Quote: Contact us for pricing on the JX-D650.
Mold Customization: Send us your box dimensions (L x W x H), and we will quote the mold cost.
Sample Testing: Mail us your boxes, and we will wrap them to show you the quality.
