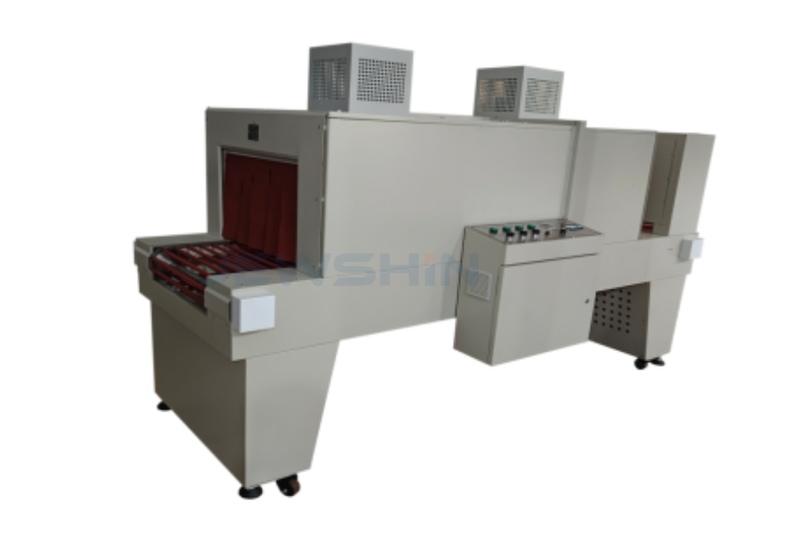

6040PE Heavy Duty Heat Shrink Tunnel (Designed for Polyethylene Film)


Availability:



Inquire

The Powerhouse for PE Film Shrinking.

Standard shrink tunnels simply cannot handle thick PE film—they lack the power and airflow. The 6040PE is engineered specifically for this challenge. With a massive 30KW Heating System and an extended 1800mm Furnace Chamber, it provides the intense, consistent heat required to tightly shrink Polyethylene (PE) film around heavy products like water bottle bundles, wood flooring, and ceramic tiles. Featuring Schneider Electric components and Autonics temperature control, it ensures a perfect, tight finish every time.

Model:
6040PE
Brand:
JEWSHIN

Product Description

Why Choose the 6040PE Tunnel?

High-Power Heating (30KW): PE film has a high shrink point and high thermal mass. This machine delivers 30KW of heating power, ensuring the film reaches the correct temperature quickly without slowing down the conveyor.
Extended Heating Zone: The 1.8-meter long chamber allows for a "heat soak" effect. This ensures the film shrinks gradually and evenly, preventing "dog ears" (messy corners) or burn holes that occur in shorter, hotter tunnels.
Precision Airflow Control: The ventilation system features a customized fan motor that allows you to adjust localized airflow. This is critical for PE film, which requires strong turbulence to wrap tightly around irregular shapes.
Energy Efficiency: Despite its high power, the machine uses double-layer high-temperature rock wool insulation. This keeps the heat inside the tunnel and the outer casing cool, reducing electricity waste and keeping your factory floor comfortable.

Application Scenarios

Beverage Industry: 12/24 packs of water bottles or canned drinks (works best with PE film).
Construction Materials: Bundles of wood flooring, baseboards, ceramic tiles.
Textiles: Large rolls of fabric or heavy bedding sets.
Logistics: Heavy carton waterproofing and grouping.

Key Features & Technical Highlights

Schneider Electric Core: The main control switches, buttons, and relays are all Schneider (France), ensuring industrial-grade safety and longevity.
Stable Conveying: Uses a Taiwan Taibang gear motor for the conveyor. It can handle heavy loads (up to 450KG machine weight implies a sturdy frame) without stuttering.
Precise Temperature: The Autonics (Korea) thermostat maintains the temperature within a tight range (0-200°C), preventing film burnout.
Durable Heaters: Stainless steel heating elements heat up fast and last much longer than quartz tubes, which are prone to breaking in heavy-duty environments.

Technical Specifications

Parameter	Specification
Model	6040PE (Heavy Duty)
Tunnel Aperture	600(W) × 400(H) mm
Furnace Length	1800 mm (Extended for PE)
Heating Power	30 KW (3-Phase 380V)
Packing Speed	2 - 10 packs/min
Applicable Film	PE Film (Polyethylene)
Temperature Range	0 - 200°C
Machine Dimensions	2800(L) × 1200(W) × 1750(H) mm
Machine Weight	450 KG

Premium Configuration (Brand List)

Built to withstand high heat and continuous operation:

Component	Brand / Origin
Thermostat	Autonics (South Korea)
Inverter	Shihlin (Taiwan)
Conveyor Motor	Taibang (Taiwan)
Air Switch / Breaker	Schneider (France)
Relays / Buttons	Schneider (France)
Solid State Relay	Yangming (Taiwan)
Heating Elements	Stainless Steel (Long Life)
Insulation	Double-layer Rock Wool
