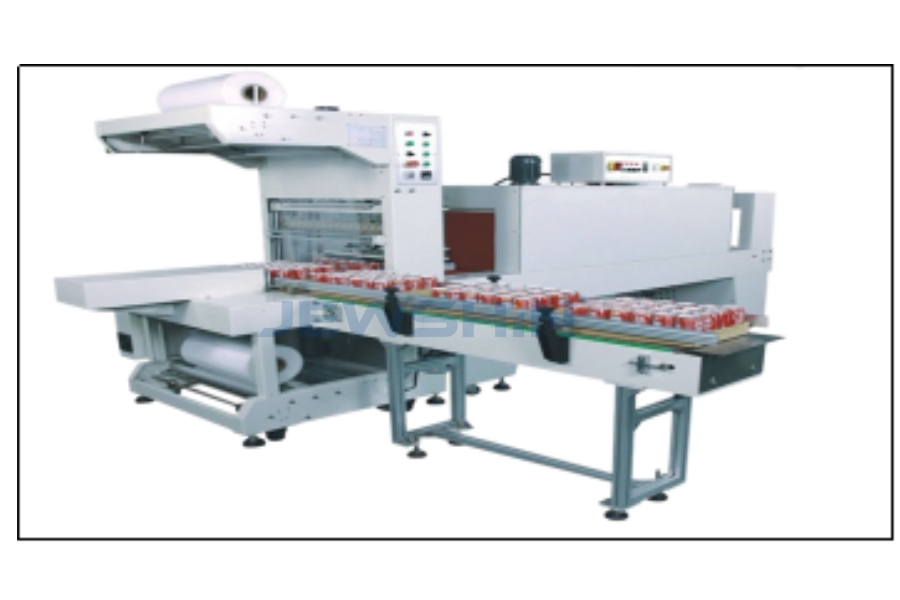

6030 Automatic Side-Feed Sleeve Wrapper (PE Film | Siemens PLC)


Availability:



Inquire

Optimized for Stability and Safety.

The 6030 Side-Feed Sleeve Wrapper is an industrial-grade solution designed for bundling products using heavy-duty PE Film. Its unique Side-Feed configuration makes it ideal for integrating into production lines with 90-degree turns or for handling elongated products. Powered by a Siemens PLC and protected by German SICK Sensors, it offers precise sealing without the risk of cutting the product. With a robust POM Chain Conveyor, it handles heavy loads effortlessly, making it perfect for beverages, construction materials, and logistics.

Model:
6030
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Siemens Intelligent Control: At the heart of the machine is a Siemens PLC, ensuring logic reliability and easy integration into Industry 4.0 factory systems. The 7-inch Kunlun Tongtai Touchscreen (65k colors) makes operation intuitive.
Advanced Sealing System:

Material: The sealing knife is crafted from High-Temp Alloy Steel with a DuPont Teflon Coating. This ensures the PE film never sticks to the blade, creating a clean, strong seal every time.
Vertical Drive: Unlike scissor-action sealers, the sealing frame is driven vertically by AirTAC Cylinders. This provides uniform pressure across the entire 700mm width.
Safety First: Equipped with German SICK "Knife Protection" Technology, the machine instantly detects obstacles. If a product is out of position, the knife pauses to prevent damage.

Side-Feed Versatility: The side infeed mechanism allows for flexible line layouts and is particularly effective for grouping multiple items (like bottles or boxes) before they enter the sealing zone.
Durable Conveying: Uses a POM Chain Plate conveyor driven by a Servo Motor. POM is wear-resistant and low-friction, ensuring smooth transport even for heavy packs.

Application Scenarios

Beverage & Food: Trays of cans, bottles, or tetra packs (bundling).
Construction Materials: Floorboards, ceramic tiles, long timber/profiles.
Logistics: Cartons requiring extra protection or bundling multiple boxes together.
Textiles: Rolls of fabric or carpet (long items).

Technical Specifications

Parameter	Specification
Model	6030 Side-Feed Sleeve Wrapper
Sealing Dimensions	Width: 700 mm
Max Product Height	300 mm (Customizable)
Packaging Speed	1 - 15 packs/minute (Dependent on size)
Film Type	Single-layer PE Film (Polyethylene)
Power Supply	220V 50Hz, 3KW
Air Pressure	6 - 8 kg/cm²
Machine Weight	600 KG
Machine Size	2200 × 1500 × 2100 mm
Table Height	830 ± 30 mm

Premium Configuration (Brand List)

We use top-tier international components to ensure longevity:

System	Component	Brand / Origin
Control	PLC	Siemens (Germany)
	Touch Screen	Kunlun Tongtai (7-inch)
	Thermostat	Omron (Japan)
Safety & Sensors	Photoelectric / Knife Protection	SICK (Germany)
	Emergency Stop	IDEC (Izumi Japan)
	Intermediate Relay	IDEC (Izumi Japan)
Electrical	Solid State Relay	Omron (Japan)
	Circuit Breaker	Chint
	Power Supply	MeanWell (Taiwan)
Pneumatics	Cylinders	AirTAC (Taiwan)
Drive	Conveyor Motor	KS Custom Servo

Secure Your Heavy Loads with Precision.

Don't compromise on stability. The 6030 Side-Feed Wrapper combines Siemens reliability with heavy-duty PE wrapping capability.

Get a Quote: Contact us for pricing on the 6030 Side-Feed model.
Layout Consultation: Send us your factory floor plan, and we'll see if the side-feed design fits your line.
Material Test: Not sure if PE film is right for you? Ask our experts.
