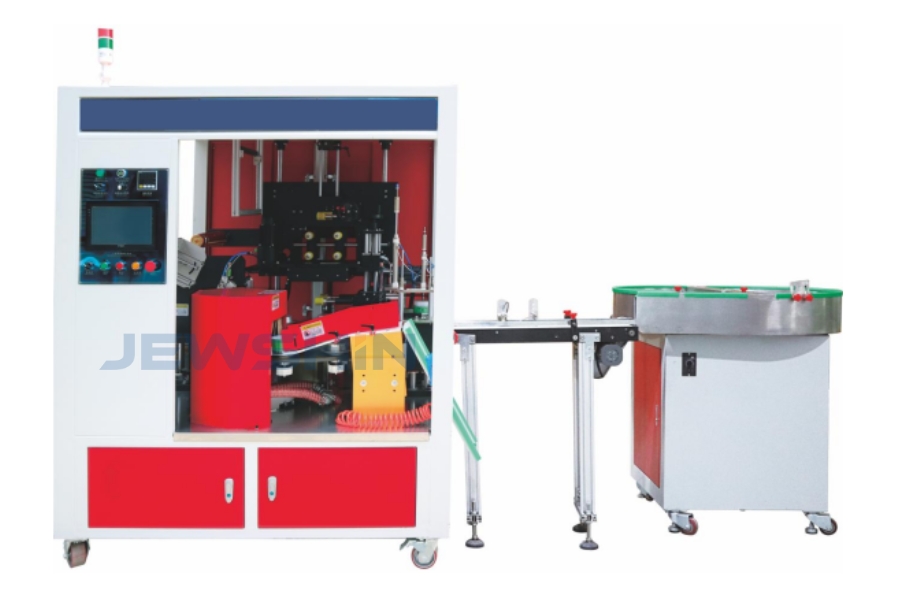

JX-60SS Rotary Electrical Tape Sleeve Wrapper & Labeler (68 packs/min)


Availability:



Inquire

The All-in-One Solution for Electrical Tape Packaging.

The JX-60SS is a compact, high-speed rotary machine designed specifically for PVC Electrical Tape manufacturers. It automates the entire finishing process: sorting rolls, cutting shrink film to length, inserting the paper brand label, and heat shrinking—all on a single 12-station turntable. Powered by ZSMC Servo Motors and a high-precision indexer, it delivers a consistent output of 60-68 rolls per minute while occupying minimal floor space.

Model:
JX-60SS
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the JX-60SS for Tape Manufacturing?

Integrated Label Insertion: The hardest part of packing electrical tape is getting the paper card/label inside the film. The JX-60SS uses a Vacuum Servo Manipulator to pick and place the label precisely onto the tape roll before shrinking. It even features "No Label" detection—if the label runs out, the machine alerts you.
Compact Turntable Design: Unlike long, linear packaging lines, this rotary machine uses a 12-Station Indexer. It saves valuable factory floor space (approx. 1.5m x 1.5m footprint) while maintaining high throughput.
Built-in Shrinking: No need for a separate, bulky shrink tunnel. The machine is equipped with High-Speed Hot Air Guns at specific stations on the wheel, providing instant, energy-efficient shrinking directly on the line.
Servo Precision: With dedicated servos for Film Feeding, Film Cutting, and Label Suction, the machine ensures the film length is exact (saving material) and the cut is clean.

Automated Workflow (How it Works)

Auto Feeding: Tape rolls are sorted via the vibration plate/sorting tray and fed into the line.
Loading: The 12-station turntable picks up the rolls.
Sleeve Application: Servo motors measure and cut the film, sleeving it around the tape.
Label Insertion: The vacuum arm inserts the paper brand card onto the roll face.
Shrinking: Hot air guns shrink the film tightly around the roll and label.
Discharge: Finished rolls are ejected automatically.

Technical Specifications

Parameter	Specification
Model	JX-60SS (Turntable Type)
Packing Speed	60 - 68 pcs/min
Tape Width	15 - 30 mm
Tape Diameter	52 - 90 mm (Customizable)
Film Thickness	0.035 - 0.04 mm (PVC/POF, 50% Shrink Rate)
Power Supply	AC 380V, 4-Phase, 4.5 KW
Heating Power	3 KW (Hot Air Gun)
Air Pressure	0.5 MPa
Machine Size	1500 × 1500 × 2100 mm
Net Weight	1500 KG

Premium Configuration (Brand List)

Built with precision components for 24/7 operation:

System	Component	Brand / Origin
Control System	PLC	Haiwei
	Touch Screen	ECON (Weikong)
Servo System	Film Feed/Cut Servo	ZSMC (Zhishan)
	Label Suction Servo	ZSMC (Zhishan)
Drive	Turntable Stepper	Hongbaoda
	Speed Motor	Chenggang
	Splitter (Indexer)	Juju
Pneumatics	Cylinder / Solenoid	AirTAC / Modular
	Vacuum Generator	AirTAC
	Vacuum Detector	Panasonic (Japan)
Electrical	Switch / Contactor	Schneider (France)
	Photoelectric Switch	Autonics (Korea)
	Power Supply	MeanWell

Automate Your Tape Packaging Line.

Eliminate manual labeling and bulky tunnels. Switch to the JX-60SS for a compact, high-speed, and professional finish for your electrical tape products.

Get a Quote: Contact us for the latest price on the JX-60SS.
Custom Sizes: Do you produce jumbo rolls? Let us know your diameter requirements.
Material Advice: We can recommend the best shrink film specs for this machine.
