Key Features & Advantages
Automatic Lane Separation & Sorting: The machine intelligently divides incoming rolls into left and right channels. This ensures that the finished "log" has the branded label side facing outwards on both ends, creating a retail-ready package.
Seamless Line Integration: Designed to link directly with Automatic Slitting Machines or manual cutters. It acts as a buffer and packer, realizing a truly unmanned "Middle Section" in your production line.
Flexible Stacking Options: via the HMI Touch Screen, you can easily switch between packing 8, 10, or 12 rolls per log.
Quick Changeover: The machine uses a patented Handwheel Screw Adjustment system. Changing between different tape widths or diameters is fast and tool-free.
Stable Film Feeding: Features a "Storage-Type" film release structure that maintains constant tension, preventing the film from deviating or wrinkling during the wrapping process.
Robust Build: The main machine and conveyor line are split-mounted for easy transport, but bolted together into a rigid All-Steel Structure for stability during high-speed operation.
Application Scenarios
Technical Specifications
Parameter | Specification |

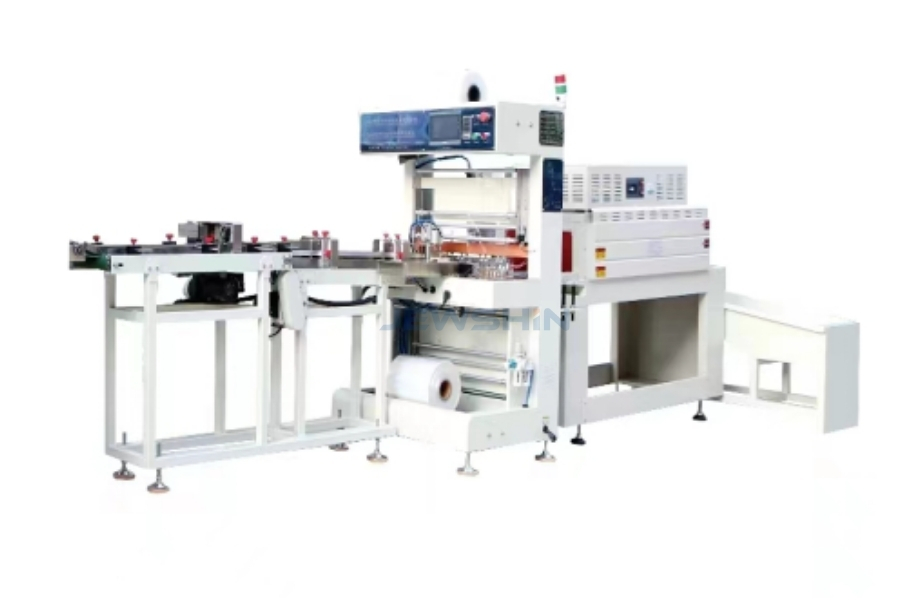

Model | JX-1060 (Packer) + 4520 (Shrink Tunnel) |
Packing Type | Log / Tower / Cylinder Pack |
Stack Count | 8 / 10 / 12 rolls per log (Selectable) |
Packing Speed | 10 logs/minute (approx. 100-120 rolls/min) |
Tape Diameter | Ø 40 - 95 mm |
Tape Width | 10 - 25 mm (Single Roll) |
Power Supply | AC 200-240V, 50-60Hz, 400W (Control) |
Air Pressure | 5 KG (0.5 MPa) |
Machine Size | 4600 (L) × 1300 (W) × 1700 (H) mm |
Net Weight | 350 KG |
Film Type | PVC / POF Shrink Film |
Premium Configuration (Brand List)
Engineered with reliable components for 24/7 operation:
System | Component | Brand / Origin |
Control System | Touch Screen | Mcgstpc (Xiankong) |
| PLC | Programmable Controller |
| Thermostat | Caoren (Super Energy) |
Electrical | Switching Power | MeanWell (Taiwan) |
| Contactor | Schneider (France) |
| Relay | Omron (Japan) |
| Air Switch | Chint (China) |
| Button Switch | Kndele |
Pneumatics | Cylinder | CNTUOPU (Top) |
| Solenoid Valve | STNC (Tiangong) |
Drive & Sensing | Motor | Sanly / Su Lin |
| Photoelectric Sensor | Yangming (Fotek Taiwan) |
| Bearings | NSK (Japan) / HRB |
Call to Action
Automate Your Tape Stacking Process.
Stop paying workers to stack rolls by hand. The JX-1060/4520 Line sorts, stacks, and shrinks your electrical tape logs automatically, increasing output and packaging consistency.
Get a Quote: Ask for the price of the JX-1060 Line.
Layout Check: Send us your factory layout to see how this connects to your slitter.
Video Demo: Watch how the "Lane Separation" works.
[Contact Us Now] or [Chat via WhatsApp]
