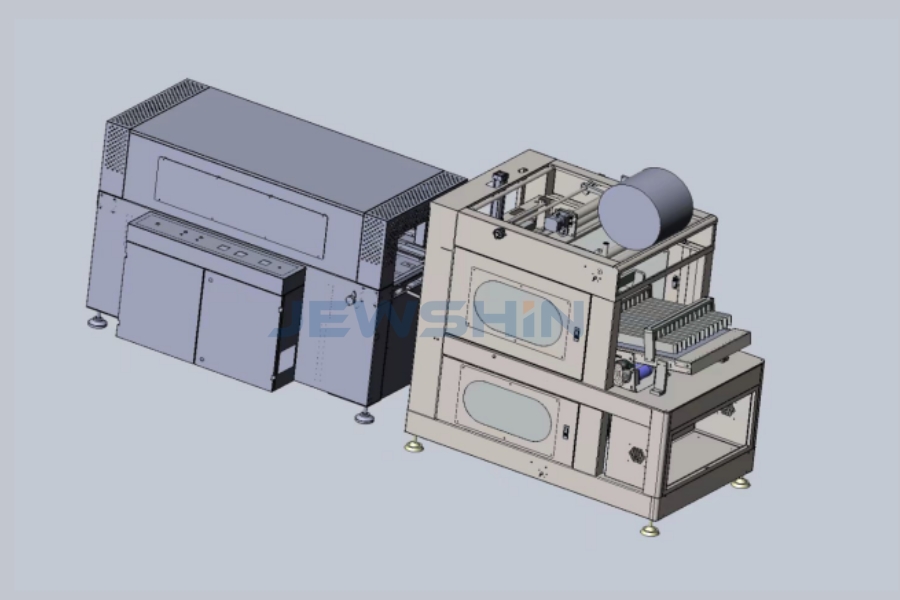

JX-700 Semi-Auto Spring-Style Tape Shrink Wrapper (Accordion Fold)


Availability:



Inquire

The Solution for High-Viscosity Tape Packaging.

The JX-700 is engineered specifically for sticky products like Masking Tape, Double-Sided Tape, and Foam Tape. Unlike standard wrappers, this machine employs a unique "Spring/Accordion" folding technique that places a layer of film between each roll. This creates a physical barrier, preventing the rolls from bonding together during storage—eliminating the need for manual insertion of release paper rings. Featuring Impulse Cold Sealing technology, it is energy-efficient and ready to run instantly without warm-up.

Model:
JX-700
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the JX-700?

Perfect Isolation (No Sticking): The core problem with packing sticky tapes is that they fuse into a solid block. The JX-700's Shaftless Packaging method automatically inserts film between items, ensuring they remain separate and easy to use.
Cost & Labor Saver: By using the shrink film itself as the separator, you can stop buying and manually inserting wax paper/release paper disks between rolls.
Pulse "Cold" Sealing Technology:

Instant Start: No pre-heating required. Turn it on and pack immediately.
Safety: The 700mm Alloy Blade only heats up for a split second during the cut. This prevents the glue on your tapes from melting or burning, ensuring a clean, smooth seal.
Energy Efficient: Consumes power only during the sealing cycle.

Versatility: Capable of handling narrow rolls (from 12mm width) up to large logs, with a speed of 10-11 tubes/minute.

Application Scenarios

Masking Tape (Crepe Paper): Prevents side-wall adhesion.
Double-Sided Tape: Critical for preventing the exposed adhesive sides from merging.
Foam Tape / Sponge Tape: Protects soft materials while isolating.
PVC Electrical Tape: Can be used for "sausage pack" style bundling.

Technical Specifications

Parameter	Specification
Model	JX-700 (Spring/Accordion Type)
Packing Speed	10 - 11 tubes/minute
Tape Diameter	Ø 90 - 150 mm
Tape Width	12 - 72 mm (Single Roll)
Sealing Width	700 mm (Effective Blade Width)
Max Film Width	620 mm
Film Type	PVC, POF, PE Heat Shrink Film
Sealing Type	Pulse Cold Sealing (No Pre-heat)
Power Supply	AC 380V, 50-60Hz, 11 KW
Air Pressure	6 KG (0.6 MPa)
Machine Size	2400 × 1430 × 1620 mm
Net Weight	750 KG

Premium Configuration (Brand List)

Reliable components for consistent "Spring" folding:

System	Component	Brand / Origin
Control	PLC	Mitsubishi (Japan)
	HMI (Touch Screen)	Kunlun Tongtai
	Tension Controller	Chsjl (San Jieli)
Electrical	Inverter	COST (Keso)
	Contactor / Relay	Schneider / Omron
	Thermostat	Omron (Japan)
	Photoelectric Switch	Omron (Japan)
	Master Switch	Fuji (Japan)
	Air Switch	Moeller (Eaton)
Pneumatics	Cylinder	Xingchen
	Solenoid Valve	STNC (Tiangong)
	Magnetic Switch	AirTAC (Taiwan)
Mechanical	Bearings	NSK (Japan) / HRB
	Motor	Mai Li

Stop Your Tapes From Sticking Together.

Upgrade to the JX-700 and achieve the professional "Accordion Fold" pack that high-end tape brands use. Save labor and improve product quality today.

Get a Quote: Contact us for pricing on the JX-700 Spring Packer.
Sample Test: Send us your sticky tape, and we will pack a sample "Spring Log" for you to inspect.
Film Advice: We can recommend the best film thickness for the spring effect.
