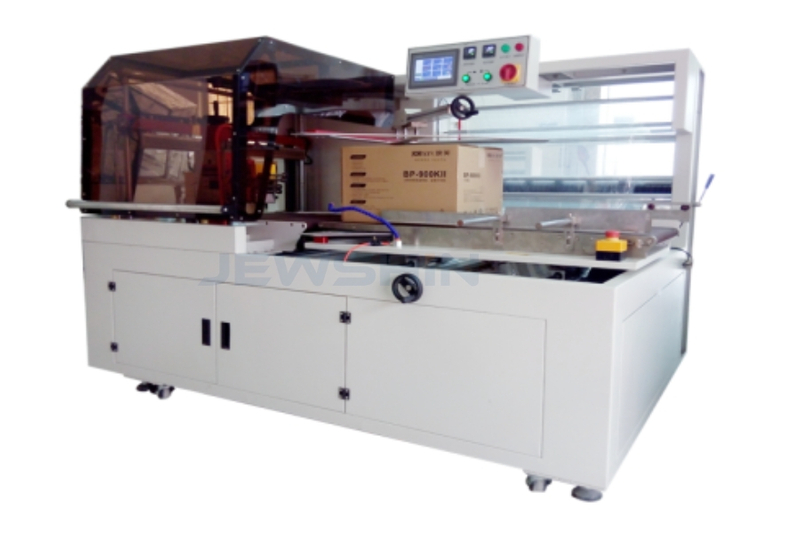

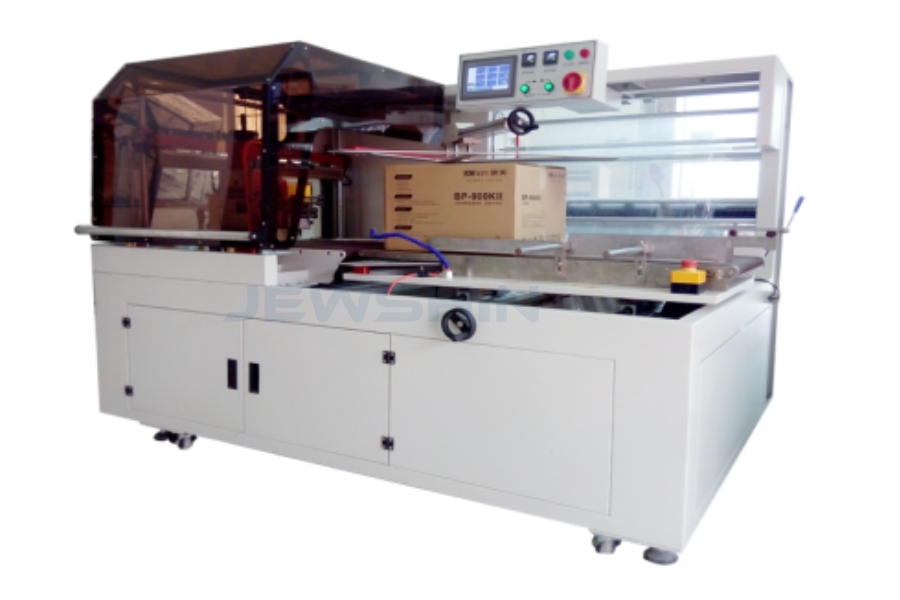

Model 75 Servo Rear Side Sealing Machine (Heavy Duty for PE Film)


Availability:



Inquire

The Heavy-Duty Specialist for PE Film Bundling.

The Model 75 is engineered specifically for packaging large, heavy products using durable PE (Polyethylene) Film. Unlike standard side sealers, it features a Rear-Positioned Sealing Mechanism and a robust servo drive, making it ideal for bundling beverages, floorboards, textiles, and construction materials. With a premium Omron Control System and German SICK Safety Sensors, it delivers reliable, high-strength seals for products that require maximum protection.

Model:
Side Sealing Machine
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the Model 75 Rear Side Sealer?

Built for PE Film: Standard machines struggle with thick PE film. The Model 75 uses a specialized high-temperature alloy knife system designed to cut and seal PE cleanly without smoking or sticking.
Rear Sealing Design: The side sealing unit is positioned to handle wider and taller products (up to 350mm height) more effectively than standard front-seal designs. This ensures the seal is strong and aesthetically placed.
Servo Precision: Driven by a custom Servo Motor, the belt speed and sealing motion are synchronized perfectly. This is crucial for heavy products that cannot withstand jerky movements.
Safety First: Large products carry more momentum. We use German SICK sensors to detect obstacles under the knife, instantly stopping the cycle to prevent injury or product damage.

Application Scenarios

Building Materials: Wood flooring planks, ceramic tiles, aluminum profiles.
Beverage & Food: Multipacks of canned drinks, water bottles (tray or trayless).
Textiles: Large rolls of fabric, bedding sets, carpets.
Logistics: Heavy carton waterproofing.

Key Features & Technical Highlights

Omron Intelligence: The brain of the machine is a genuine Omron PLC (Japan), ensuring logic stability that cheaper clones cannot match.
Durable Cutter: The sealing blade is coated with DuPont Teflon, preventing the melted PE plastic from building up on the knife—a common issue in cheaper machines.
Adjustable Speed: While designed for heavy loads (2-10 packs/min), the conveyor speed is fully adjustable via the servo drive to match your production line flow.
Robust Frame: Weighing in at 600KG, the heavy-gauge carbon steel frame prevents vibration, ensuring consistent seal quality even with heavy products.

Technical Specifications

Parameter	Specification
Model	75 Rear Side Sealer (Servo)
Sealing Capacity	Width + Height ≤ 600mm*
Max Product Height	≤ 350 mm
Packing Speed	2 - 10 pcs/min (Dependent on product size)
Applicable Film	PE Film (Polyethylene)
Control System	Omron PLC + Touch Screen
Machine Dimensions	2100(L) × 1500(W) × 1460(H) mm
Power Supply	380V, 50Hz, 6KW
Air Pressure	6 - 8 KG/cm²

*Note: Based on standard "75" model specs, the "60.0mm" in original text is corrected to 600mm.

Premium Configuration (Brand List)

This machine is built with a "Who's Who" of top industrial components:

Component	Brand / Origin
PLC Controller	Omron (Japan)
Touch Screen	Kunlun Tongtai (MCGS)
Solid State Relay	Omron (Japan)
Thermostat	Omron (Japan)
Safety Sensors	SICK (Germany)
Photoelectric Sensors	Banner (USA)
Breaker	Schneider (France)
Intermediate Relay	IDEC (Izumi Japan)
Cylinder / Valve	AirTAC / Shin Kong (Taiwan)
Power Supply	MeanWell

Secure Your Heavy Products with Confidence.

For products that demand the strength of PE film and the reliability of Omron control, the Model 75 is the industry standard.

Get a Quote: Contact us for pricing on this heavy-duty PE sealer.
Compatibility Check: Not sure if your product is too big? Send us the dimensions.
Full Line Solution: Ask about pairing this with our Heavy Duty Shrink Tunnel.
