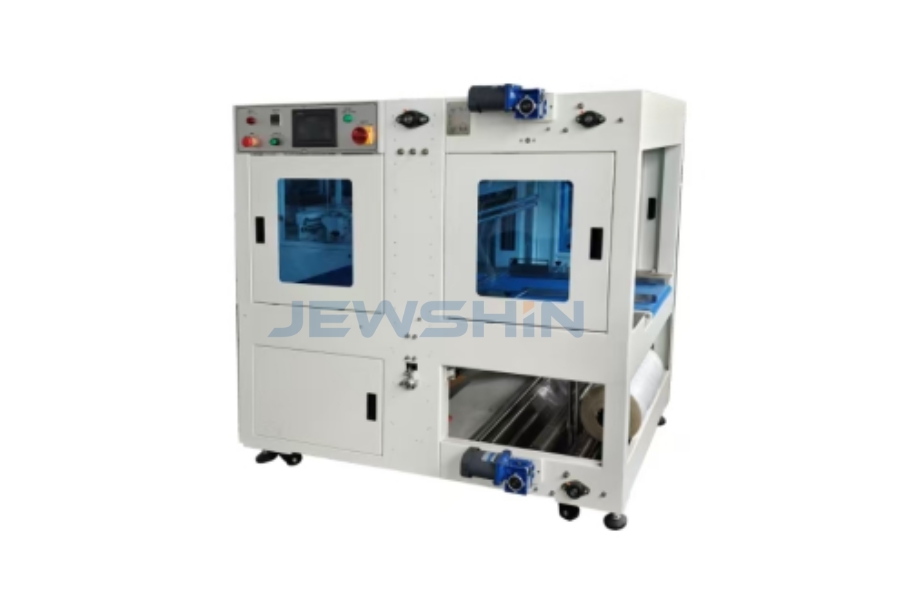

7040 Straight-Feed Sleeve Wrapper (Servo Sealing | 400mm Height)


Availability:



Inquire

Compact, Fast, and Servo-Driven.

The 7040 Straight-Feed Sleeve Wrapper is designed for seamless integration into high-speed production lines. Unlike traditional pneumatic machines, this model features a KS Servo Drive System for the sealing knife, ensuring whisper-quiet operation, higher precision, and zero air-pressure dependency. With a Huichuan PLC core and Banner/SICK detection, it handles heavy PE film bundling (up to 20 packs/min) with industrial reliability. Its straight-line design and PU Belt Conveyor make it perfect for beverages, boxes, and stacked products.

Model:
7040
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Servo-Driven Sealing Precision: The sealing cutter is powered by a KS Servo Motor, not an air cylinder. This provides:

Stability: Constant sealing pressure regardless of air supply fluctuations.
Speed: Faster cycle times allowing for up to 20 packs/minute.
Durability: Less mechanical wear and tear compared to pneumatic impact.

Straight-Line Efficiency: The compact "Straight-Feed" design (1650mm length) allows the machine to fit directly into your conveyor line without requiring 90-degree turns or complex side-push mechanisms.
Increased Capacity (400mm Height): With a sealing window of 700mm (W) x 400mm (H), this machine can handle taller multipacks that smaller models cannot.
Top-Tier Detection System:

Product Detection: Uses Banner (USA) photoelectric sensors for accurate product spotting on the belt.
Safety & Film: Uses SICK (Germany) sensors for knife protection (anti-cut) and film feed control.

Application Scenarios

Beverage Industry: Bundling water bottles (with or without bottom tray).
Logistics & E-commerce: Wrapping stacked cartons for shipping.
Daily Chemicals: Detergent multipacks.
General Manufacturing: Any boxed product requiring a dust-proof PE sleeve.

Technical Specifications

Parameter	Specification
Model	7040 Straight-Feed (Servo Type)
Sealing Dimensions	Width: 700 mm
Max Product Height	400 mm
Packaging Speed	1 - 20 packs/minute
Film Type	Single-layer PE Film
Sealing Drive	Servo Motor (KS)
Power Supply	220V 50Hz, 3KW
Air Pressure	6 - 8 kg/cm²
Machine Weight	600 KG
Machine Size	1650 × 1000 × 1800 mm
Conveyor Type	PU Belt

Premium Configuration (Brand List)

A blend of top international and domestic technology:

System	Component	Brand / Origin
Control	PLC	Huichuan (Inovance)
	Touch Screen	Kunlun Tongtai (7-inch)
	Thermostat	Omron (Japan)
Sealing System	Sealing Drive	KS Servo Motor
	Solid State Relay	Omron (Japan)
	Knife Material	DuPont Teflon Coated Alloy
Sensors & Safety	Photoelectric (Product)	Banner (USA)
	Photoelectric (Safety)	SICK (Germany)
	Emergency Stop	IDEC (Izumi Japan)
Electrical	Circuit Breaker	Chint
	Power Supply	MeanWell (Taiwan)
Conveying	Belt Motor	KS Custom Servo

Upgrade to Servo Precision.

Move away from pneumatic maintenance issues. Choose the 7040 Straight-Feed Wrapper for a faster, quieter, and more reliable packaging line.

Get a Quote: Contact us for pricing on the 7040 Servo Model.
Line Integration: Send us your conveyor height and width; we'll ensure a perfect fit.
Video Demo: See the Servo Sealing action in real-time.
