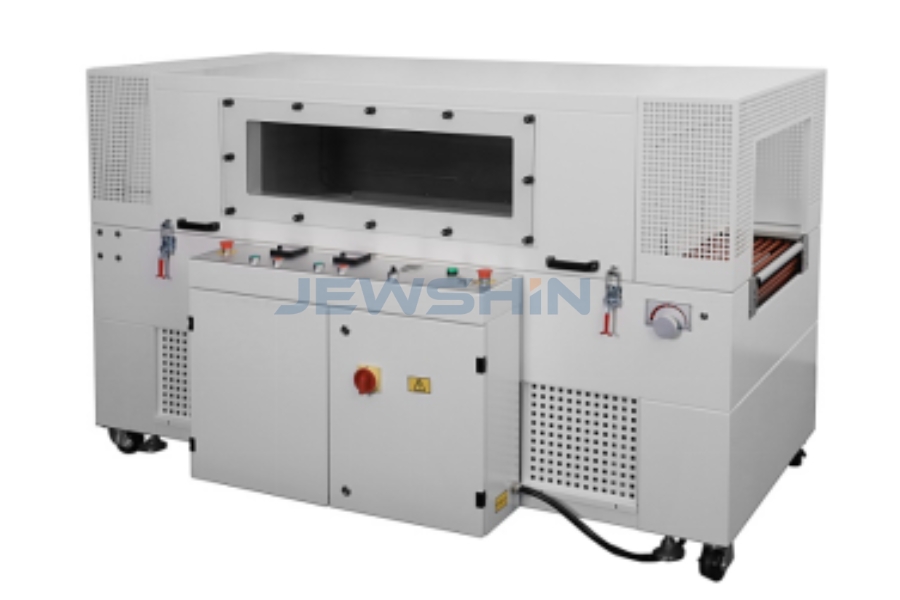

S550 Medium-Large High-Speed Shrink Tunnel (1.5m Chamber | Viewable Window)


Availability:



Inquire

More Space, More Speed, Perfect Control.

The S550 is the "Heavy Hitter" in our visible tunnel series. Designed for products that are too tall for standard compact tunnels, it features an enlarged 540mm x 350mm Opening and an extended 1500mm Heating Chamber. This extra length allows for higher conveyor speeds (up to 35m/min) without compromising shrink quality. With Dual Panasonic Inverters for precise airflow control and a Viewable Window, it is the ultimate solution for packaging multipacks, hardware, and consumer electronics.

Model:
S550
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Upgrade to the S550?

Capacity for Taller Products: With a max packaging height of 300mm (Tunnel height 350mm), the S550 can handle items like stacked books, large gift boxes, and kitchen appliances that smaller tunnels cannot fit.
Extended 1.5m Chamber: Length matters. The 1500mm chamber ensures that even at high conveyor speeds, the product stays inside long enough to shrink perfectly. This eliminates the "dog ears" (unshrunk corners) common in short tunnels running too fast.
Total Airflow Control: The "Down-Wind" Circulation System is managed by a dedicated Panasonic Inverter. You can adjust the wind force to be a gentle breeze for light boxes or a powerful gale for heavy bundles.
Energy Efficient Visibility: The double-layer insulation and Open Window Design let you monitor quality without opening the machine and losing heat. The U-Type Finned Heating Tubes transfer heat rapidly, reducing warm-up time.

Application Scenarios

Beverage & Food: Multipacks of cans/bottles, large biscuit tins.
Hardware & Tools: Power tool cases, boxes of fasteners.
Household: Small kitchen appliances (blenders, toasters), tissue multipacks.
E-commerce: Medium-sized shipping cartons requiring moisture protection.

Key Features & Technical Highlights

Precision Temperature: The Omron Thermostat maintains the heat within ±1°C. This precision prevents film burnout and ensures a glossy, transparent finish.
Dual Panasonic Drive:

Inverter 1: Controls Conveyor Speed (0-35m/min).
Inverter 2: Controls Fan/Blower Speed (Air Volume).

Robust Build: Weighing in with a solid frame and Mitsubishi Circuit Breakers, this machine is built for 24/7 industrial operation.
Safety Standard: Includes Schneider Emergency Stops and heat-insulated handles/surfaces to ensure operator safety.

Technical Specifications

Parameter	Specification
Model	S550 (ZF-S550)
Tunnel Dimensions	1500(L) × 540(W) × 350(H) mm
Max Product Size	Width ≤ 400mm, Height ≤ 300mm
Conveyor Speed	0 - 35 m/min
Heating Power	14 KW (3-Phase 380V)
Temp Control	Omron (± 1°C)
Machine Dimensions	2000(L) × 1070(W) × 1230(H) mm
Air Circulation	Down-Wind / Adjustable Speed

Premium Configuration (Brand List)

Reliability comes from quality components:

System	Component	Brand / Origin
Drive & Control	Frequency Converter (x2)	Panasonic (Japan)
	Thermostat	Omron (Japan)
	Conveyor Motor	Dongli (Taiwan)
	Fan Motor	TianYang
Electrical	Circuit Breaker	Mitsubishi (Japan)
	AC Contactor	LS (Korea)
	Buttons / Switches	Schneider (France)
	Intermediate Relay	Weidmüller (Germany)
	Solid State Relay	ANV
	Power Supply	MeanWell (Mingwei)
Heating	Heating Elements	U-Type Finned Tubes
