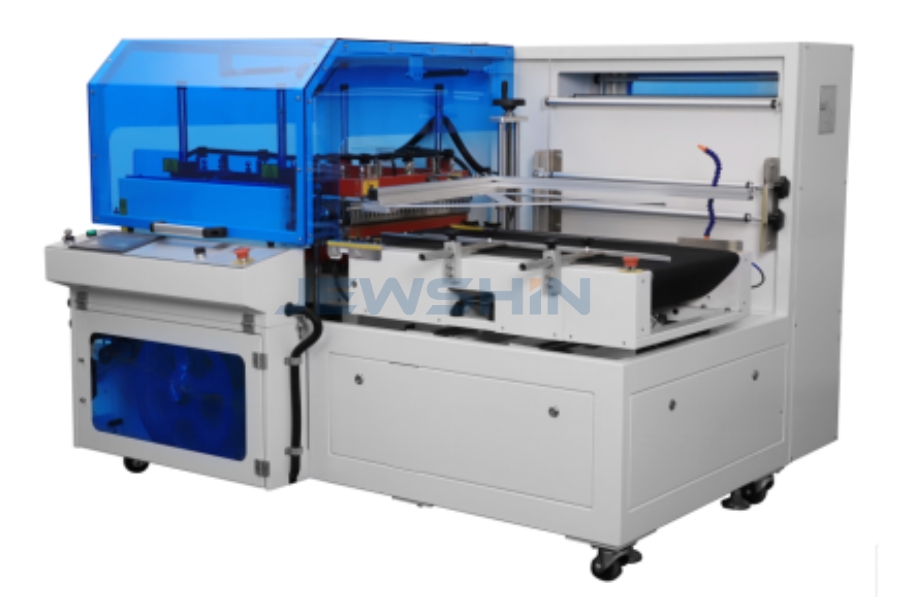

ZF-A6352 Automatic Vertical L-Sealer (Center Seal | Max Height 250mm)


Availability:



Inquire

The "Center Seal" Specialist for Premium Packaging.

The ZF-A6352 represents the gold standard in L-seal technology. Unlike traditional scissor-type machines, it utilizes a Vertical Driving Mechanism that moves the sealing frame straight up and down. This allows it to wrap taller products (up to 250mm) with perfectly square seals. Its signature Electric Lifting Function allows you to adjust the sealing line to the exact center of the product height, ensuring a symmetrical, shelf-ready appearance. Powered by a Panasonic PLC & Drive System, it delivers unmanned, high-speed precision.

Model:
ZF-A6352
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Why Choose the ZF-A6352 Vertical Sealer?

Vertical "Square" Sealing: The sealing frame descends vertically, applying even pressure across the entire cut. This eliminates the "V-shape" or "dog ears" often seen with scissor sealers, especially on tall boxes.
Center Seal Aesthetics: Aesthetics matter. With the adjustable sealing height, the weld line sits perfectly in the middle of your product's side, rather than dragging along the bottom edge. This is essential for premium gift boxes and electronics.
Handles Tall Products: While standard machines struggle with items over 100mm, the ZF-A6352 comfortably wraps products up to 250mm in height, making it ideal for kitchen appliances, large toy boxes, and multipacks.
Safety & Protection: Equipped with Schmersal (Germany) safety switches and Panasonic sensors, the machine instantly rebounds if it detects an obstacle, protecting both the operator and your product.

Application Scenarios

High-End Electronics: Mobile phone boxes, game consoles (where packaging looks are critical).
Food & Gifts: Mooncake boxes, cookie tins, large gift hampers.
Daily Chemicals: Tall bottles of shampoo, laundry detergent multipacks.
Printing: Stacks of books, reams of paper (up to A3+ size).

Key Features & Technical Highlights

Panasonic Brain: The core logic is handled by a Panasonic PLC, ensuring faster processing and easier integration with robotic arms or production lines.
Dual Inverter Control: Two Panasonic Frequency Converters manage the motor speeds, ensuring smooth acceleration and deceleration, which prevents unstable products from falling over.
Robust Pneumatics: Uses AirTAC (Original) cylinders and solenoid valves for millions of reliable cycles.
User-Friendly: The MCGS Touchscreen stores product recipes. Changing from a small box to a large carton takes just a few taps and an automatic height adjustment.

Technical Specifications (Series Comparison)

Parameter	JX-A6345 (Standard)	ZF-A6352 (High-Profile)	JX-A9070 (Extra Large)
Sealing Blade Size	630 × 465 mm	630 × 515 mm	900 × 700 mm
Max Product Height	180 mm	250 mm	250 mm
Max Product Width	380 mm	430 mm	630 mm
Packing Speed	~30 packs/min	26 meters/min	~20 packs/min
Machine Weight	650 KG	750 KG	1200 KG
Power Supply	220V / 2.5KW	220V / 3KW	220V / 4KW

Premium Configuration (Brand List)

Top-tier components for a top-tier machine:

System	Component	Brand / Origin
Control	PLC	Panasonic (Japan)
	Touch Screen	MCGS (Kunlun Tongtai)
	Thermostat	Omron (Japan)
Sensors	Photoelectric Switch	Panasonic (Japan)
	Proximity Switch	Omron / Panasonic
	Safety Switch	Schmersal (Germany)
Drive	Inverter (x2)	Panasonic (Japan)
	Motors	Zhongda / Dongli
Electrical	Circuit Breaker	Mitsubishi (Japan)
	AC Contactor	LS (Korea)
	Emergency Stop	Schneider (France)
	Inter. Relay	Weidmüller (Germany)
Pneumatic	Solenoid Valve	AirTAC (Taiwan)

Upgrade to Vertical Precision.

If your product is tall, or if appearance is your priority, the ZF-A6352 is the only choice. Get the perfect "Center Seal" today.

Get a Quote: Ask for the price of the ZF-A6352 Vertical Sealer.
Sample Video: Watch the machine wrapping a 200mm high box effortlessly.
Comparison: Ask us to explain the difference between Scissor (A5645) and Vertical (A6352) for your specific product.
