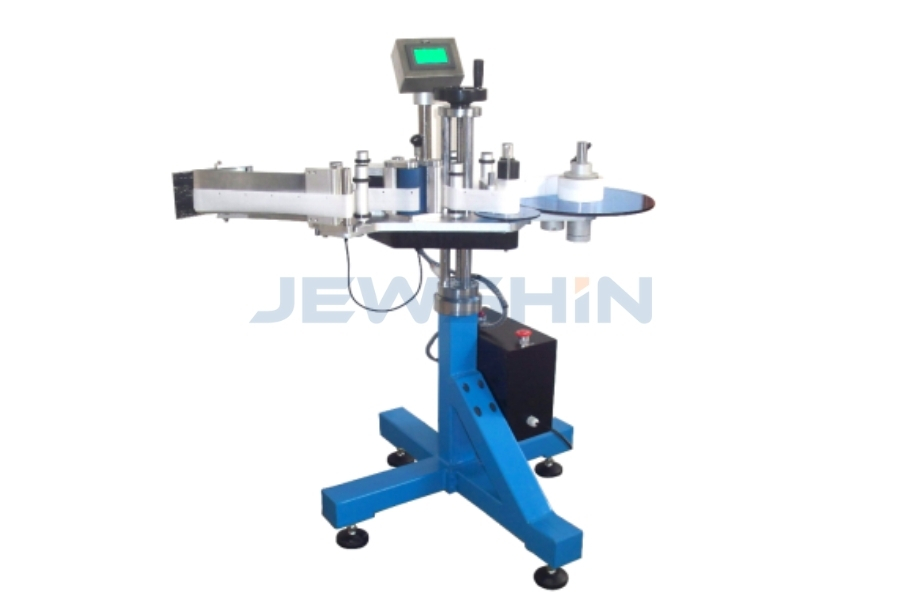

JX-T511 Automatic Assembly Line Labeling Head (Integratable Module)


Availability:



Inquire

Turn Any Conveyor into a Labeling Line.

The JX-T511 is a high-performance, standalone labeling module designed for seamless integration into your existing production infrastructure. Whether you are running a Pillow Packaging Machine, a VFFS bagger, or a standard conveyor belt, this unit mounts directly onto your line to apply labels on the Top, Side, or Curved surfaces of passing products. Featuring a 6-Axis Adjustable Mount and a premium Panasonic Control System, it offers the flexibility to label everything from boxes and bags to electronic components at speeds up to 200 pieces per minute.

[Get Integration Drawing] | [View Mounting Options]

Model:
JX-T511
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Plug-and-Play Integration:

Designed to be "bolted on" to existing workflows. It works independently or links with your main machine's signal. Ideal for labeling Flow-wrapped products, Cartons on conveyors, or Bags before forming.

Universal 6-Axis Adjustment:

The mounting bracket features a Single-Bar Structure with X/Y/Z 6-degree freedom. This allows you to tilt, rotate, and elevate the labeling head to match the exact angle and position of your product without moving your conveyor.

Top-Tier Control System (Panasonic):

Built for reliability using a Panasonic PLC and Panasonic Touchscreen. The system is stable, responsive, and supports long hours of continuous operation.
Smart Sensing: Features "No Object, No Label" and "Auto-Correction" to prevent missed labels or waste.

High Speed & Precision:

Powered by a Micro-stepping Motor, it delivers labels with ±1mm accuracy at speeds ranging from 50 to 200 pcs/min, matching the pace of most fast-moving consumer goods (FMCG) lines.

Application Scenarios

This machine is the "missing link" for automated lines in:

Food Packaging: Labeling on flow-pack wrappers (biscuits, bread) or top of trays.
Logistics: Applying barcodes/shipping labels to boxes on a roller conveyor.
Electronics: Labeling PCB boards or batteries on an assembly belt.
Daily Chemicals: Side labeling on detergent bottles moving on a filling line.

Technical Specifications

Parameter	Details
Model	JX-T511
Labeling Speed	50 - 200 pcs/min (Syncs with line speed)
Labeling Accuracy	± 1.0 mm
Product Size	Unlimited (Depends on your conveyor width)
Control System	Panasonic PLC + Touchscreen
Adjustment	X/Y/Z 6-Axis Adjustable Header
Power	830W / AC 220V
Machine Dimensions	1100 (L) × 700 (W) × 1450 (H) mm
Weight	~70 KG

Customization & Options

Movable Floor Stand: We can provide a mobile stand if you need to move the labeler between different lines.
Coding Integration: Optional Thermal Transfer Overprinter (TTO) or Inkjet Printer to print Batch No./Expiry Date on the label before application.
Sensor Upgrade: Specialized sensors for Transparent Labels are available.

Don't Buy a New Line. Just Add the Labeler.

Maximize your factory's efficiency with the JX-T511. Send us a photo of your current conveyor, and we will advise on the best mounting position.

Get a Quote: Contact us for the price of the JX-T511 Labeling Head.
Integration Check: Share your conveyor height and speed, and we will confirm compatibility.
Video Call: See the machine's adjustment capabilities live.

[Contact Us Now] or [Chat via WhatsApp]
