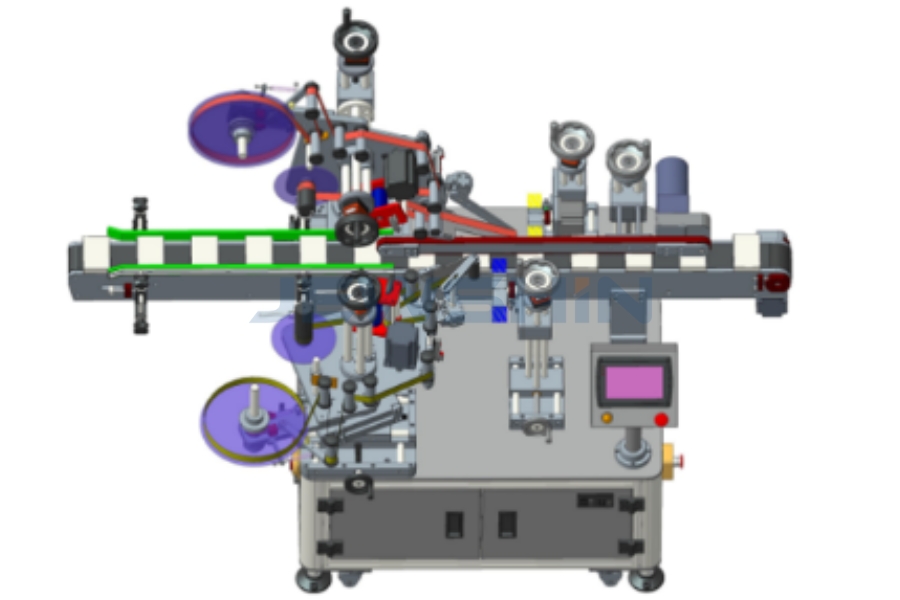

JX-T1162 Automatic Box Corner Sealing Labeling Machine (Tamper-Evident)


Availability:



Inquire

Secure Your Packaging with Precision Corner Sealing.

The JX-T1162 is a specialized labeling system designed for Tamper-Evidence and Security Sealing. It applies a label across the top and side of a box (90° corner wrap) to ensure the package has not been opened. Featuring a "Double-Rotation" smoothing mechanism, it guarantees that the label adheres tightly around the sharp corner without bubbles or lifting. It is the ideal solution for high-value packaging in the Consumer Electronics (Mobile Phones), Pharmaceutical, and Luxury Gift sectors.

[See Sealing Demo] | [Get Custom Quote]

Model:
JX-T1162
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Corner Sealing Technology (Tamper-Proof):

Designed to apply a label that bridges two surfaces of a box (Top & Side). If the box is opened, the label breaks, providing visual proof of tampering. Essential for brand protection.

Double-Rotation Smoothing System:

Unlike standard labelers that might leave the corner loose, the JX-T1162 uses a specialized mechanism to actively "wipe" or "rotate" the label around the edge, ensuring a crisp, 90-degree fold with strong adhesion.

High-Speed Efficiency:

Capable of sealing up to 100 boxes per minute, making it suitable for continuous, high-volume production lines.

Wide Size Compatibility:

Specifically engineered for Medium-to-Large boxes (up to 300mm wide), covering most gift boxes, software packages, and tablet/laptop boxes.

Application Scenarios

Consumer Electronics: Sealing boxes for Smartphones, Tablets, Headphones (e.g., the seal found on iPhone boxes).
Pharmaceuticals: Safety seals on medicine cartons to meet regulatory requirements.
Food & Confectionery: Sealing high-end cookie tins or chocolate gift boxes.
Software/Games: Sealing game discs or software packaging.

Technical Specifications

Parameter	Details
Model	JX-T1162
Labeling Function	Corner Sealing / Box Locking
Labeling Speed	0 - 100 pcs/min (Depends on box size)
Labeling Accuracy	± 1.0 mm
Applicable Box Length	180 mm - 290 mm
Applicable Box Width	120 mm - 300 mm
Applicable Box Height	15 mm - 55 mm
Label Size	Width: 20-120mm
Machine Dimensions	1700 (L) × 1050 (W) × 1450 (H) mm
Weight	~260 KG
Power Supply	AC 220V / 50Hz

Customization Note

Tailored Design: Since box sizes vary greatly, the JX-T1162 design is often adjusted based on the customer's specific box dimensions.
Integration: Can be connected to a cartoning machine or shrink-wrapping line.

Protect Your Brand Integrity.

Ensure your customers receive your product exactly as it left the factory. The JX-T1162 provides the professional security seal your premium packaging deserves.

Request a Proposal: Send us your box dimensions (LWH) for a compatibility check.
Sample Testing: Mail us your empty boxes and labels; we will send you a video of the sealing process.
