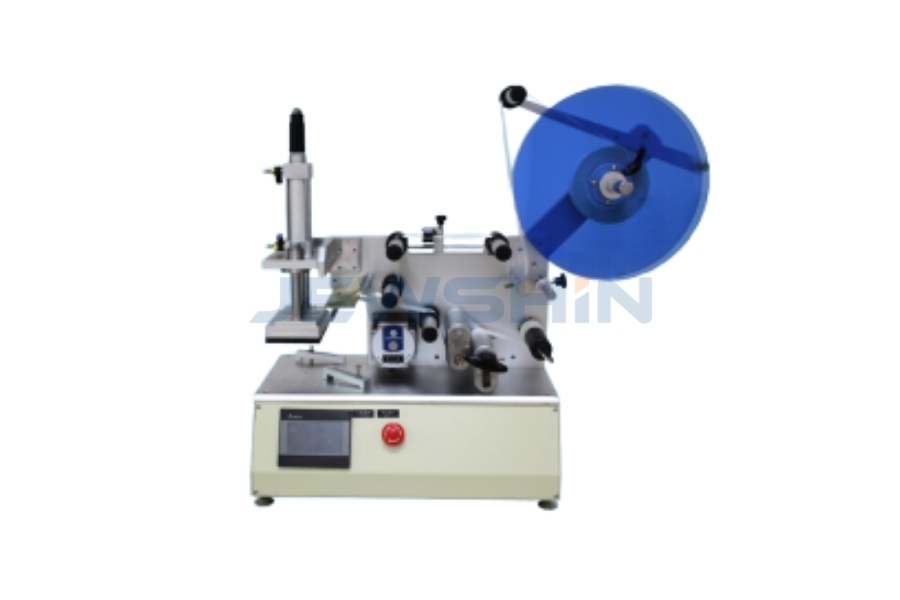

Semi-Automatic Flat Surface Labeling Machine (High Precision)


Availability:



Inquire

Precision Labeling for Flat & Irregular Surfaces.

This Semi-Automatic Flat Labeling Machine is the ideal solution for small-to-medium production runs requiring high accuracy (±0.5mm). Utilizing a Suction-Pick-and-Place method driven by a precision Stepper Motor, it applies labels bubble-free onto flat surfaces like cosmetic compacts, box lids, and plastic caps. Its versatile design allows for quick fixture changes to handle Concave, Curved, or Irregular workpieces. Built with branded components (Delta PLC, Leadshine Motor), it offers industrial reliability in a compact tabletop footprint.

[Get a Custom Quote] | [Watch Video Demo]

Model:
JX-T301
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Versatile Application:

Standard: Perfect for flat surfaces (boxes, books, square bottles).
Adaptable: By changing the jig/fixture, it can label Concave planes, Arcs, and Irregular shapes, making it a multi-purpose tool for diverse product lines.

High Precision & Stability:

Drive System: Uses a PLC + Micro-stepping Motor (Leadshine) for exact label feeding.
Tension Control: The feed mechanism includes a Brake Function to keep the label tape taut, ensuring the sensor detects every label gap accurately.
Deviation Correction: A specialized winding mechanism prevents the label from shifting left or right during feeding.

Industrial Durability (Smart Design):

Separated Circuits: The electrical and pneumatic (air) circuits are housed separately.
Air Purification: The pneumatic system includes a purification device to remove moisture from the air, protecting the electronics from corrosion and extending machine life.

User-Friendly Operation:

Dual Modes: Choose between Sensor Mode (automatic detection) or Pedal Mode (manual foot switch) based on operator preference.
Easy Adjustment: Features an adjustable stroke (height), allowing you to switch between tall and short products without making complex fixture changes.

Optional Coding: Can be integrated with a Ribbon Coder or Inkjet Printer to print Batch Numbers and Expiry Dates directly onto the label before application.

Application Scenarios

Cosmetics: Compact powder cases, flat shampoo bottles, cream jar lids.
Electronics: Phone batteries, SD cards, power adapters.
Food & Pharma: Box packaging, blister packs, square tin cans.
Stationery: Notebooks, folders.

Technical Specifications

Parameter	Details
Labeling Accuracy	± 0.5 mm (High Precision)
Labeling Speed	10 - 25 pcs/min (Dependent on manual loading speed)
Applicable Product Size	L: 20-200mm
Applicable Label Size	Length: 10-100mm
Voltage	AC 220V / 50-60Hz
Machine Dimensions	850 (L) × 430 (W) × 770 (H) mm
Control System	Delta PLC + Touchscreen
Motor System	Leadshine Stepper Motor & Driver

Core Components

We use top-tier electrical components to ensure stability:

PLC Controller: Delta (Reliable logic control)
Touchscreen: Delta (Intuitive interface)
Stepper Motor: Leadshine (High torque & precision)
Stepper Driver: Leadshine
Label Sensor: DataSensor (High sensitivity)

Stop Labeling by Hand. Start Automating.

Achieve perfect alignment on every box and bottle. This semi-auto machine pays for itself by reducing labor costs and eliminating wasted labels.

Get a Quote: Contact us for the price of this Semi-Auto Flat Labeler.
Free Sample Test: Send us your product samples, and we will test the labeling effect for you.
Add-ons: Ask about adding a Date Coder to this machine.
