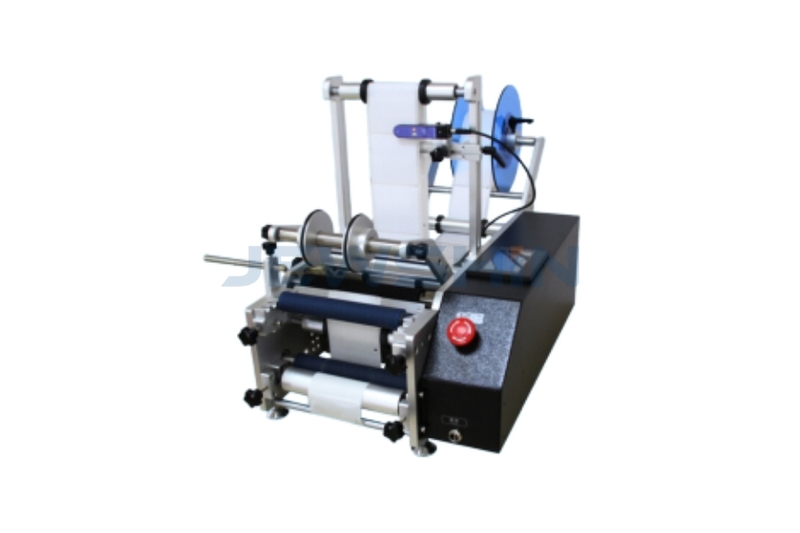

JX-T413 Semi-Automatic Round Bottle Labeler (Single & Double Side)


Availability:



Inquire

The "Swiss Army Knife" for Round Bottle Labeling.

The JX-T413 is designed for versatility. Whether you need to wrap a single label around a vitamin jar or apply distinct Front and Back labels on a wine bottle, this machine does it all with a simple setting switch. Unlike basic models, it features a specialized Taper Adjustment Knob, allowing it to label slightly conical bottles wrinkle-free. Powered by a Delta PLC and Fiber Optic Sensors, it ensures professional, bubble-free results for small-to-medium production runs.

[Get a Custom Quote] | [Watch Dual-Label Demo]

Model:
JX-T413
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Single & Double Labeling Modes:

Mode 1 (Full Wrap): Apply one long label around the entire circumference.
Mode 2 (Front & Back): Apply two separate labels in one cycle. You can precisely adjust the distance between the two labels via the touchscreen. Perfect for wine, spirits, and shampoo bottles.

Tapered Bottle Compatible:

Equipped with a mechanical Taper Adjustment Knob. This allows the applicator to tilt slightly, matching the angle of conical bottles (like certain cosmetic jars or wine bottles) to prevent the "skirt" effect or wrinkles.

Smart Orientation (Optional):

Can be upgraded with a Circumferential Positioning Sensor. This allows the machine to detect a specific point on the bottle (like a handle, seam, or existing mark) and place the label in exact alignment with it.

Professional Quality:

Uses a Dual-Positioning System to stabilize the bottle during rotation. This ensures the label's head and tail align perfectly (high overlap accuracy) without bubbles.

Easy Management:

PLC Control: Stores settings for different products.
Counter: Tracks daily production automatically.
Power Save: Auto-standby mode saves energy when not in use.

Application Scenarios

Alcohol & Beverages: Wine bottles (Front/Back), Beer cans, Spirit bottles.
Cosmetics: Cream jars, Lotion bottles (including tapered shapes).
Pharma & Supplements: Xylitol bottles, Round pill bottles, Vials.
Chemicals: Round detergent bottles, Glue bottles.

Technical Specifications

Parameter	Details
Labeling Speed	15 - 25 pcs/min (Depends on label size/manual loading)
Labeling Accuracy	± 1.0 mm
Bottle Diameter	Ø 8mm - Ø 120mm (Wide Range)
Label Size	Width: 10-180mm
Voltage	AC 220V / 50-60Hz
Machine Dimensions	920 (L) × 450 (W) × 520 (H) mm
Control System	Delta PLC + Touchscreen

Core Components (Brand Assurance)

Built with industrial-grade parts for long-term stability:

PLC Controller: Delta (Taiwan) - Intelligent logic control.
Touchscreen: Delta (Taiwan) - User-friendly interface.
Tag Sensor: DataSensor (Italy) - High precision detection.
Motors: OPG / JSCC - Durable speed-regulating motors.
Structure: Stainless Steel + High-grade Aluminum Alloy (GMP Compliant).

One Machine for All Your Round Bottles.

Stop struggling with manual alignment. Upgrade to the JX-T413 for consistent, professional packaging on every batch.

Get a Quote: Contact us for pricing on the JX-T413.
Optional Add-ons: Ask about adding a Date Coder (Ribbon or Inkjet) to print expiry dates while labeling.
Sample Testing: Send us your tapered bottles to verify the fit.
