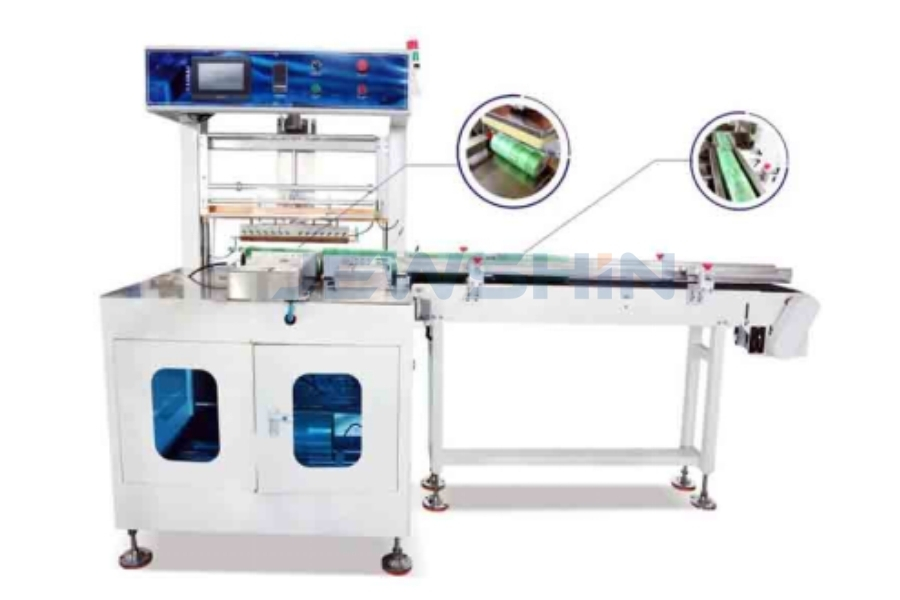

JX-1020 Fully Automatic Tape Log Sleeve Wrapper (Inline High-Speed 23 PPM)


Availability:



Inquire

The "Slitter-to-Packer" Link for High-Volume Production.

The JX-1020 is a fully automatic sleeve wrapper designed to eliminate manual handling in adhesive tape production. It features a conveyor system that links directly to your Automatic or Manual Slitting Machine, receiving tape rolls and feeding them into the wrapper automatically. With a top speed of 23 logs/minute, it keeps up with high-output slitters. Special Anti-Stick Separation Technology ensures that sticky OPP or masking tape rolls are pushed smoothly without jamming.

[Get a Custom Quote] | [View Line Layout]

Model:
JX-1020
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

True Unmanned Operation: Designed to be the "Middle Man" between your slitter and the shipping box. It accepts rolls automatically via conveyor, eliminating the need for operators to manually transfer and stack tapes.
High-Speed Performance: Capable of wrapping up to 23 packs (logs) per minute. This speed ensures the packaging station never becomes a bottleneck for your production line.
Anti-Stick Pushing System: Freshly slit tapes (especially OPP and Masking tape) have sticky sides that can cause jams in standard pushers. The JX-1020 utilizes a specialized Separation Structure that handles sticky rolls gently and effectively.
Patented Quick-Adjust: Like our other premium models, it features a hand-wheel screw adjustment system. Changing from Ø60mm to Ø200mm logs is fast, precise, and tool-free.
Stable Film Feeding: The "Storage-Type" film feed system maintains constant tension, ensuring the film doesn't wander or wrinkle, even at high speeds.
Modular Design: The conveyor line and the main machine body are split-mounted. This makes transportation easier and allows for flexible layout configurations in your factory.

Application Scenarios

OPP Carton Sealing Tape: The primary application. Handles standard 6-roll or vertical tower packs.
Masking Tape (Crepe Paper): Gentle handling for textured paper tapes.
Double-Sided Tape: Effective isolation and wrapping.

Technical Specifications

Parameter	Wrapper (JX-1020)	Shrink Tunnel (SBNP-4522)
Automation Level	Fully Automatic (Inline)	-
Packing Speed	1 - 23 packs/minute	Matches Wrapper
Log Diameter	Ø 60 - 200 mm	-
Log Height	50 - 350 mm	-
Power Supply	AC 200-220V, 600W	AC 380V (Tunnel)
Air Pressure	6 KG (0.6 MPa)	-
Machine Size	2600 × 1200 × 1750 mm*	Standard Tunnel Size
Net Weight	300 KG	-
Film Type	PVC, POF, PE	-

*Note: Length includes standard in-feed conveyor section.

Premium Configuration (Brand List)

A robust configuration designed for continuous industrial use:

System	Component	Brand / Origin
Control System	PLC	JX (Custom Optimized)
	Touch Screen	Mcgstpc (Xiankong)
	Thermostat	RKC (Japan)
Electrical	Contactors	Schneider (France)
	Relays	IDEC (Izumi Japan)
	Switching Power	MeanWell (Taiwan)
	Air Switch	Chint
Pneumatics	Cylinder	CNTUOPU (Top)
	Solenoid Valve	STNC (Tiangong)
	Fittings	EASUN (Yiri)
Drive & Sensing	Motor / Governor	Sanly (Yongli)
	Photoelectric Sensor	Yangming (Fotek Taiwan)
	Proximity Switch	CNTD
	Bearings	NSK (Japan) / HRB
Consumables	High-Temp Tape	NITTO (Japan)

Call to Action

Close the Loop on Automation.

Connect your slitter directly to the JX-1020 and remove the manual labor costs in between. Experience high-speed, jam-free packaging for your tape logs.

Get a Quote: Contact us for pricing on the JX-1020 Inline Wrapper.
Line Integration: Send us your slitter model, and we will design the connection layout.
Speed Test: See the 23ppm speed in our video demonstration.

[Contact Us Now] or [Chat via WhatsApp]
