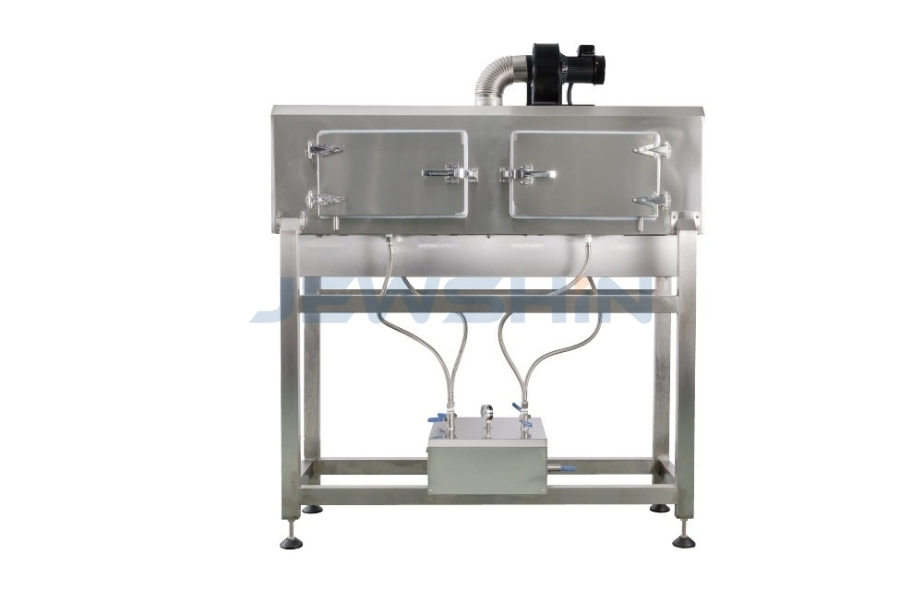

Stainless Steel Steam Shrink Tunnel (3-Stage Adjustable)


Availability:



Inquire

The Ultimate Solution for Flawless, Wrinkle-Free Labeling.

Designed for products that demand a premium look, this Steam Shrink Tunnel outperforms electric tunnels by delivering uniform heat to every curve of the bottle. It is specifically engineered for irregular shapes (square, flat, round) and full-body sleeves. Featuring a 3-Section Adjustable Steam Spray System, operators can fine-tune the steam flow, height, and angle to ensure a tight, smooth finish without bubbles or distortion. Built with a fully insulated Stainless Steel casing, it is energy-efficient and meets international safety standards.

[Get a Custom Quote] | [View Shrink Results]

Model:
Steam Shrink Tunnel
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

3-Stage Independent Adjustment: The tunnel is divided into three zones. You can individually adjust the Height, Front/Back Position, and Steam Volume for each section. This precise control allows for a "gradual shrink" process, essential for complex bottle shapes (e.g., shrinking the bottom first, then the neck).
Perfect for Irregular Shapes: Unlike electric ovens that often leave wrinkles on corners, the penetrating power of steam ensures a smooth finish on Square bottles, Flat flasks, and Contoured cups.
Low-Pressure Uniform Distribution: Utilizes a seamless steel pipe design with a specialized low-pressure steam separation method. This ensures the steam is sprayed evenly and gently, preventing the label from shifting during the process.
Energy Saving & Safe: The entire machine casing is made of high-quality Stainless Steel with a thermal insulation layer. This keeps the heat inside the tunnel, saving energy and keeping the outer shell cool for operator safety.
Easy Maintenance: The simplified design and seamless pipes reduce the risk of leaks and make cleaning and maintenance straightforward.

Application Scenarios

Ideal for industries where packaging aesthetics directly impact sales:

Beverages: Juices, teas, and energy drinks with full-body sleeves.
Cosmetics: Shampoo bottles, lotion pumps, irregular perfume bottles.
Condiments: Soy sauce bottles, salad dressings.
Dairy: Yogurt drinks (especially those with curved "waist" designs).

Technical Specifications

Parameter	Details
Machine Type	Steam Shrink Tunnel
Steam Consumption	10 - 20 KG/H
Operating Pressure	≤ 0.4 MPa
Fan Input Power	0.37 KW (AC 220V*)
Steam Adjustment	3 Sections (Volume/Height/Angle)
Machine Dimensions	1500 (L) × 450 (W) × 1500 (H) mm
Tunnel Opening	Customized based on bottle size
Net Weight	230 KG
Material	Stainless Steel (Insulated)

*Note: Requires an external Steam Generator (Boiler) to operate. We can supply this as a package.

Eliminate Wrinkles & Bubbles Today.

If your current electric tunnel is struggling with curved bottles, it's time to switch to steam. Get the premium finish your brand deserves.

Get a Quote: Ask for pricing on the Steam Tunnel (and optional Steam Generator).
Sample Testing: Send us your bottles, and we will send you a video of the shrink result.
Line Integration: Works perfectly with our JXGL Series Sleeve Labelers.
