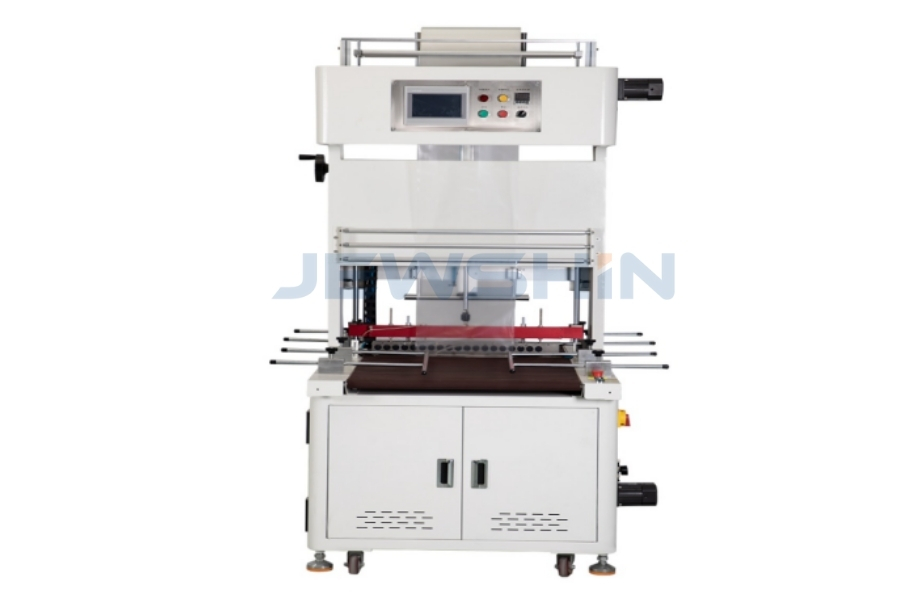

ZX-8560 Large Format Linear Sleeve Wrapper (Customized for Oversized Products)


Availability:



Inquire

The Heavy-Duty Solution for Oversized Packaging.

The ZX-8560 (Customized) is engineered for products that are too big for standard wrappers. With an impressive 850mm Effective Sealing Width and a maximum packaging height of 650mm, it easily handles large cartons, appliances, beverage multipacks, and construction materials. Paired with the high-power SBSP-9050PE (35KW) Shrink Tunnel, it ensures tight, secure Tray-less PE Film wrapping for heavy loads.

[Get a Custom Quote] | [Check Size Compatibility]

Model:
ZX-8560
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Customized for "Big" Jobs: Unlike standard machines, the ZX-8560 is built with a wider frame and taller clearance. It supports products up to 650mm High and 500mm Wide, making it a rare find for industrial large-item packaging.
35KW High-Power Shrink Tunnel: Large items require more heat energy to shrink the film evenly. The included SBSP-9050PE tunnel is a powerhouse (35KW), ensuring that even thick PE film shrinks tightly around large, irregular objects without loose edges.
Linear (Straight-In) Efficiency: The machine fits directly into your production line. Products feed in straight, are wrapped, and exit straight—no 90-degree turns required. This saves floor width and reduces jamming risks for heavy items.
Cost-Saving Tray-less Tech: Securely bundles multiple items (like 24-pack beverages or stacked boxes) without needing a bottom cardboard tray.
Premium Sealing System:

3-Piece Cutter: Designed for durability and even pressure across the wide 850mm span.
DuPont Teflon Coating: Ensures the blade never sticks to the film, prevents smoke/coking, and delivers a clean, strong seal every time.

Application Scenarios

Large Appliances: Air coolers, small fridges, computer towers.
Construction Materials: Stacks of floorboards, tiles, or insulation rolls.
Beverage/Food: Large multipacks (e.g., 24x 1.5L bottles) or bulk carton bundling.
Logistics: Bundling multiple shipping boxes into one unit.

Technical Specifications

Parameter	Wrapper (ZX-8560)	Shrink Tunnel (SBSP-9050PE)
Sealing Blade Width	850 mm (Effective)	-
Max Product Size	L 650 × W 500 × H 650 mm	Tunnel Entrance: W 500 × H 650 mm
Packing Speed	15 packs/minute	0 - 15 m/min
Power Supply	AC 200-240V, 400W	AC 380V, 35 KW (High Power)
Air Pressure	6 KG (0.6 MPa)	6 KG
Machine Size	1700 × 1200 × 2100 mm	3000 × 1100 × 1700 mm
Net Weight	400 KG	550 KG
Film Type	PE Film	PE, POF, PVC, PP

Premium Configuration (Brand List)

Heavy-duty components for a heavy-duty machine:

System	Component	Brand / Origin
Control System	PLC	CHSJL (Custom System)
	Touch Screen	HMI Interface
	Thermostat	Teshow (Taisong)
Electrical	Contactors / Relays	Schneider (France)
	Solid State Relay	Xinda
	Switching Power	MeanWell (Taiwan)
	Air Switch	Moeller (Eaton)
Pneumatics	Cylinder	CNTUOPU (Top)
	Solenoid Valve	STNC (Tiangong)
	Magnetic Switch	AirTAC (Taiwan)
Drive & Sensing	Motor	Mai Li (China)
	Inverter	Coset (Keso)
	Photoelectric Sensor	Yangming (Fotek Taiwan)
	Bearings	NSK (Japan) / HRB

Call to Action

Got a Big Product? We Have the Wrapper.

Don't let size limit your automation. The ZX-8560 is customized to handle the heavy, tall, and wide products that standard machines can't touch.

Get a Quote: Contact us for pricing on this Custom Large Format Line.
Size Assessment: Send us your product dimensions (LWH), and we will confirm compatibility.
Material Savings: Calculate how much you can save by switching to Tray-less PE wrapping.
