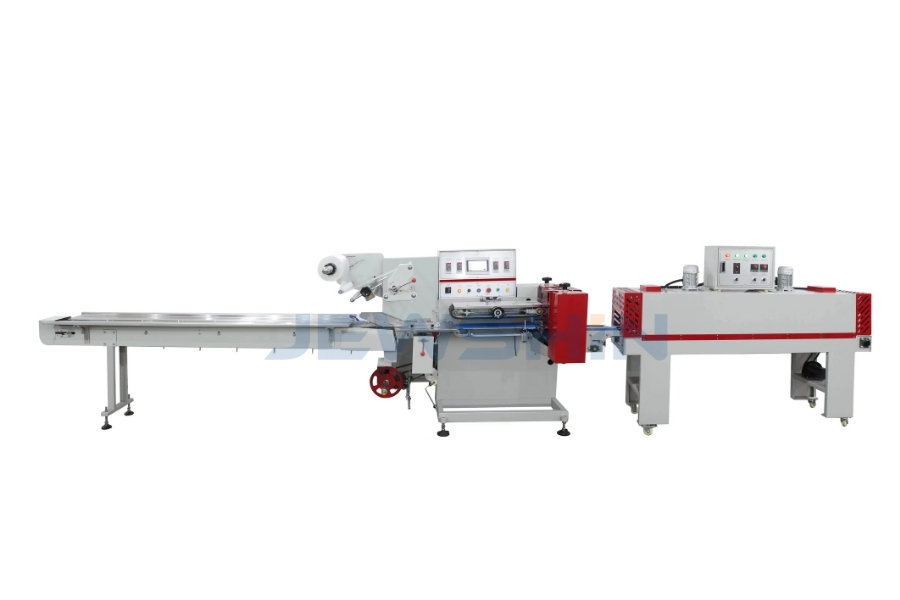

JXG-590 High-Speed Servo Pillow Shrink Wrapper (Flow Pack Type)

JXG-590 High-Speed Servo Pillow Shrink Wrapper (Flow Pack Type)


Availability:



Inquire

The High-Speed Alternative to L-Sealers.

The JXG-590 combines the blazing speed of a Flow Wrapper (Pillow Pack) with the tight finish of a Shrink Tunnel. Driven by Three Servo Motors and engineered with Japanese technology, this machine is designed for stability and precision. It is the ideal solution for high-volume products like bowl noodles, wallpaper, and filters, offering speeds up to 150 packs/minute while reducing film consumption by 20-30% compared to traditional methods.

[Get a Custom Quote] | [Watch Speed Demo]

Model:
JXG-590
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

3-Servo Motor Drive System: The machine uses three independent servo motors to control feeding, film pulling, and cutting. This ensures:

Precision: Extremely accurate bag length and sealing position.
Ease of Use: Change bag lengths digitally via the touch screen without mechanical adjustments.
Low Maintenance: Fewer mechanical parts (chains/gears) mean fewer breakdowns.

Significant Material Savings: Unlike standard folders, this machine uses a waste recycling device that trims excess film tightly. This design saves 20% - 30% of packaging material costs over time.
Intelligent Safety Features:

Anti-Cut Clutch: If a product is misplaced, the cutter stops automatically to prevent cutting the product.
No Product, No Bag: (Optional configuration) Stops film feeding if no product is detected.

High-Efficiency Shrink Tunnel: The included tunnel features a Dual-Temperature Zone and high-efficiency hot air circulation, ensuring the POF/PVC film shrinks evenly around irregular shapes without bubbles or wrinkles.
Versatile Control: Features a Color Touch Screen with Product Memory (save settings for different products) and independent PID temperature control for different film types.

Application Scenarios

This machine is perfect for single items or grouped products that need a tight, protective seal at high speeds:

Food & Beverage: Bowl noodles, milk tea cups (grouped), boxes of biscuits.
Household Items: Wallpaper rolls (long products), garbage bags (rolled), cling film rolls, mosquito coils.
Industrial: Air filters, electrical switches, hardware parts.
Stationery: Exercise books, stacks of paper.

Technical Specifications

Parameter	Wrapper (JXG-590)	Shrink Tunnel
Drive System	3-Servo Motors	Variable Speed Motor
Max Film Width	≤ 590 mm	-
Packing Speed	30 - 150 packs/min (Depends on size)	Matches Wrapper
Film Type	POF, PVC (Heat Shrink Film)	-
Power Supply	220V, 50/60Hz, 4.75KW	380V, 50/60Hz, 14.2KW
Machine Size	4800 × 1170 × 1500 mm	2600 × 600 × 1700 mm
Tunnel Chamber	-	2300 × 250 × 200 mm
Machine Weight	760 KG	380 KG

Capacity by Model Configuration (Bag Former Size):

Model Config	Bag Length (L)	Product Width (W)	Product Height (H)	Max Speed
Model 120	60-320 mm	10-200 mm	5-35 mm	150 ppm
Model 150	100-450 mm	10-200 mm	15-70 mm	150 ppm
Model 180	150-530 mm	10-200 mm	35-100 mm	135 ppm
Model 210	180-600 mm	10-200 mm	55-130 mm	100 ppm

Premium Configuration

PLC & Touch Screen: Centralized control for easy setup.
Photoelectric Sensor: High-sensitivity eye mark tracking for printed films.
Coding Integration: Compatible with Inkjet or Thermal Transfer printers (Date/Batch coding).

Upgrade to Servo Speed & Precision.

Move beyond slow manual packing or older mechanical wrappers. The JXG-590 offers the speed of a flow wrapper with the finish of a shrink pack.

Get a Quote: Ask for pricing on the JXG-590 Servo Line.
Material Calculation: Let us estimate your film cost savings compared to your current machine.
Sample Video: Watch the machine pack wallpaper or bowl noodles at high speed.
