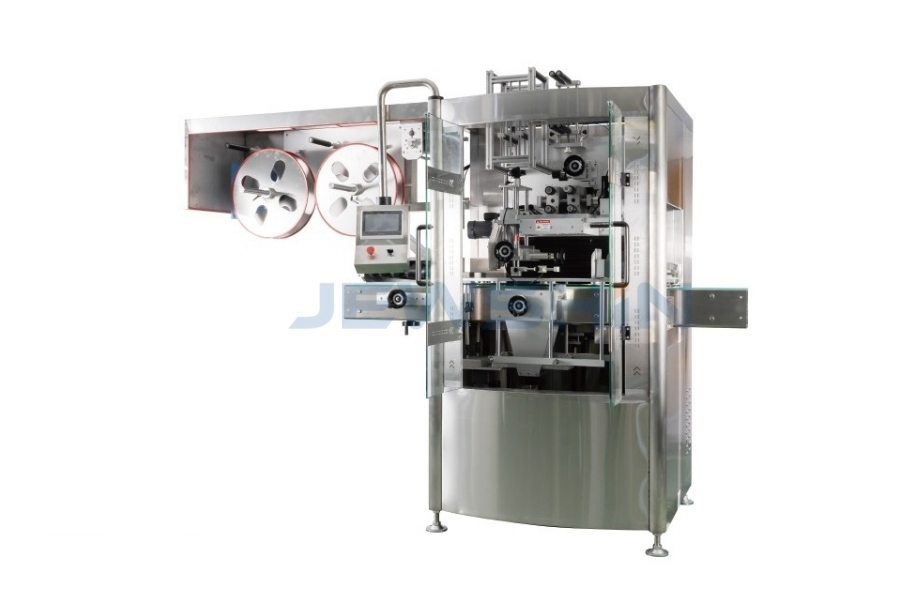

JXGL-400P Double-Head Automatic Sleeve Labeling Machine (Dual-Drive)


Availability:



Inquire

Two Labels, One Compact Machine.

The JXGL-400P revolutionizes production lines by integrating two labeling heads into a single unit. Designed for efficiency, it can apply Neck Bands and Body Sleeves in a single pass, or operate in tandem for ultra-high-speed production. This "2-in-1" design eliminates the need for a second machine, reducing your conveyor line length and saving valuable factory floor space. Capable of handling standard bottles as well as Large 3-5L Containers, it is the ultimate solution for water, edible oil, and dairy producers.

[Get a Custom Quote] | [Watch Dual-Head Demo]

Model:
JXGL-400P
Brand:
JEWSHIN

Product Brochure.pdf

Download the brochure to view specifications, features, and application details. Download Brochure

1038

Download

Product Description

Key Features & Advantages

Double-Head Efficiency (1 Machine = 2 Machines):

Scenario A (Multi-Label): Apply a tamper-evident seal on the cap and a branding label on the body simultaneously.
Scenario B (High Speed): Use both heads to maximize throughput, reaching speeds up to 400-800 pcs/min (depending on config).

Space & Cost Saving: By consolidating two labeling processes, you eliminate the need for a second machine, extra conveyor belts, and secondary handling. This significantly reduces the equipment footprint.
Wide Range & Large Container Support: While precise enough for small bottles (Ø28mm), the structural design is robust enough to handle 3L to 5L large drums/barrels (e.g., water jugs, oil containers).
Precision Servo Drive: Equipped with imported Servo Motors and Drivers plus a specialized Positioning Module. This ensures that despite the high speed, every label is cut precisely and placed accurately without slipping.
Stable Control System: The PLC-based control ensures synchronization between the two heads and the conveyor, preventing bottle jams common in multi-machine setups.

Application Scenarios

Beverage Industry: Mineral water (Bottle label + Cap seal), Juices, Dairy drinks.
Edible Oil & Condiments: 5L Oil jugs, Soy sauce bottles.
Daily Chemicals: Laundry detergent (Large jugs), Shampoo (Pump lock seal + Body label).

Technical Specifications

Parameter	Standard Speed Model	High Speed Model
Model	JXGL-400P	JXGL-400P (High Speed)
Configuration	Double Head	Double Head
Production Speed	2 × 200 pcs/min	2 × 400 pcs/min
Label Length	30 - 250 mm	30 - 250 mm
Label Thickness	0.035 - 0.05 mm	0.035 - 0.05 mm
Bottle Diameter	Ø 28 - 125 mm*	Ø 28 - 125 mm*
Power Supply	AC 380V / 3 KW	AC 380V / 4.5 KW
Machine Size	3200 × 900 × 2080 mm	3800 × 900 × 2080 mm
Net Weight	750 KG	850 KG

*Note: For 3-5L containers exceeding Ø125mm, we provide customized mandrels and cutter heads. Please specify your bottle size when ordering.

Premium Configuration

Built for stability and longevity:

Controller: Programmable PLC for intelligent logic control.
Drive System: Imported Servo Drivers & Motors for cutter and shooting accuracy.
Sensors: High-precision Photoelectric Sensors for transparent/non-transparent label detection.
Positioning: Dedicated Positioning Module for exact label placement.

Cut Your Line Length in Half.

Why buy two machines when one JXGL-400P can do the job? Optimize your floor plan and increase your output efficiency today.

Get a Quote: Contact us for pricing on the Double-Head JXGL-400P.
Solution Design: Send us your bottle and label samples (especially if you need Neck+Body labeling).
Customization: Ask about our kits for 5L large barrels.
