Card & Printed Materials Packaging Line Design: The Complete Engineering Guide for Greeting Cards, Game Cards, and Stationery Manufacturers

Cards and printed materials look simple to package. They're flat. They're lightweight. They don't require refrigeration, special atmosphere, or complex containment.

And yet, in our 15+ years of engineering packaging lines for the printing and stationery industry, card and printed materials packaging is consistently one of the most technically demanding applications we work on.

Here's why:

• Surface sensitivity: Printed surfaces scratch, scuff, and mark easily. Any contact point on the machine that applies the wrong pressure, at the wrong angle, with the wrong material, leaves a visible defect on a retail product.

• Dimensional variability: A product line might include cards ranging from 60×90mm business card size to 210×297mm A4 documents — and the packaging line needs to handle all of them, often with changeovers multiple times per shift.

• Count accuracy: A "10-card game set" that ships with 9 cards is a customer complaint. A "52-card playing card deck" with 51 cards is a product recall. Count accuracy is non-negotiable.

• Static electricity: Thin paper and card stock generates static, which causes cards to stick together, misfeed, and double-feed — the primary cause of count errors and jams on card packaging lines.

• Speed requirements: Greeting card manufacturers running seasonal peaks (Valentine's Day, Christmas) need to run 150–240 bags/min to meet order volumes. That's 2.5–4 bags per second — leaving no margin for feeding errors.

This guide gives you the complete engineering framework for designing a card and printed materials packaging line that handles all of these challenges — from feeder selection through to end-of-line cartonization.

Section 1: Understanding Your Product — The Foundation of Line Design

Before specifying any machine, you need a complete characterization of your product range. Card packaging lines fail most often not because the machines are wrong, but because the machines were specified without adequate product data.

1.1 Product Dimension Matrix

Document every SKU in your product range with the following parameters:

1.2 The Static Risk Assessment

Static electricity is the hidden enemy of card packaging lines. It causes:

• Cards sticking together → double-feeds → count errors

• Cards sticking to machine surfaces → jams

• Cards attracting dust → surface contamination on retail product

High static risk products (require active static control):

• Laminated cards (BOPP, gloss laminate)

• UV-coated cards

• Thin paper stock (<200gsm)

• Low-humidity environments (<40% RH)

• High-speed lines (>100 bags/min)

Static control solutions (in order of increasing effectiveness):

1. Passive ionizing bars: Mounted at feeder infeed; neutralize static without power consumption. Effective for moderate static levels.

2. Active ionizing blowers: Powered ionizing air streams; effective for high-static laminated cards at high speed.

3. Humidity control: Maintaining 50–60% RH in the packaging area significantly reduces static. Most cost-effective for facilities in dry climates.

4. Anti-static coated contact surfaces: Feeder rollers and guides coated with anti-static material reduce static generation at contact points.

JEWSHIN standard: All JEWSHIN friction feeders (JX-100, JX-200) include passive ionizing bars as standard equipment. For high-speed lines running laminated cards, we specify active ionizing blowers at the feeder infeed and at the bagging machine infeed. This combination eliminates static-related double-feeds in 99%+ of applications.

1.3 Output Speed Requirement

Calculate your required output speed before specifying any machine:

Required Speed (bags/min)=Daily Order Volume (bags)Available Production Hours×60×OEE TargetRequired Speed (bags/min)=Available Production Hours×60×OEE TargetDaily Order Volume (bags)

Example:

• Daily order volume: 50,000 bags

• Available production hours: 16 hours (2 shifts)

• OEE target: 85%

Required Speed=50,00016×60×0.85=50,000816≈62 bags/minRequired Speed=16×60×0.8550,000=81650,000≈62 bags/min

Add a 20–30% capacity buffer above the calculated requirement to accommodate peak demand and future growth. In this example, specify a machine rated for 80–90 bags/min.

Section 2: The Card Packaging Line Architecture

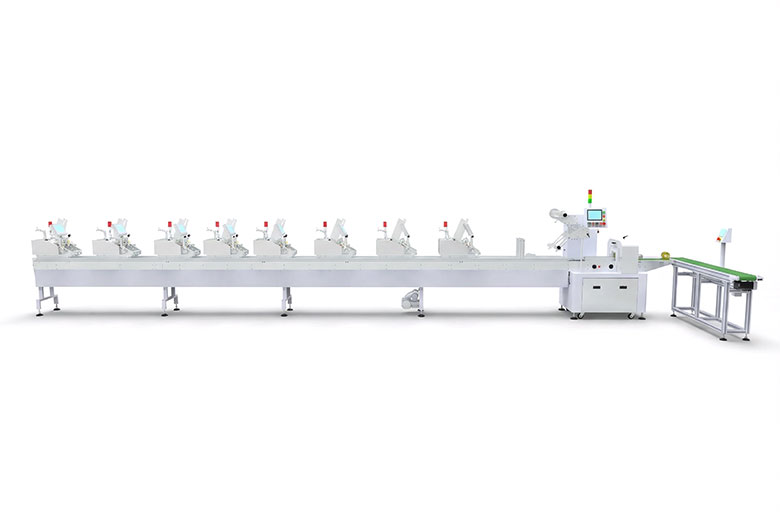

A complete card packaging line consists of five functional zones. Understanding each zone — and how they interact — is essential for designing a line that performs reliably at speed.

┌───────────────────────────────────────────────────────────────┐

│ ZONE 1 │ ZONE 2 │ ZONE 3 │ ZONE 4 │ ZONE 5 │

│ Feeding & │ Collating │ Bagging & │ Sealing │ End of │

│ Counting │ & Stacking │ Sealing │ & QC │ Line │

│ │ │ │ │ │

│ Friction │ Conveyor │ Bagging │ Heat │ Carton / │

│ Feeder │ + Counter │ Machine │ Tunnel │ Labeling │

└───────────────────────────────────────────────────────────────┘

Zone 1: Feeding and Counting

The feeder is the most critical component on a card packaging line. Every downstream problem — count errors, jams, seal defects — traces back to feeding performance.

Friction Feeder (Recommended for most card applications)

A friction feeder uses a rotating rubber roller to separate and feed cards one at a time from a stack. The gap between the feed roller and the separation pad is precisely set to allow one card thickness to pass while blocking the second card.

Key friction feeder specifications for card applications:

Suction Cup Feeder (For specialty applications)

For very thin, very glossy, or very large cards where friction feeding is unreliable, a suction cup (vacuum) feeder is an alternative. Suction feeders are slower (typically 30–80 cards/min) but more reliable for difficult materials.

Rotary Feeder (For very high speed)

For lines requiring 300+ cards/min from a single feed point, a rotary drum feeder provides higher throughput than a friction feeder. Used primarily in playing card and game card manufacturing.

Zone 2: Collating and Stacking

For products that require multiple cards per pack (e.g., a 10-card greeting card assortment, a 52-card playing card deck, a 6-card game card set), the collating zone assembles the correct combination of cards before they enter the bagging machine.

Collating configurations:

Count verification methods:

For retail products where count accuracy is critical, JEWSHIN recommends optical sensor counting as the minimum standard, with checkweigher verification downstream for high-value products.

Zone 3: Bagging and Primary Sealing

The bagging machine is the heart of the line. For card and printed materials, the bagging machine must meet three specific requirements that distinguish card packaging from general packaging:

Requirement 1: Gentle product handling

Cards must enter the bag without bending, scuffing, or marking. This requires:

• Smooth, coated infeed guides (no bare metal contact with print surfaces)

• Controlled infeed speed (card enters bag at the same speed as the bag opening moves — no impact)

• Soft-touch discharge rollers (foam or rubber coating, not bare steel)

Requirement 2: Precise bag sizing

The bag must be sized to fit the card stack with a small, consistent margin — typically 3–8mm on each side and 5–10mm at the seal end. Too tight → card damage on insertion. Too loose → cards shift inside the bag, creating an untidy retail appearance.

Bag dimension formula:

Bag Width=Card Width+(2×Side Margin)+Film Thickness AllowanceBag Width=Card Width+(2×Side Margin)+Film Thickness Allowance

Bag Length=Card Length+Stack Thickness+Seal Margin+Tape Strip Width (if self-adhesive)Bag Length=Card Length+Stack Thickness+Seal Margin+Tape Strip Width (if self-adhesive)

Requirement 3: Seal quality on OPP film

OPP (Oriented Polypropylene) film — the standard film for card packaging — has a narrow sealing temperature window (typically 110–140°C). Outside this window:

• Too cold → weak seal, bag opens in transit

• Too hot → film distortion, visible seal marks on bag face, film tearing

Servo-controlled seal temperature with ±2°C accuracy is essential for consistent OPP sealing.

JEWSHIN bagging machines for card applications:

All three models feature:

• ✅ 5-servo precision control

• ✅ No-Product-No-Bag waste prevention

• ✅ Self-adhesive and heat seal modes

• ✅ 40-recipe HMI parameter storage

• ✅ Tool-free size changeover (5–12 min)

• ✅ Coated infeed guides (print-safe contact surfaces)

Zone 4: Secondary Sealing and Quality Control

After primary bagging, most card packaging lines include one or more of the following downstream processes:

Heat Tunnel (for shrink-overwrapped multi-packs)

If the finished bags are to be bundled into multi-packs (e.g., 6 bags per retail display pack), a shrink heat tunnel applies the outer shrink wrap. The heat tunnel temperature must be calibrated for the specific shrink film used — typically 120–180°C for POF film.

Checkweigher

A checkweigher weighs every pack and rejects packs that are outside the specified weight range. For card products, weight checking is an effective proxy for count verification — a pack with a missing card will be lighter than specification and will be automatically rejected.

Metal Detector

Required for food-adjacent applications and some retail compliance programs. For card products, metal detection is typically not required unless the product contains metallic elements (foil cards, metallic game tokens).

Vision Inspection System

A camera system that verifies:

• Correct card orientation (right side up, correct face)

• Correct card combination (for mixed-card sets)

• Seal quality (no open seals, no film wrinkles across seal line)

• Label presence and position (if labeled)

Vision inspection is recommended for high-value products (premium greeting cards, collectible game cards) where defect cost is high.

Zone 5: End-of-Line — Cartonization and Palletizing

The end-of-line configuration depends on your downstream distribution channel:

JEWSHIN designs complete end-of-line systems integrated with the bagging line. For retail card manufacturers, the most common configuration is: bagging machine → checkweigher → auto-cartoner → carton labeler → case packer.

Section 3: Line Integration — Making All Five Zones Work Together

Individual machines that perform well in isolation can still produce a poorly performing line if they're not properly integrated. Line integration covers three dimensions: speed matching, communication, and physical layout.

3.1 Speed Matching

Every machine in the line must be capable of running at the target line speed — with enough buffer capacity to absorb short-term speed variations without causing upstream starvation or downstream accumulation.

Speed matching rule: Each machine should be rated at 110–120% of the target line speed. This provides headroom for acceleration, deceleration, and minor interruptions without stopping the line.

Example for a 150 bags/min target line:

3.2 Machine Communication (Line Control)

On a fully integrated line, machines communicate with each other to coordinate speed and respond to faults:

• Upstream starvation signal: If the bagging machine infeed is empty (no cards arriving), the bagging machine slows or stops — rather than producing empty bags.

• Downstream accumulation signal: If the checkweigher or cartoner is full, the bagging machine slows to match downstream capacity.

• Fault propagation: If any machine faults (jam, film break, empty reel), the entire line stops in a controlled sequence — upstream machines stop first, downstream machines run out and stop.

JEWSHIN integrates line control via PLC (Programmable Logic Controller) with a central HMI that displays the status of every machine on a single screen. Operators can see the entire line status at a glance and respond to faults immediately.

3.3 Physical Layout

The physical layout of the line affects operator access, changeover time, and maintenance efficiency.

Key layout principles for card packaging lines:

• Straight-line layout: Preferred for high-speed lines — minimizes transfer points and reduces the risk of card orientation errors during transfer.

• U-shaped layout: Preferred for space-constrained facilities — allows one operator to monitor both the infeed and the discharge from a single position.

• Operator access: Minimum 800mm aisle width on both sides of every machine for maintenance access and changeover.

• Feeder access: The feeder stack loading position must be ergonomically accessible — ideally at waist height (900–1000mm from floor) to minimize operator fatigue during continuous stack loading.

• Film roll access: The bagging machine film roll position must be accessible without reaching over or under the machine — a common cause of operator injury and film threading errors.

Section 4: Film Selection for Card Packaging

Film selection has a significant impact on finished pack appearance, seal reliability, and cost per pack. For card and printed materials, the standard film choice is OPP (Oriented Polypropylene) — but there are several OPP variants with different properties.

OPP Film Variants for Card Packaging

Film Width Calculation

Film Width=2×(Bag Width+Bag Depth)+Overlap Allowance (10–15mm)Film Width=2×(Bag Width+Bag Depth)+Overlap Allowance (10–15mm)

Example: Card pack 120mm wide, 8mm deep:

Film Width=2×(120+8)+12=268mmFilm Width=2×(120+8)+12=268mm

Order film in 270mm width (nearest standard width above calculated requirement).

Film Cost Optimization

On a high-speed card packaging line running 150 bags/min, film cost is the largest ongoing consumable cost. Three strategies reduce film cost without compromising quality:

1. Minimize bag margins: Reduce side and seal margins to the minimum that maintains seal quality and card insertion reliability. Every 5mm reduction in bag length saves approximately 2–3% film cost.

2. No-Product-No-Bag: Ensure the bagging machine has a No-Product-No-Bag system — film feeding stops instantly when no product is present. On a 150 bags/min line, even 30 seconds of empty bag production wastes 75 bags worth of film.

3. Film roll size optimization: Larger film rolls (10kg vs. 5kg) reduce roll change frequency and the film waste associated with each roll change (threading waste). Calculate the optimal roll size based on your shift length and changeover time.

Section 5: Common Failure Modes and How to Prevent Them

Card packaging lines fail in predictable ways. Understanding these failure modes — and designing against them — is the difference between a line that runs at 90%+ OEE and one that runs at 60%.

Failure Mode 1: Double-Feed (Two Cards Fed as One)

Cause: Static electricity causing cards to stick together; feeder gap set too wide; worn separation pad.

Prevention:

• Active ionizing static control at feeder infeed

• Regular feeder gap calibration (weekly on high-speed lines)

• Separation pad replacement schedule (typically every 3–6 months depending on volume)

• Optical count sensor downstream of feeder to detect double-feeds before they reach the bag

Detection: Checkweigher downstream will catch packs with extra cards (overweight rejection).

Failure Mode 2: Misfeed / No-Feed (Card Fails to Feed)

Cause: Stack loaded incorrectly (cards not fanned/aligned); feeder gap set too tight; card curl causing leading edge to catch on guide.

Prevention:

• Operator training on correct stack loading procedure (fan cards before loading, align edges)

• Feeder gap calibration for specific card thickness

• Curved infeed guide to accommodate card curl

• Stack height sensor to alert operator when stack is running low (prevents no-feed at stack end)

Detection: Optical count sensor detects missing card; bagging machine No-Product-No-Bag system prevents empty bag production.

Failure Mode 3: Card Damage (Scuffing, Bending, Corner Damage)

Cause: Bare metal contact surfaces; excessive guide pressure; card entering bag at wrong angle; bag opening too small for card stack.

Prevention:

• Coated (PTFE or nylon) contact surfaces on all guides and rollers

• Bag width sized with adequate margin (minimum 5mm per side)

• Infeed speed matched to bag opening speed

• Soft-touch discharge rollers

Detection: Visual inspection at line start; periodic sampling during production.

Failure Mode 4: Seal Defects (Weak Seal, Open Seal, Film Distortion)

Cause: Seal temperature out of range; seal pressure inconsistent; film tension incorrect; contamination on seal jaw.

Prevention:

• Servo-controlled seal temperature with ±2°C accuracy

• Regular seal jaw cleaning (daily — see Packaging Machine After-Sales Service Guide)

• Film tension calibration during changeover

• Seal quality check in trial run before production start

Detection: Visual inspection of seal line; pull-test sampling (minimum 5 packs per hour on high-speed lines).

Failure Mode 5: Film Breaks

Cause: Film tension set too high; film roll core damaged; film splice failure; seal temperature too high causing film burn-through.

Prevention:

• Film tension calibration during setup

• Inspect film roll for core damage before loading

• Splice new roll before old roll runs out (don't run to the core)

• Seal temperature verification at start of each shift

Detection: Machine stops automatically on film break (standard on all JEWSHIN machines).

Section 6: Designing for Multi-SKU Flexibility

Most card manufacturers run 10–50+ SKUs on the same packaging line. Designing for multi-SKU flexibility from the start — rather than retrofitting later — saves significant time and cost.

The SKU Matrix Approach

Before finalizing machine specifications, build a complete SKU matrix:

From this matrix, you can determine:

• Required bag width range: 73mm – 220mm → specify JX30-35 (30–350mm range)

• Required film width range: 200mm – 480mm → verify film roll compatibility

• Changeover frequency: Based on production schedule and batch sizes

• Feeder configuration: Game Card Set B requires 54-card collation → multi-station feeder

Parameter Recipe Management

For each SKU in the matrix, create a named parameter recipe stored in the bagging machine HMI:

With named recipe storage, changeover between any two SKUs requires only: (1) select new recipe on HMI, (2) adjust guide width (tool-free, 2–3 min), (3) change film roll if width changes, (4) run trial packs. Total changeover: 8–15 minutes.

For a complete changeover optimization framework, see: Packaging Line Changeover Guide: How to Cut Format Change Time by 80%

Section 7: Real-World Line Configurations

Here are three representative line configurations for different card manufacturing scenarios:

Configuration A: High-Volume Greeting Card Line (Single SKU, High Speed)

Application: Single greeting card design, 1 card per pack, 200,000 packs/dayTarget speed: 180 bags/min

Line footprint: 12m × 2mOperators required: 2 (1 stack loader, 1 line supervisor)

Configuration B: Multi-SKU Stationery Line (20 SKUs, Medium Speed)

Application: Greeting cards, notebooks, red envelopes — 20 SKUs, 50,000 packs/dayTarget speed: 80 bags/min (with frequent changeovers)

Line footprint: 8m × 2mOperators required: 3 (1 stack loader, 1 QC inspector, 1 carton packer)Key feature: Tool-free changeover, 40-recipe HMI — optimized for high changeover frequency

Configuration C: Game Card Set Line (Complex Collation, High Accuracy)

Application: 6-card game sets (6 different card designs per pack), 30,000 sets/dayTarget speed: 60 sets/min

Line footprint: 16m × 2.5mOperators required: 2 (1 stack loader per 3 feeders, 1 line supervisor)Key feature: Camera vision system verifies correct card combination before bagging — zero wrong-combination packs

For a detailed case study of a similar game card line running 10 card types at 240 bags/min, see: Game Card Packaging Line Case Study

Section 8: Compliance and Certification for Card Packaging Lines

Card packaging lines sold into North American and European markets must meet specific compliance requirements:

All JEWSHIN machines are CE-certified as standard. UL/CSA/RCM certification is available on request for North American and Australian customers.

For a complete guide to packaging machine compliance requirements across all major markets, see: Meeting FDA, CE, and GMP Standards: A Packaging Machine Compliance Guide

Frequently Asked Questions (FAQ)

Q: What is the minimum order volume that justifies an automated card packaging line?

A: As a general rule, automated card packaging becomes cost-justified when you're packaging more than 5,000 packs per day on a sustained basis. Below that volume, semi-automatic or manual packaging may be more economical. Above 20,000 packs/day, the ROI on full automation is typically very strong — payback periods of 12–24 months are common. Use our Packaging Automation ROI Calculator to calculate the specific payback period for your volume and labor cost.

Q: Our cards have a high-gloss UV coating. Will the feeder scratch the surface?

A: High-gloss UV-coated cards are one of the most common applications we handle. The JX-100 and JX-200 feeders use rubber separation rollers with controlled contact pressure — not metal-on-card contact. The infeed guides on JEWSHIN bagging machines use PTFE-coated surfaces. In our experience, surface marking from the machine is not an issue when the machine is correctly set up. The more common source of surface marking on UV-coated cards is card-on-card friction during stack loading — which is addressed by the ionizing static control system that prevents cards from sticking and sliding against each other.

Q: Can your line handle both single-card packs and multi-card sets on the same machine?

A: Yes. The JX-L300 and JX30-35 handle both single-card and multi-card pack configurations — the difference is in the feeder configuration and the count setting in the HMI. For a single-card pack, the feeder feeds one card per cycle. For a 10-card pack, the feeder feeds 10 cards per cycle (counted by the optical sensor) before releasing the stack to the bagging machine. Changeover between single-card and multi-card configurations is a parameter change on the HMI — no mechanical changeover required.

Q: We need to package cards with an instruction leaflet and a small accessory (e.g., a sticker sheet). Can your line handle mixed-content packs?

A: Yes — this is a common requirement for game card sets, educational card sets, and promotional card products. The solution is a multi-station infeed: the card feeder, leaflet feeder, and accessory inserter each feed their component onto the collation conveyor in sequence, and the complete set enters the bagging machine together. JEWSHIN designs multi-station infeed configurations for up to 8 different components per pack. Contact our engineering team with your complete pack contents list and we'll design the appropriate infeed configuration.

Q: What is the lead time for a complete card packaging line from JEWSHIN?

A: Standard single-machine orders (JX-L300, JX30-35, JX-200 feeder) have a lead time of 25–35 days. Complete integrated line configurations (feeder + bagging machine + checkweigher + cartoner) have a lead time of 45–60 days. Custom configurations (vision systems, multi-station collators, special format ranges) are 60–90 days. All lead times are from order confirmation and deposit receipt. We recommend initiating the engineering discussion 3–4 months before your required production start date to allow time for specification finalization, production, FAT (Factory Acceptance Testing), and shipping.

Q: Does JEWSHIN offer OEM supply of card packaging machines for distributors?

A: Yes. JEWSHIN is an established OEM supplier to packaging machine distributors in North America, Europe, Australia, and Southeast Asia. OEM supply includes custom branding, modified specifications for specific market requirements, and co-developed configurations for specialty card applications. Our OEM partners typically receive: factory training, full technical documentation in English, spare parts kits, and ongoing engineering support. Contact Wendy Liu at wendy@jewshin.com to discuss OEM partnership terms

Summary: The Card Packaging Line Design Checklist

Use this checklist when designing or evaluating a card packaging line:

Product Characterization

• Complete SKU matrix (dimensions, thickness, count, surface finish, annual volume)

• Static risk assessment for each SKU

• Required output speed calculation (with OEE buffer)

Machine Specification

• Feeder type selected (friction / suction / rotary) based on card material and speed

• Feeder count accuracy method specified (optical sensor minimum)

• Bagging machine model selected based on bag size range and speed

• Film type and width range confirmed for all SKUs

• Downstream QC specified (checkweigher, vision, or both)

• End-of-line configuration matched to distribution channel

Line Integration

• Speed matching verified (all machines rated at 110%+ of target line speed)

• PLC line control specified for fault propagation and speed matching

• Physical layout reviewed for operator access and changeover ergonomics

Multi-SKU Flexibility

• Parameter recipes created for all SKUs and stored in HMI

• Changeover procedure documented for each SKU transition

• Film roll inventory planned for all film widths required

Compliance

• CE certification confirmed (EU/Australia)

• UL/CSA certification specified if required (North America)

• Film material compliance confirmed for target market

Get a Custom Line Design for Your Card Products

JEWSHIN's engineering team designs card and printed materials packaging lines from single machines to complete turnkey systems — with full integration, CE certification, and commissioning support.

To request a custom line design proposal, share:

• Your complete SKU list (product dimensions, cards per pack, annual volume)

• Target output speed

• Current packaging method (if any)

• Target market (for compliance requirements)

• Facility constraints (floor space, power supply, operator headcount)

We'll respond within 48 hours with a preliminary line configuration recommendation and quotation.

Email: wendy@jewshin.com WhatsApp: +86-13128136672

Submit your inquiry: www.jewshin.com

Related Reading:

• Shrink Wrap vs. Flow Wrap vs. Bagging: Which Method Is Right for Your Product? →

• Game Card Packaging Line Case Study: 10 Card Types at 240 Bags/Min →

• Packaging Line Changeover Guide: How to Cut Format Change Time by 80% →

• Packaging Automation ROI Calculator →

• Packaging Machine After-Sales Service Guide →

• Meeting FDA, CE, and GMP Standards: A Packaging Machine Compliance Guide →

• Explore JEWSHIN Industry Solutions →

About the Author: Wendy Liu is the CEO of Dongguan Jewshin Intelligent Machinery Co., Ltd., a manufacturer and global exporter of automated packaging machines and turnkey line solutions. JEWSHIN's founding team brings 15+ years of packaging machinery engineering experience, with 200+ machine models exported to 80+ countries across North America, Western Europe, Southeast Asia, the Middle East, South America, and Africa. Explore our full product range →
